US$ 252.00

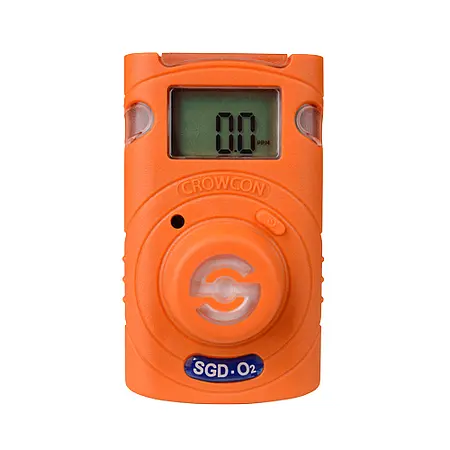

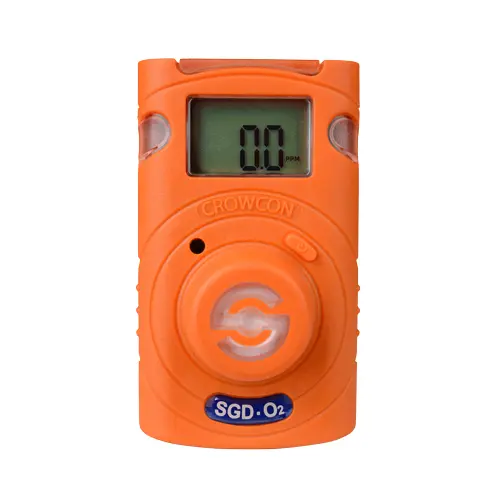

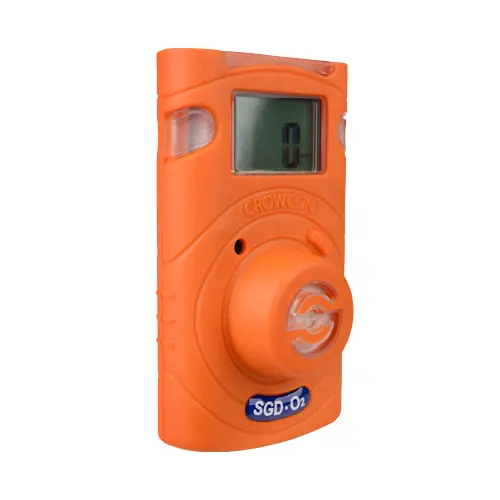

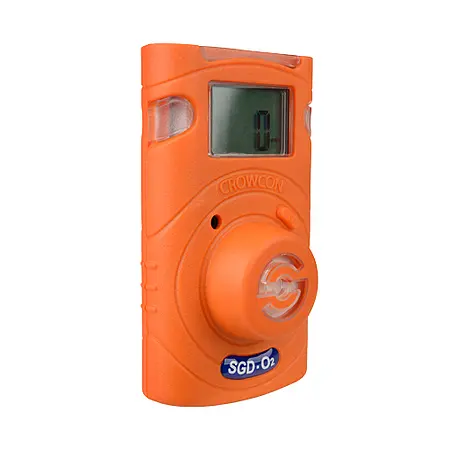

Measuring ranges and alarm level of Gas Leak Detector Crowcon Clip | |||
Gas | Measuring range sensor | Alarm1 | Alarm 2 |
H2S | 0 ... 100 ppm | 5ppm | 10 ppm |
CO | 0 ... 300 ppm | 30ppm | 100 ppm |
O2 | 0 ... 30 % Vol. | 19 % Vol. | 23.5 % Vol. |
Common technical data for the Gas Leak Detector Crowcon Clip/Clip+ | |||
Operation time | 24
months nonstop operation Clip 36 months with standby mode Clip+ if max. 4 minutes alarm duration daily | ||
Storage option | max. 1 year before first activation | ||
Display | LCD, Remaining life, gas level and further information | ||
Alarm
display optic acoustic haptic |
LED on top, bottom and sidewise 95 dB Vibration | ||
Self-test | every 2 hrs. after turn-on, constant battery monitoring | ||
Power Supply | internal battery | ||
Environmental
conditions H2S CO O2 |
-40 ... +50 °C / 5 ... 95 % r.h. non-condensing -40 ... +50 °C / 5 ... 95 % r.h. non-condensing -35 ... +50 °C / 5 ... 95 % r.h. non-condensing | ||
Dimensions | 81 x 50 x 28 mm | ||
Weight | 76 g | ||
Protection type | IP 66/ IP 67 | ||
Compliance | EMC- guideline 89/336/EWG | ||
Certification | UL-913
& CSA-C22.2 Nr.157 Class 1 Div. 1 and 2, Group A, B, C, D ATEX II 1G Ex ia IIC T4 Ga IECEx Ex ia IIC T4 |
