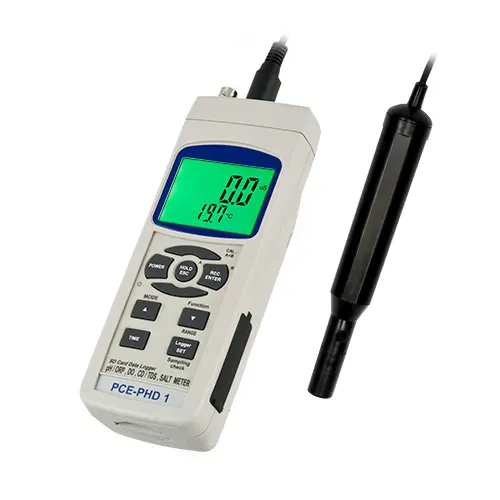

PCE-PHD 1-O2 Dissolved Oxygen Meter is a portable, easy-to-use measuring device with multiple capabilities for inspecting water quality. Offering extraordinary precision at an affordable price, the Dissolved Oxygen Meter is used for laboratory and in situ testing of the pH value, redox, conductivity, salt content, oxygen level and temperature of water.
Temperature compensation guarantee a high level of accuracy even with variable temperature measurements. PCE-PHD 1-O2 is supplied with an oxygen electrode. Additional electrodes are available for purchase separately, as is an optional mains adapter for power and a software kit with an RS-232 cable. PCE-PHD 1-O2 acts as a real-time data logger. All values can be stored directly on the included SD card in Microsoft Excel format or transferred to a PC by means of the RS-232 port. Thus, no additional software is required for evaluation of the data.
Oxygen | |||
Measurement range | 0 ... 20 mg/l (in water) 0 ... 100 % (in air) 0 ... 50 °C |
||
Resolution | 0.1 mg/l 0.1 % 0.1 °C |
||
Accuracy |
|
||
Calibration | in the air |
||
Temperature compensation | Automatic (0 ... 50 ºC / 32 ºF ... 122 ºF) | ||
General specifications | |||
Measurement rate | 1 second up to 8 hrs 59 mins 59 secs |
||
Display | LCD 52 x 38 mm / 2 x 1.5" |
||
Memory | SD card up to 16 GB (2 GB card included) | ||

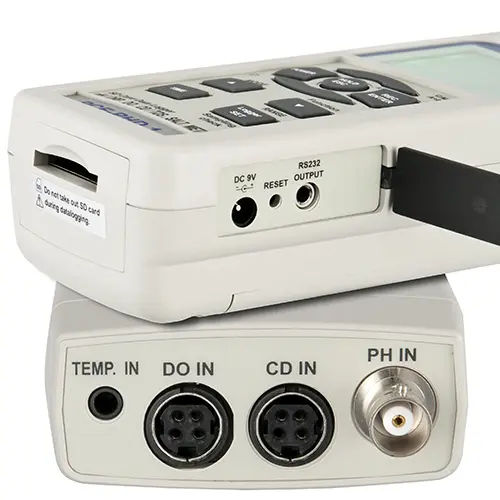

Interface | RS-232 | ||
Software | Optional | ||
Power supply | 6 x 1.5 V AA batteries (optional power adapter) | ||
Operating conditions | 0 ... +50 ºC / < 85 % RH | ||
Dimensions | 177 x 68 x 45 mm / 7.0 x 2.7 x 1.8" | ||
Weight | 490 g / 1.1 lbs | ||
