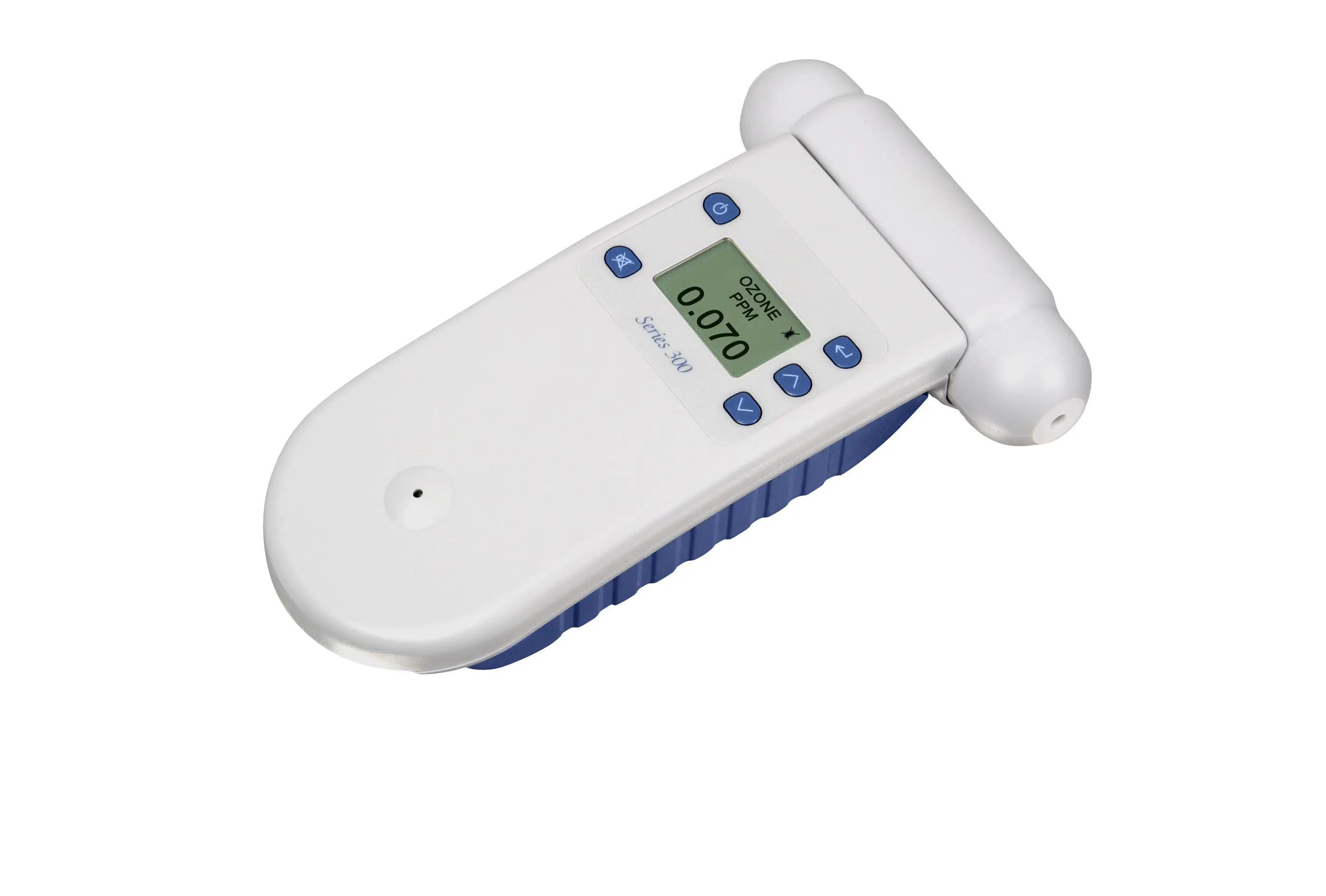

Ozone Meter AQ-300

Order no.: AQ-300

GTIN (EAN):

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Accessory

AQ-NH / ammonia (NH3)

US$ 735.00

AQ-EOZH / ozone (O3)

US$ 1,201.00

AQ-END / nitrogen dioxide (NO2)

US$ 1,201.00

AQ-CO / carbon monoxide (CO)

US$ 735.00

AQ-VP / VOC

US$ 795.00

AQ-VN / NMHC

US$ 735.00

AQ-VM / VOC

US$ 795.00

Temperature and humidity sensor AQ-TRH for the Ozone Tester

US$ 270.00

Wall mount for the Ozone Tester

US$ 96.00

Cigarette lighter adapter for ozone tester

US$ 109.00

Remote Kit housing AQ-R13

US$ 896.00

Sensor Remote Kit for ozone tester

US$ 459.00

Carrying case for the ozone tester

US$ 226.00

AQ-R36 replacement battery for the Ozone Tester

US$ 206.00

AQ-PE / perchlorethylene (C2CL4)

US$ 795.00

AQ-MT / methane (CH4)

US$ 735.00

AQ-OZU / Ozone (O3)

US$ 795.00

AQ-OZL / Ozone (O3)

US$ 735.00

AQ-HA / hydrogen (H2)

US$ 735.00

AQ-ENG / ammonia (NH3)

US$ 1,201.00

AQ-EHT / hydrogen sulphide (H2S)

US$ 735.00

AQ-EHS / hydrogen sulphide (H2S)

US$ 735.00

AQ-EF / formaldehyde (CH2O)

US$ 1,201.00

AQ-ECN / carbon monoxide (CO)

US$ 735.00

AQ-ECM / carbon monoxide (CO)

US$ 735.00

AQ-ECL / chlorine (CL2)

US$ 1,201.00

AQ ESP / sulfur dioxide (SO2)

US$ 735.00

AQ-ESO / sulfur dioxide (SO2)

US$ 735.00

AQ EOZ / ozone (O3)

US$ 735.00

AQ-CE / carbon dioxide (CO2)

US$ 1,382.00

AQ-CD / carbon dioxide (CO2)

US$ 1,382.00

AQ-VOCH PID Sensor 0-2000 ppm

US$ 2,697.00

AQ-VOC PID Sensor 0-30 ppm

US$ 2,697.00

Fixed Gas Detector Base AQ-FM S900

US$ 492.00

Description

Ozone meter for measurement of ozone / Many different sensors available /
Broad range of application / Replaceable sensor head / Alarm function / Optional sensor for temperature and humidity

The Ozone Meter AQ-300 is a highly accurate instrument for measuring ozone concentrations in the air. The Ozone Meter can be equipped with four different heads that vary in their measurement range. Furthermore, the ozone tester has sensor heads for other gases available, which are automatically recognized when plugged into the device. Thus, you can use the ozone tester in many different areas. The possibilities of the ozone tester extend the use of ozone in your processes for bleaching oils, greases, wax, paper, synthetic fibers, cellulose or textiles,within the paper, textile, or lubricant production industries. Another field of application for the Ozone Meter is in cleaning, disinfection and sterilisation of swimming pools, water treatment facilities or after fire damage or water damage. With a head for lower measurements of up to 0.150 ppm, you can measure ozone concentrations that have a negative effect on the mental state of humans. Thanks to the leading GSS technology of the sensors, the Ozone Meter is not only high precision, it also has a long lifespan. The unique possibility to refresh the sensors makes their maintenance more economical than the maintenance of other types of sensors. Depending on the model, the measured concentrations may be written to the internal memory of the Ozone Meter via an analog interface with a 0 ... 5 V output, or the output is transferred via a USB interface to a PC. Similarly, a remote kit is available as an option, allowing the Ozone Meter to take measurements in a secure room while the sensor is connected via cable to the Ozone Meter. Through simplicity of operation the alarm thresholds for the optical or acoustic signal can be changed in a very short time. In addition to the measured concentrations in the LCD display, which are displayed in ppm or mg / m³, the high and low alarms are shown.

Attention! No sensor head is included in the delivery, it must be ordered separately as an accessory!

Highlights

- High accuracy and functionality
- Easy to operate and maintain
- Fast response time
- Interchangeable sensor heads
- LCD display
- Battery operation
- Alarm function
- Sensor calibration function
- Max. / Min. / Average function
- Analog output

Specification

Technical Specification of the Ozone Meter
Model 300 Series
As Model 200 Series, in addition:
Alarm function			"High", "Low", Mute
Alarm output			Transistor output, 150-mA max
Low Alarm, High Alarm & Control
Analog output			0... 5V
Location ID			Storage of the measuring location
Model 200, 300 and 500 Series
Power supply			12V DC
Rechargeable battery			Lithium-Polymer 12V DC / 2700 mAh
Charger			12.6V 2 A
Charging voltage			12.6V
Charging time			2... 3 hours
Lifecycle			> 500 charges
Housing			PC & ABS / IP20 & NEMA 1
Dimensions (incl. opt. sensorsavailable)			7.7 x 4.8 x 2.1 in / 195 x 122 x 54 mm
Weight			< 1 lb / 460 g (with battery)
Approvals			EN 50082-1: 1997, EN 50081-1: 1992, CE
Optional accessories for the gas detector: Sensors:
Gas Code	Meas. (ppm)	Min. (ppm)	Meas. (ppm)	Resolution. (ppm)	Temp. °C/ humidity. %
GSS sensors (semiconductor sensors):
Ozone (O3) OZU	0 ... 0.15	0.001	< ±0.005 %	0.001	0 ... +40 10 ... 90
Ozone (O3) OZL	0 ... 0.5	0.001	< ±0.008 0 ... 0.1	0.001	0 ... +40 10 ... 90
Ozone (O3) OZG	0 ... 10	0.01	< ±0.1 0...1	0.01	0 ... +40 10 ... 90
Hydrogen (H2) HA	0 ... 5000	5	< ±10 %	1	0 ... +40 10 ... 90
Chlorine (CL2) ECL	0 ... 10	0.1	< ±10 %	0.01	0 ... +40 10 ... 90
Ozone (O3) Leakage finder OZK		0.01		0.01	0 ... +40 10 ... 90
Methane (CH4) MT	0 ... 10,000	10	< ±15 %	1	0 ... +40 10 ... 90
NMHC VN	0 ... 25	0.1	< ±10 % 0.1 ... 25	0.1	0 ... +40 10 ... 90
Tetrachlorethylene (C2CL4) PE	0 ... 200	1	< ±5 0 ... 50	1	0 ... +40 10 ... 90
(VOC) VM	0 ... 25	0.1	±10 %	0.1	0 ... +40 10 ... 90
(VOC) VP	0 ... 500	1	±10 %	1	0 ... +40 10 ... 90
GSE sensors (electrochemical sensors):
Ammonia (NH3) ENG	0 ... 100	0.2	±10 %	0.1	0 ... +40 10 ... 90
Carbon monoxide (CO) ECN	0 ... 100	0.1	< ±1 0... 10	0.1	0 ... +40 10 ... 90
Carbon monoxide (CO) ECM	0 ... 25	0.02	< ±0.5 0 ... 5	0.01	0 ... +40 10 ... 90
Formaldehyde (CH2O) EF	0 ... 10	0.01	< ±0.05 0 ... 0.5	0.01	0 ... +40 10 ... 90
Sulfur- hydrogen (H2S) EHS	0 ... 10	0.01	< ±0.05 0 ...0.5	0.01	0 ... +40 10 ... 90
Sulfur- hydrogen (H2S) EHT	0 ... 100	0.2	< ±0.5 0 ... 5	0.1	0 ... +40 10 ... 90
Nitrogen dioxide (NO2) ENW	0 ... 1	0.002	< ±0.02 0 ... 0.1	0.001	0 ... +40 10 ... 90
Sulfur dioxide (SO2) ESO	0 ... 10	0.01	< ±0.05 0 ... 0.5	0.01	0 ... +40 10 ... 90
Sulfur dioxide (SO2) ESP	0 ... 100	0.2	< ±0.05 0 ... 0.5	0.1	0 ... +40 10 ... 90
NDIR sensors (infrared sensors):
Carbon dioxide (CO2) CD	0 ... 2000	2	< ±5 % (of the display)	1	0 ... +40 10 ... 90
Carbon dioxide (CO2) CE	0 ... 5000	5	<± 5 % (of the display)	1	0 ... +40 10 ... 90
Carbon dioxide (CO2) CF	0 ... 5 %	0.02 %	<± 5 % (of the display)	0.01 %	0 ... +40 10 ... 90
PID sensors (photoionization detector sensors):
VOC PDL	0 ... 20	0.01	< ±10 %	0.01	0 ... +40 10 ... 90
VOC PDH	0 ... 1000	0.2	< ±10 %	0.1	0 ... +40 10 ... 90
Combi sensors:
CO2 CO PID Code: MS2	0 ... 2000 0 ... 100 0 ... 25	2 0.1 0.01	±40 + 3 % ±10 % 1 ...100 ±10 % of result	1 0.1 0.01	0 ... +40 10 ... 90
CO2 CO Code: MS1	0 ... 2000 0 ... 100	2 0.1	±40 + 3 % ±10 % 1 ...100	1 0.1	0 ... +40 10 ... 90

Delivery Scope

1 x Basic device AQ-300
1 x 12V DC 800-mA AC/DC Power Supply Unit
1 x Battery pack 12V
1 x Operating instructions

Attention! No sensor head is included in the delivery, it must be ordered separately as an accessory!

Optional accessories for ozonemeter AQ series:

Sensors:

Gas
CodeMeasuring range (ppm)Min.
(ppm)Accuracy
(ppm)Resolution
(ppm)Temp. °C/ Humid. %

GSS-Sensors (semiconductors sensors):

Ozone
(O3) OZU0 ... 0.150.001< ±0.005 %0.0010 ... +40
10 ... 90

Ozone
(O3) OZL0 ... 0.50.001

< ±0.008

0 ... 0.1

0.0010 ... +40
10 ... 90

Ozone
(O3) EOZ0 ... 100.01 < ±0.1
0...1 0.010 ... +40
10 ... 90

Hydrogen
(H2) HA0 ... 50005< ±10 %10 ... +40
10 ... 90

Chlorine
(CL2) ECL0 ... 100.1< ±10 %0.010 ... +40
10 ... 90

Ozone (O3)

Leckfin. OZK

0.010.010 ... +40
10 ... 90

Methane
(CH4) MT0 ... 10,00010< ±15 %10 ... +40
10 ... 90

NMHC
VN0 ... 250.1< ±10 %
0.1 ... 25 0.10 ... +40
10 ... 90

Tetrachlorethylene
(C2CL4) PE0 ... 2001< ±5
0 ... 5010 ... +40
10 ... 90

(VOC)
VM0 ... 250.1±10 %0.10 ... +40
10 ... 90

(VOC)
VP0 ... 5001±10 %10 ... +40
10 ... 90

GSE-Sensors (electrochemical sensors):

Ammonia
(NH3) ENG0 ... 1000.2±10 %0.10 ... +40
10 ... 90

Carbon monoxide (CO) ECN0 ... 1000.1< ±1
0... 100.10 ... +40
10 ... 90

Carbon monoxide
(CO) ECM0 ... 250.02< ±0.5
0 ... 50.010 ... +40
10 ... 90

Formaldehyde
(CH2O) EF0 ... 100.01< ±0.05
0 ... 0.50.010 ... +40
10 ... 90

Hydrogen sulfide (H2S) EHS0 ... 100.01< ±0.05
0 ...0.50.010 ... +40
10 ... 90

Hydrogen sulfide (H2S) EHT0 ... 1000.2< ±0.5
0 ... 50.10 ... +40
10 ... 90

Nitrogen dioxide (NO2) ENW0 ... 10.002< ±0.02
0 ... 0.10.0010 ... +40
10 ... 90

Sulfur dioxide (SO2) ESO0 ... 100.01< ±0.05
0 ... 0.50.010 ... +40
10 ... 90

Sulfur dioxide (SO2) ESP0 ... 1000.2< ±0.05
0 ... 0.50.10 ... +40
10 ... 90

NDIR-Sensors (infrared sensors):

Carbon dioxide (CO2) CD0 ... 20002< ±5 %
(the display)10 ... +40
10 ... 90

Carbon dioxide (CO2) CE0 ... 50005<± 5 %
(the display)10 ... +40
10 ... 90

Carbon dioxide
(CO2) CF0 ... 5 %0.02 %<± 5 %
(the display)0.01 %0 ... +40
10 ... 90

PID-Sensors (photoionization detector sensors):

VOC
PDL0 ... 200.01< ±10 %0.010 ... +40
10 ... 90

VOC
PDH0 ... 10000.2< ±10 %0.10 ... +40
10 ... 90

Combined Sensors:

CO2
CO
PID
Code: MS20 ... 2000
0 ... 100
0 ... 252
0.1
0.01±40 + 3 %
±10 % 1 ...100
±10 % des Erg.1
0.1
0.010 ... +40
10 ... 90

CO2
CO
Code: MS10 ... 2000
0 ... 1002
0.1±40 + 3 %
±10 % 1 ...1001
0.10 ... +40
10 ... 90
