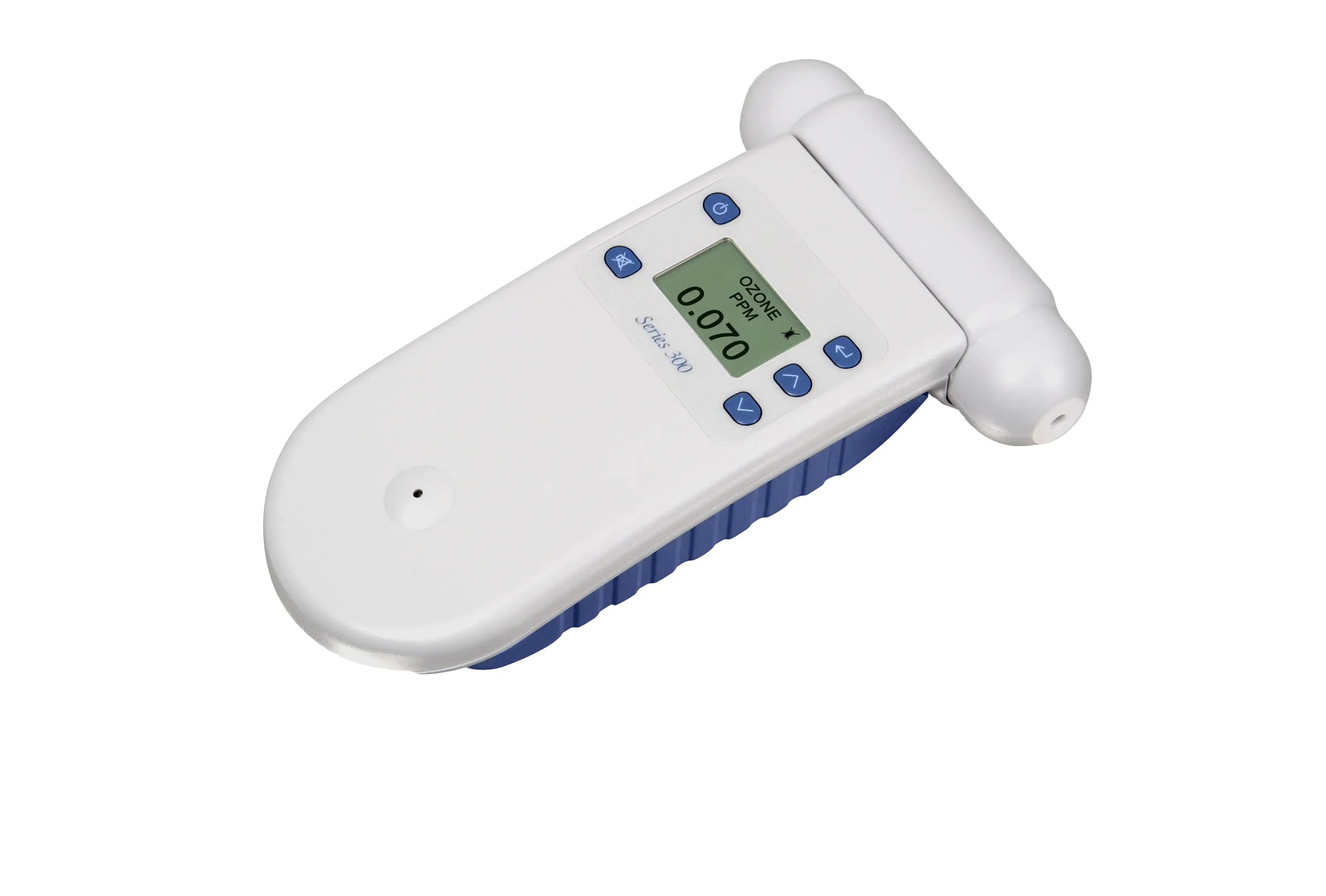

Ozone Meter AQ-300 Set OZU

Order no.: AQ-300 Set OZU
GTIN (EAN):
US$ 2,142.00
ex. VAT, ex. delivery costs
AQ-300 Set OZU
Available in: 10 - 14 days
Air

Accessory

AQ-NH / ammonia (NH3)
AQ-NH / ammonia (NH3)
US$ 735.00
AQ-EOZH / ozone (O3)
AQ-EOZH / ozone (O3)
US$ 1,201.00
AQ-END / nitrogen dioxide (NO2)
AQ-END / nitrogen dioxide (NO2)
US$ 1,201.00
AQ-CO / carbon monoxide (CO)
AQ-CO / carbon monoxide (CO)
US$ 735.00
AQ-VP / VOC
AQ-VP / VOC
US$ 795.00
AQ-VN / NMHC
AQ-VN / NMHC
US$ 735.00
AQ-VM / VOC
AQ-VM / VOC
US$ 795.00
Temperature and humidity sensor AQ-TRH for the Ozone Tester
Temperature and humidity sensor AQ-TRH for the Ozone Tester
US$ 270.00
Carrying case for the ozone tester
Carrying case for the ozone tester
US$ 226.00
AQ-R36 replacement battery for the Ozone Tester
AQ-R36 replacement battery for the Ozone Tester
US$ 206.00
Wall mount for the Ozone Tester
Wall mount for the Ozone Tester
US$ 96.00
Cigarette lighter adapter for ozone tester
Cigarette lighter adapter for ozone tester
US$ 109.00
Remote Kit housing AQ-R13
Remote Kit housing AQ-R13
US$ 896.00
Sensor Remote Kit for ozone tester
Sensor Remote Kit for ozone tester
US$ 459.00
AQ-PE / perchlorethylene (C2CL4)
AQ-PE / perchlorethylene (C2CL4)
US$ 795.00
AQ-MT / methane (CH4)
AQ-MT / methane (CH4)
US$ 735.00
AQ-OZU / Ozone (O3)
AQ-OZU / Ozone (O3)
US$ 795.00
AQ-OZL / Ozone (O3)
AQ-OZL / Ozone (O3)
US$ 735.00
AQ-HA / hydrogen (H2)
AQ-HA / hydrogen (H2)
US$ 735.00
AQ-EHT / hydrogen sulphide (H2S)
AQ-EHT / hydrogen sulphide (H2S)
US$ 735.00
AQ-EHS / hydrogen sulphide (H2S)
AQ-EHS / hydrogen sulphide (H2S)
US$ 735.00
AQ-EF / formaldehyde (CH2O)
AQ-EF / formaldehyde (CH2O)
US$ 1,201.00
AQ-ECN / carbon monoxide (CO)
AQ-ECN / carbon monoxide (CO)
US$ 735.00
AQ-ECM / carbon monoxide (CO)
AQ-ECM / carbon monoxide (CO)
US$ 735.00
AQ-ECL / chlorine (CL2)
AQ-ECL / chlorine (CL2)
US$ 1,201.00
AQ ESP / sulfur dioxide (SO2)
AQ ESP / sulfur dioxide (SO2)
US$ 735.00
AQ-ESO / sulfur dioxide (SO2)
AQ-ESO / sulfur dioxide (SO2)
US$ 735.00
AQ EOZ / Ozone (O3)
AQ EOZ / ozone (O3)
US$ 735.00
AQ-ENG / ammonia (NH3)
AQ-ENG / ammonia (NH3)
US$ 1,201.00
AQ-CE / carbon dioxide (CO2)
AQ-CE / carbon dioxide (CO2)
US$ 1,382.00
AQ-CD / carbon dioxide (CO2)
AQ-CD / carbon dioxide (CO2)
US$ 1,382.00
AQ-VOCH PID Sensor 0-2000 ppm
AQ-VOCH PID Sensor 0-2000 ppm
US$ 2,697.00
AQ-VOC PID Sensor 0-30 ppm
AQ-VOC PID Sensor 0-30 ppm
US$ 2,697.00
Fixed Gas Detector Base AQ-FM S900
Fixed Gas Detector Base AQ-FM S900
US$ 492.00

Description

Ozone meter for measurement of ozone / Many different sensors available / Sensor OZU included /
Broad range of application / Replaceable sensor head / Alarm function / Optional sensor for temperature and humidity

The Ozone Meter AQ-300 is a highly accurate instrument for measuring ozone concentrations in the air. The Ozone Meter can be equipped with four different heads that vary in their measurement range. Furthermore, the ozone tester has sensor heads for other gases available, which are automatically recognized when plugged into the device. Thus, you can use the ozone tester in many different areas. The possibilities of the ozone tester extend the use of ozone in your processes for bleaching oils, greases, wax, paper, synthetic fibers, cellulose or textiles,within the paper, textile, or lubricant production industries. Another field of application for the Ozone Meter is in cleaning, disinfection and sterilisation of swimming pools, water treatment facilities or after fire damage or water damage. With a head for lower measurements of up to 0.150 ppm, you can measure ozone concentrations that have a negative effect on the mental state of humans. Thanks to the leading GSS technology of the sensors, the Ozone Meter is not only high precision, it also has a long lifespan. The unique possibility to refresh the sensors makes their maintenance more economical than the maintenance of other types of sensors. Depending on the model, the measured concentrations may be written to the internal memory of the Ozone Meter via an analog interface with a 0... 5 V output, or the output is transferred via a USB interface to a PC. Similarly, a remote kit is available as an option, allowing the Ozone Meter to take measurements in a secure room while the sensor is connected via cable to the Ozone Meter. Through simplicity of operation the alarm thresholds for the optical or acoustic signal can be changed in a very short time. In addition to the measured concentrations in the LCD display, which are displayed in ppm or mg / m³, the high and low alarms are shown.



Highlights

- High accuracy and functionality
- Easy to operate and maintain
- Fast response time
- Interchangeable sensor heads
- LCD display
- Battery operation
- Alarm function
- Sensor calibration function
- Max. / Min. / Average function
- Analog output

Specification

Technical Specification of the Gas Detector
Model 300 Series
As Model 200 Series, in addition:
Alarm function"High", "Low", Mute
Alarm outputTransistor output, 150-mA max
Low Alarm, High Alarm & Control
Analog output0... 5V
Location IDStorage of the measuring location
Model 200, 300 and 500 Series
Power supply12V DC
Rechargeable batteryLithium-Polymer 12V DC / 2700 mAh
Charger12.6V 2 A
Charging voltage12.6V
Charging time2... 3 hours
Lifecycle> 500 charges
HousingPC & ABS / IP20 & NEMA 1
Dimensions (incl. opt. sensorsavailable)7.7 x 4.8 x 2.1 in / 195 x 122 x 54 mm
Weight< 1 lb / 460 g (with battery)
ApprovalsEN 50082-1: 1997, EN 50081-1: 1992, CE

Optional accessories for the gas detector:

Sensors:

Gas
Code		Meas. (ppm)Min.
(ppm)		Meas.
(ppm)		Resolution.
(ppm)		Temp. °C/ humidity. %
GSS sensors (semiconductor sensors):
Ozone
(O3)  OZU		0 ... 0.150.001< ±0.005 %0.0010 ... +40
10 ... 90
Ozone
(O3) OZL
0 ... 0.50.001

< ±0.008

0 ... 0.1

0.0010 ... +40
10 ... 90
Ozone
(O3) OZG 		0 ... 100.01 < ±0.1
0...1 		0.010 ... +40
10 ... 90
Hydrogen
(H2) HA		0 ... 50005< ±10 %10 ... +40
10 ... 90
Chlorine
(CL2) ECL		0 ... 100.1< ±10 %0.010 ... +40
10 ... 90

Ozone (O3)

Leakage finder OZK


0.01
0.010 ... +40
10 ... 90
Methane
(CH4) MT		0 ... 10,00010< ±15 %10 ... +40
10 ... 90
NMHC
VN		0 ... 250.1< ±10 %
0.1 ... 25 		0.10 ... +40
10 ... 90
Tetrachlorethylene
(C2CL4) PE		0 ... 2001< ±5
0 ... 50		10 ... +40
10 ... 90
(VOC)
VM		0 ... 250.1±10 %0.10 ... +40
10 ... 90
(VOC)
VP		0 ... 5001±10 %10 ... +40
10 ... 90

GSE sensors (electrochemical sensors):
Ammonia
(NH3) ENG		0 ... 1000.2±10 %0.10 ... +40
10 ... 90
Carbon monoxide (CO) ECN0 ... 1000.1< ±1
0... 10		0.10 ... +40
10 ... 90
Carbon monoxide
(CO) ECM		0 ... 250.02< ±0.5
0 ... 5		0.010 ... +40
10 ... 90
Formaldehyde
(CH2O) EF		0 ... 100.01< ±0.05
0 ... 0.5		0.010 ... +40
10 ... 90
Sulfur-
hydrogen (H2S) EHS		0 ... 100.01< ±0.05
0 ...0.5		0.010 ... +40
10 ... 90
Sulfur-
hydrogen (H2S) EHT		0 ... 1000.2< ±0.5
0 ... 5		0.10 ... +40
10 ... 90
Nitrogen dioxide (NO2) ENW0 ... 10.002< ±0.02
0 ... 0.1		0.0010 ... +40
10 ... 90
Sulfur dioxide (SO2) ESO0 ... 100.01< ±0.05
0 ... 0.5		0.010 ... +40
10 ... 90
Sulfur dioxide (SO2) ESP0 ... 1000.2< ±0.05
0 ... 0.5		0.10 ... +40
10 ... 90

NDIR sensors (infrared sensors):
Carbon dioxide (CO2) CD0 ... 20002< ±5 %
(of the display)		10 ... +40
10 ... 90
Carbon dioxide (CO2) CE0 ... 50005<± 5 %
(of the display)		10 ... +40
10 ... 90
Carbon dioxide
(CO2) CF		0 ... 5 %0.02 %<± 5 %
(of the display)		0.01 %0 ... +40
10 ... 90

PID sensors (photoionization detector sensors):
VOC
PDL		0 ... 200.01< ±10 %0.010 ... +40
10 ... 90
VOC
PDH		0 ... 10000.2< ±10 %0.10 ... +40
10 ... 90

Combi sensors:
CO2
CO
PID
Code: MS2		0 ... 2000
0 ... 100
0 ... 25		2
0.1
0.01		±40  + 3 %
±10 % 1 ...100
±10 % of result		1
0.1
0.01		0 ... +40
10 ... 90
CO2
CO
Code: MS1		0 ... 2000
0 ... 100		2
0.1		±40  + 3 %
±10 % 1 ...100		1
0.1		0 ... +40
10 ... 90

Delivery Scope

1 x Basic device AQ-300
1 x Sensor head OZU (Ozone 0-0.15 ppm)
1 x 12V DC 800-mA AC/DC Power Supply Unit
1 x Battery pack 12V
1 x Operating instructions.
