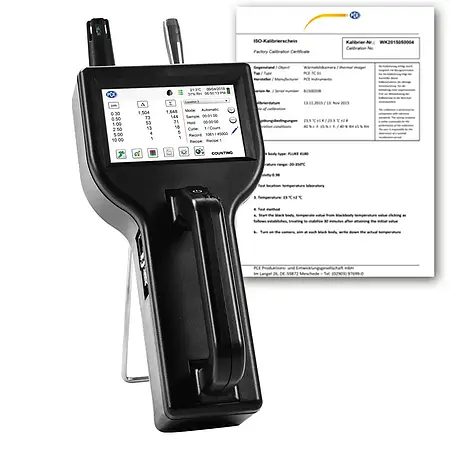

Particle counter PCE-PQC 1xUS series incl. calibration
certificate
Measurement of particle sizes up to 25 μm / Up to 6 parallel measuring channels
/ 45,000 record internal memory / Reporting according to ISO 14644-1, EU GMP
Annex I, FS 209E / Extrapolation of the mass concentration in μg / m³ /
Ethernet, USB or (optional) Wifi connection
The particle counters of the PCE-PQC 1xUS series measure the
concentration of particles such as dust, soot, pollens, and many other aerosols
in the air. These particle counters were developed to accurately determine the
degree of pollution of the air. Pollution is mainly generated by combustion,
material processing, manufacturing, power generation, vehicle engine emissions
and the construction industry and may be invisible to the eye.
The PCE-PQC 1xUS series particle counters allows the user to measure the exact amount of dirt particles in the air. Secondarily important is the degree of air pollution with pathogenic particles such as soot, which are released by heavy industry and especially by diesel vehicles without special filtering of the air. These dispersion particles are responsible for many respiratory issues, shortness of breath, bronchitis, asthma, stroke, heart attack and thus reduced labor productivity. The particle counters of the PCE-PQC 1xUS series operate in different modes (real-time, cumulative, differential, and mass concentration) and display the results on the display with the ability to graph trends and save data remotely

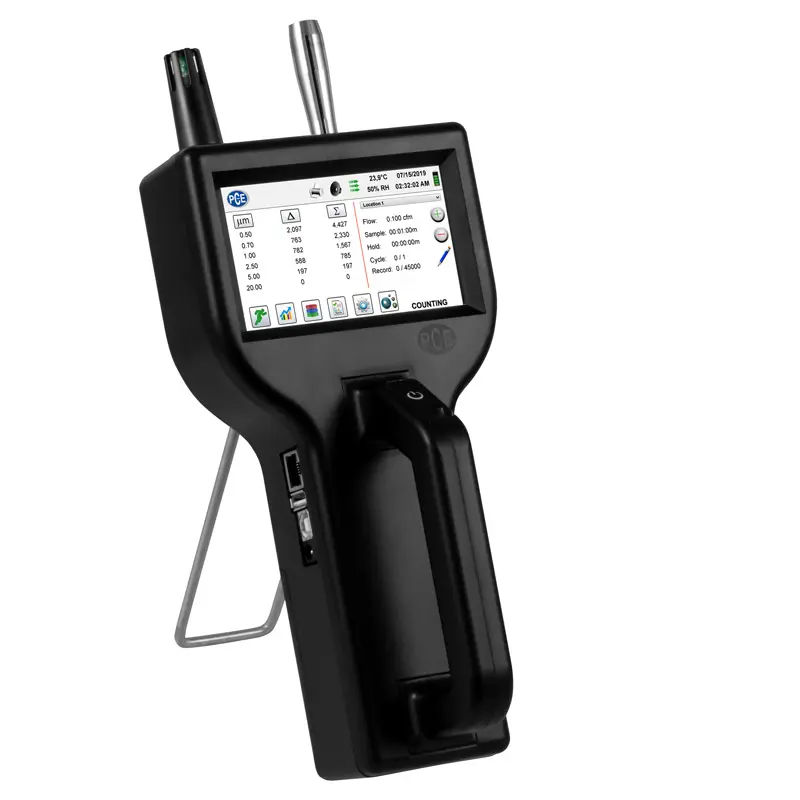

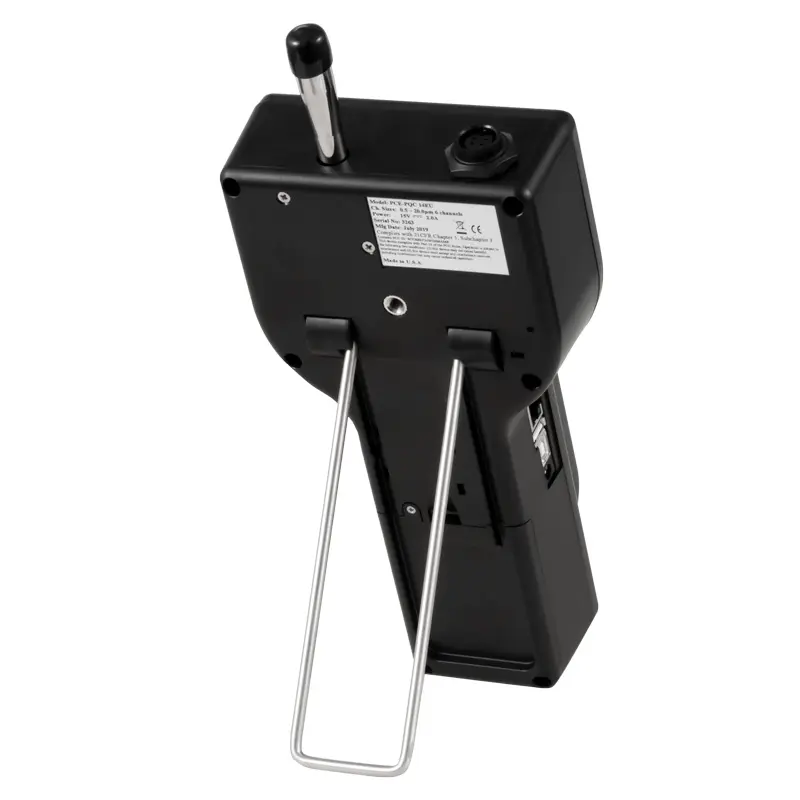

- Handheld, portable, light weight with kick
stand
- Battery life >10 hours with continuous operation / Battery life >8 days
in sleep mode
- Internal memory up to 45,000 records
- Particle sizes up to 25 μm

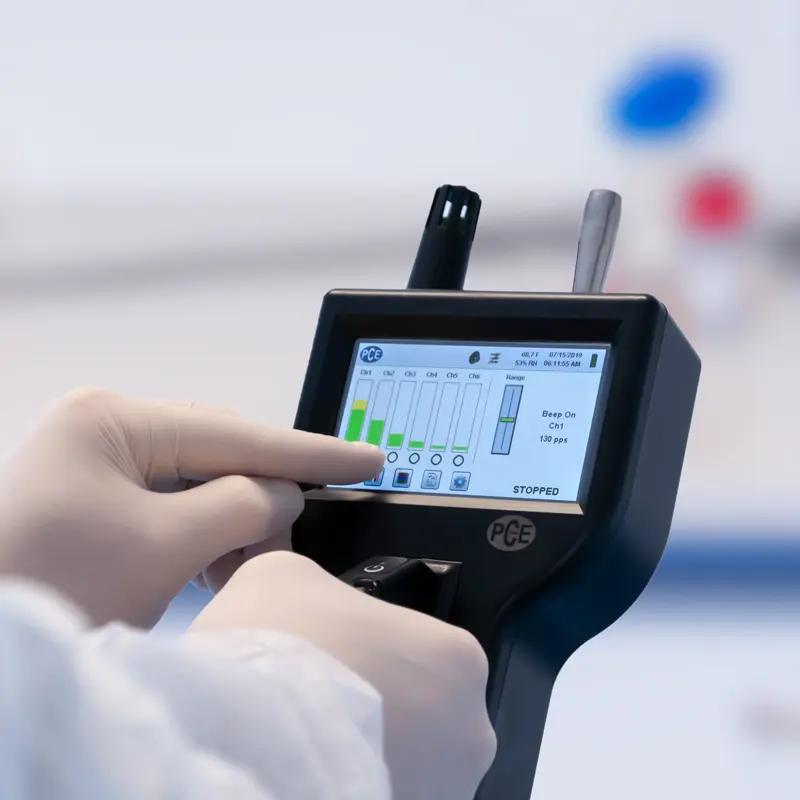

- Color display with touch screen
- 6 measuring channels, upper 2 channels can be
adjusted
- ISO 14644-1, EU GMP Annex I, FS 209E

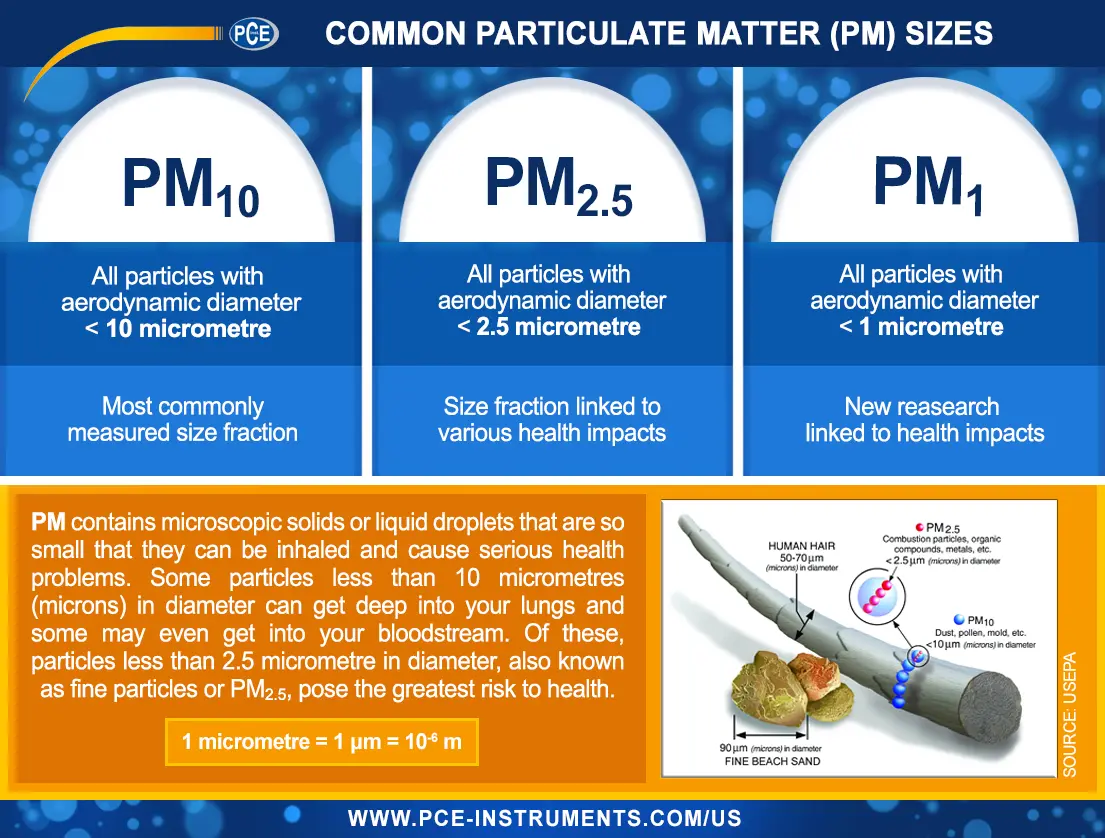

- Mass concentration mode (adjustable: PM 2.5 and PM 10 e.g.)

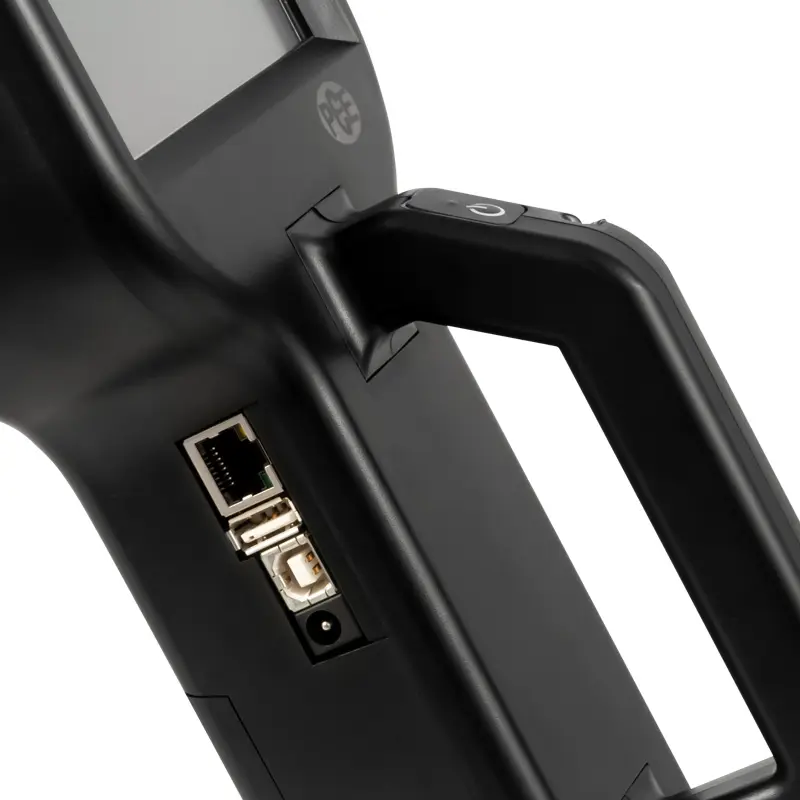

- Ethernet, USB, PC software included, and WiFi
Optional

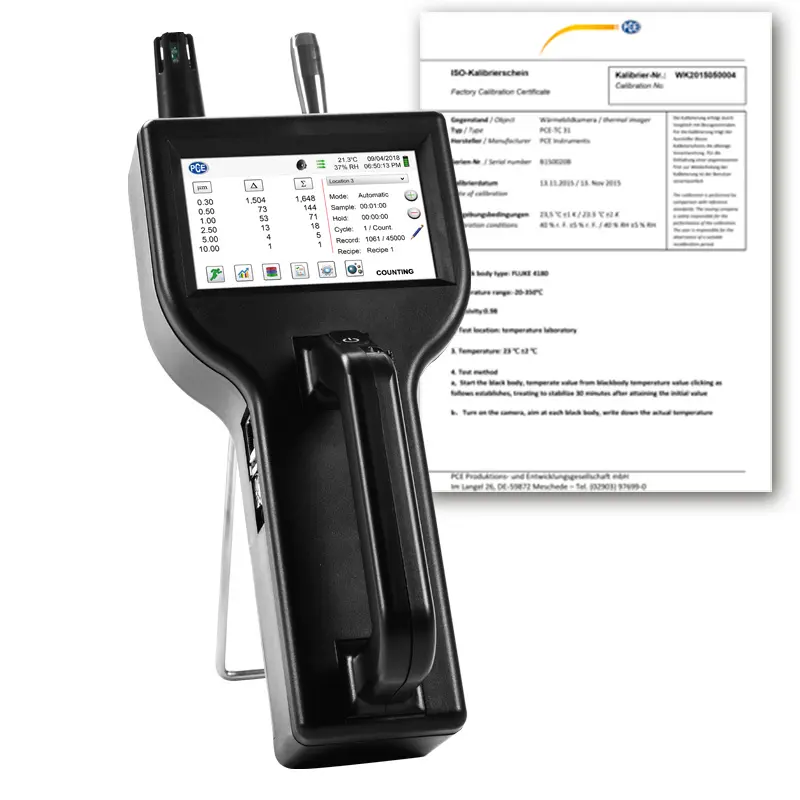

- Incl. calibration certificate
traceable to NIST ISO 21501-4
| Measuring range | 0.5 ... 25 μm |
| Measuring channel sizes | Factory calibrated at 0.5, 0.7, 1.0, 3.0, 5.0, 10.0 μm |
| Counting efficiency | 50% at 0.5 μm 100% at > 0.75 μm according to JIS |
| Flow | 2.83 l / min (0.1 ft3 / min) |
| Random loss | 5% at 4,000,000 particles / ft³ |
| Battery | 10 h |
| Light source | Long-life laser diode |
| Zero count | < 1 count / 5 min (< 2 particles / ft³) |
| According to ISO 21501-4 and JIS | |
| Counting modes | Automatic, manual, real-time, cumulative / |
| Differential, mass concentration | |
| Alarms | 1 ... 9999999 counts, adjustable |
| Calibration | Traceable to NIST |
| Display | 4.3 "WQVGA color touch display, 480x272 px |
| Printer | External thermal printer |
| Aspiration | Internal pump with automatic |
| Flow control | |
| Air outlet | Internal HEPA filter |
| Battery pack | Replaceable Li-Ion battery |
| Charging time | About 4 hours |
| Reports | ISO 14644-1 |
| EU GMP Annex 1 | |
| FS 209E | |
| Configuration | Memory for 50 custom configurations |
| Standards | ISO 21501-4 and JIS B9921 |
| Dimensions | 25.4 x 12.9 x 11.4 cm |
| Weight | 1.0 kg |
| Storage | 45000 data sets (ring memory) consisting of |
| Particle count, temp and humidity, locations and times | |
| Sample locations | Up to 1000 locations can be stored |
| Samples duration | 1 s ... 99 h adjustable |
| Power supply | 110 ... 240V AC 50/60 Hz |
| Operating conditions | 5 ... 40°C / 41 ... 104°F |
| Up to 95% RH not condensing | |
| Storage conditions | 0 ... 50°C / 32 ... 122°F |
| Up to 98% RH not condensing | |
| Interface | USB |
| Optional interfaces | Ethernet, WiFi 802.11 b / g, RS485 or RS232 |
| Number of measuring channels | 6 |
