Food pH-electrode CPC-OSH-12-01

Order no.: CPC-OSH-12-01
GTIN (EAN):
US$ 275.00
ex. VAT, ex. delivery costs
CPC-OSH-12-01
Available in: 5-7 working days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

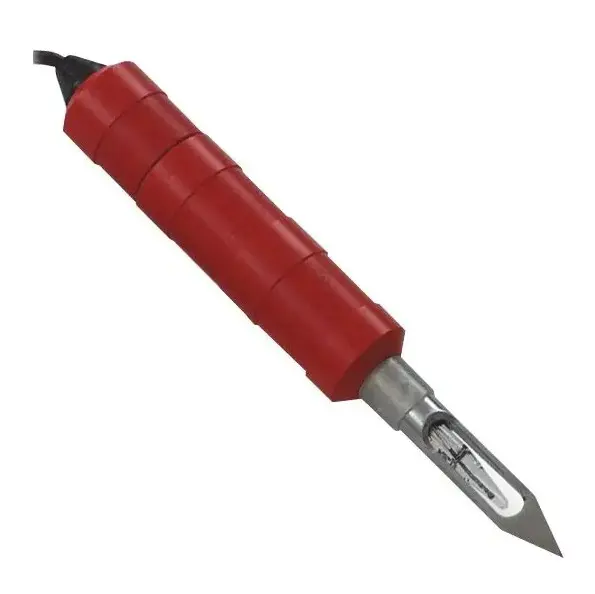

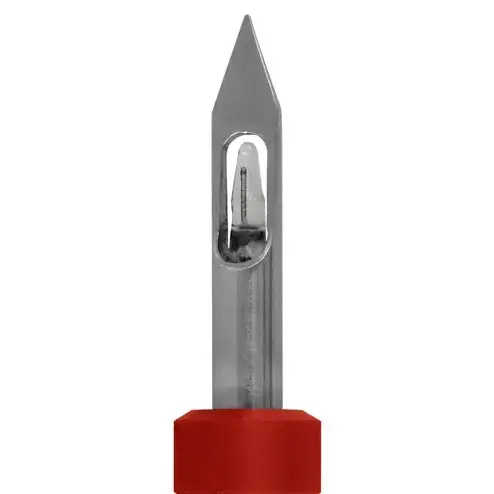

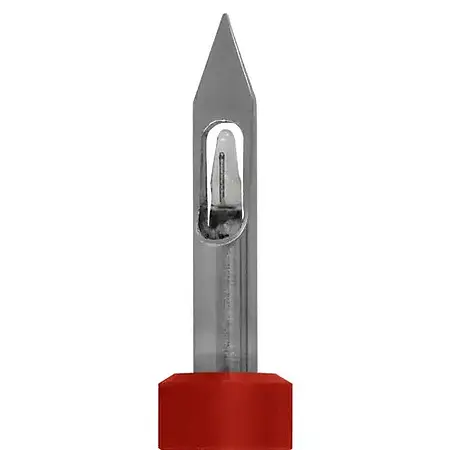

We recommend this food electrode for measuring in meat. The food electrode contains a knife for insertion into the meat and a pH electrode that is inserted into the knife. If the pH electrode is worn or damaged, it can be replaced without having to replace the entire knife.


This reduces costs considerably. The food pH electrode is compatible with all pH meters we produce. Both the electrode and the blade must be kept clean. After each measurement, the food electrode should be carefully cleaned to ensure long-term use and precise measurement results.


Highlights

- Range: 0 ... 14 pH
- Material: glass with stainless steel blade
- Temperature range: 0 ... 60 ° C
- Connector: BNC
- Cable: 1 m


Specification


pH electrode
Measuring range 0 … 14 pH
Temperature range 0 ... 60 °C
Application Food industry, agriculture
Reference Ag / AgCl
Electrolyte saturated KCl gel
Diaphragm Ceramic
Tip shape Cone
Shaft / sensor material Glass
Shaft / sensor length120 mm
Shaft / sensor diameter  12.0 mm / 6.0 mm
Cable length1 m
Connection BNC
Operating pressureatmospheric
Weight70 g


Delivery Scope

1 x Food pH-electrode CPC-OSH-12-01
