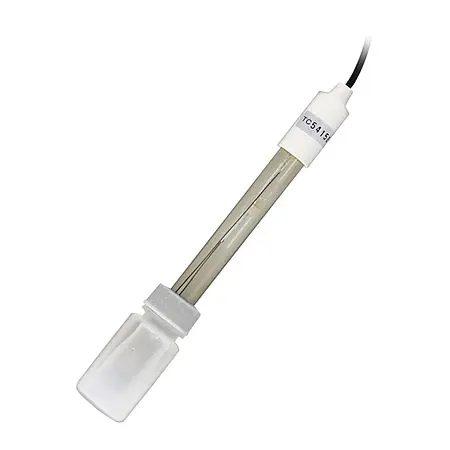

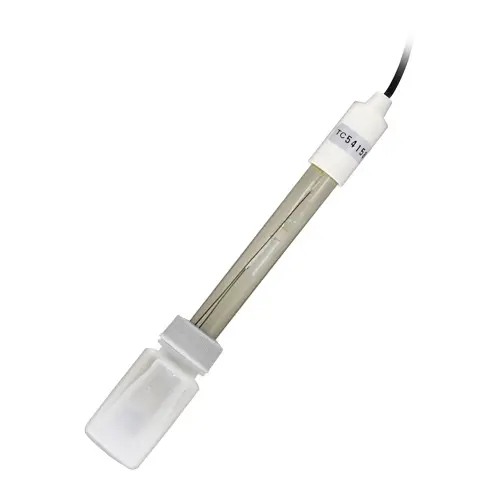

pH Electrode for pH Meter PE-21

Order no.: PE-21
GTIN (EAN):
US$ 108.00
ex. VAT, ex. delivery costs
PE-21
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

This pH electrode is for pH meters with a BNC connector. The pH electrode is especially suitable for industrial applications. Thanks to the 3/4” thread, the electrode can be safely installed in tanks, basins and pipelines. By purchasing this industrial pH electrode, you are taking a step towards precision measurement. Although this pH electrode is a complex and sensitive device, its robust structure will ensure many years of use if operated correctly.

Specification


pH electrode
Measuring range 0 … 14 pH
Temperature range 0 … 95 °C
Application Aqueous media
Reference Food processing, photography, laboratory, paper industry,
Electroplating industry, schools & universities
Electrolyte 3M KCL
Diaphragm Ceramic
Tip shape Rounded tip
Shaft / sensor material PPS
Shaft / sensor length177.5 mm
Shaft / sensor diameter  26.5 mm
Min. immersion depth35 mm
Cable length5 m
Connection BNC
Operating pressure6 bar max.
Housing thread size3/4” NPT
Weight250 g


Delivery Scope


1 x PE-21 pH electrode
