pH Meter PCE-PH 23

Name: pH Meter PCE-PH 23
Brand: PCE Instruments
SKU: 5884941
Price: 230 USD
Availability: InStock

Order no.: PCE-PH 23

GTIN (EAN): 4250348718624

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Accessory

ISO certificate CAL-PCE-PH for pH meters

US$ 95.00

Carrying Case with hard foam insert

US$ 34.00

Calibration Solution pH10

US$ 18.00

Calibration Solution pH7

US$ 14.00

Electrode Storage Solution 3mol / l

US$ 21.00

Calibration Solution pH4 and pH7 and pH10

US$ 33.00

Calibration Solution pH4

US$ 14.00

Spare Sensor for PCE-PH 23

US$ 194.00

Calibration Solution pH4 and pH7

US$ 22.00

Electrode Storage Solution 3mol / l

US$ 21.00

Cleaning solution pepsin / hydrochloric acid PCE-GCS-500

US$ 29.00

Description

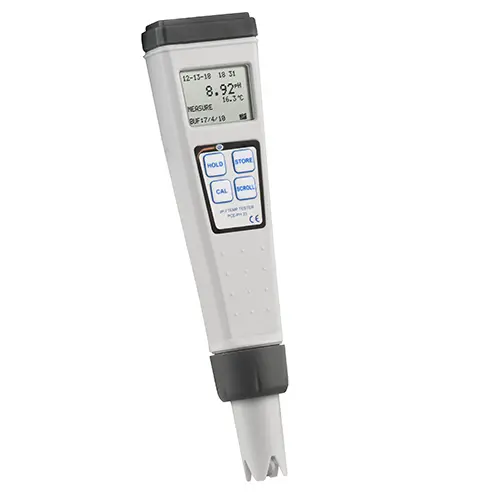

pH Meter PCE-PH 23

Simple digital pH meter for quick check of liquids / Manual temperature compensation / Exchangeable pH electrode / Calibration function / ABS housing, IP67 protected

The waterproof Digital pH Meter PCE-PH 23 is used for rapid fluid analysis. The Digital pH Meter offers the possibility to determine the temperature and the pH value. The operation of the Digital pH Meter PCE-PH 23 is done via the four buttons on the front. The probe installed in t00he Digital pH Meter can be exchanged easily by loosening the fixing ring from the device and only removing the probe.

Due to the waterproof and robust ABS housing (IP67), the Digital pH Meter can also be used under harsh environmental conditions. The recalibration of the Digital pH Meter ensures permanent high accuracy and is very easy to perform using the optionally available calibration sets (automatic calibration function without calibration screws).

Highlights

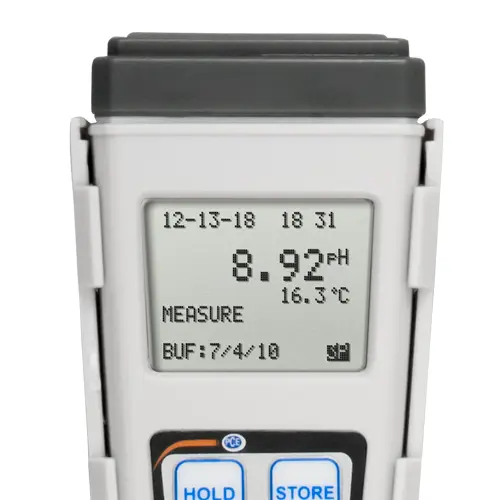

- Graphic display
- 1-, 2- or 3-point calibration

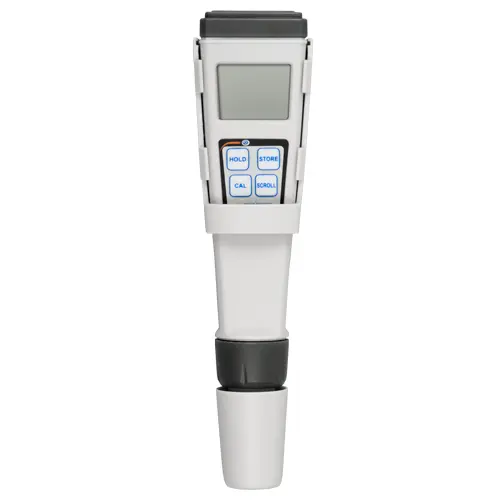

- Four front panel buttons
- Memory (Save & Recall)

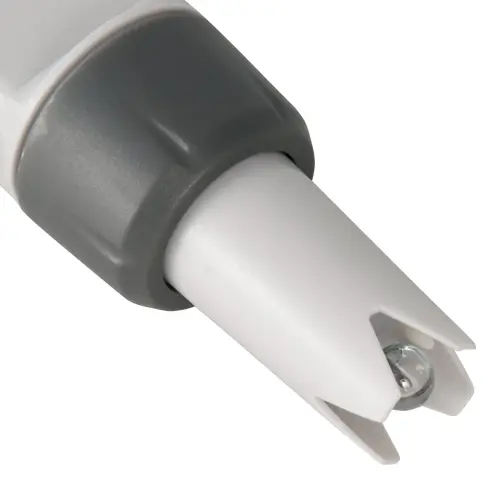

- Exchangeable pH electrode
- Waterproof ABS housing
- Compact and robust measuring instrument

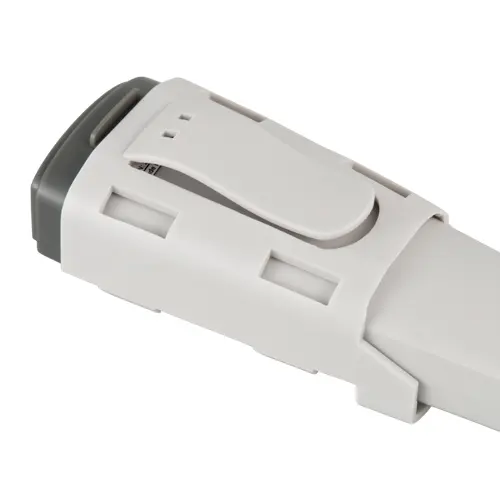

- With belt clip

Specification

Measuring range pH measurement	0.00 ... 14.00 pH
Resolution pH measurement	0.01 pH
Measuring accuracy pH measurement	± 0.02 pH ± 1 digit
Buffer detection pH measurement	pH 7.00, 4.01, 10.01 or pH 6.86, 4.00, 9.18
Temperature compensation pH measurement	Automatically 0.0 ... 99.9°C / 32 ... 211.8°F
Buffer detection Temperature measuring range	0.0 ... 60°C / 32 ... 140°F
Offset detection pH electrode	± 90 mV at pH 7.00 ± 98.3 mV / -81.7 mV at pH 6.86
Slope pH electrode	± 30% at pH 4.00, 4.01, 9.18, and 10.01
input resistance	> 1012 Ω

Technical Specification for Digital pH Meter PCE-PH 23: Temperature measurement
Measuring range temperature	0.0 ... 99.9°C / 32 ... 211.8°F
Resolution temperature	0.1°C / 0.18°F
Measuring accuracy temperature	± 0.3°C / 0.5°F
Temperature sensor	Thermistor, 10 kΩ at 25°C
Temperature unit	°C°F, default

General technical specification for the Digital pH Meter PCE-PH 23
Power supply	4 x LR44
Lifespan batteries	200 hours
Operating temperature	0.0 ... 50.0°C / 32 ... 122°F
Display	98 x 64 pixels, graphic LCD
Casing	ABS, IP67
Weight	107 g / < 1 lb

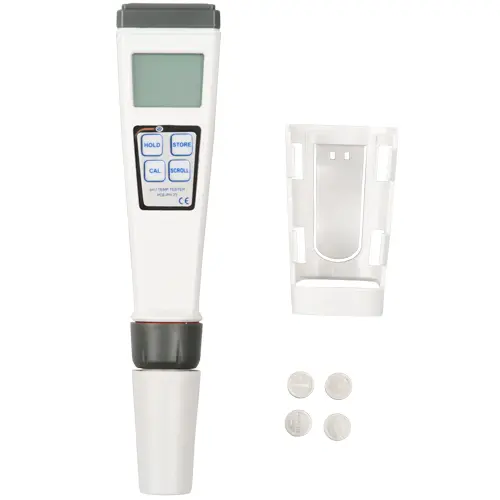

Delivery Scope

1 x pH Meter PCE-PH 23
4 x LR44 battery
1 x Belt clip
1 x Protective cap
1 x User manual

Downloads

Manual

Datasheet
