Photometer PCE-170 A-ICA incl. ISO Calibration Certificate

Order no.: PCE-170 A-ICA
GTIN (EAN): 4250348724748
US$ 463.00
ISO Calibration
ex. VAT, ex. delivery costs
:
4250348724748
PCE-170 A-ICA
Available in: 10 - 14 days
light measurement
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

PCE-170 A-ICA Photometer with Built-In Sensor incl. ISO Calibration Certificate
Light Meter for fast and accurate measurement of light / Measurement range from 0.00 to 40,000 lux / Silicon photodiode sensor / Large 5-digit LCD display / Immediate and accurate response / Selectable manual or automatic range

The PCE-170 A Photometer is well-known for its durability as well as its good quality at a good price. The PCE-170 A Illuminometer has a wide measurement range. Thanks to its fast response time and compact housing you can use this meter with just one hand. The PCE-170 A Illuminometer can be used even by inexperienced personnel. With the PCE-170 A Illuminometer you will be able to perform a professional valuation. The PCE-170 A Illuminometer can be widely used within the industrial sector. For example, it is possible to check light conditions in workplaces, warehouses, industries and apartments with the PCE-170A Illuminometer. In addition, emergency escape routes can be tested with the PCE-170A Illuminometer for proper illumination.

The PCE-170 A Illuminometer is an irreplaceable instrument to prevent occupational hazards and it meets professional standards. Workplaces will become safer and you will save expenses. Latest research has discovered that too little as well as too much illumination in a workplace can be harmful for humans. You can also check illumination at home, in your dining-room for instance. The digital PCE-170 A Illuminometer  measures in Lux units (lumen/m² or lumen/foot²). This solid and portable PCE-170 A Illuminometer provides very accurate results and comes with a zero-reset function when it is on. It also has a sensor with a response curve for all the visible spectrum. Light is measured by means of a silicon photodiode independently from the extension and direction of the light source. With the ease of use and rapid measurement methods, the device quickly becomes a familiar tool, and an inseparable part of the working day.


Highlights

- Large 5-digit LCD display
- Measurement range from 0.00 to 40,000 lux
- Resolution of 0.01 lux in a range up to 39.99 lux
- Sensor: silicon photodiode
- Corrected cosine angle
- HOLD function
- Fast and accurate response
- Auto shut-off after 30 min.
- 1 x 9V battery and carrying case
- Selectable units: lx and fc (fc = footcandle; 1 fc=10,764 lx)
- Selectable manual or automatic range
- Auto reset to zero
- Incl. ISO Calibration Certificate

Specification

Ranges0.00 ... 40,000 lux
0.000 ... 4000 fc
Resolution0.01 lux/0.001 fc
Accuracy± 3% of the measurement value + 5 digits
Overload indicatorOL = Overload
Rate of measurementEvery 2 seconds
Operating temperature    0 ... 40°C / 32 ... 104°F
Light sensorSilicon photo diode
Display5-digit LCD display
Power9V battery
Dimensions33 x 54 x 196 mm / 1.3 x 2.1 x 7.7 in
Weight180 g < 1 lb

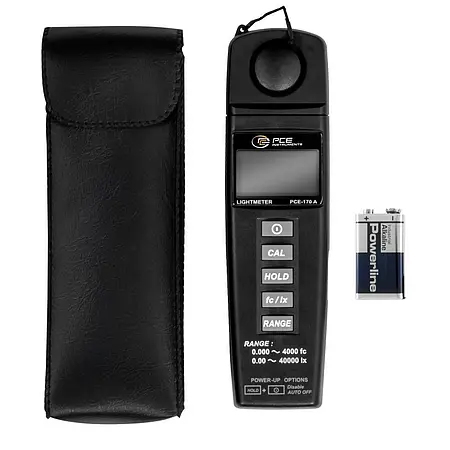

Delivery Scope

1 x PCE-170 A-ICA Photometer
1 x 9V battery
1 x Carrying case
1 x User manual

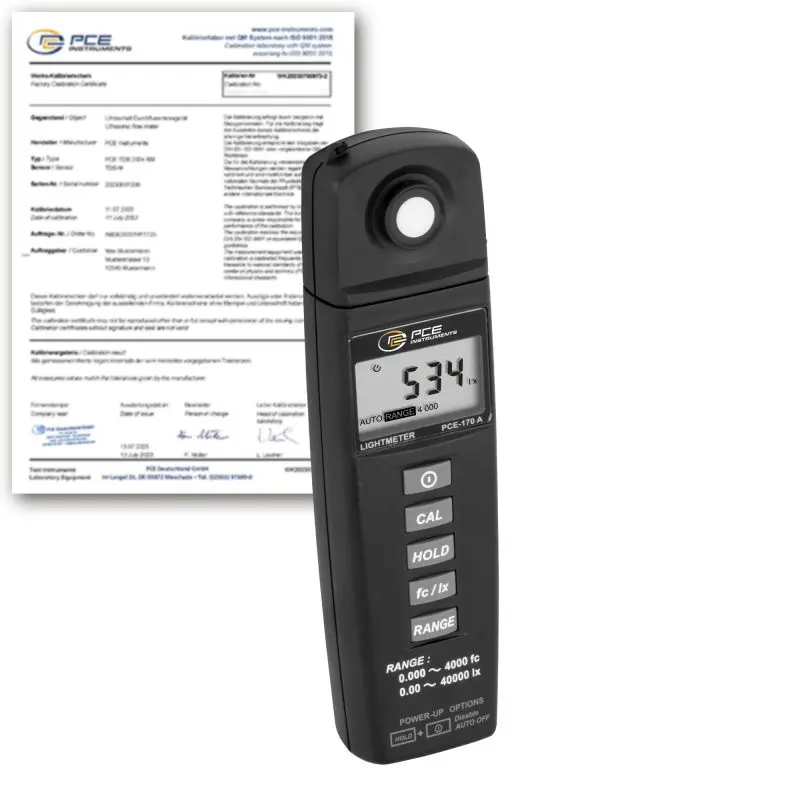

1 x ISO Calibration Certificate

Calibration certificates are issued specifically for the customer and are excluded from the right of return.
