Photometer PCE-172

Order no.: PCE-172
GTIN (EAN): 4250348700216
US$ 190.00
ex. VAT, ex. delivery costs
:
4250348700216
PCE-172
Available in: 1-2 days
light measurement

Description

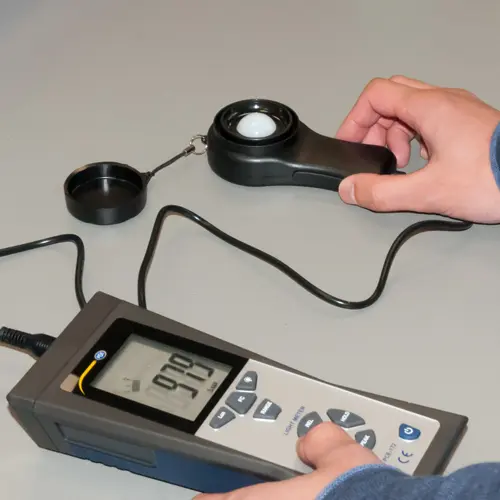

Photometer PCE-172 for fast and accurate light measurement

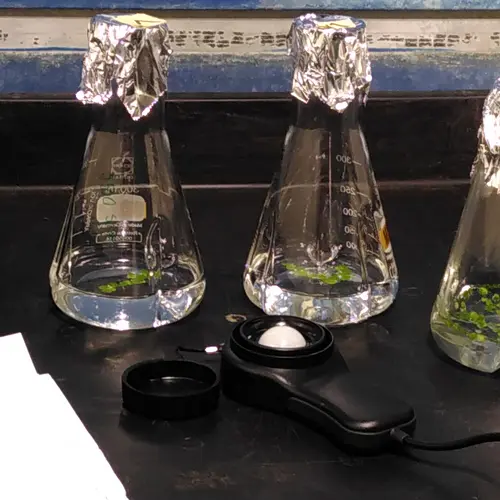

The photometer PCE-172 is used to measure the lighting conditions in industry, agriculture and research. Increasingly, the illuminometer  is also used to test lighting in workplaces, in the decoration of shop windows and by designers. It meets international standards for this type of illuminometer.



The illuminometer provides measurement results in Lux and FootCandle units, where 1 fc is equal to 10.70 lux. Calculator for the conversion of lux. The device automatically detects the peak value if this value lasts for at least 10 μs. Due to the selectable measuring range the illuminometer PCE-172 has high accuracy. The handling is very easy. This illuminometer can also be used by untrained persons. However, it is always important to take into account in a lux measurement that certain conditions are met. For example, the distance and angle between the illuminometer and the object to be measured should be set as accurately as possible in order to achieve reproducible results.


Highlights

- Easy to use
- Solid design
- 3½ position LCD; maximum reading is 1999
- Measurement units can be displayed in lux or
footcandles
- Battery level indicator
- "Overload" indication to warn when
measurement range is exceeded

Specification

Ranges

40.00/400.0/4000/lux
40.00/400.0 klux (1 klux = 1000 Lux)
40.00/400.0/4000/fc
40.00 kfc (1 kfc = 1000 fc)

Resolution

0.01/0.1/1/10/100 lux
0.01/0.1/1/10 FootCandle

Accuracy

± 5% of reading ±10 digits (<10,000 lux)
± 10% of reading ±10 digits (>10,000 lux)

Repeatability
± 3%
Overload indicator
OL = Overload
Screen refresh rate
1.5 per second
Operating conditions
0 ... 40ºC / 32 ... 104°F, 80% r.h.
Display
3¾ digit LCD
Power
9V battery
Dimensions

Device: 206 x 95 x 45 mm / 7.9 x 2.9 x 1.9 in
(width x height x depth)
Light sensor: 115 x 60 x 20 mm / 4.5 x 2.3 x 0.7 in
(width x height x depth)
Cable length: 95 cm / 59 in

Weight
265 g / < 1 lb
Standards
Safety: IEC-1010-1; EN 61010-1
EMV: EN 50081-1; EN 50082-1 corresponding with DIN 5031; DIN 5032

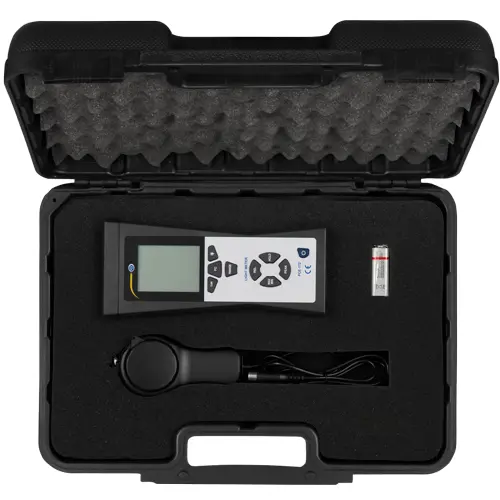

Delivery Scope

1 x PCE-172 Photometer

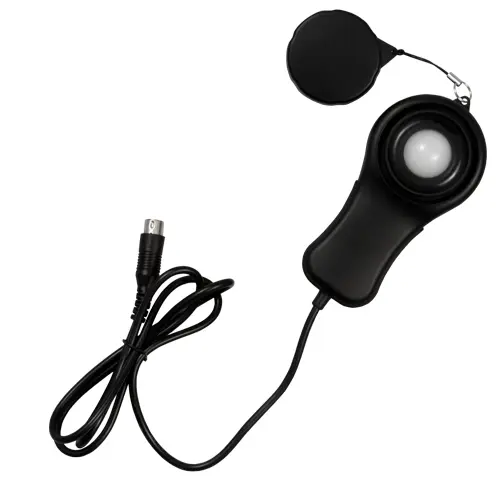

1 x Light sensor with spiral cable
1 x Battery
1 x User manual
