Photometer PCE-CP 22

Order no.: PCE-CP 22
GTIN (EAN): 4250348727428
US$ 504.00
Wireless
ex. VAT, ex. delivery costs
:
4250348727428
PCE-CP 22
Available in: 1-2 days
measurement in liquids
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Accessory

25 ml Shaker for the Parameter Nitrate
ml Shaker for the Parameter Nitrate (25)
US$ 4.00
Reagent Kit Phosphate
Reagent Kit Phosphate
US$ 43.00
Reagent Tablets for Copper Measurement
Reagent Tablets for Copper Measurement
US$ 45.00
Reagent Tablets for Nitrite Measurement
Reagent Tablets for Nitrite Measurement
US$ 26.00
Reagent Kit Urea
Reagent Kit Urea
US$ 475.00
Ammonia No2 Tablets PCE-CP X0 Tab Ammonia No2
Ammonia No2 Tablets PCE-CP X0 Tab Ammonia No2
US$ 30.00
Ammonia No1 Tablets PCE-CP X0 Tab Ammonia No1
Ammonia No1 Tablets PCE-CP X0 Tab Ammonia No1
US$ 30.00
Liquid Reagent No. 2 for Urea
Liquid Reagent No. 2 for Urea
US$ 422.00
Liquid Reagent No. 1 for Urea
Liquid Reagent No. 1 for Urea
US$ 45.00
Calibration Set PCE-CP X0 Cal-Set
Calibration Set PCE-CP X0 Cal-Set
US$ 226.00
PCE-CP X0 PIP
Dosing Pipette 10 ml
US$ 3.00
Microfiber Cloth PCE-CP X0 Microfibre Cloth
Microfiber Cloth PCE-CP X0 Microfibre Cloth
US$ 5.00
Plastic stirring stick (10.5 cm) for the PCE-CP Series.
Stirring Stick for the PCE-CP Series PCE-CP X0 Spurtle
US$ 6.00
Replacement Cuvette PCE-CP X0 Cuvette
Replacement Cuvette PCE-CP X0 Cuvette
US$ 28.00
Carrying Case PCE-CP X0 Case
Carrying Case PCE-CP X0 Case
US$ 91.00
Light Protection Cover PCE-CP X0 Cuvette Cover
Light Protection Cover PCE-CP X0 Cuvette Cover
US$ 25.00
Tablets Starter Kit PCE-CP X0 Tab Starter Kit
Starter Tablets Kit PCE-CP X0 Tab Starter Kit
US$ 25.00
Reagent Tablets for pH Value Measurement
Reagent Tablets for pH Value Measurement
US$ 12.00
Reagent Tablets for Iron Measurement
Reagent Tablets for Iron Measurement
US$ 26.00

Description

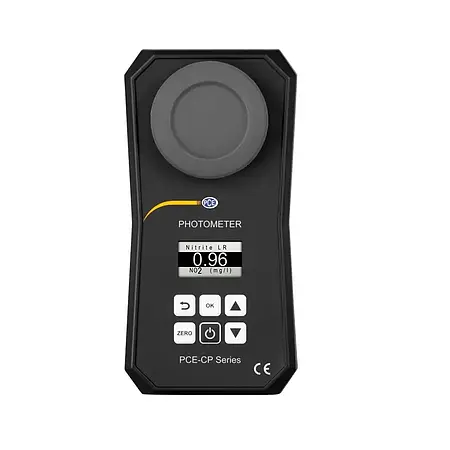

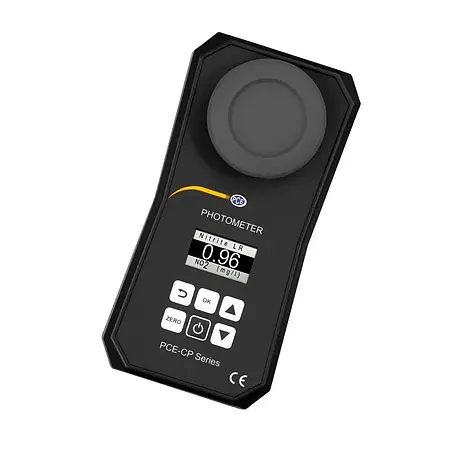

Multi-parameter photometer with Bluetooth interface / PC software / Cloud service / Cross-system synchronization of measured values ​​/ Up to 13 selectable parameters / For measuring e.g. pH, alkalinity, chlorine, cyanuric acid / Storage of measured values

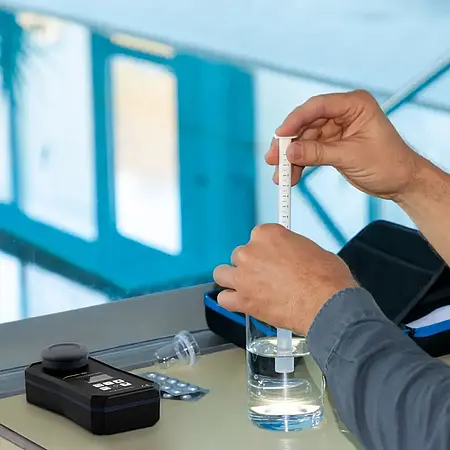

The multi-parameter photometer is a mobile measuring device for liquid analysis. This enables the most varied of measurements to be carried out with the multi-parameter photometer. With this multi-parameter photometer, for example, it is possible to determine alkalinity, chlorine, cyanuric acid or the pH value. In order to carry out a measurement with the multi-parameter photometer, a water sample of 10 ml must be placed in a cuvette. The built-in LED in the multi-parameter photometer generates a test light in the wavelength ranges of 503 nm, 570 nm and 620 nm. A photodiode now recognizes the value to be measured based on the light transmission of the sample.

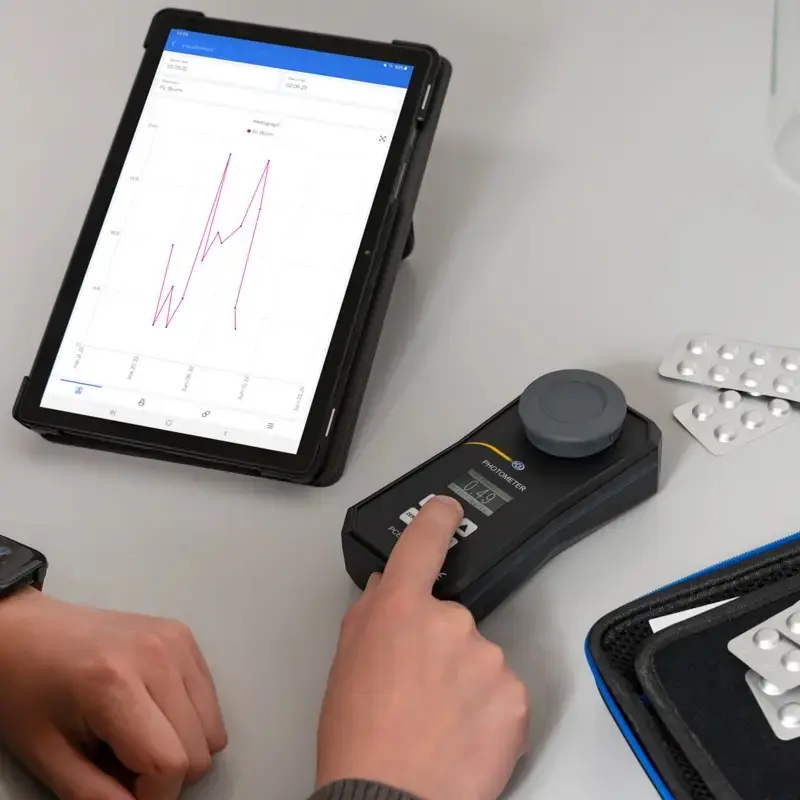

Each measurement is automatically saved by the multi-parameter photometer. The stored measured values ​​can then be read out, for example, via a mobile device via the Bluetooth interface built into the multi-parameter photometer. A free app is available to analyze the measured values ​​from the multi-parameter photometer. It is also possible to establish a Bluetooth connection between the multi-parameter photometer and a computer. Free software is also available for this, with which the measurement data can be analyzed. As another special feature of the multi-parameter photometer, the measurement data can be uploaded to a cloud using both variants and accessed from anywhere. This service for the multi-parameter photometer is also free of charge.

Highlights

- Up to 13 selectable parameters
- Bluetooth connection with app
- Exchangeable and lockable cuvette
- 503 nm / 570 nm / 620 nm LED
- Automatic shutdown when inactive
- Many different menu languages
- Light detector: photodiode
- Cuvette: 36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml)

Specification

pH
Measuring range 6.50 ... 8.40 pH
Accuracy 0.11 pH
Resolution 0.01 pH

Iron
Measuring range     0.00 … 0.20 mg/l
      0.20 … 0.60 mg/l
      0.60 … 1.00 mg/l

Accuracy     0.02 mg/l
      0.04 mg/l
      0.08 mg/l

Resolution     0.01 mg/l

Urea
Measuring range     0.00 … 0.30 mg/l
      0.30 … 0.60 mg/l
      0.60 … 1.00 mg/l
      1.00 … 1.50 mg/l
      1.50 … 2.50 mg/l

Accuracy     0.05 mg/l
      0.06 mg/l
      0.09 mg/l
      0.12 mg/l
      0.19 mg/l

Resolution     0.01 mg/l

Nitrite
Measuring range     0.00 … 0.25 mg/l
      0.25 … 0.40 mg/l
      0.40 … 1.30 mg/l
      1.30 … 1.64 mg/l

Accuracy     0.02 mg/l
      0.06 mg/l
      0.09 mg/l
      0.12 mg/l

Resolution     0.01 mg/l

Nitrate
Measuring range     0 … 20 mg/l
      20 … 40 mg/l
      40 … 60 mg/l
      60 … 100 mg/l

Accuracy     2 mg/l
      4 mg/l
      6 mg/l
      10 mg/l

Resolution     1 mg/l

Phosphate
Measuring range     0.00 … 0.40 mg/l
      0.40 … 1.20 mg/l
      1.20 … 2.00 mg/l

Accuracy     0.04 mg/l
      0.12 mg/l
      0.20 mg/l

Resolution     0.01 mg/l

Ammonia
Measuring range     0.00 … 0.12 mg/l
      0.12 … 0.25 mg/l
      0.25 … 0.57 mg/l
      0.57 … 1.21 mg/l

Accuracy     0.02 mg/l
      0.04 mg/l
      0.06 mg/l
      0.09 mg/l

Resolution     0.01 mg/l

Copper
Measuring range     0.00 … 2.00 mg/l
      2.00 … 3.00 mg/l
      3.00 … 5.00 mg/l

Accuracy     0.20 mg/l
      0.31 mg/l
      0.44 mg/l

Resolution     0.01 mg/l

Potassium
Measuring range     0.8 ... 3.0 mg/l
      3.0 ... 7.0 mg/l
      7.0 ... 10.0 mg/l
      10.0 ... 12.0 mg/l

Accuracy     0.3 mg/l
      0.4 mg/l
      0.5 mg/l
      1 mg/l

Resolution     0.1 mg/l

Further specification


Units
 mg/l, ppm
Calibration Zero point calibration
Light source
 503 nm / 570 nm / 620 nm LED
Light detector Photodiode
Power supply
 4 x 1.5V AA batteries
Dimensions of the cuvette   36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml)
Menu languages English, German, French, Spanish and Italian
Storage Automatic storage of measured values ​​and readout
Storage space 256 values
Interface Bluetooth connection with app and PC software
Automatic shutdown After 300 seconds of inactivity
Operating conditions 5… 45 °C, 20 ... 90% RH non-condensing
Storage conditions 5… 45 °C, 20 ... 90% RH non-condensing
Dimensions 165 x 95 x 50 mm / 6.5 x 3.7 x 2 in
Weight 230 g / 8.1 oz

Delivery Scope

1 x Multi-parameter photometer PCE-CP 22 incl. Cuvette
1 x Replacement cuvette
1 x Light protection cover
1 x Microfiber cloth
1 x Plunger
1 x 25 ml shaker (for nitrate)
1 x 10 ml dosing pipette
3 x AAA batteries
1 x Quick start guide
1 x Service bag
1 x Free app
1 x Free PC software
1 x Free cloud service
