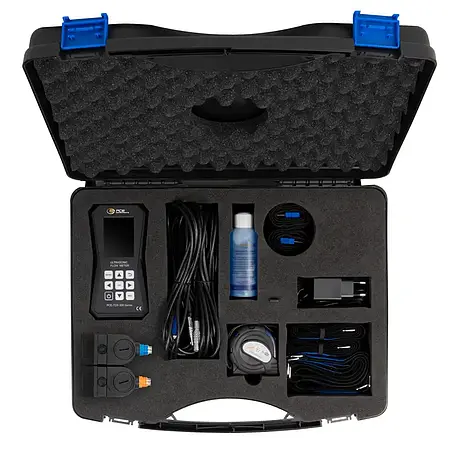

Portable Ultrasonic Flow Meter PCE-TDS 200 L

Name: Portable Ultrasonic Flow Meter PCE-TDS 200 L
Brand: PCE Instruments
SKU: 6107654
Price: 2780 USD
Availability: InStock

Order no.: PCE-TDS 200 L

GTIN (EAN): 4250348731234

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Accessory

ISO Calibration Certificate CAL-PCE-TDS-ISO

US$ 495.00

Calibration certificate for 2-channel thermometer

US$ 189.00

Temperature Contact Sensor TF-RA330-5

US$ 66.00

Temperature Contact Sensor TF-RA330-3

US$ 61.00

Temperature Contact Sensor TF-RA330

US$ 53.00

Ultrasonic Contact Gel (100 ml)

US$ 26.00

Software for the ultrasonic flow meter

US$ 220.00

PCE-TDS 200 M SENSOR for the ultrasonic flow meter

US$ 424.00

PCE-TDS 200 S SENSOR for the ultrasonic flow meter

US$ 424.00

K-Gel High Temperature Coupling Gel

US$ 131.00

DAkkS Calibration Certificate for Ultrasonic Flow Meter

US$ 1,977.00

PCE-TDS 200 MR SENSOR On Rail sensors for the ultrasonic flow meter

US$ 901.00

PCE-TDS 200 SR SENSOR On Rail sensors for the ultrasonic flow meter

US$ 762.00

PCE-TDS 200 L SENSOR for the ultrasonic flow meter

US$ 872.00

Description

Ultrasonic flowmeter with 32 GB data memory / measuring range ±32 m/s /

Reproducibility ±0.5 % of measured value / various measuring probes / alarm limit values /

2.8 " LC display / for all media

The ultrasonic flowmeter has a measuring range of ±32 m/s. With an accuracy of ±1.5 % f.s. for a pipe diameter of DN ≥50, ±3.5 % f.s. for a pipe diameter of DN <50 and a reproducibility of ±0.5 % f.s., the Portable Ultrasonic Flow Meter is a particularly precise measuring device. An installation aid is available for installing the sensors of the Portable Ultrasonic Flow Meter. The installation aid graphically displays the signal quality of the Portable Ultrasonic Flow Meter. In addition, it is graphically displayed whether the sensors of the Portable Ultrasonic Flow Meter are positioned at the correct distance from each other. To carry out flow measurements with the Portable Ultrasonic Flow Meter, the flow velocity, the volume flow and the volume are displayed after entering the pipe and medium specifications. The Portable Ultrasonic Flow Meter displays the measured values in a wide range of units. For example: m³, l, gal, igl, mgl, cf, bal, ib and ob.

During a measurement, it is possible to record the measured values via the data logger function of the Portable Ultrasonic Flow Meter. Start and stop conditions and the storage interval from 1 second to 12 hours can be set for the Portable Ultrasonic Flow Meter. A memory point of the Portable Ultrasonic Flow Meter contains all measured values once. The measured values are stored on the 32 GB built-in memory of the Portable Ultrasonic Flow Meter. 10 million measuring points can be stored on the Portable Ultrasonic Flow Meter.

With the optional software, the recorded measured values can be read out from the Portable Ultrasonic Flow Meter. For analysis, the measured values from the Portable Ultrasonic Flow Meter can be displayed in tabular and graphic form. For further processing of the measured values from the Portable Ultrasonic Flow Meter, they can be exported in .csv file format. Alternatively, a PDF report can be created via the software. For simplified operation, the Portable Ultrasonic Flow Meter can be set via the software. A live view of the measured values from the Portable Ultrasonic Flow Meter is also possible with the software.

In order to determine the amount of heat with the Portable Ultrasonic Flow Meter, two additional thermocouples are required. These are available with the PCE-TDS 200+. The two thermocouples of the Portable Ultrasonic Flow Meter are connected to the flow and return of a pipe system. Based on the temperature difference and the measured flow rate, the Portable Ultrasonic Flow Meter can determine the amount of heat. If required, the Portable Ultrasonic Flow Meter can calculate and display the costs per heat quantity unit simultaneously during the measurement. Thus, the Portable Ultrasonic Flow Meter is used, for example, in the inspection of heating systems.

The LC colour display of the Portable Ultrasonic Flow Meter has a size of 2.8" and is therefore easy to read.

PCE-TDS 200 L SENSOR

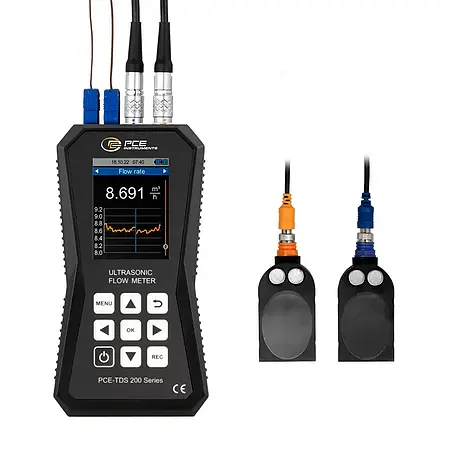

Large sensor pair for pipe diameters DN 300 ... 6000 mm. This sensor pair is therefore suitable for particularly large pipes. The sensors can be attached to the Portable Ultrasonic Flow Meter with detachable cable ties. Thanks to the built-in magnets, the sensors can be attached to pipes with ferrous metal. The sensors have a dimension of 91 x 52 x 44 mm.

Highlights

- Measuring range ±32 m/s

- USB-C interface for data transfer

- Optional software for analysing the measured values

- Reproducibility ±0.5 % of measured value

- Heat quantity measurement

- Data memory for 10 million measuring points

- individually adjustable alarm limits

- optionally with ISO or DAkkS calibration certificate

Specification


Flow measurement
Measuring range	±32 m/s
Accuracy	0,001 m/s
Genauigkeit	DN ≥50 mm: ±1.5 % rdg. for velocities > 0.3 m/s
	DN <50 mm: ±3.5 % rdg. for velocities > 0.3 m/s
Reproducibility	±0.5 % of measured value

PCE-TDS 200 L SENSOR	Sensor pair
Pipe diameter	DN 300 ... 6000 mm
Dimension	91 x 52 x 44 mm


Measuring method	Z, V, N, W
Medium	- water
	- sea water
	- oil
	- crude oil
	- methanol
	- ethanol
	- diesel
	- petrol
	- petroleum
	- user defined
	(manual input of the sound velocity from the medium)

All liquids with an impurity	<5 %
Pipe material	- copper CU
	- steel FE
	- stainless steel VA
	- aluminium AL
	- brass ME
	- cast iron CI
	- iron FE
	- nickel NI
	- titanium TI
	- zink ZI
	- acrylic AC
	- polyethylene PE
	- polypropylene PP
	- polyvinyl chloride PVC
	- nylon NY
	- user defined
	(manual input of the transversal sound velocity
	of the pipe material)

Inner pipe lining	- no lining
	- user defined
	- epoxy resin
	- rubber
	- mortar
	- polystyrene PS
	- polyethylene PE
	- polytetrafluoroethylene PTFE
	- polyurethane PU
	- polypropylene PP
	- user defined
	(manual input of the longitudinal sound velocity
	of the inner lining of the pipe)

Measurement parameters	flow velocity, volume flow and volume
Units (dimensions)	mm, in
Units (flow velocity)	m/s, ft/s
Units (volume flow)	m³, l, gal, igl, mgl, cf, bal, ib, ob
Time specification	seconds, minutes, hours, days
Units (volume)	m³, l, gal, igl, mgl, cf, bal, ib, ob


Further specifications
2.8" LCD	2,8“ LCD
Menu	metrisch / imperial
Menu languages	German, English, French, Spanish,
	Italian, Dutch, Portuguese, Danish, Turkish, Polish, German
	Turkish, Polish, Russian, Chinese, Japanese
Operating and storage conditions	Temperature: -20 ... +65 °C
	Humidity: 10 ... 95 % r. h., non-condensing
Data logger	32 GB memory capacity / 10 million measuring points
Unterface	USB (for online measurement, readout of the internal memory
	memory and for recharging the battery)
Protection class	IP52
Power supply Internal	Internal: LiPo battery (3.7 V, 2500 mAh)
	External: USB 5 VDC, 500 mA
Operating time	approx. 10 h
Dimensions	165 x 85 x 32 mm
Weight	255 g
