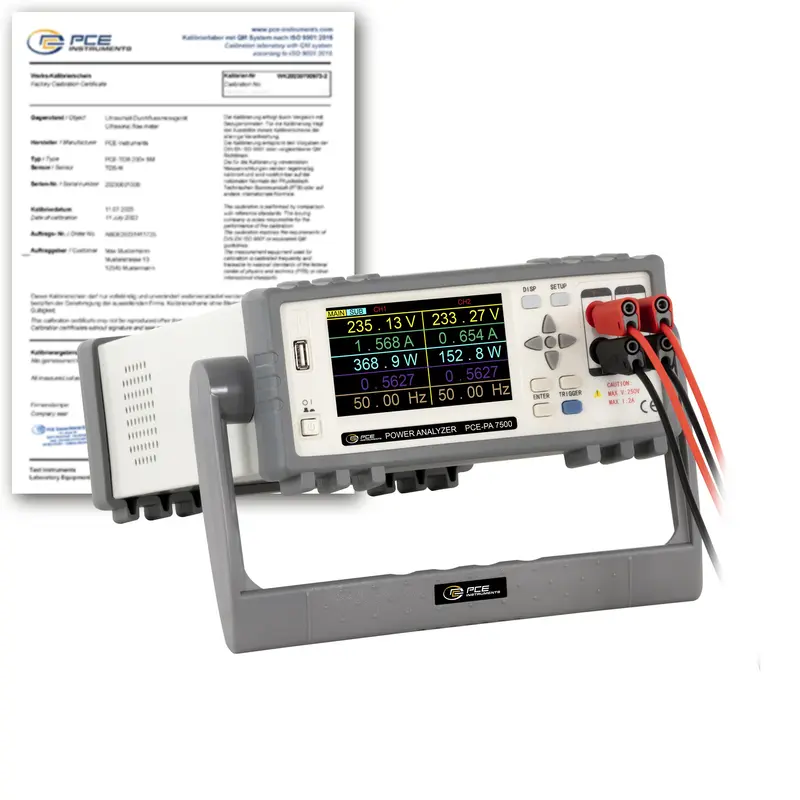

Power Meter 2-Channel PCE-PA 7500-ICA incl. ISO-Calibration Certificate

Name: Power Meter 2-Channel PCE-PA 7500-ICA incl. ISO-Calibration Certificate
Brand: PCE Instruments
SKU: 6113370
Price: 2451 USD
Availability: InStock

Order no.: PCE-PA 7500-ICA

GTIN (EAN): 4250348733511

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Accessory

Calibration Certificate CAL-PCE-PA

US$ 611.00

Description

2-Channel Power Meter for Measuring Current, Voltage, Power, and Consumption / Power Measurement Range 0.1 ... 5000 W / Current 0.001 ... 20 A AC / Color Display with Switchable View / Includes Safety Measurement Cables

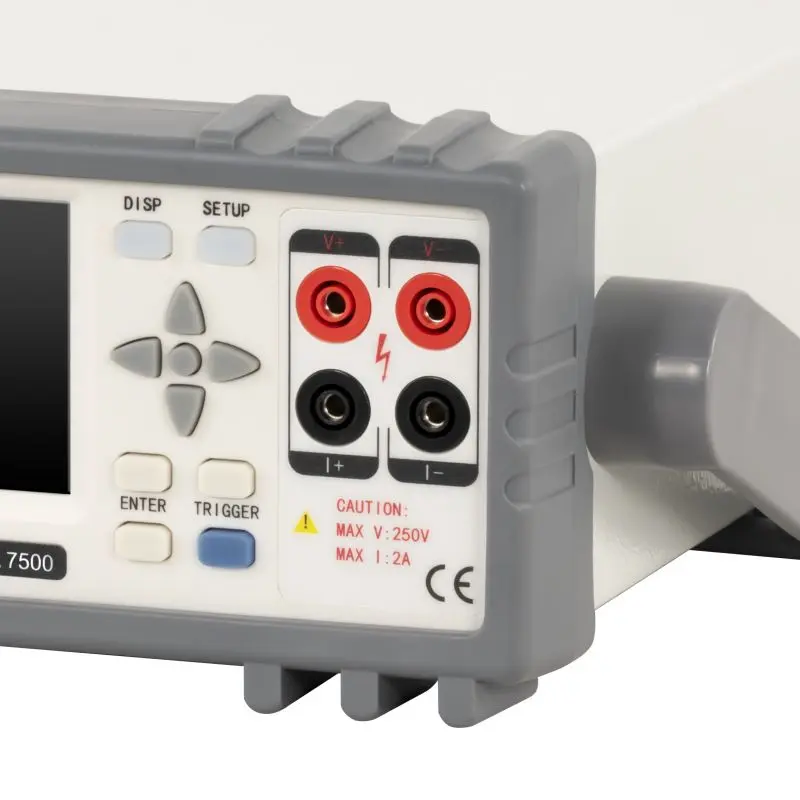

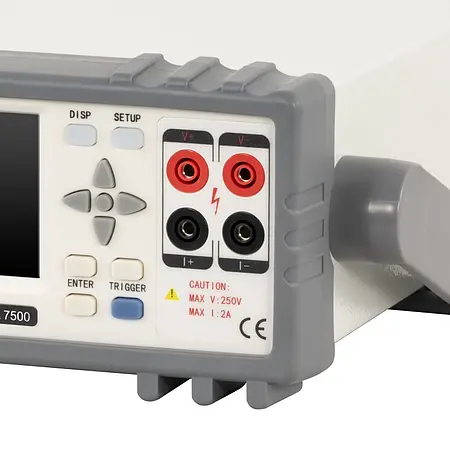

The power meter is designed for accurate measurement and analysis of parameters such as power consumption and quality. The power meter has 2 input channels for measuring voltage, current, active power, power factor, frequency, and energy consumption in kWh. In addition to the color display, the power meter has additional input jacks for measurements up to 2 A. The measurement range of 0.1 ... 5000 W allows power measurement for many consumers in industry and crafts. The power meter has a current measurement range of 0.001 ... 20 A AC with a resolution of 1 mA.

In the settings of the power meter, an alarm value can be set for the power and current value, which gives an audible warning when exceeded. The power meter comes with 4 safety measurement cables, and the measurement jacks are also protected against electric shock to enable the operator to measure safely. The power meter can be used in the laboratory on the table as well as in industrial environments, thanks to the adjustable stand bracket.

Highlights

- Power Measurement Range: 0.1 ... 5000 W

- Current Measurement Range: 0.001 ... 20 A AC

- Frequency, Power Factor, Energy

- Accuracy: ±(0.4% of measured value + 0.1)

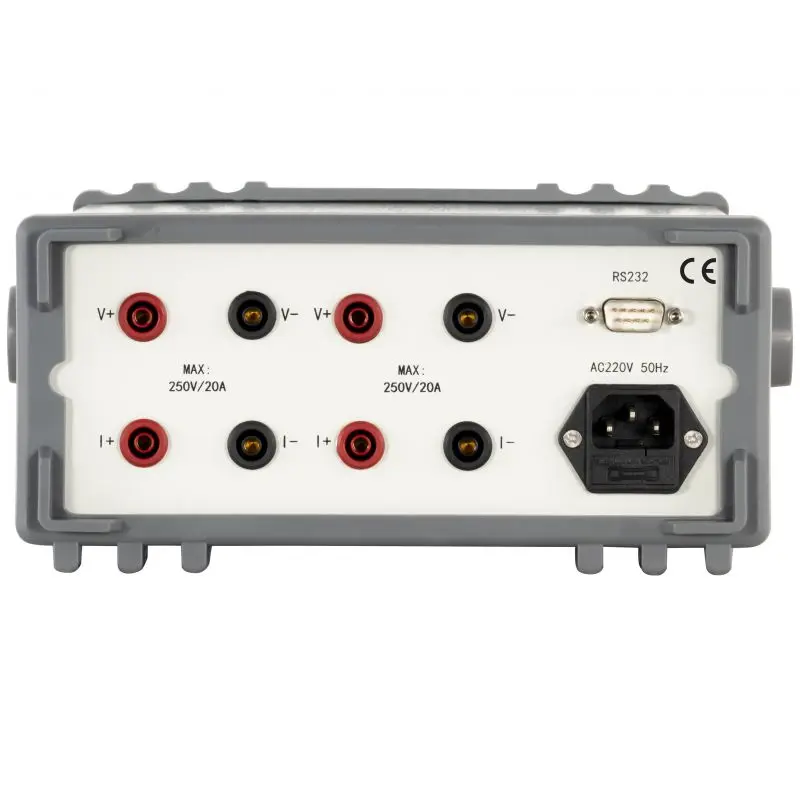

- 2 Input Channels

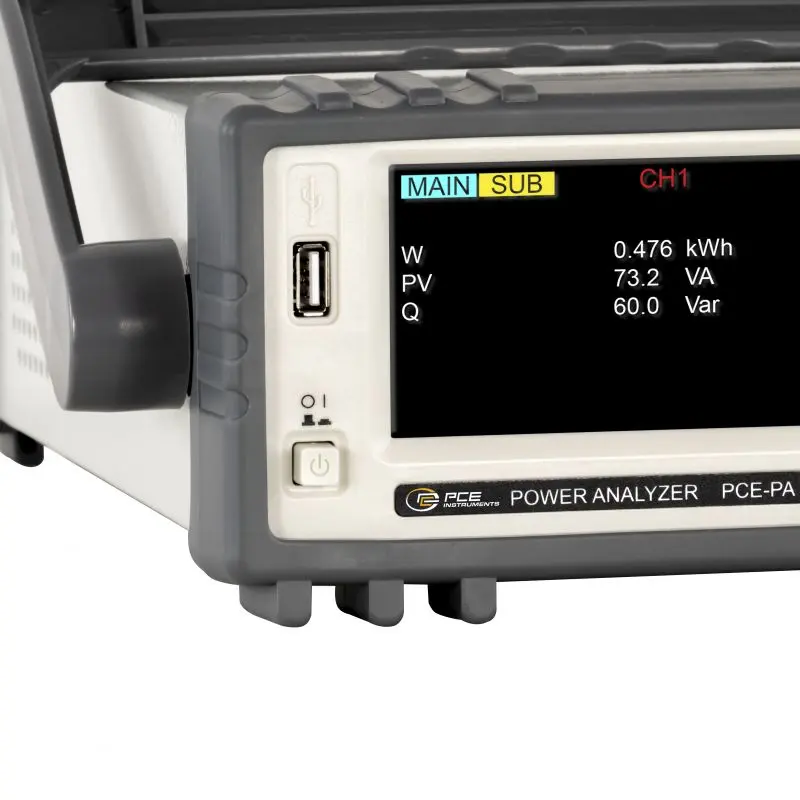

- Color Display

Specification

Alternating Voltage AC
Measurement Range	2 V ... 250 V
Resolution	0.01 V
Accuracy	±(0.4% of measured value + 0.1)

Alternating Current AC
Measurement Range	0.001 A ... 20 A
Resolution	0.001 A
Accuracy	±(0.4% of measured value + 0.1)

Active Power
Measurement Range	0.1 W ... 5000 W
Resolution	0.1
Accuracy	±(0.4% of measured value + 0.1)

Power Factor
Measurement Range	0.001 ... 1
Resolution	0.0001

General Technical Data
Number of Measurement Channels	3
Frequency	10 ... 100 Hz
Display Type	TFT Color Display
Display Size	4.3 Inches
Cable Length	2 m
Menu Language	English, Chinese
Protection Class	IP20
Weight	2870 g / 6.3 lb
Device Weight with Accessories	3352 g / 7.3 lb
Device Weight with Accessories and Packaging	5220 g / 11.5 lb
Dimensions (L x W x H)	355 x 265 x 110 mm / 13.9 x 10.4 x 4.3 in
Operating Conditions	0 ... 40 °C, 0 ... 93 % r.H.
Storage Conditions	0 ... 55 °C, 0 ... 93 % r.H.

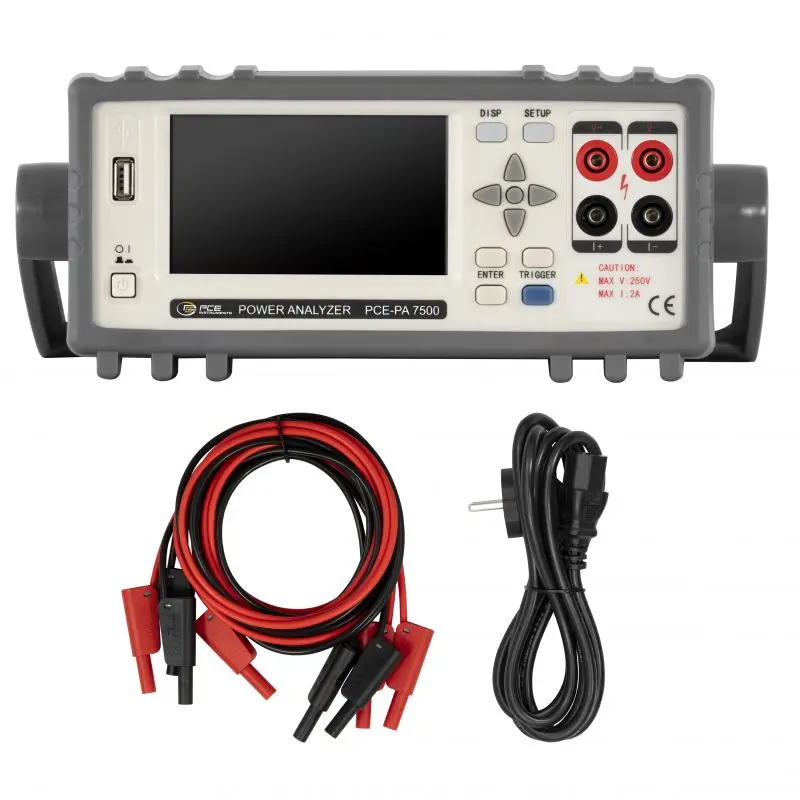

Delivery Scope

1 x Power Meter PCE-PA 7500-ICA

2 x Safety Measurement Cables 2m Black

2 x Safety Measurement Cables 2m Red

1 x Power Cord

1 x User Manual

Downloads

man-digital-power-meter-pce-pa-7500-en.pdf

Manual
