Power analyzer PCE-GPA 50
Current clamp up to 2000 A / TRMS measurement / Power measurement / Harmonic analysis / Graphic display with lighting / Data storage / Mains and battery operation

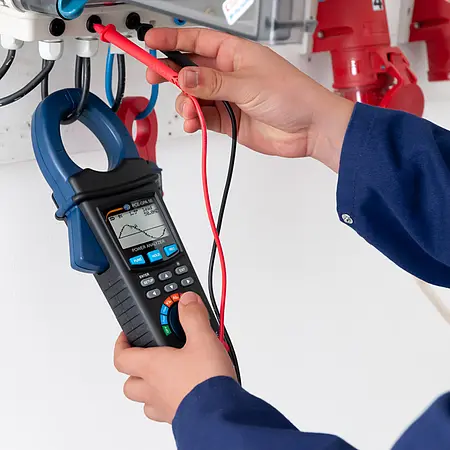

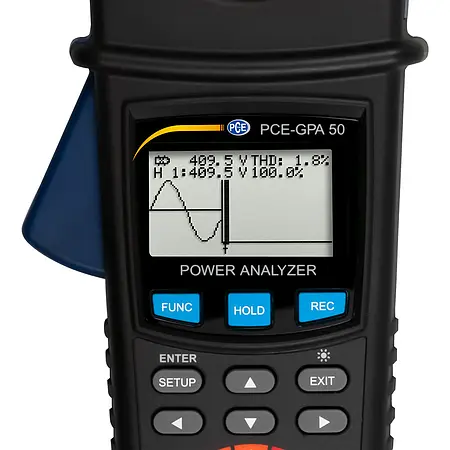

The PCE-GPA 50 current clamp is used to measure the current of 1- or 3-phase loads. This clamp is especially characterized by its measuring range up to 2000 A. Another highlight is the graphic display of the current clamp. Here, in addition to the numerical measured values, the waveform of the phase can also be displayed by the current clamp. Likewise, the current clamp can be used to measure voltages. As a result, the current clamp is able to calculate effective, apparent and reactive power with the help of the phase angle. In addition, the current clamp can measure other network parameters such as the energy, power factor and harmonic.

In addition to the extensive measuring functions, this current clamp distinguishes your data logger function. All measured values can be stored by the current probe directly on a micro SD card. The clamp is powered by 2 1.5V AA batteries. However, it is also possible to operate the current clamp with a power supply for long-term measurements.

Highlights

- Graphic display
- Data logger on Micro-SD card
- Measurement for 1 and 3 phases
- Temperature measurement with thermocouple
- Voltage measurement 10V ... 600V AC RMS
- Current measurement 5 ... 2000 A AC RMS
- Current clamp opening 50 mm
- Harmonic distortion up to the 50th order

Specification

Type of measurement
AC voltage AC V	Measuring range	Resolution	Accuracy
	10 ... 600V	0.1V	± (0.5% ... 3 digits)
	Peak to peak	0.1V	± (5% ... 30 digits)

AC AC A	5 ... 2000 A	< 100 A: 0.01 A	< 200 A: ± (1% + 0.5 A)
		< 1000 A: 0.1 A	> 200 A: ± (1% + 5 A)
	Peak to peak	> 1000 A: 1 A	± (5% + 30 digits)

Power factor (PF)	0 ... 1	0.001	± 0.04

Phase angle	-180° ... 180°	0.1°	± 1° x PF

Frequency	45 ... 65 Hz	0.1 Hz	± 0.2 Hz

Active, blind &	0 ... 9,999 m	0.1 ... 0.001 M	± (1.5% + 20 digits)
apparent power	(W / VA / VAR)	(W / VA / VAR)

Harmonic AC V	1 ... 20th order	0.1V	± (2% + 5 digits)
	21 ... 50 order	0.1V	± (4% + 5 digits)

Harmonic AC A	1 ... 20th order	< 100 A: 0.01 A	± (2% + 5 digits)
Alternating current		< 1000 A: 0.1 A
	21 ... 50 order	> 1000 A: 1 A	± (4% + 5 digits)

Harmonic AC V%	1 ... 20th order	0.1%	± (2% + 10 digits)
	21 ... 50 order	0.1%	± (4% + 20 digits)

Absolute harmonic	0 ... 20%	0.1%	± (2% + 5 digits)
distortion	20.1 ... 100%	0.1%	± (6% + 10 digits)

Temperature type K	-100 ... 199.9°C / -148 ... 391.8°F	0.1°C / 0.18°F	± (1% + 1°C / 1.8°F)
thermocouple	200 ... 1300°C / 392 ... 2372°F	1°C / 1.8°F	± (1% + 2°C / 3.6°F)

Display	Graphic LCD
AC V input impedance	10 MOhm
Frequency range	40 Hz ... 1 kHz
Current Probe
Calibrated frequency	45 ... 65 Hz
Current Probe
Overload protection	AC V: 720V RMS
	AC A: 2100 A
Data storage	Micro SD card
Refresh rate	1 second
Display
Storage rate	2 ... 7200s
Data storage
Storage format	XLS
Interface	Serial interface for live presentation to PC
	(SOFT-LUT-USB is required)
Power supply	2 x 1.5V AA battery
	9V / 800-mA power supply
Current consumption	60-mA DC
Jaw Capacity	50 mm
Operating conditions	0 ... 50°C / 32 ... 122°F, max. 80% rh
Weight	About 595 g / 1.3 lbs
Dimensions	280 x 106 x 47 mm / 11 x 4.2 x 1.9 in

Delivery Scope

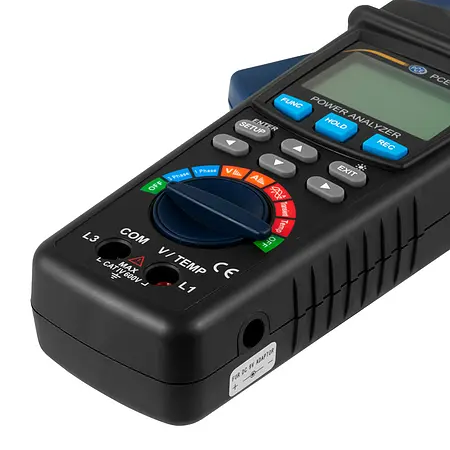

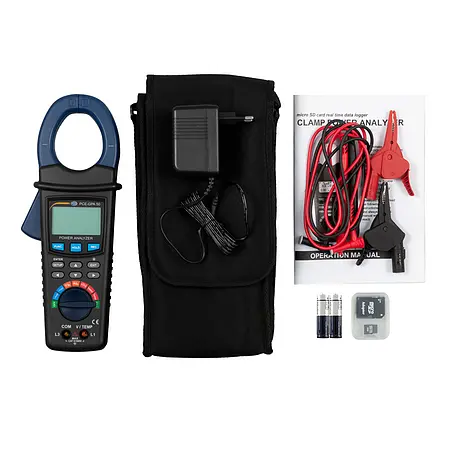

1 x Power analyzer PCE-GPA 50
1 x Test lead set
2 x Crocodile clips
1 x Micro SD memory card
1 x Power supply 9V / 800-mA
2 x 1.5V AA battery
1 x Carrying bag
1 x User manual
