Pressure Gauge PCE-BDP 10

Order no.: PCE-BDP 10
GTIN (EAN): 4250348719485
US$ 66.00
Wireless
ex. VAT, ex. delivery costs
:
4250348719485
PCE-BDP 10
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

Bluetooth pressure gauge PCE-BDP 10
Bluetooth differential pressure gauge with LCD / Differential pressure gauge up to ± 2PSI

The Bluetooth differential pressure gauge PCE-BDP 10 is used to quickly and easily check the differential pressure. The Bluetooth differential pressure gauge finds its application, for example, in the ventilation and air conditioning technology with the help of a smartphone to measure the gas flow pressure or the static pressure. Also, the Bluetooth differential pressure gauge can be used to check for pressure drops. Here is in the app of the differential pressure gauge, a graphical display available. The measurement data can be sent by email for further processing.

In order to use the differential pressure gauge without a Bluetooth smartphone, the meter is equipped with a display. Thus, the Bluetooth differential pressure gauge is also self-sufficient. The PCE-BDP 10 may represent the differential pressure readings 11 units. The measuring range extends from -2 ... 2 PSI (± 137.9 mbar / hPa).

Highlights

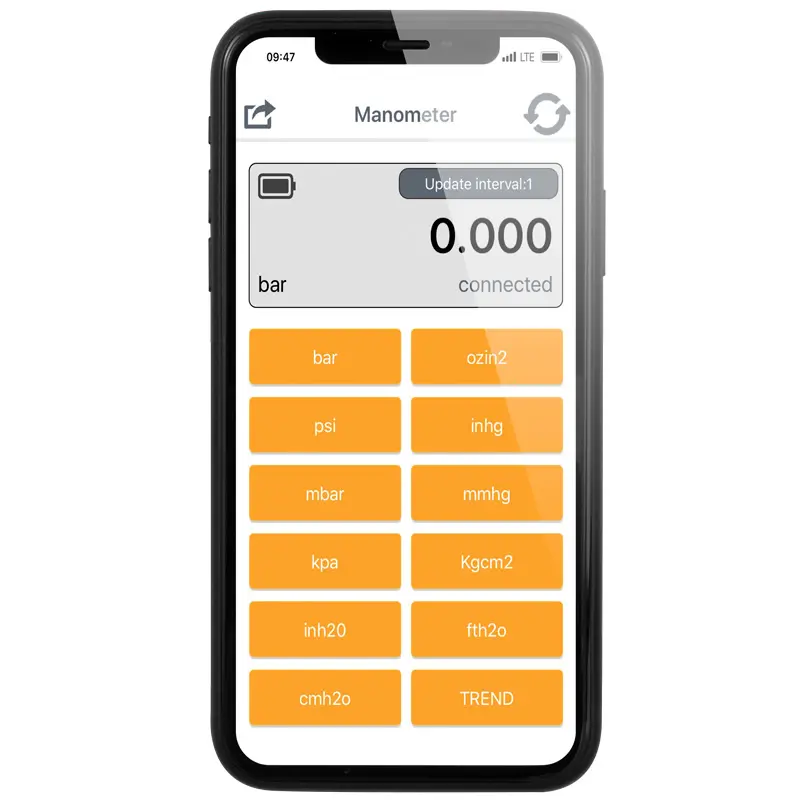

- Android and iOS app
- Bluetooth interface
- ± 2 PSI measuring range
- 11 different units
- LC display
- Plug nipple connection

Specification

Measuring range± 2 PSI
Measurement accuracy         ± 0.006 PSI (0 ... 0.2 PSI)
 ± (0.006 PSI + 1.5% of Mw) (> 0.2 PSI)
Resolution0.001 PSI
Display units Bar, PSI, mbar, kPa, inH20, cmH2O,
 ozin2, inHg, mmHg, kg / cm², ftH2O
MediumAir

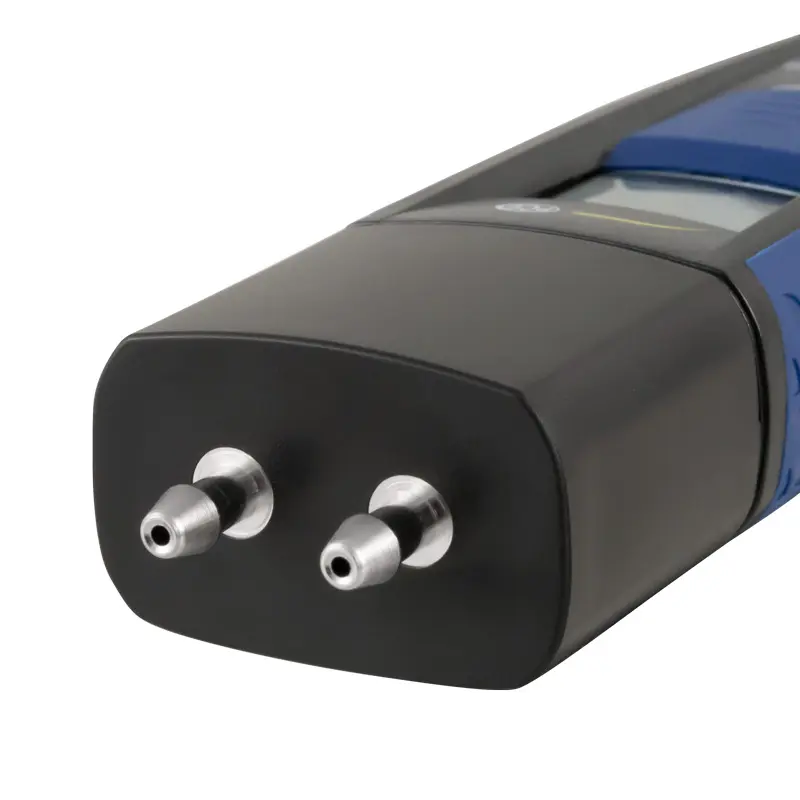

ConnectionPlug nipple for direct
 hose connection
Automatic shutdown    15 minutes
Power supply4 x 1.5V AAA batteries
Operating conditions0 ... 50°C / 32 ... 122°F
Location conditions -10 ... 60°C / 14 ... 140°F
Dimensions 178 x 38 x 24 mm / 7 x 1.5 x 0.9 in
Weight About 70 g / < 1 lb without batteries

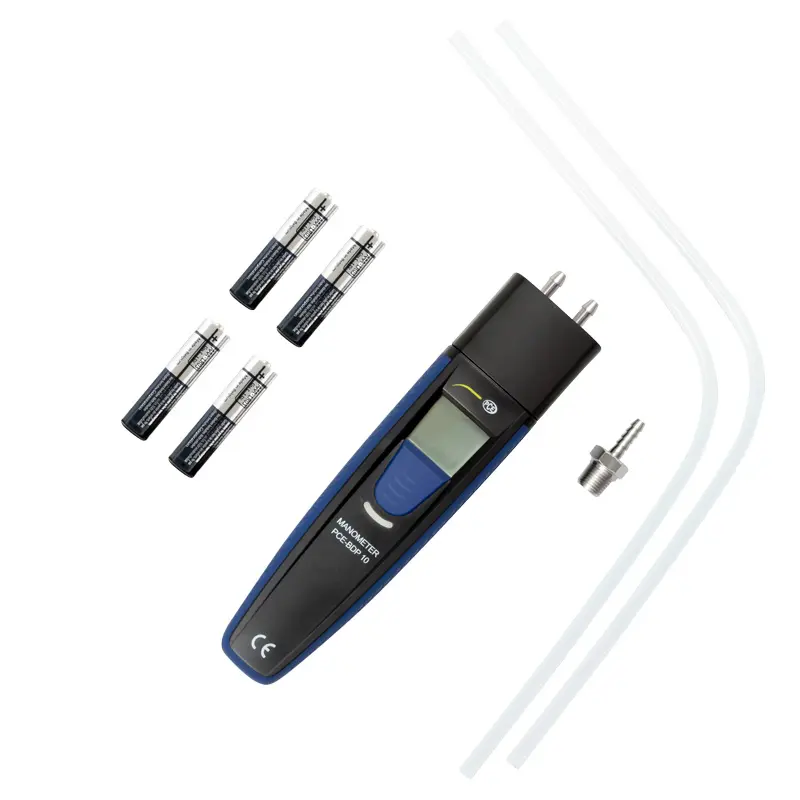

Delivery Scope

1 x Bluetooth pressure gauge PCE-BDP 10
2 x Connecting hose 3.5 x 3 mm
1 x Adapter piece to 1/4"
4 x 1.5V AAA battery
1 x User manual
