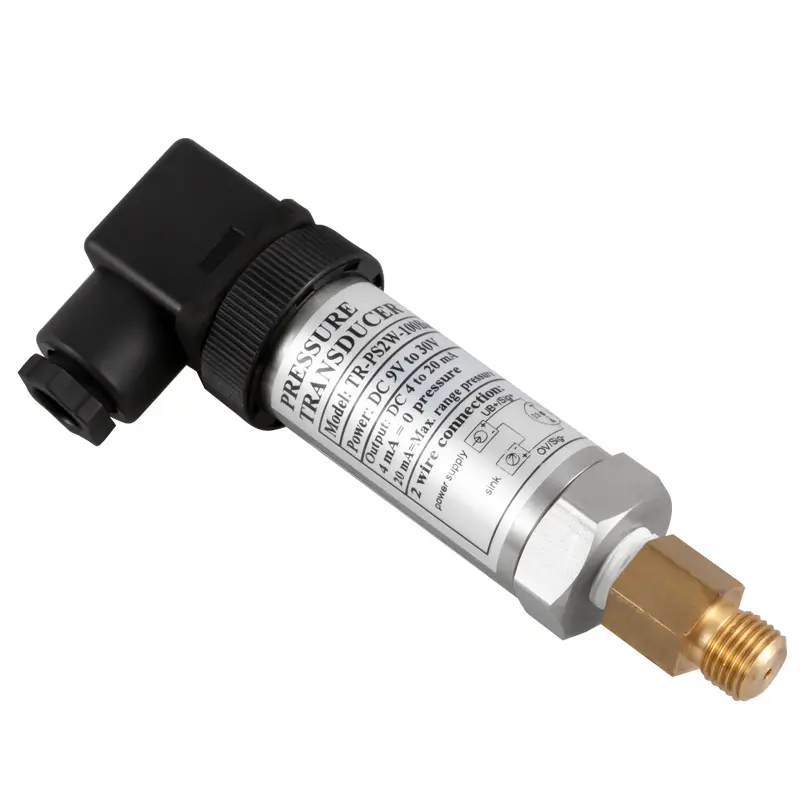

| TR-PS2W-100BAR | |
| Measuring range | Resolution |
| 0 ... 100 bar | 0.1 bar |
| 0 ... 1450 PSI | 2 psi |
| 0 ... 101.9 Kg / cm² | 0.1 kg / cm² |
| 0 ... 75000 mm Hg | 100 mm Hg |
| 0 ... 2952 inch Hg | 2 inch Hg |
| 0 ... 1019 meters H20 | 1 meter H20 |
| 0 ... 40100 inches H20 | 50 inches H20 |
| 0 ... 98.7 ATP | 0.1 ATP |
| 0 ... 10000 kPa | 10 kPa |
| Exit | 4 to 20-mA DC |
| 4-mA | = normal pressure |
| 20-mA | = maximum pressure |
| Precision pressure sensor made of ceramic | |
| Linearity output signal | ± 1% FS |
| Zero Offset | ± 2% FS |
| Operating temperatur | -20 ... 80°C / -4 ... 176°F |
| Ambient humidity | 80% RH |
| Size | Ø 30 mm x 85 mm |
| Weight | 160 g / < 1 lb |
