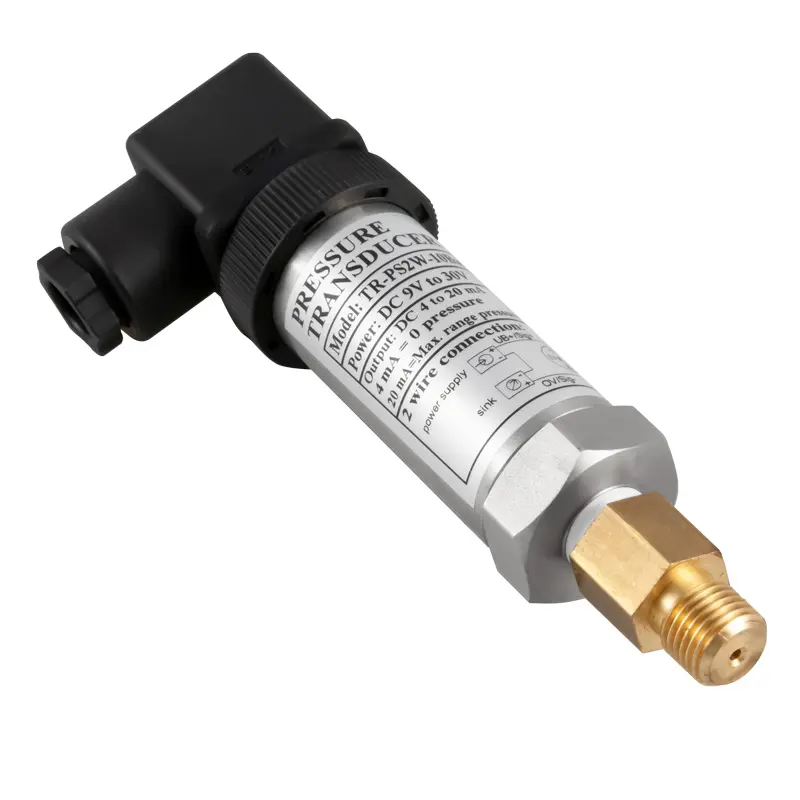

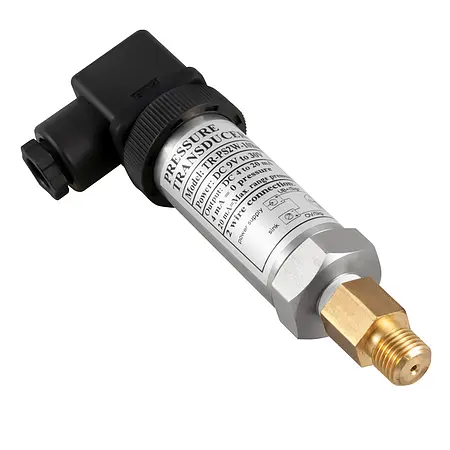

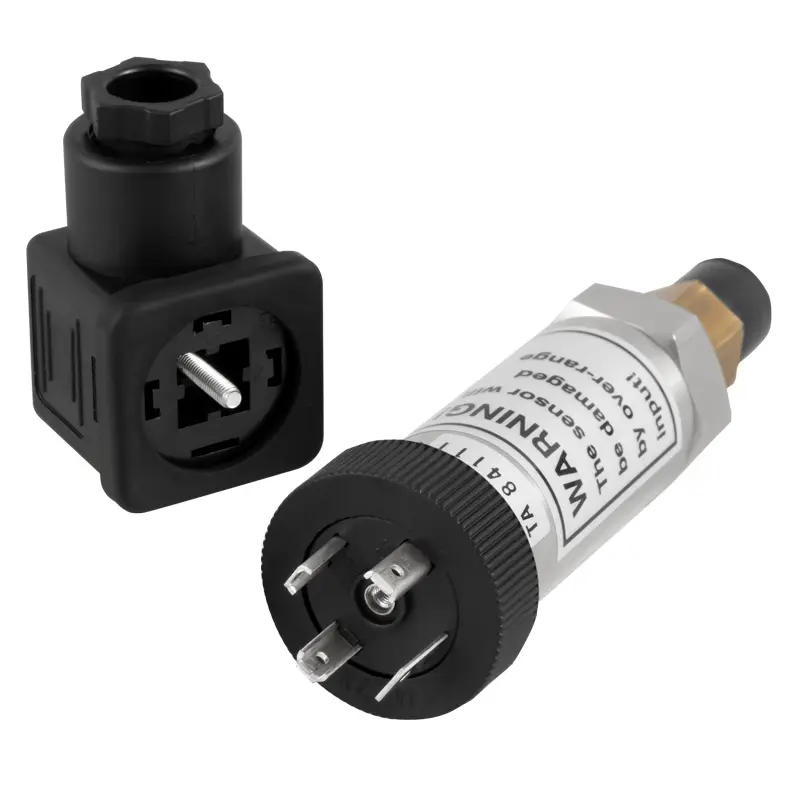

| TR-PS2W-10BAR | |
| Measuring range | Resolution |
| 0 ... 10 bar | 0.01 bar |
| 0 ... 145 PSI | 0.2 PSI |
| 0 ... 10.19 Kg / cm² | 0.01 kg / cm² |
| 0 ... 7500 mm Hg | 10 mm Hg |
| 0 ... 295.2 inch Hg | 0.2 inch Hg |
| 0 ... 101.9 meters H20 | 0.1 meter H20 |
| 0 ... 4010 inches H20 | 5 inch H20 |
| 0 ... 9.87 ATP | 0.01 ATP |
| 0 ... 1000 kPa | 1 kPa |
| Exit | 4 to 20-mA DC |
| 4-mA | = normal pressure |
| 20-mA | = maximum pressure |
| Precision pressure sensor made of ceramic | |
| Linearity output signal | ± 1% FS |
| Zero Offset | ± 2% FS |
| Operating temperatur | -20 ... 80°C / -4 ... 176°F |
| Ambient humidity | 80% RH |
| Size | Ø 30 mm x 85 mm |
| Weight | 160 g / < 1 lb |
