| TR-PS2W-20BAR | |
| Measuring range | Resolution |
| 0 ... 20 bar | 0.02 bar |
| 0 ... 290 PSI | 0.2 PSI |
| 0 ... 20.40 Kg / cm² | 0.02 kg / cm² |
| 0 ... 15000 mm Hg | 20 mm Hg |
| 0 ... 590.5 inch Hg | 0.5 inch Hg |
| 0 ... 204.0 meters H20 | 0.2 meters H20 |
| 0 ... 8020 inches H20 | 10 inch H20 |
| 0 ... 19.74 ATP | 0.02 ATP |
| 0 ... 2000 kPa | 2 kPa |
| Exit | 4 to 20-mA DC |
| 4-mA | = normal pressure |
| 20-mA | = maximum pressure |

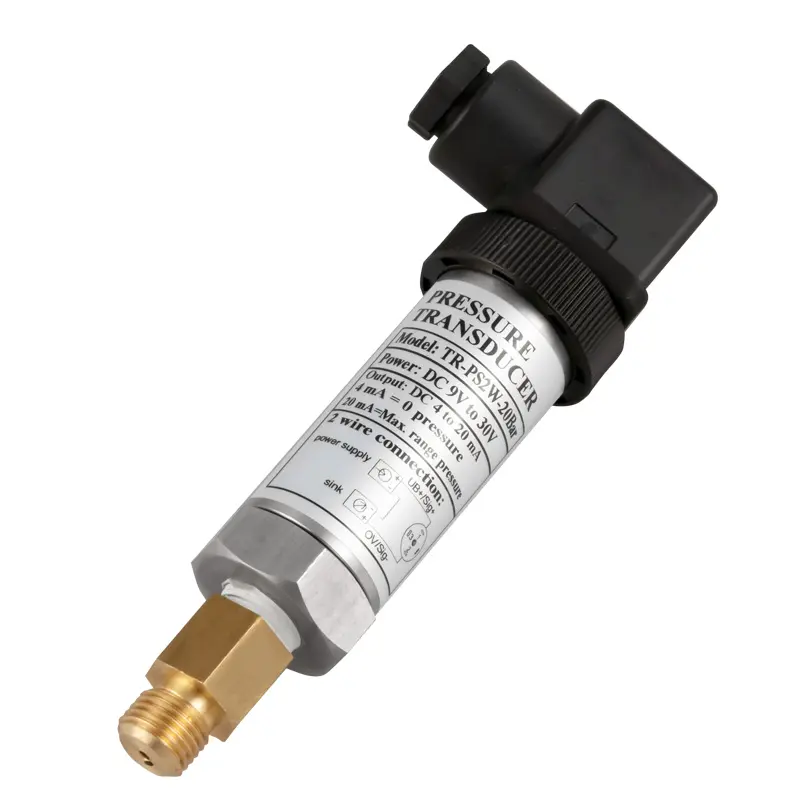

| Precision pressure sensor made of ceramic | |
| Linearity output signal | ± 1% FS |
| Zero Offset | ± 2% FS |
| Operating temperature | -20 ... 80°C / -4 ... 176°F |
| Ambient humidity | 80% RH |
| Size | Ø 30mm x 85mm |
| Weight | 160 g / < 1 lb |
