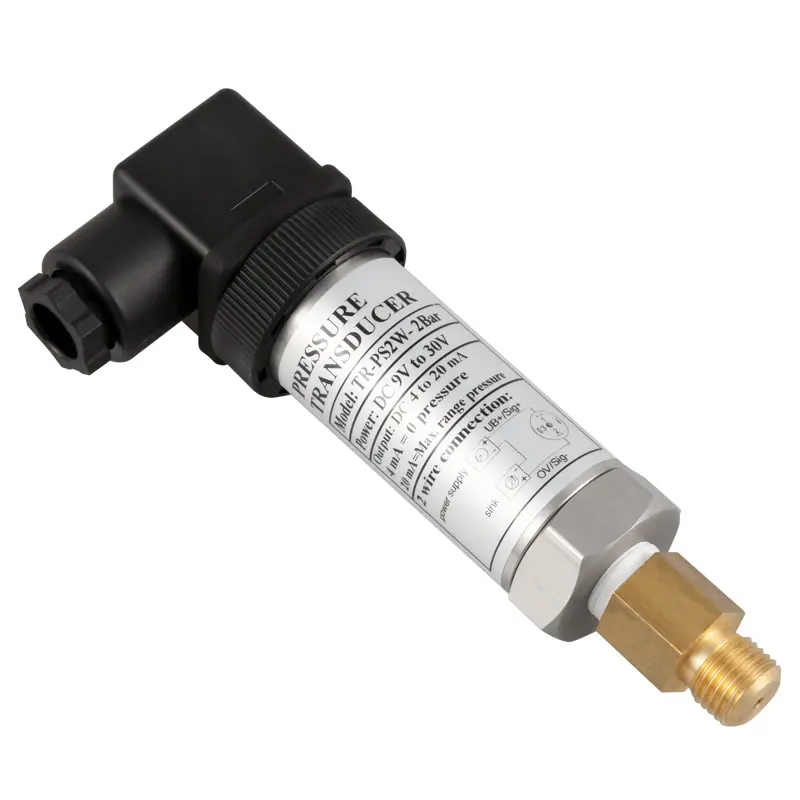

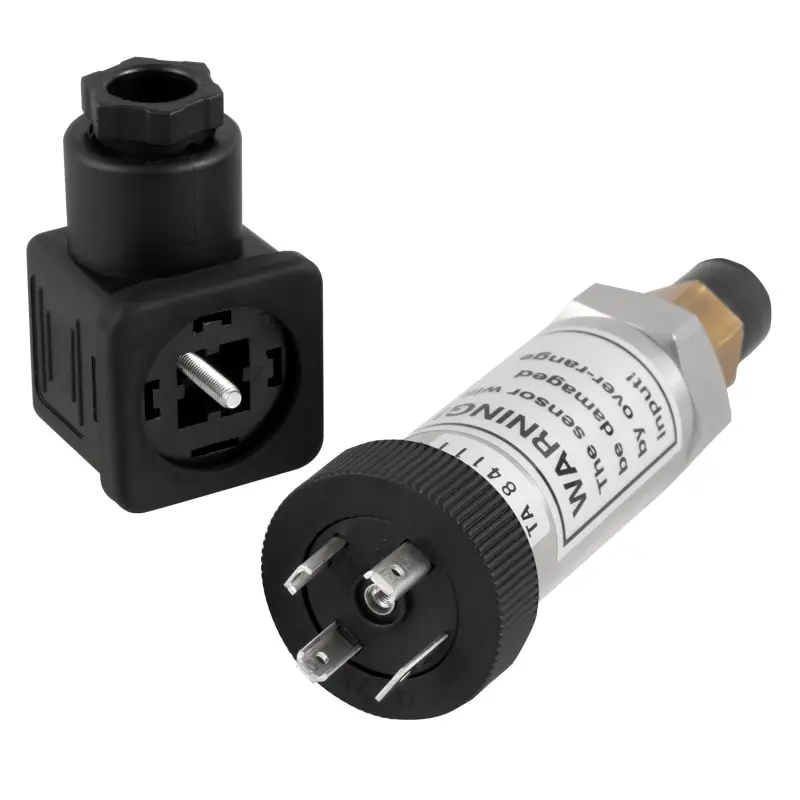

Pressure Sensor TR-PS2W-2BAR

Order no.: TR-PS2W-2BAR
GTIN (EAN):
US$ 257.00
ex. VAT, ex. delivery costs
TR-PS2W-2BAR
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Specification

TR-PS2W-2BAR
Measuring range Resolution
0 ... 2 bar 0.002 bar
0 ... 29 PSI 0.02 PSI
0 ... 2.040 kg / cm² 0.002 kg / cm²
0 ... 1500 mm Hg 2 mm Hg
0 ... 59.05 inch Hg 0.05 inch Hg
0 ... 20.40 meters H20          0.02 meter H20
0 ... 802 inch H20 1 inch H20
0 ... 1.974 ATP 0.002 ATP
0 ... 200 kPa 0.2 kPa

Exit 4 to 20-mA DC
4-mA = normal pressure
20-mA = maximum pressure
Precision pressure sensor made of ceramic
Linearity output signal    ± 1% FS
Zero Offset ± 2% FS
Operating temperature -20 ... 80°C / -4 ... 176°F
Ambient humidity 80% RH
Size Ø 30 mm x 85 mm
Weight 160 g / < 1 lb



Delivery Scope

1 x Pressure sensor TR-PS2W-2BAR
