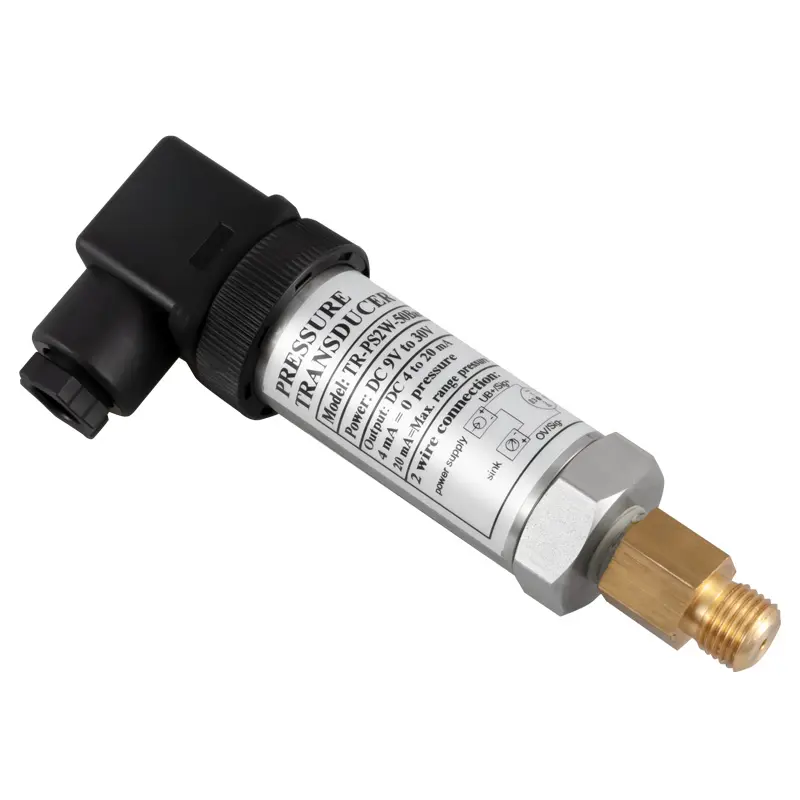

| TR-PS2W-50bar | |
| Measuring range | Resolution |
| 0 ... 50 bar | 0.05 bar |
| 0 ... 725 PSI | 1 PSI |
| 0 ... 50.95 Kg / cm² | 0.05 kg / cm² |
| 0 ... 37500 mm Hg | 50 mm Hg |
| 0 ... 1476 inch Hg | 1 inch Hg |
| 0 ... 509.5 meters H20 | 0.5 meter H20 |
| 0 ... 20050 inches H20 | 20 inch H20 |
| 0 ... 49.35 ATP | 0.05 ATP |
| 0 ... 5000 kPa | 5 kPa |
| Exit | 4 to 20-mA DC |
| 4-mA | = normal pressure |
| 20-mA | = maximum pressure |
| Precision pressure sensor made of ceramic | |
| Linearity output signal | ± 1% FS |
| Zero Offset | ± 2% FS |
| Operating temperatur | -20 ... 80°C / -4 ... 176°F |
| Ambient humidity | 80% RH |
| Size | Ø 30 mm x 85 mm |
| Weight | 160 g / < 1 lb |
