| TR-PS2W-5Bar | ||
| Measuring range |
|
|
| 0 ... 5 bar | 0.005 bar | |
| 0 ... 72.5 PSI | 0.1 PSI | |
| 0 ... 5.095 Kg / cm² | 0.005 kg / cm² | |
| 0 ... 3750 mm Hg | 5 mm Hg | |
| 0 ... 147.6 inches Hg | 0.1 inch Hg | |
| 0 ... 50.95 meters H20 | 0.05 meter H20 | |
| 0 ... 2006 inch H20 | 2 inches H20 | |
| 0 ... 4,935 ATP | 0.002 ATP | |
| 0 ... 500 kPa | 0.5 kPa | |
| Exit | 4 to 20-mA DC | |
| 4-mA | = normal pressure | |
| 20-mA | = maximum pressure | |

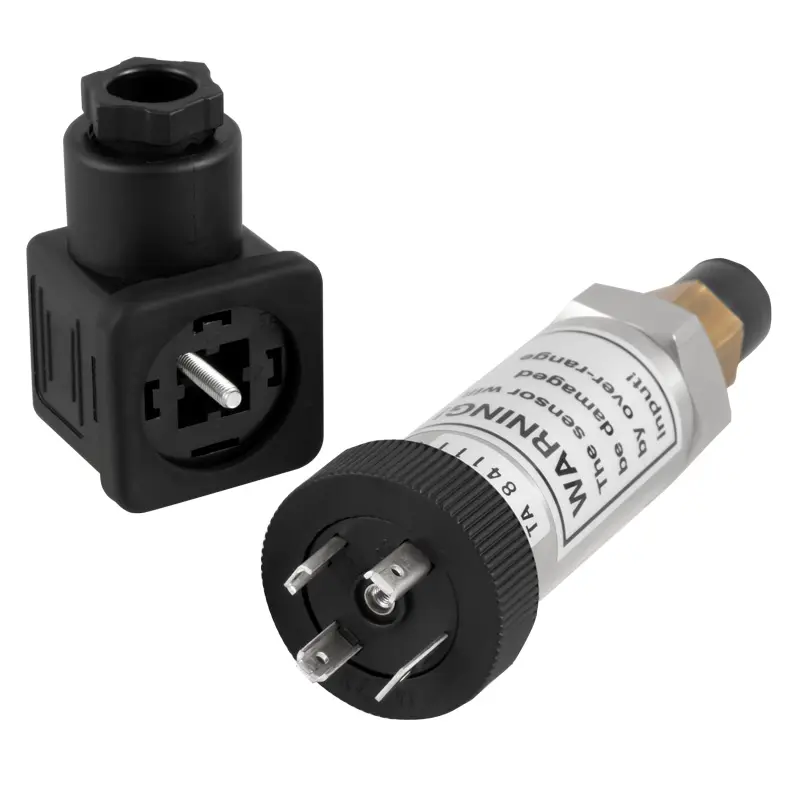

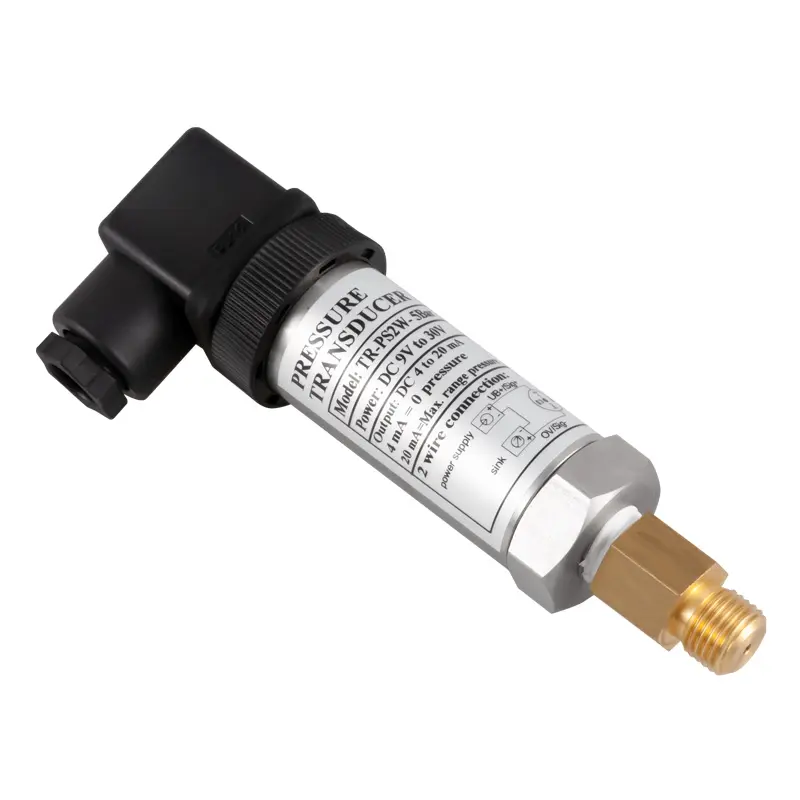

| Precision pressure sensor made of ceramic | ||
| Linearity output signal | ± 1% FS | |
| Zero Offset | ± 2% FS | |
| Operating temperature | -20 ... 80°C / -4 ... 176°F | |
| Ambient humidity | 80% RH | |
| Size | Ø 30 mm x 85 mm | |
| Weight | 160 g / < 1 lb | |
