Probe Thermometer PCE-IR 90

Order no.: PCE-IR 90

GTIN (EAN): 4250348723376

Accessory

ISO Calibration Certificate for Infrared Thermometer

US$ 160.00

Description

Probe Thermometer with Bluetooth interface / Measuring range -40 ... 300°C (-40 ... 572°F) / Charging station / penetration temperature probe for checking the core temperature / Background lighting / Temperature indicator display / Stop watch / Emissivity 0.95

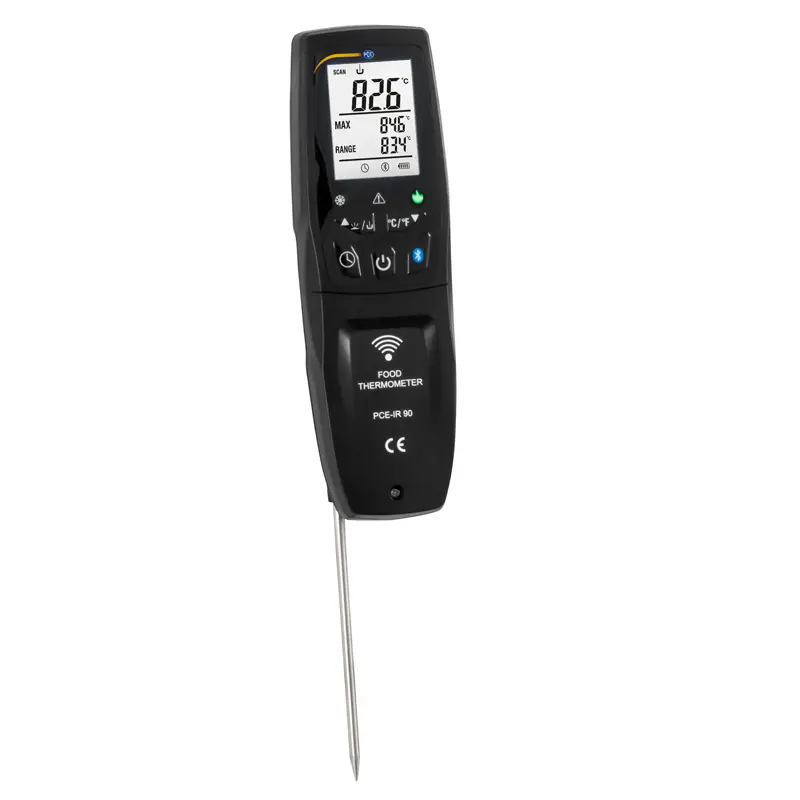

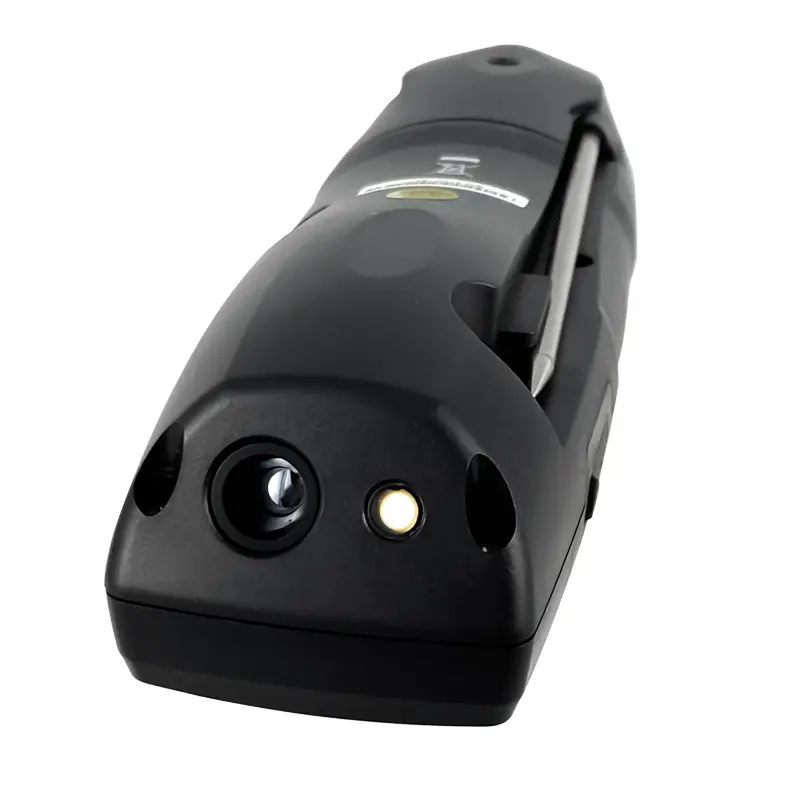

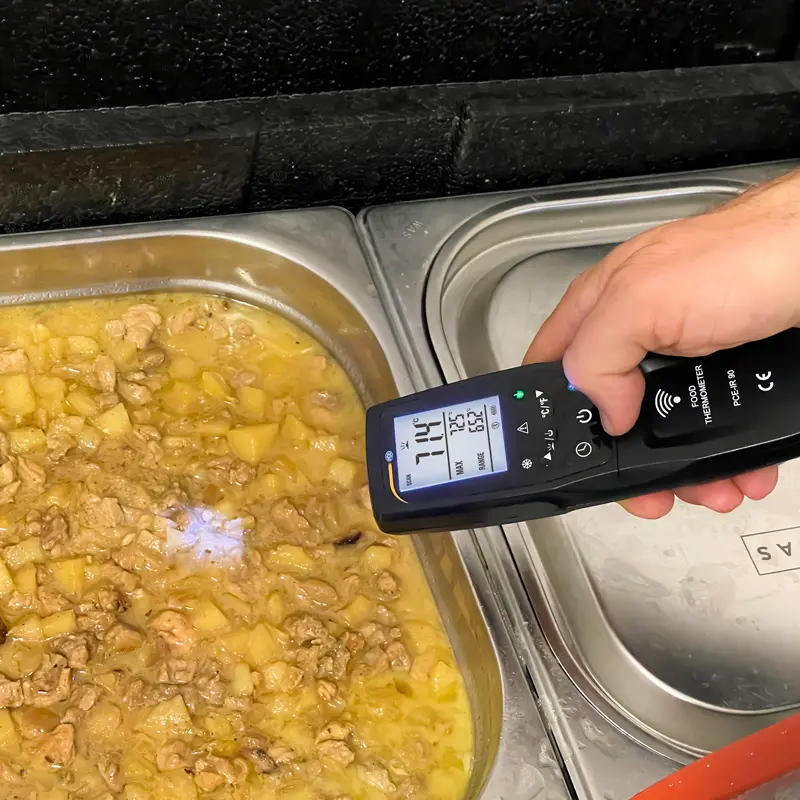

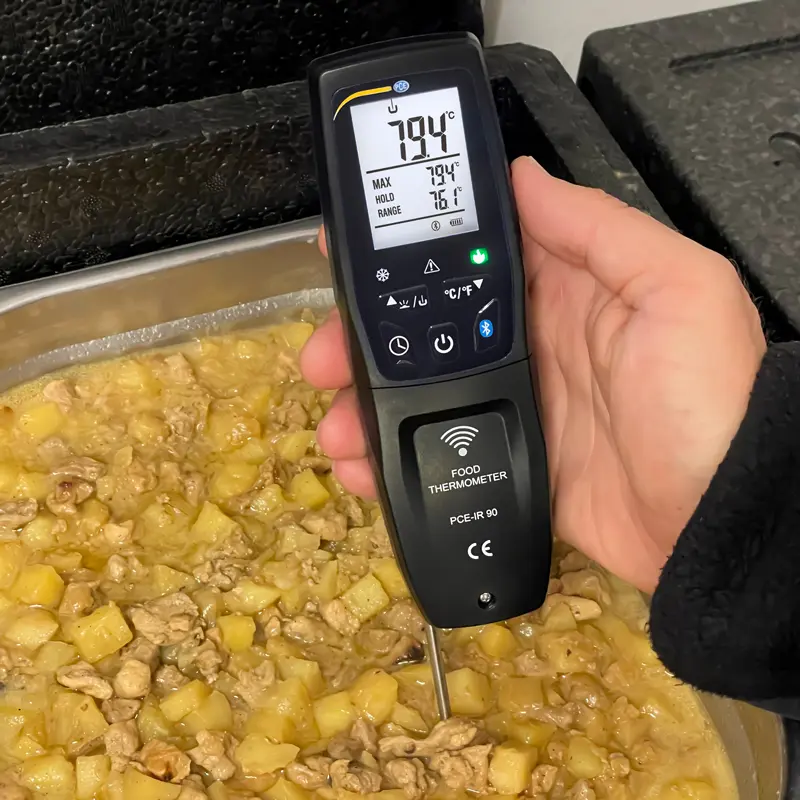

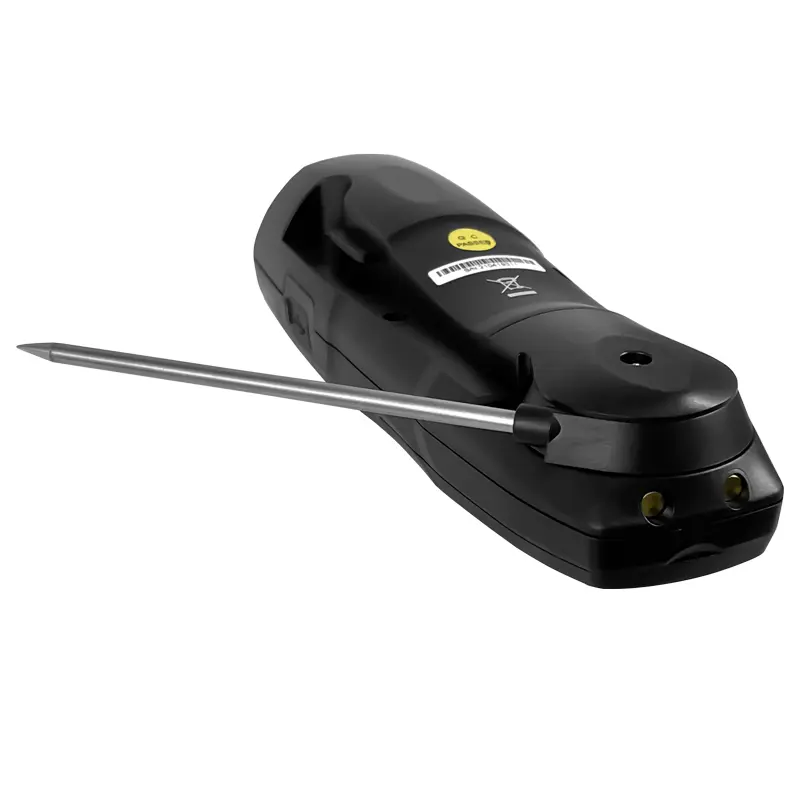

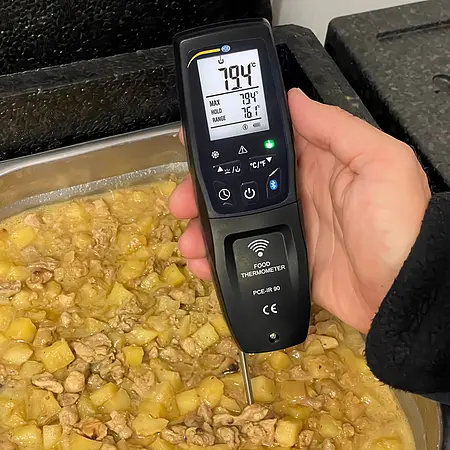

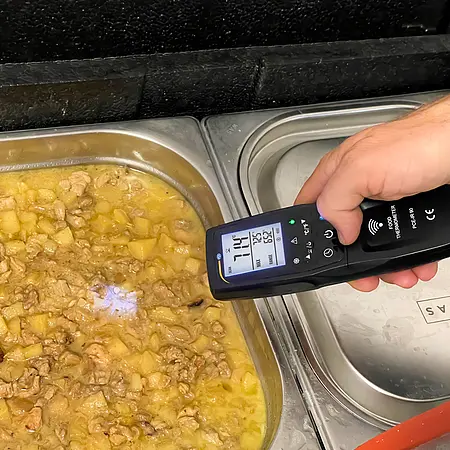

The probe thermometer is used to check the temperature of food. In addition to the surface temperature via the infrared sensor, the thermometer can also be used to determine the core temperature via the fold-out resistance temperature sensor. Both temperature sensors on the thermometer have a measuring range of -40 ... 300°C / -40 ... 572°F.

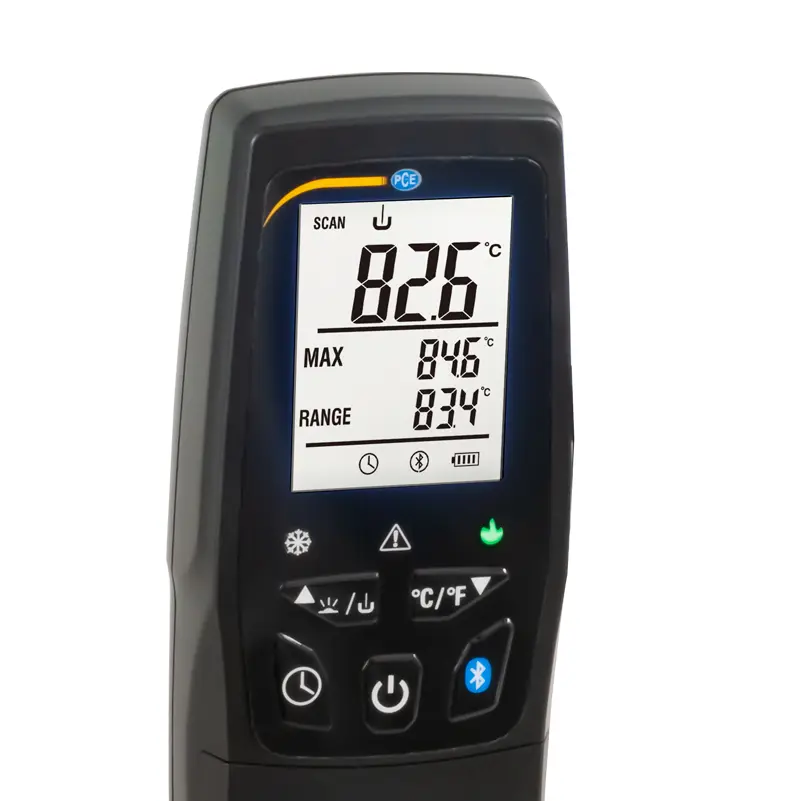

In addition to the normal measured value display, the thermometer has a temperature display. This display on the thermometer signals whether the temperature of the food being measured is optimal. If the temperature is between 4 … 65°C / 39.2 ... 149°F, this is indicated by a red LED. If the temperature is colder than 4°C / 39.2°F or warmer than 65°C / 149°F, this is indicated by a green LED. This function in the thermometer is particularly important in order to monitor the respective temperature chain. Therefore, the thermometer is used especially in the food industry.

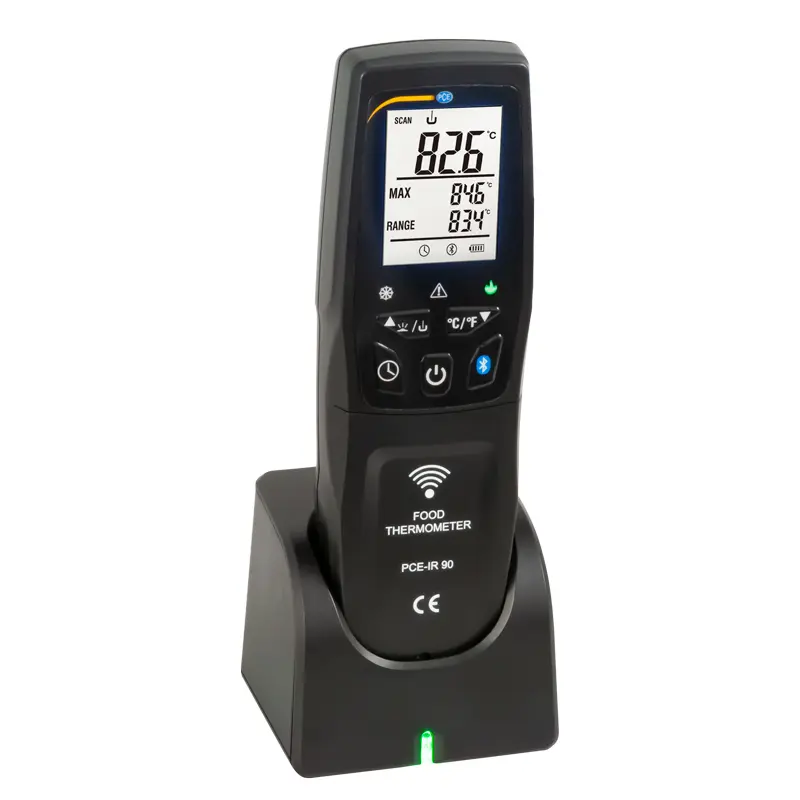

The Bluetooth interface enables communication between the thermometer and a mobile Android and iOS device. With the free app for the thermometer, the measured values can be recorded with a mobile device and exported for later analysis. To charge the measuring device, the thermometer can be plugged into the charging station provided. If necessary, the thermometer can also be charged via a 5 V micro USB interface.

Highlights

- Measuring range -40 ... 300°C / -40 ... 572°F
- Infrared and penetration temperature sensor
- Timer and stopwatch function

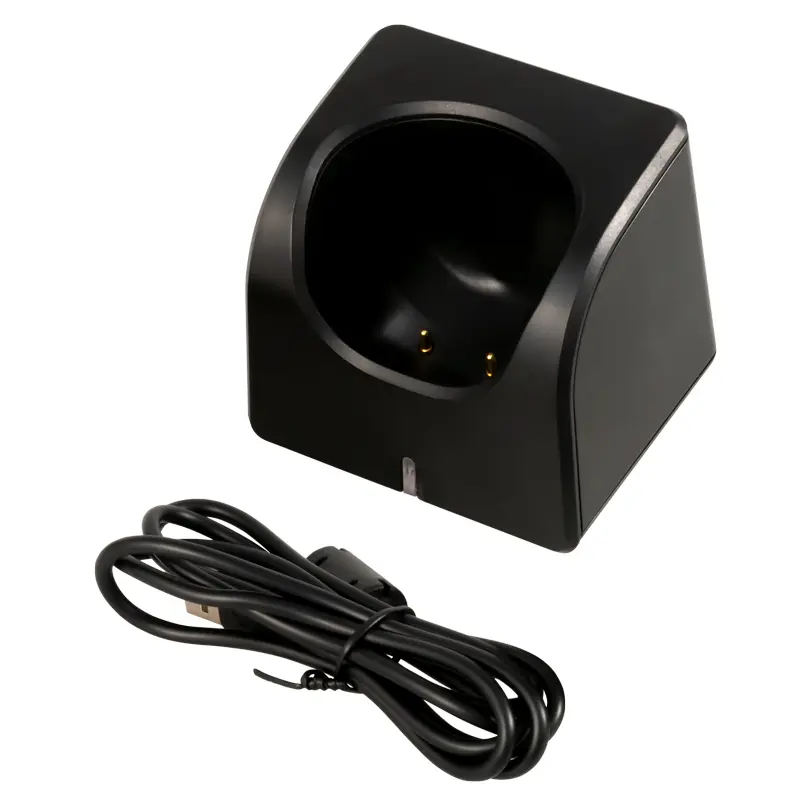

- Charging station with micro USB cable
- Bluetooth interface
- Mobile temperature measuring device
- Easy handling

Specification


Infrared measurement
Measuring range	-40 ... 300°C, -40 ... 572°F
Resolution	0.1°C, °F
Measurement accuracy	± 1°C, ± 1.8°F at 0 ... 65°C, 32 ... 150°F
	± 2.5°C, ± 4.5°F at < 0°C, < 32 ° F
	± 1.5% at > 65°C, 150°F
Spot ratio	2: 1
Reaction time	< 500 ms

Penetration probe
Measuring range	-40 ... 300°C, -40 ... 572°F
Resolution	0.1° C,°F
Measurement accuracy	± 1°C, ± 1.8°F at -40 ... 200°C, -40 ... 392°F
	± 1.5°C, ± 4.5°F at > 200°C, > 392°F
Sensor type	Resistance temperature sensor
Probe length	100 mm

Further specifications
Emission value	0.95 fixed
Interfaces	Bluetooth (data transfer)
	Micro USB (for charging)
Additional functions	Timer and stopwatch
Power supply	4.2V 1300-mAh battery,
	5V DC / 1 A fixed voltage supply via
	Micro USB interface
Operating conditions	0 ... 50°C, < 85% RH, non-condensing
Dimensions	176 x 55 x 40 mm / 6.9 x 2.2 x 1.6 in
Weight	185 g / < 1 lb
