Psychrometer PCE-HVAC 3-ICA Incl. ISO Calibration Certificate

Order no.: PCE-HVAC 3-ICA
GTIN (EAN):
US$ 466.00
ISO Calibration
ex. VAT, ex. delivery costs
PCE-HVAC 3-ICA
Available in: 10 - 14 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

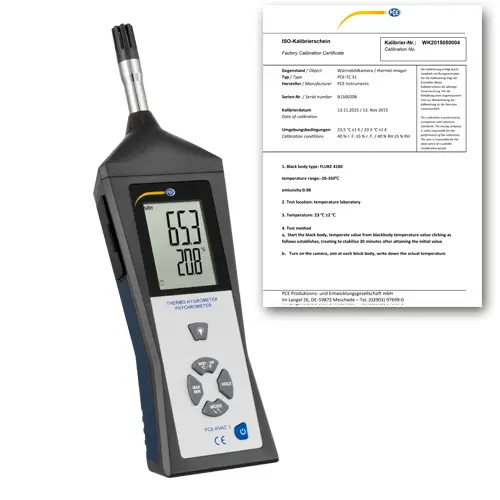

Multifunction Psychrometer with ISO calibration certificate
Measures relative humidity (% RH) and ambient room temperature (°C / °F) / Calculates dew-point and wet-bulb temperatures (°C / °F) / Features hold and extreme value measurement functions

The psychrometer is an environmental tester or diagnostic measuring device used for indoor climate and environmental monitoring. In addition to measuring relative humidity and ambient room / dry-bulb temperature, the meter calculates dew-point and wet-bulb temperatures in degrees Celsius (°C) and Fahrenheit (°F). Thus, heating, ventilation and air conditioning (HVAC) installations and HVAC system performance assessments are key applications of the psychrometer. Measurements of relative humidity and ambient room / dry-bulb temperature are made directly by built-in sensors. Dew-point and wet-bulb temperatures are calculated based on the measurement values transmitted ​​by the sensors.

Featuring a large, backlit display and six-button operation, the psychrometer is both easy to read and easy to use. The environmental tester is equipped to take one-time measurements on the spot as well as to monitor climate changes over time. The automatic shutdown function can be disabled when taking long-term measurements. There is also a thread on the back of the environmental tester to allow the measuring instrument to be mounted on a tripod. The extreme value measurement function can be activated during long-term monitoring to determine the minimum or maximum values ​​over a desired period of time.



Highlights

- Ergonomic design
- Large backlit display
- One-handed operation
- Hold and extreme value functions
- Built-in sensors measure relative humidity and ambient room / dry-bulb temperature
- Dew-point temperature and wet-bulb temperature calculation
- Automatic shutdown can be disabled for long-term monitoring
- Incl. ISO calibration certificate

Specification

Relative humidity (RH) measuring range 0 ... 20% (Accuracy: ± 4% RH)
20 ... 40% (Accuracy: ± 3 % RH)
40 ... 60% (Accuracy: ± 2% RH)
60 ... 80% (Accuracy : ± 3% RH)
80 ... 100% (Accuracy: ± 4% RH)
Ambient room / dry-bulb temperature measuring range -30 ... -20°C / -22 ... -4°F (Accuracy: ± 1.0°C / 1.8°F)
-20 ... 60°C / -4 ... 140°F (Accuracy: ± 0.5°C / 0.9°F)
60 ... 100°C / 140 ... 212°F (Accuracy: ± 1.0°C / 1.8°F)
Relative humidity resolution 0.1%
Ambient room / dry-bulb temperature resolution 0.1°C / 0.18°F
Measuring units Relative humidity (% RH)
Ambient room / dry-bulb temperature (°C / °F)
Dew-point temperature (°C / °F)
Wet-bulb temperature (°C / °F)
Measuring parameters % RH, GPP (grains per pound), g / kg,
g / m³ (absolute), gr / ft³ (absolute)

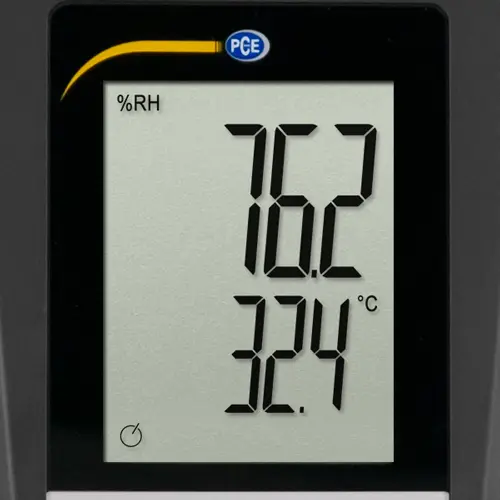

Display Dual LCD with backlight
Response time < 15 seconds
Type of sensor Humidity: Precise capacitance
Temperature: Thermistor
Absolute humidity 0 ... 500 g / m³
0 ... 218.5 gr / ft³
Dew-point temperature measuring range -30 ... 100°C / -22 ... 212°F
Wet-bulb temperature measuring range 0 ... 80°C / 32 ... 176°F
Operating conditions 0 ... 50°C / 32 ... 122°F, < 80% RH (non-condensing)
Storage conditions -40 ... 85°C / -40 ... 18 °F, < 99% RH (non-condensing)
Power supply 9V block battery
Battery life Approx. 48 hours
Dimensions 300 x 75 x 50 mm / 11.81 x 2.96 x 1.97 in
Weight 400 g / < 1 lb

Delivery Scope

1 x PCE-HVAC 3-ICA Psychrometer
1 x Battery
1 x User manual

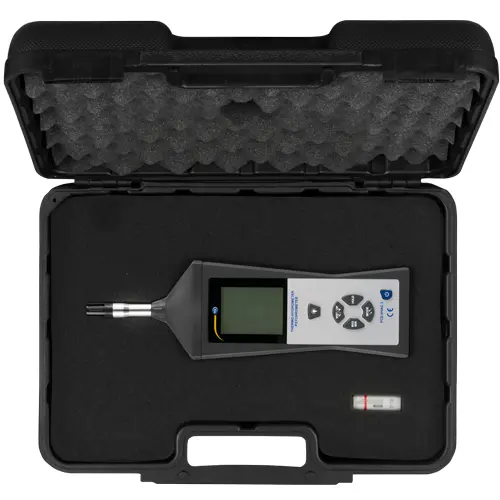

1 x Carrying case
1 x ISO calibration certificate
