Pyrometer PCE-IR 80

Name: Pyrometer PCE-IR 80
Brand: PCE Instruments
SKU: 5886466
Price: 74 USD
Availability: InStock

Order no.: PCE-IR 80

GTIN (EAN): 4250348719256

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Accessory

ISO Calibration Certificate for Infrared Thermometer

US$ 160.00

PCE-MS 25 Measuring Point Sticker

US$ 20.00

Description

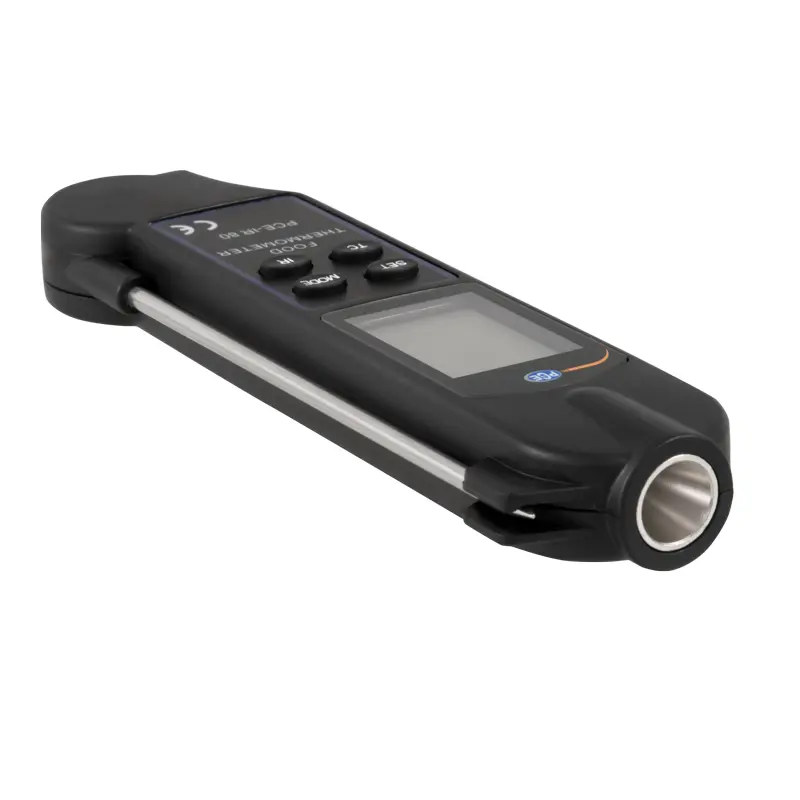

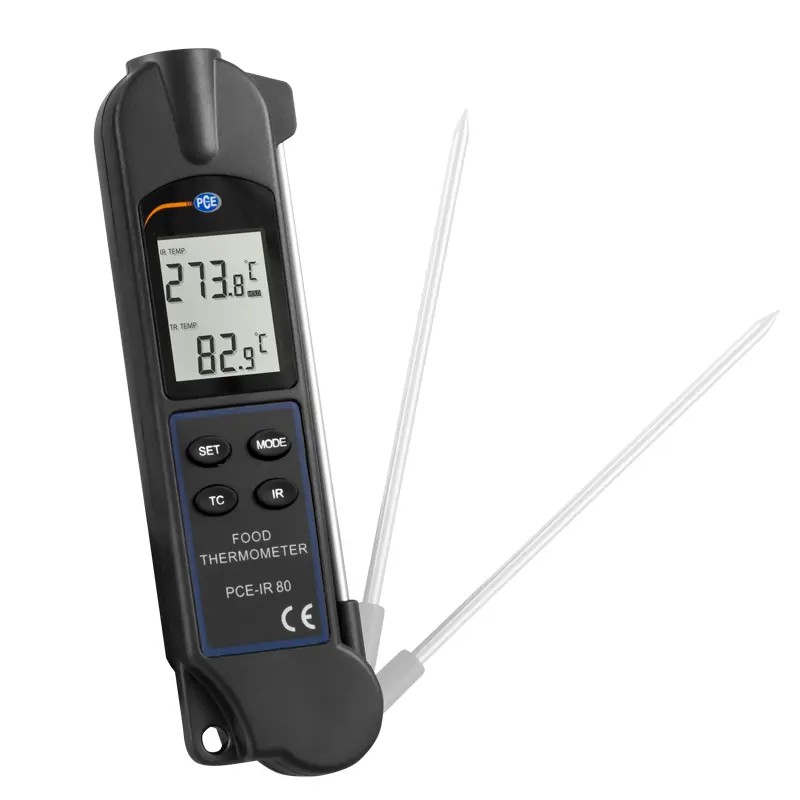

PCE-IR 80 Pyrometer
Food thermometer for non-contact and contact measurement / Up to 330°C (626°F) / Probe made of stainless steel / Simple operation

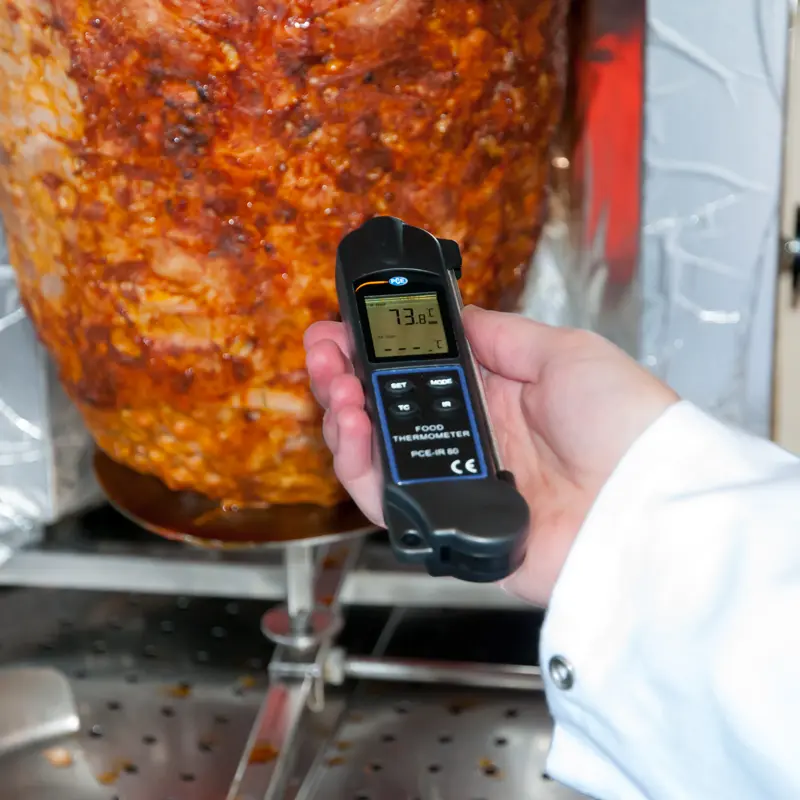

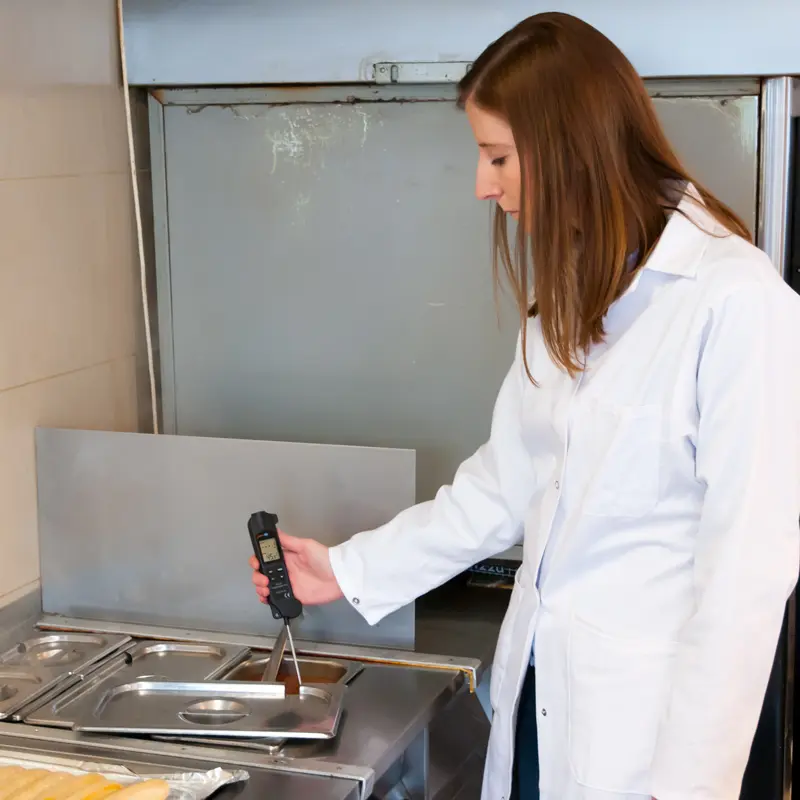

The pyrometer PCE-IR 80 is used to quickly control the temperature of food. The pyrometer is used in the area of canteen kitchens, catering services, refrigerated warehouses and warehouses. The pyrometer has two types of measurement. On the one hand, the PCE-IR 80 pyrometer can measure the temperature of the object without contact via infrared. Here the measuring range is -35 ... 330°C / -31 ... 626°F. The emissivity of the pyrometer is adjustable, so that always best measuring results can be achieved.

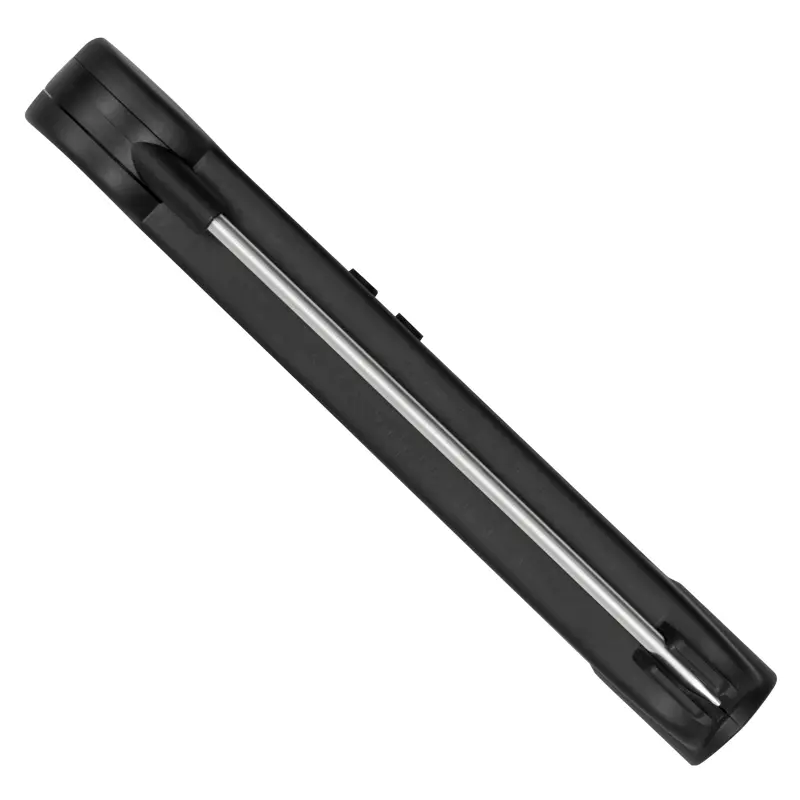

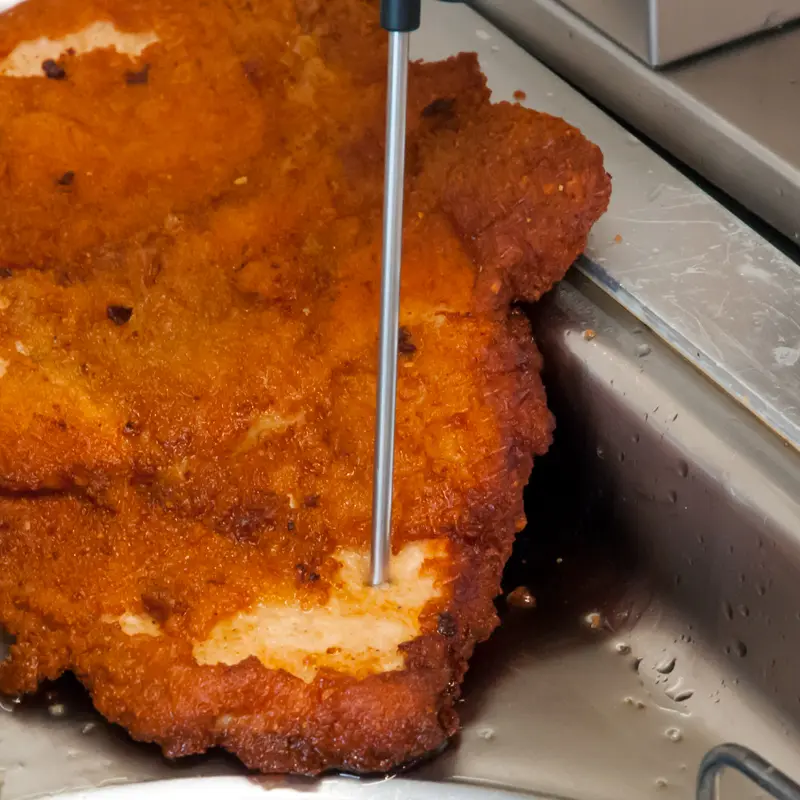

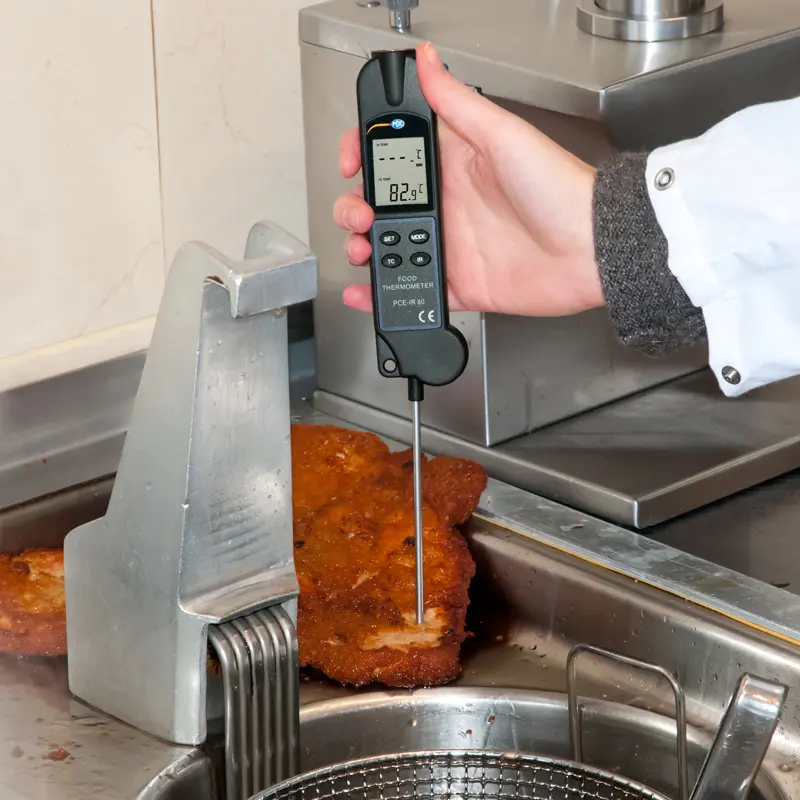

On the other hand, the pyrometer has a stainless steel needle sensor, so that the meter can also be used as a puncture, pyrometer. If the core temperature is measured by this method, the pyrometer can measure in the range between -20 ... 260°C / -4 ... 500°F. The unit of the penetration thermometer can be switched between °C and °F. The fast response time of 10 ms and high resolution of 0.1°C / 1.8°F complete the scope of the pyrometer. The thermometer is supplied with a CR2032 battery.

Highlights

- Non-contact and contacting temperature measurement combined in one measuring device only
- Large measuring range
- Suitable for use in the food industry according to HACCP
- Emissivity adjustable (pre-set for food)
- Low response time

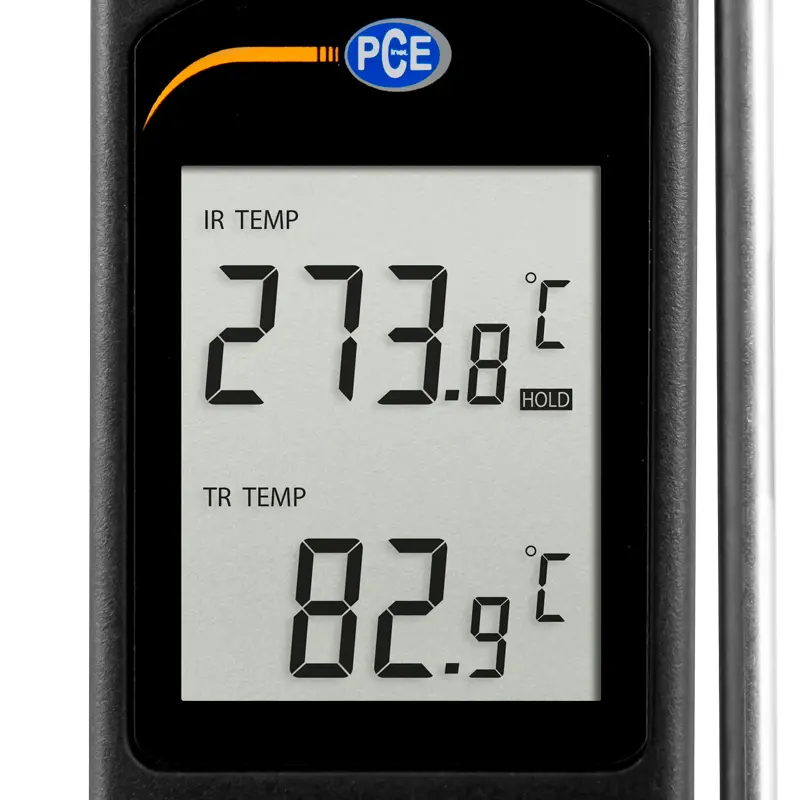

- Measurement hold function (Min./Max.)
- Continuous measurement function
- Waterproof, thus simple hygienic cleaning (flushable housing)

Specification

Measurement type infrared
Measuring range	-35 ... 330°C / -31 ... 626°F
Resolution	0.1°C / 0.18°F
Accuracy	-35 ... 0°C / -31 ... 32°F : ± 4°C / 7.2°F > 0°C / 32°F : ± 2% of rdg. ± 2°C / 3.6°F

Type of measurement Penetration sensor
Measuring range	-20 ... 260°C / -4 ... 500°F
Resolution	0.1°C / 0.18°F
Accuracy	± 1% of of rdg. ± 1.5°C / 2.7°F

Optical resolution	4: 1
Emissivity	Adjustable 0.1 ... 1.0
Response time	10 ms
Spectral	8 ... 14 μm
Power supply	3.0V CR2032 battery
Operating conditions	0 ... 50°C / 32 ... 122°F, max. 80% rh
Weight	About 100 g / < 1 lb
Dimensions	151 x 41 x 20 mm / 6 x 1.6 x 0.8 in

Delivery Scope

1 x PCE-IR 80 pyrometer
1 x User manual

Downloads

Manual

Datasheet
