Pyrometer PCE-IR 90-ICA incl. ISO-Calibration Certificate

Order no.: PCE-IR 90-ICA
GTIN (EAN): 4250348733290
US$ 281.00
ISO Calibration
ex. VAT, ex. delivery costs
:
4250348733290
PCE-IR 90-ICA
Available in: 10 - 14 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

Pyrometer with Bluetooth interface / Measuring range -40 ... 300°C (-40 ... 572°F) / Charging station / penetration temperature probe for checking the core temperature / Background lighting / Temperature indicator display / Stop watch / Emissivity 0.95

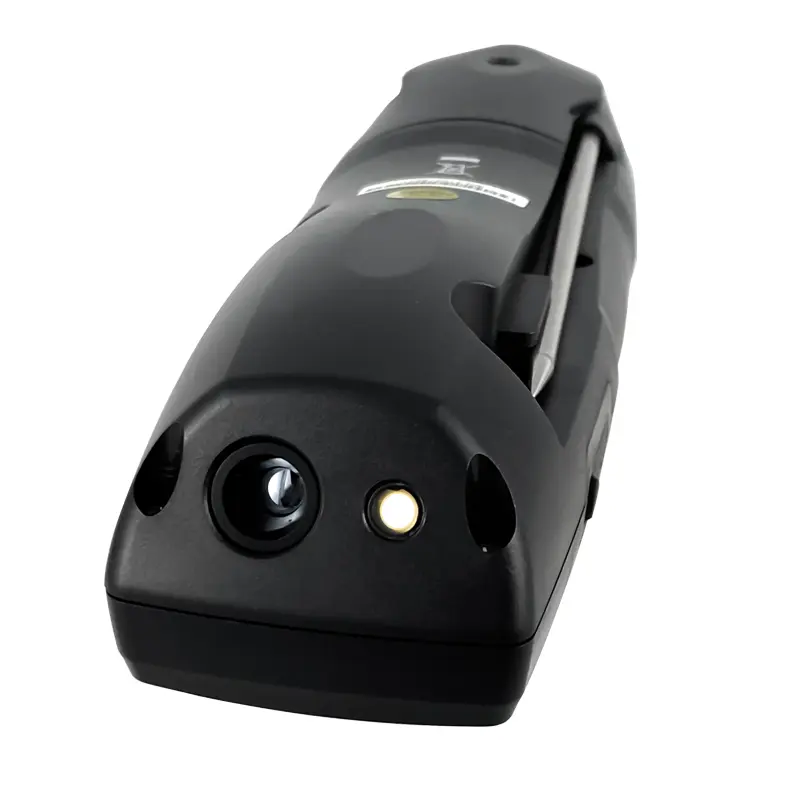

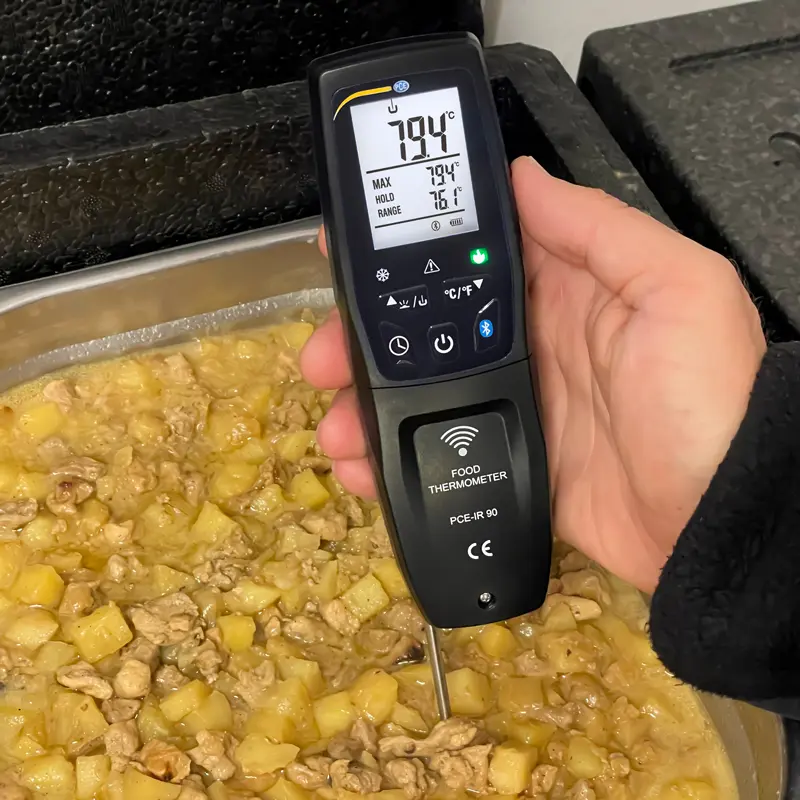

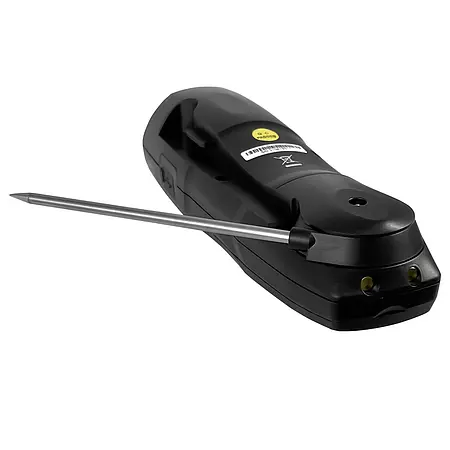

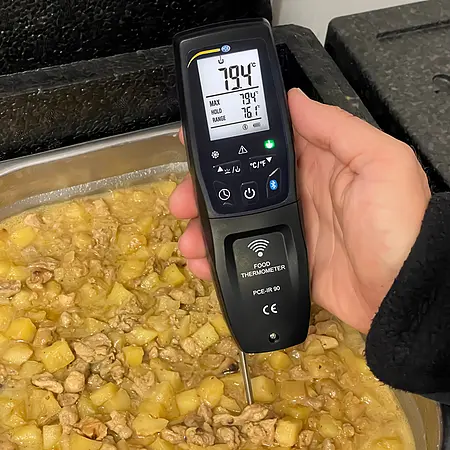

The pyrometer is used to check the temperature of food. In addition to the surface temperature via the infrared sensor, the thermometer can also be used to determine the core temperature via the fold-out resistance temperature sensor. Both temperature sensors on the thermometer have a measuring range of -40 ... 300°C / -40 ... 572°F.

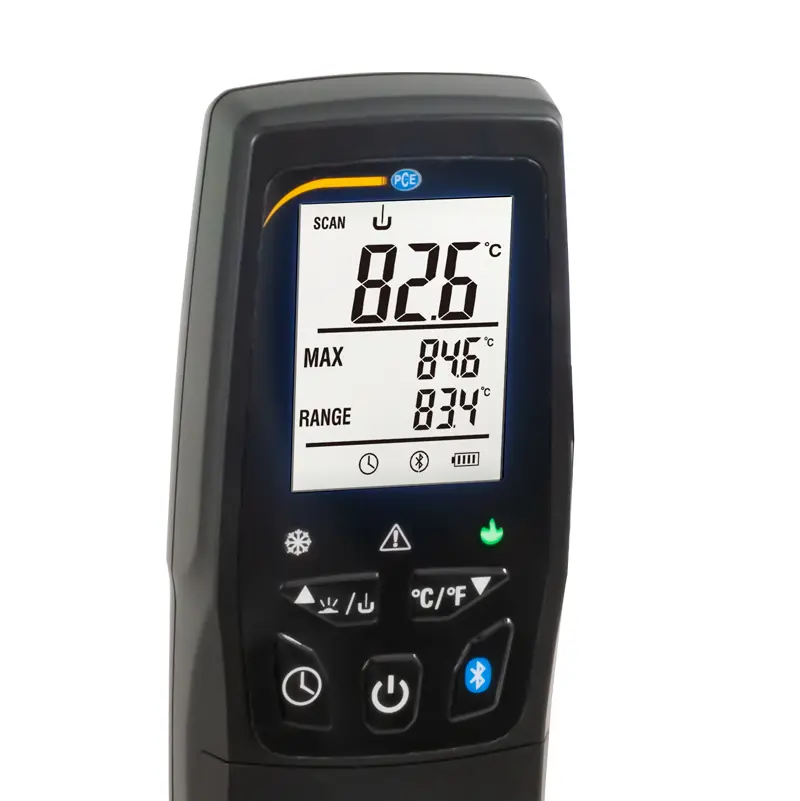

In addition to the normal measured value display, the pyrometer has a temperature display. This display on the thermometer signals whether the temperature of the food being measured is optimal. If the temperature is between 4 … 65°C / 39.2 ... 149°F, this is indicated by a red LED. If the temperature is colder than 4°C / 39.2°F or warmer than 65°C / 149°F, this is indicated by a green LED. This function in the thermometer is particularly important in order to monitor the respective temperature chain. Therefore, the thermometer is used especially in the food industry.

The Bluetooth interface enables communication between the pyrometer and a mobile Android and iOS device. With the free app for the thermometer, the measured values ​​can be recorded with a mobile device and exported for later analysis. To charge the measuring device, the thermometer can be plugged into the charging station provided. If necessary, the thermometer can also be charged via a 5 V micro USB interface.

Highlights

- Measuring range -40 ... 300°C / -40 ... 572°F
- Infrared and penetration temperature sensor
- Timer and stopwatch function
- Charging station with micro USB cable
- Bluetooth interface
- Mobile temperature measuring device
- Easy handling

Specification


Infrared measurement
Measuring range-40 ... 300°C, -40 ... 572°F
Resolution0.1°C, °F
Measurement accuracy        ± 1°C, ± 1.8°F at 0 ... 65°C, 32 ... 150°F
 ± 2.5°C, ± 4.5°F at < 0°C, < 32 ° F
 ± 1.5% at > 65°C, 150°F
Spot ratio2: 1
Reaction time< 500 ms

Penetration probe
Measuring range-40 ... 300°C, -40 ... 572°F
Resolution0.1° C,°F
Measurement accuracy± 1°C, ± 1.8°F at -40 ... 200°C, -40 ... 392°F
 ± 1.5°C, ± 4.5°F at > 200°C, > 392°F
Sensor typeResistance temperature sensor
Probe length100 mm

Further specifications
Emission value0.95 fixed
InterfacesBluetooth (data transfer)
 Micro USB (for charging)
Additional functions      Timer and stopwatch
Power supply4.2V 1300-mAh battery,
 5V DC / 1 A fixed voltage supply via
 Micro USB interface
Operating conditions0 ... 50°C, < 85% RH, non-condensing
Dimensions176 x 55 x 40 mm / 6.9 x 2.2 x 1.6 in
Weight185 g / < 1 lb



Delivery Scope

1 x Pyrometer PCE-IR 90-ICA
1 x Micro USB charging cable

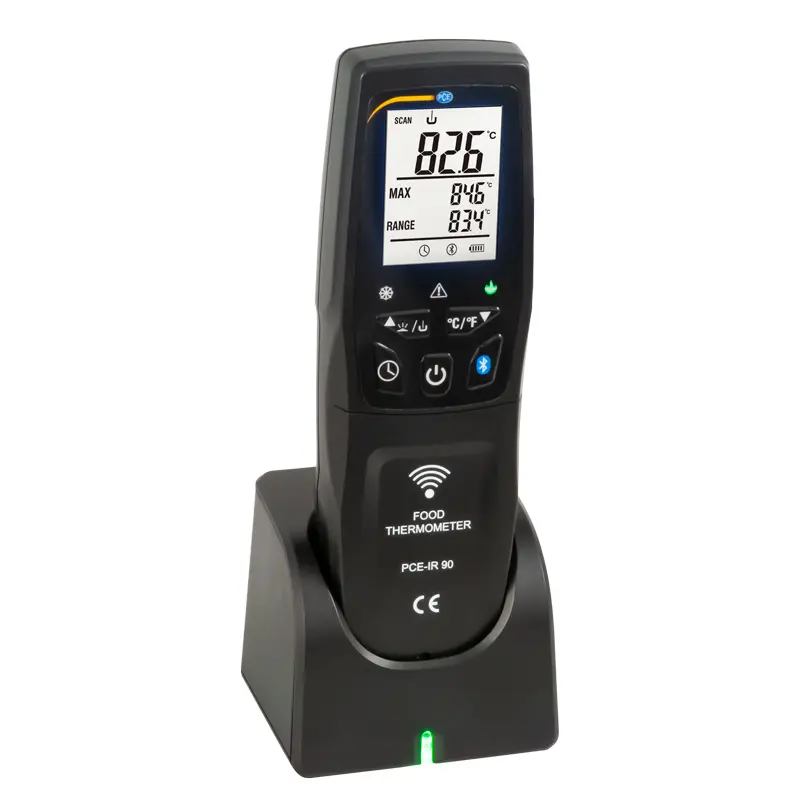

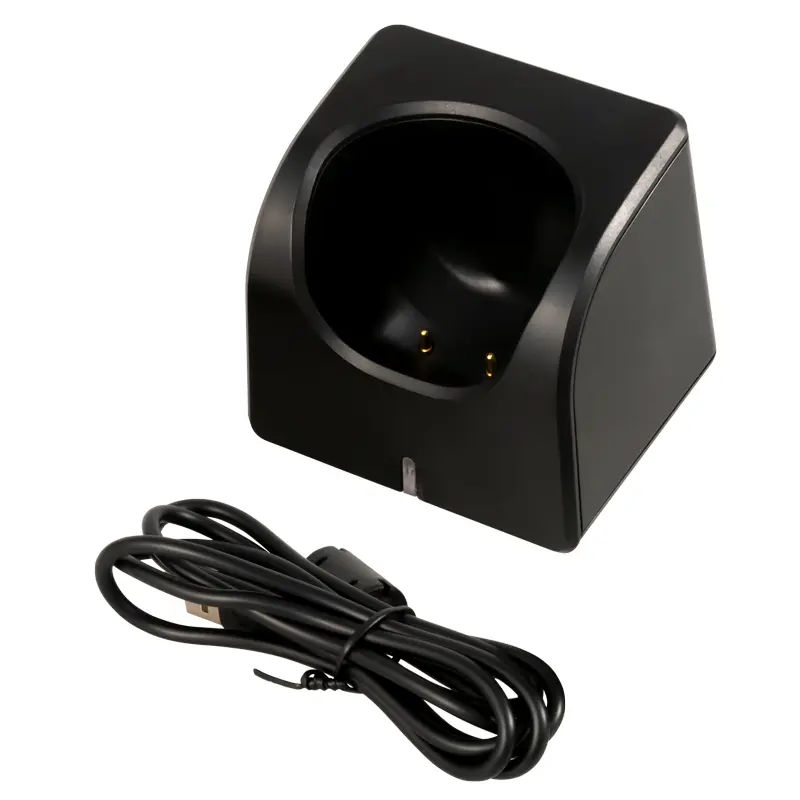

1 x Charging station

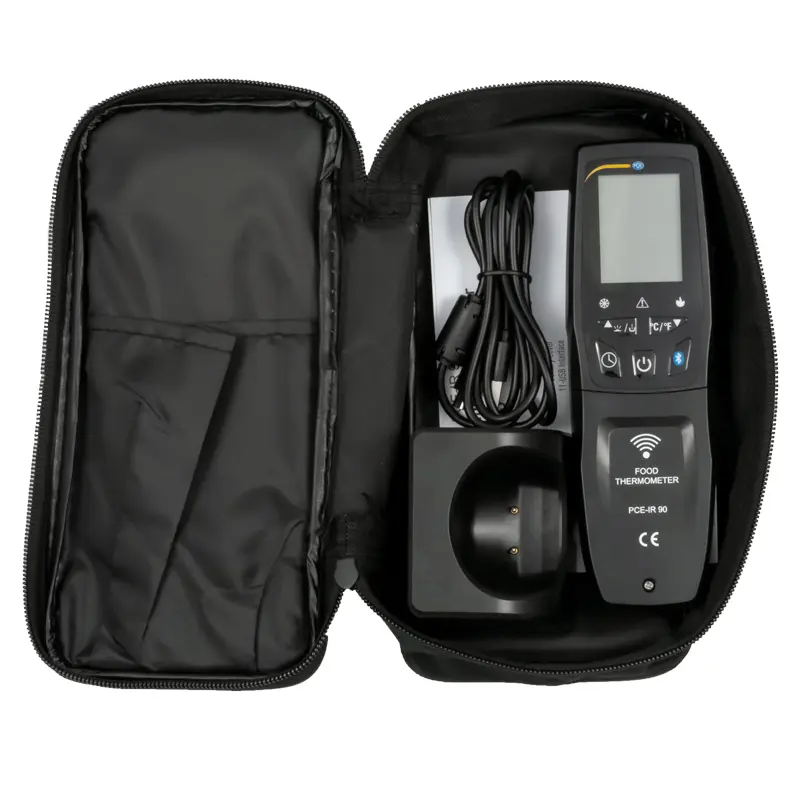

1 x Transport bag
1 x Operating instructions

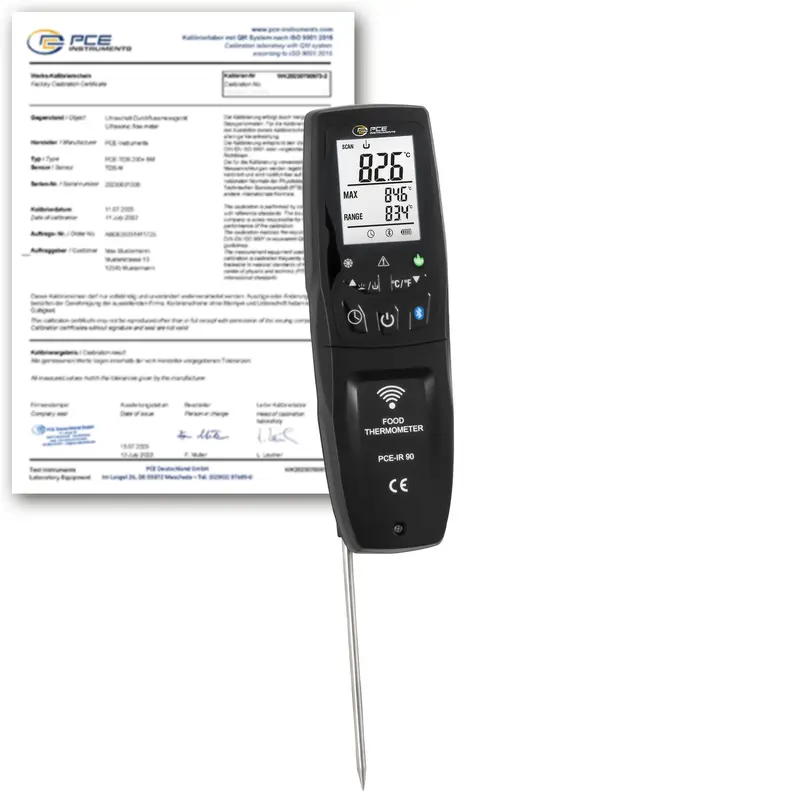

1 x ISO-Calibration Certificate
