Radiation Detector PCE-LMD 200-LD-KIT incl. luminance accessory

Order no.: PCE-LMD 200LD-KIT
GTIN (EAN): 4250348735072
US$ 4,563.00
ex. VAT, ex. delivery costs
:
4250348735072
PCE-LMD 200LD-KIT
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

Radiation Detector class A according to DIN 5032-7 / data logger with 8 GB measured value memory / auto-range switching / external sensor / luminance measurement

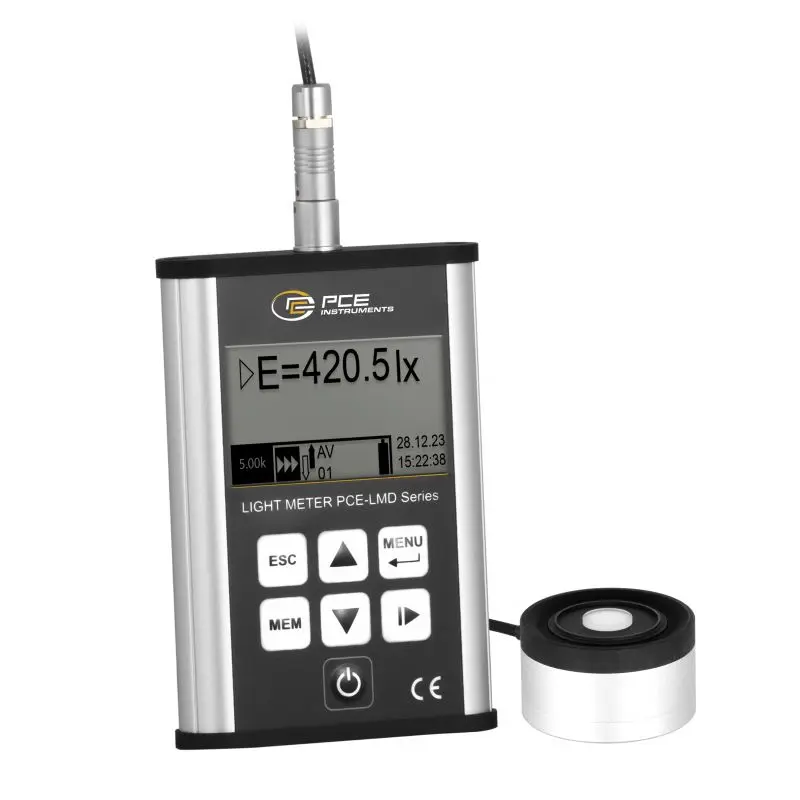

The radiation detector is a precise measuring instrument that meets the highest demands for light measurements. In accordance with DIN 5032-7, it fulfils the requirements of precision class A, which enables accurate and reliable detection of light intensities. With an impressive measuring range of 0.000 lux to 500,000 lux, the radiation detector is extremely versatile.

Whether for lighting control at the workplace, in exhibitions or outdoors - the radiation detector covers a wide range of applications. Accuracy class A not only ensures precise measurements, but also high reproducibility of the results. This is particularly important in applications where accurate light measurements are crucial.

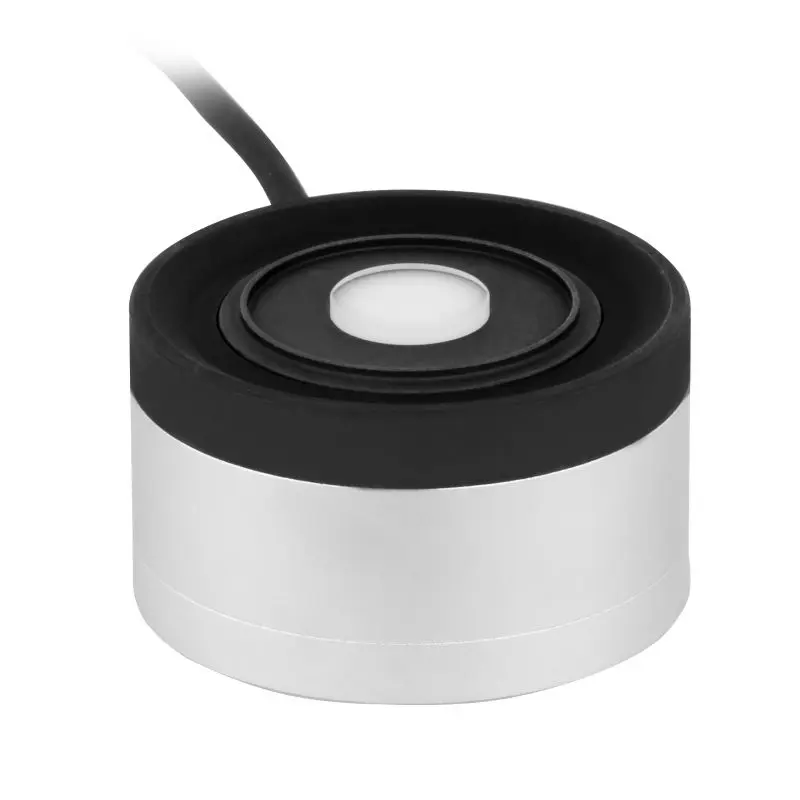

The radiation detector has an external sensor and a probe holder that allows measurements to be taken in hard-to-reach places and ensures maximum practicality in various application scenarios. Another feature of the luxmeter is the integrated measured value memory. With this function, measurement results can be easily saved and also automatically recorded. This is particularly useful in situations where the measured values are to be used for later analyses. The radiation detector creates a text document in which the data is stored.

With the help of the luminance adapter from our accessories, the radiation detector can be upgraded for surface-mounted measurements or distance measurements with a 1° measuring angle. Overall, the radiation detector offers an unbeatable combination of precision, versatility and user-friendliness. Whether you need to measure light conditions indoors, outdoors or in industrial environments, this radiation detector is the ideal choice for precise and reliable light measurements.


Highlights

- Precision according to DIN 5032-7
- Large measuring range: 0.000 lx ... 500 klux
- Accuracy class: A
- External sensor
- 8 GB measured value memory
- Battery operation

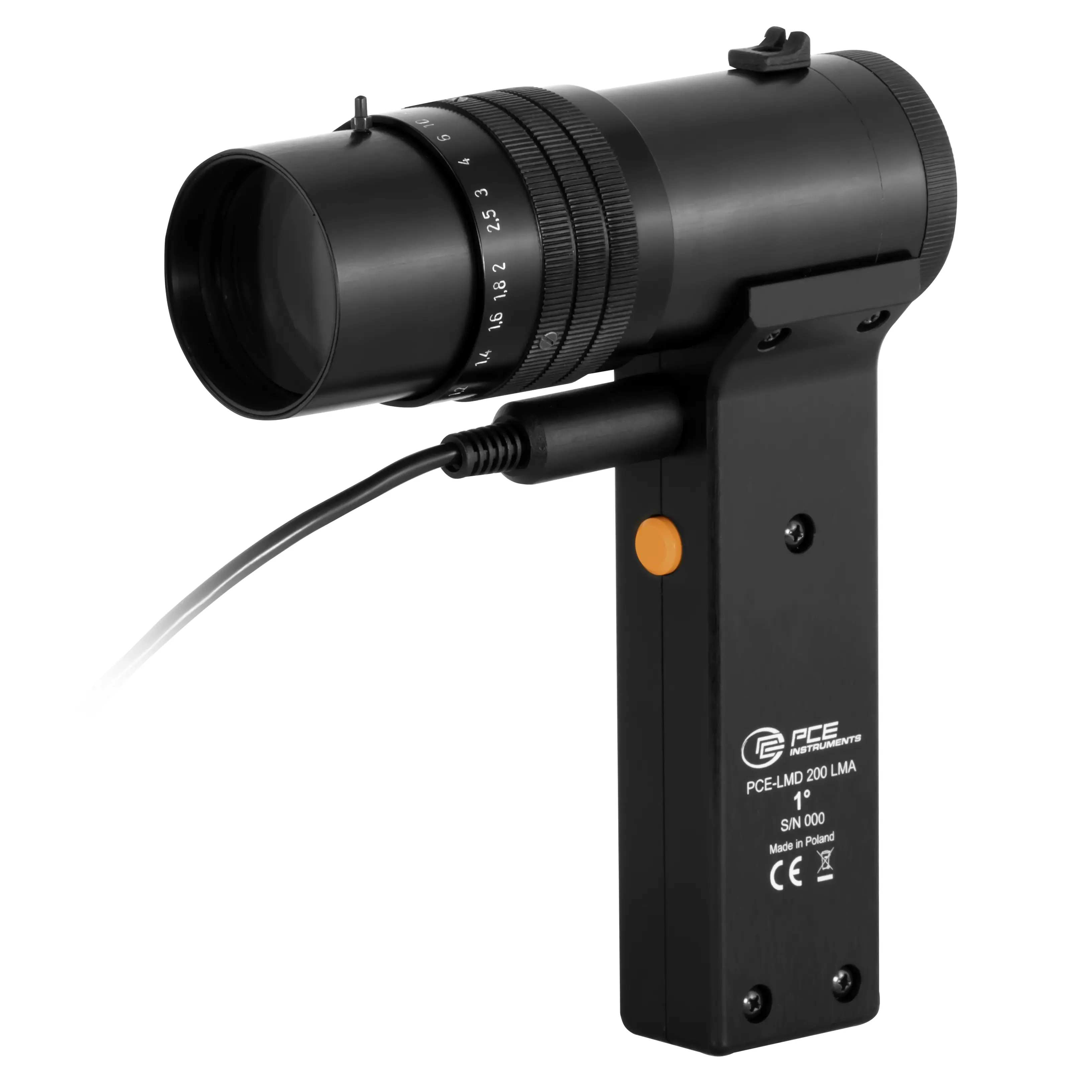

Luminance accessory PCE-LMD LMA1
- Measuring field angle: 1°
- Lens: 100mm
- Focusing range: 1m ÷
- Calibration error: ±1%
- Backsight" type
- Tripod connection

Specification

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Light
Measurement range0 lx ... +50 lx
Resolution0.001 lx
AccuracyTotal error ≤ 2.0% (CIE, DIN 5032-7) Class A @ 10 ... 40 °C

Light
Measurement range+50 lx ... +5 klx
Resolution0.1 lx
AccuracyTotal error ≤ 2.0% (CIE, DIN 5032-7) Class A @ 10 ... 40 °C

Light
Measurement range+5 klx ... +500 klx
Resolution0.01 klx
accuracytotal error ≤ 2.0% (CIE, DIN 5032-7) class A @ 10 ... 40 °C

Luminescent accessory
measuring field angle1 °
Lens100 mm
Focusing range1 m ÷
Calibration error±1%
Type"Review"
Tripod connectionYes

General technical data
Unitslx, klx
Display typeLCD
Display refresh rate1 x per second
Storage mediumMicro-SD card
Memory interval of1 s
Memory interval up to60 s
Memory capacity8 GB

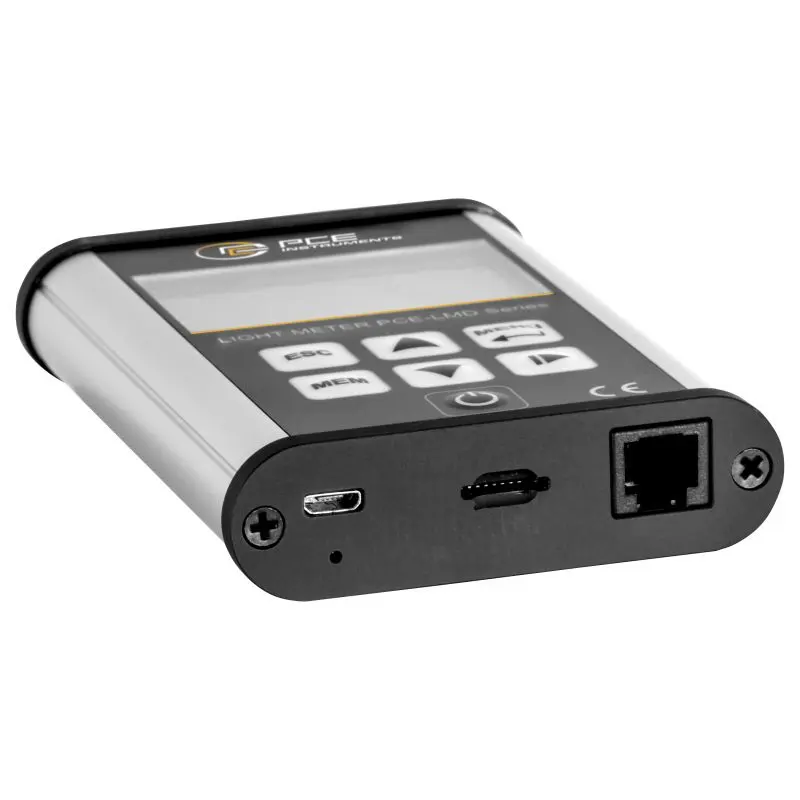

InterfaceMicro-USB
Standard(s)DIN 5032-7, ISO/CIE 19476, EN 12464-1, EN 12464-2, EN 12665
Operating time23 h
Measurement rate1 Hz
ClassificationA (CIE, DIN 5032-7)
Menu languageEnglish, Polish
Protection class (appliance)IP20
Power supply5V DC / max. 2,1A
Weight172 g
Device weight with delivery1.67 kg
Equipment weight with scope of delivery and outer packaging  1,71 kg
Dimensions (L x W x H)118 x 74 x 21 mm
Other dimensionsProbe dimensions: Ø 44 x 25 mm
. Extension rod: approx. 1 metre
Operating conditions-20 ... 50 °C , 90 % r.H.
Storage conditions-20 ... 50 °C , 90 % RH
Languages of instructionsEnglish

Delivery Scope

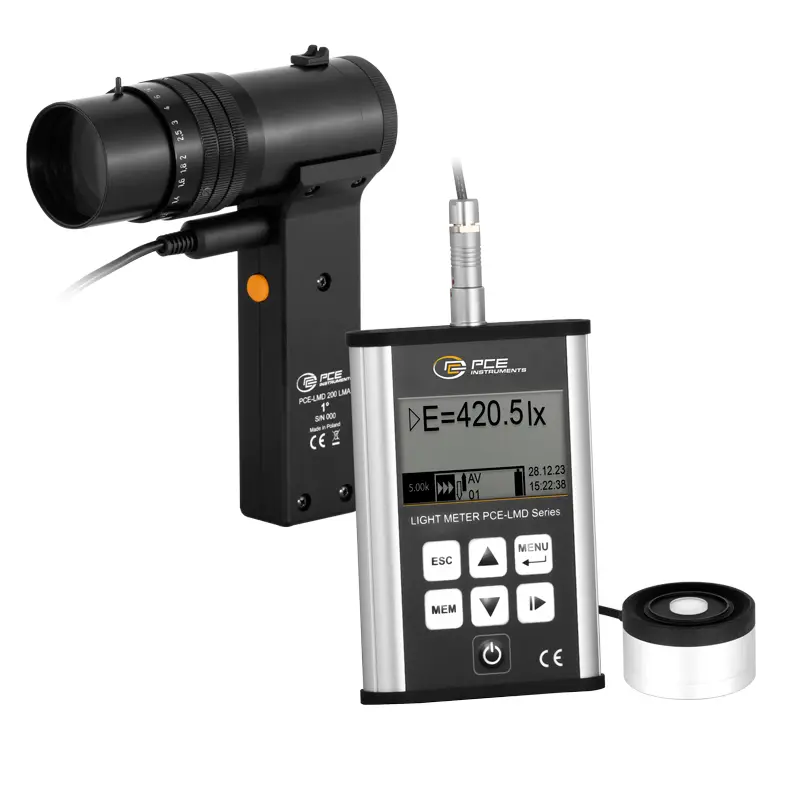

1 x PCE-LMD 200LD-KIT radiation detector
1 x PCE-LMD LMA1 luminance accessory
1 x lux sensor
1 x micro USB charging cable
1 x 8 GB micro SD memory card incl. adapter

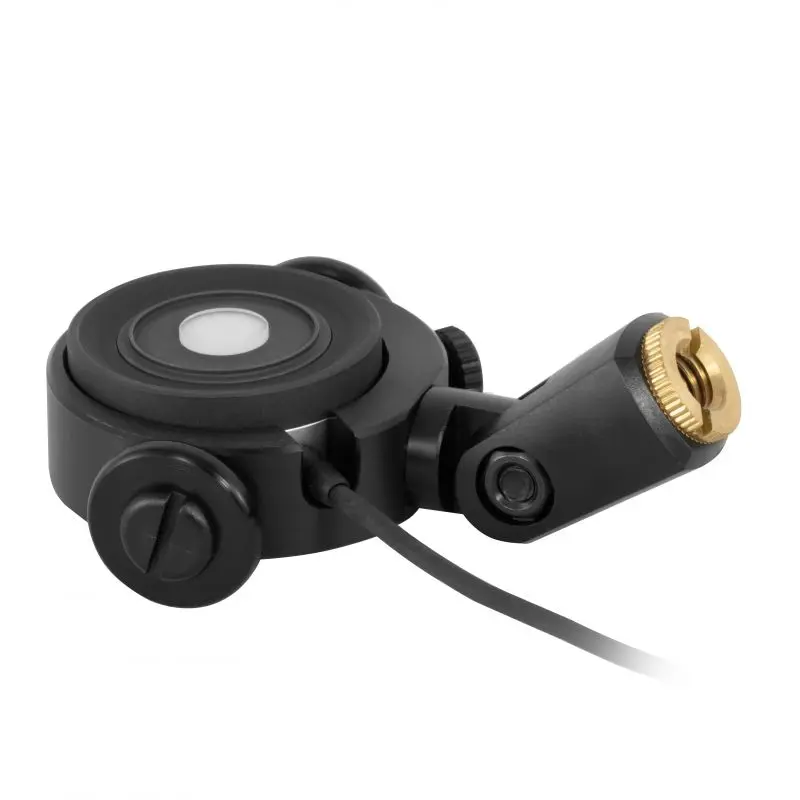

1 x probe holder
1 x long extension rod
1 x USB power supply
2 x operating instructions

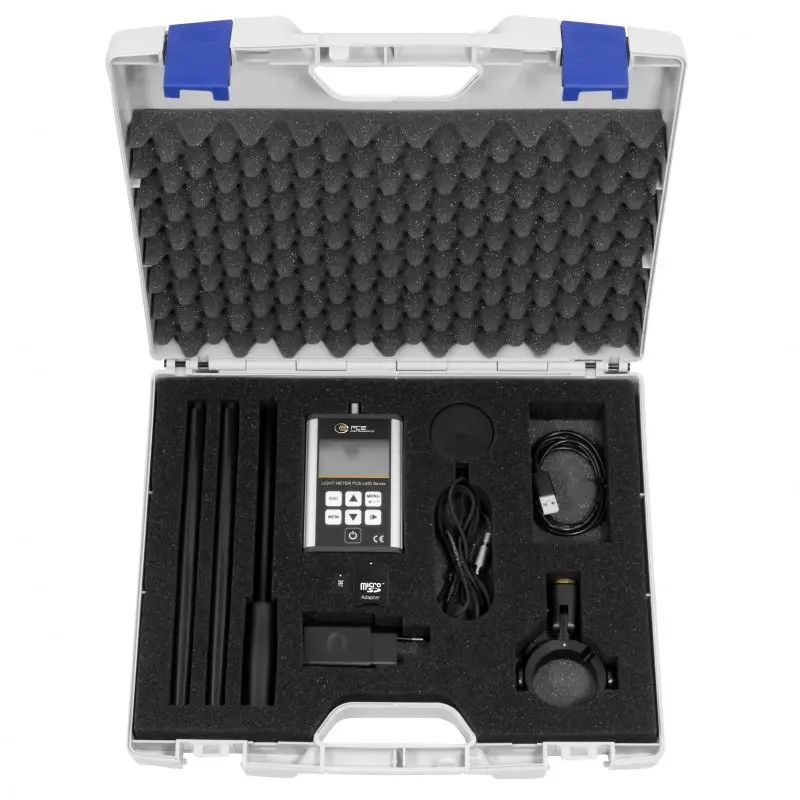

1 x transport case
