- Measurement range: 0 ... 30000 G / 0 ... 3000 mT
- Accuracy: ± 5%; + 20 digits (static) / + 10 digits (dynamic)
- Resolution: 0.1 G / 0.01 mT
- Detects both static (DC) permanent magnetic and dynamic (AC) electromagnetic fields (EMFs)
- Displays measurement results in gauss (G) or milli Tesla (mT)
- Comes with an external sensor

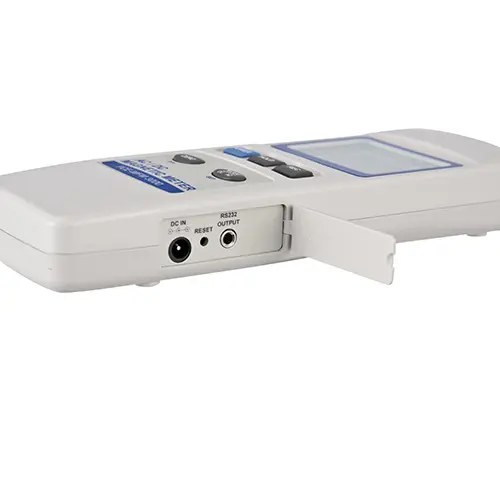

- Features an RS-232 port for downloading data to PC
- Max, min, data hold and auto shutdown power-saving functionality
- Ideal tool for checking magnetic valves, relays and air-core transformers
- Useful for assessing permanent magnets and rare earth magnets made of Neodymium Iron Boron (NdFeB), Samarium Cobalt (SmCo), Alnico and Ferrite (also known as ceramic)

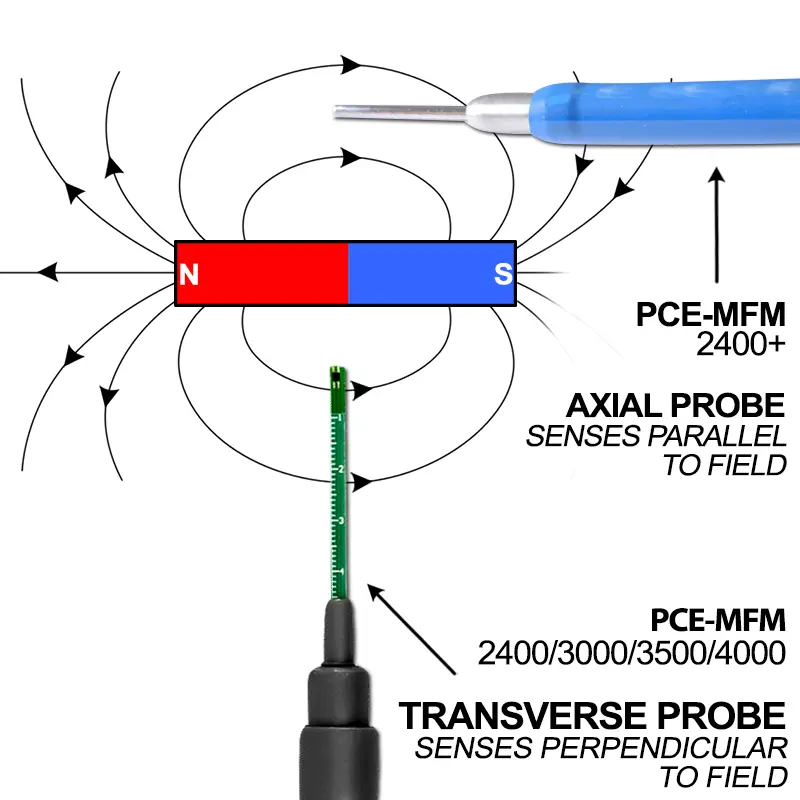

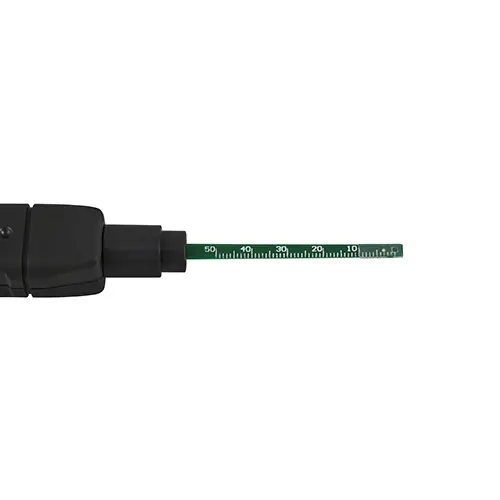

- The external sensor's small, flat tip allows easy access through gaps and into tiny spaces
- Measures through casings, coverings and housings, eliminating the need to dismantle parts for inspection

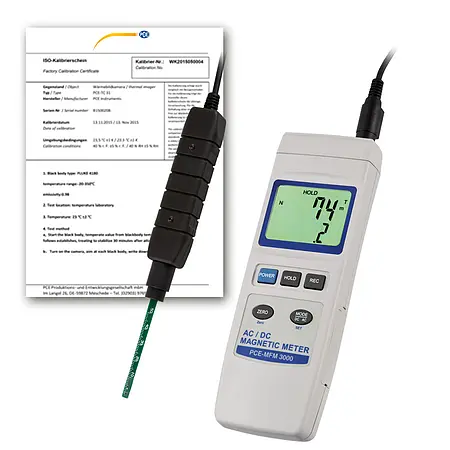

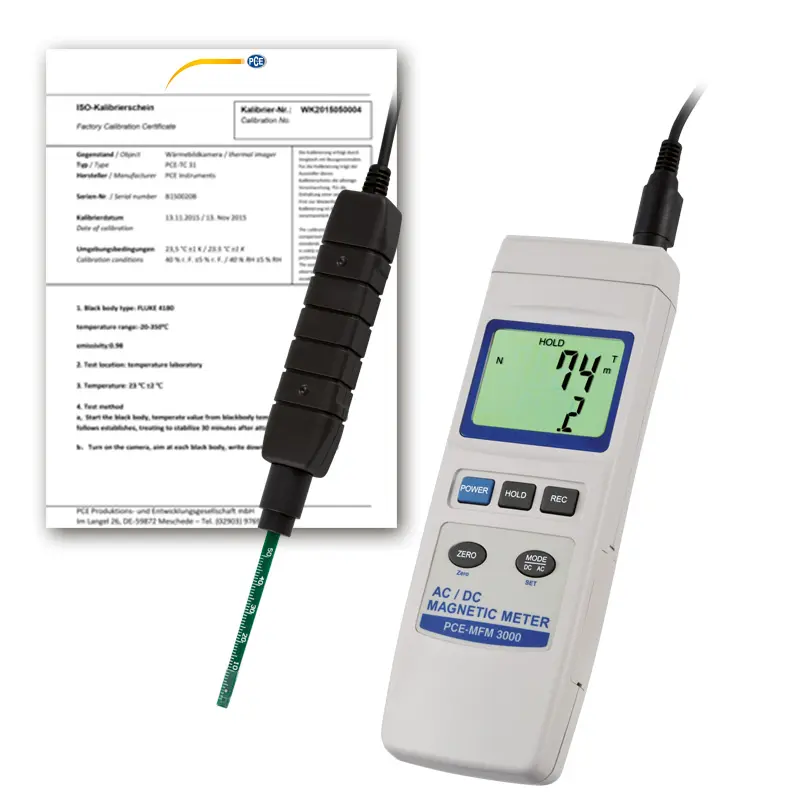

- Incl. ISO calibration certificate

Static (DC) electromagnetic field (EMF) measurements
Measurement range	Range 1: 0 ... 300 mT / 0 ... 3000 G Range 2: 0 ... 3000 mT /0 ... 30000 G
Resolution	Range 1: 0.01 mT / 0.1 G Range 2: 0.1 mT / 1 G
Accuracy	± 5 % + 10 digits
Measurable frequencies	50 Hz / 60 Hz
Dynamic (AC) electromagnetic field (EMF) measurements
Measurement range	Range 1: 0 ... 150 mT / 0 ... 1500 G Range 2: 0 ... 1500 mT /0 ... 15000 G
Resolution	Range 1: 0.01 mT / 0.1 G Range 2: 0.1 mT / 1 G
Accuracy	± 5 % + 20 digits
Measurement rate	1 second
Measurement direction	uniaxial
Display	two-line LC display
Functions	Data hold / Max.- Min.- values
Operating conditions	0 ... 50 °C / +32 ... +122°F / max. 85 % RH
Power supply	9 V block battery  optional 9 V mains power adapter
Input current	ca. 15 mA
Meter dimensions Sensor dimensions	198 x 68 x 30 mm / 7.80 x 2.68 x 1.18" 195 x 25 x 19 mm / 7.68 x 0.98 x 0.75"
Weight	275 g / 0.61 lb

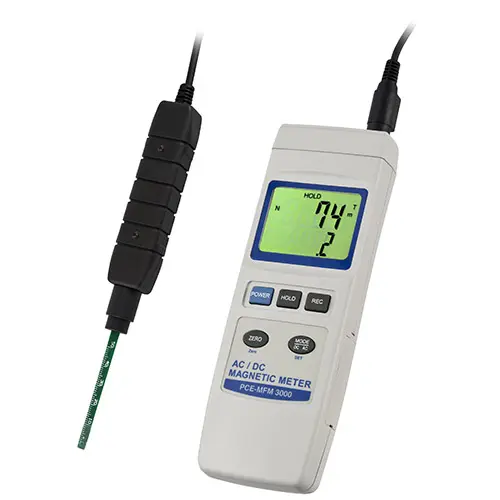

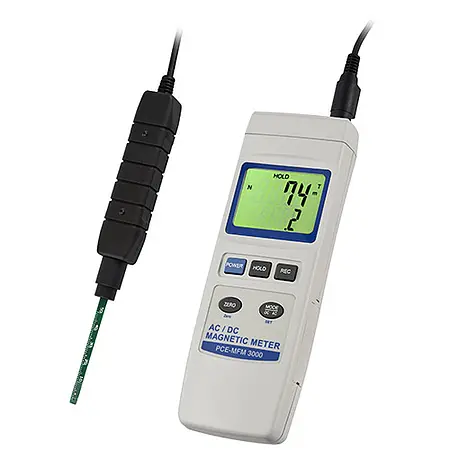

1 x PCE-MFM 3000-ICA electromagnetic radiation detector
1 x External sensor
1 x 9V battery

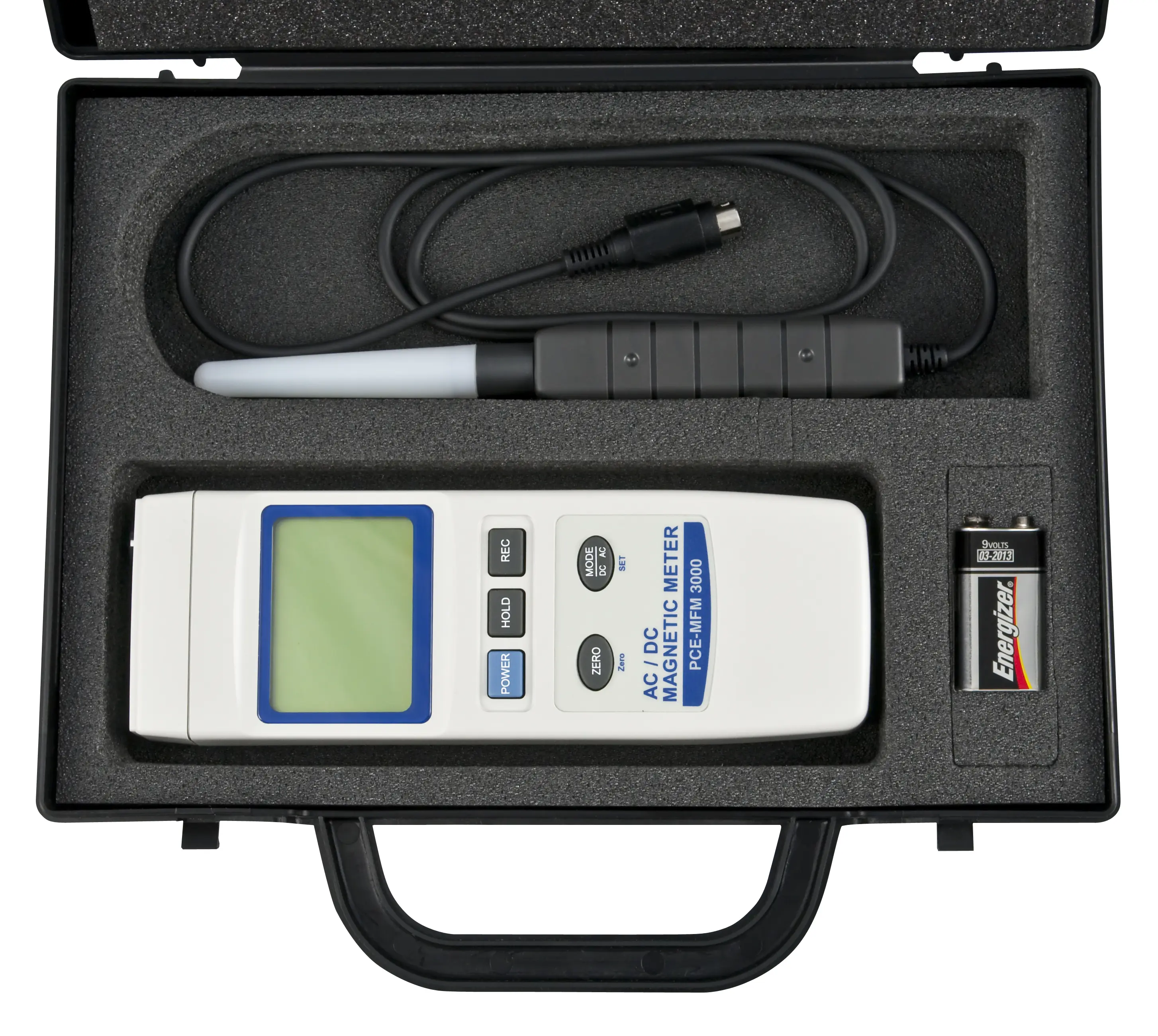

1 x Carrying case
1 x User manual
1 x ISO calibration certificate
