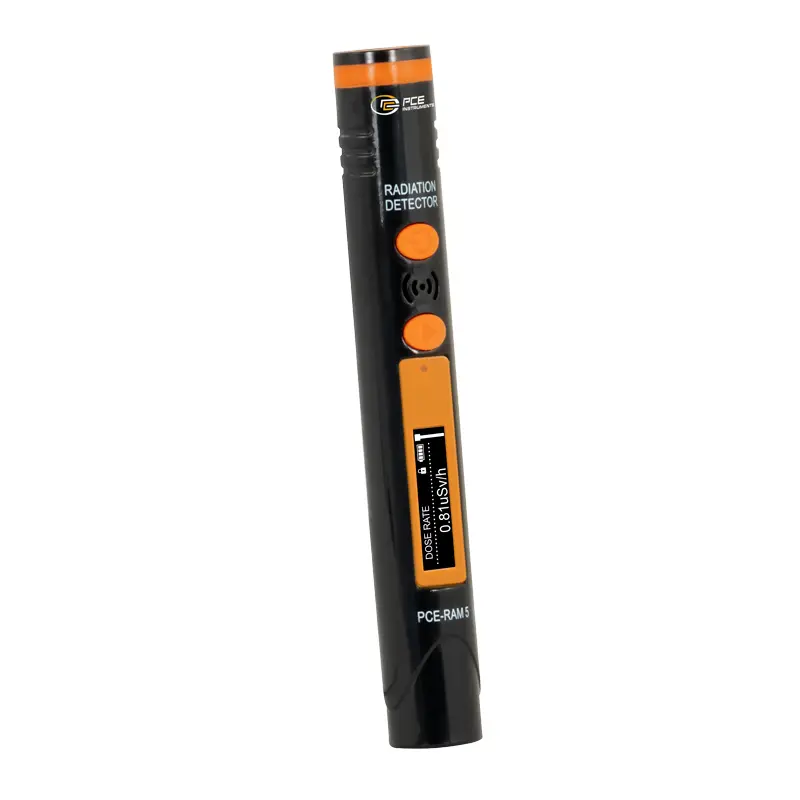

Radiation Detector PCE-RAM 5

Order no.: PCE-RAM 5

GTIN (EAN): 4250348732170

Description

Radiation Detector for dose measurement of X, ß and y radiation / simple operation / alarm function / battery operation.

The radiation detector is a small, highly sensitive radiation warning device mainly used for monitoring X, ß and y. Black and white illuminated OLED display that is clearly visible even at night. It has a warning flashing function.

The radiation detector itself has two alarm modes: sound and LED light. The alarm limit can be set as desired. When the alarm limit is reached, an alarm is given, for protection. The main technical indicators of the device comply with the international standard.

Highlights

- Clip design

- OLED display

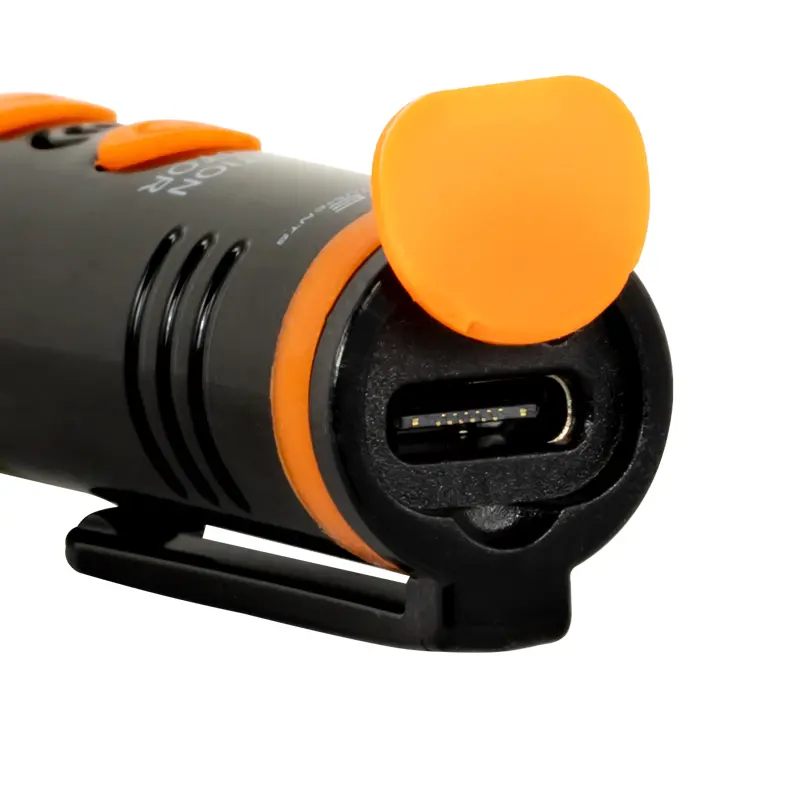

- USB-C charging socket

Specification

X-, ß- and y-rays
Measuring range	0.05 usv ... 50 msv based on 137 Cs y
Accuracy	-17 % ... + 25 %

Data interface	USB-C
Charging time	2 - 3 hrs.
Operating time	approx. 50 hrs.
Battery capacity	400 mAh
Response	5 s

General technical data
Menu language	English
Protection class	IP40
Weight	19 g
Length	108 mm
Diameter	15,3 mm
Storage and operating conditions	-10 ... + 50 °C, 10 ... 95 %

Delivery Scope

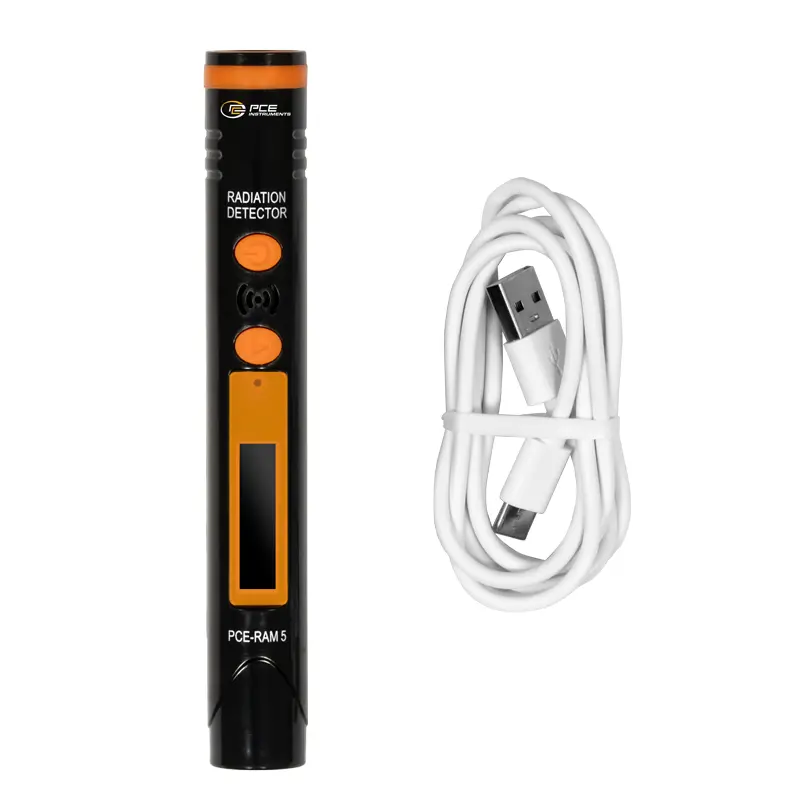

1 x PCE-RAM 5 radiation detector

1 x USB-C charging cable

1 x instruction manual
