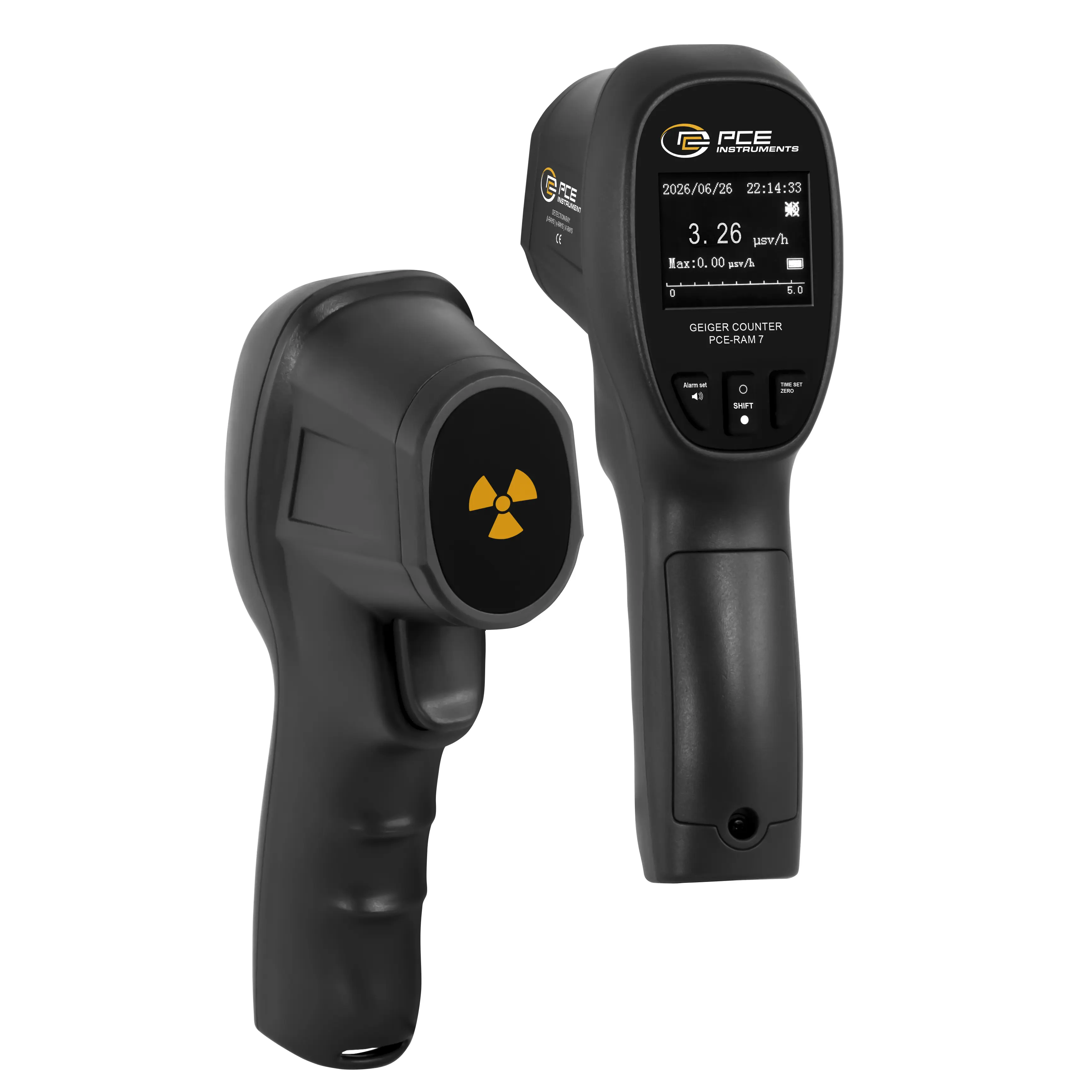

Radiation Detector PCE-RAM 7

Order no.: PCE-RAM 7
GTIN (EAN): 4250348735317
US$ 253.00
ex. VAT, ex. delivery costs
:
4250348735317
PCE-RAM 7
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

Radiation Detector with Geiger-Müller counter tube / gamma, beta and X-rays / time and date display / units µSv/h, CPM, CPS / dark mode / one-hand operation

The Radiation Detector with a measurement range of 0 to 9999 μSv/h and a resolution of 0.01 μSv/h is a powerful and precise instrument for detecting beta (β), gamma (γ) and X-ray radiation. Equipped with an energy-compensated Geiger-Müller tube, it offers a high sensitivity of 80 CPM/μSv (for Co-60) and a flexible display in μSv/h, CPM and CPS.

Thanks to its compact and handy design, the Radiation Detector is easy to use and is ideal for measuring small changes in radiation values. Our Radiation Detector is equipped with a display that shows the date and time and offers the option of switching the display from white to black to optimise readability under different lighting conditions. An adjustable audible alarm provides additional safety by making you aware of increased radiation levels. Battery operation allows flexible use in different areas. The charging time of the device is only approx. 1-2 hours.

The Radiation Detector is used, for example, in environmental protection by security forces, in the medical sector and also by private individuals to monitor their living environment.


Highlights

- gamma, beta and X-rays
- display in µSv/h, CPM, CPS
- sensitivity of 80 CPM / μSV/(Co-60)
- adjustable audible alarm
- sensor: Geiger-Müller counter tube

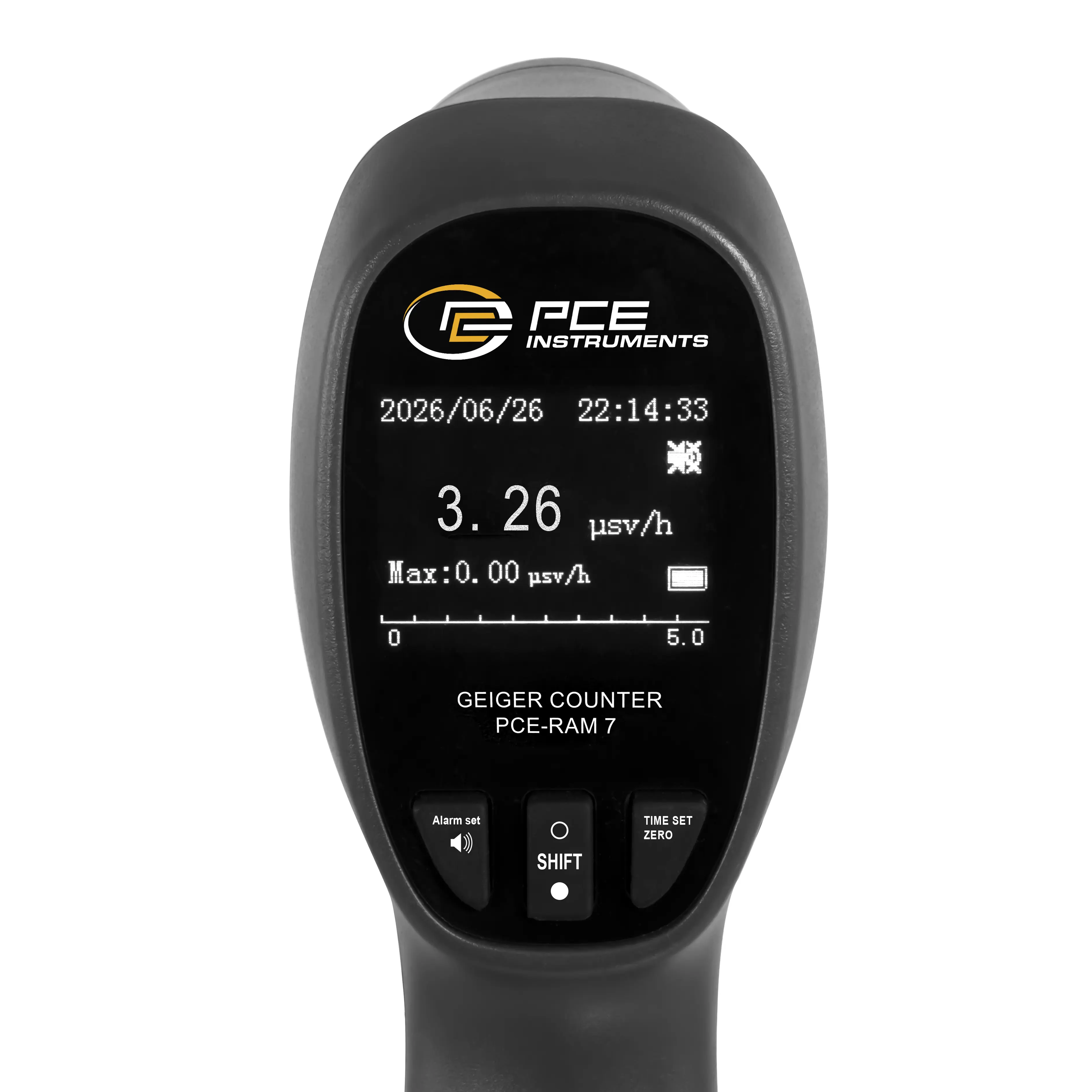

- display of time and date
- battery operation
- ergonomic handle

Specification

Radiation
Measurement range up to  0 ... 9999 µSv/h
Resolution  0,01 µSv/h
Accuracy  ≤3 % of Rd

Radiation
Measurement range up to  0 ... 9999 cps
Resolution  1 cps
Accuracy  ≤3 % of Rd

Radiation
Measurement range up to  0 ... 9999 cpm
Resolution  1 cpm
Accuracy  ≤3 % of Rd

General technical data
Measuring functions  Gamma rays, X-rays, Beta radiation
Energy range  20 ... 3000 keV
Display type  TFT colour display
Display size  1,8 Inch

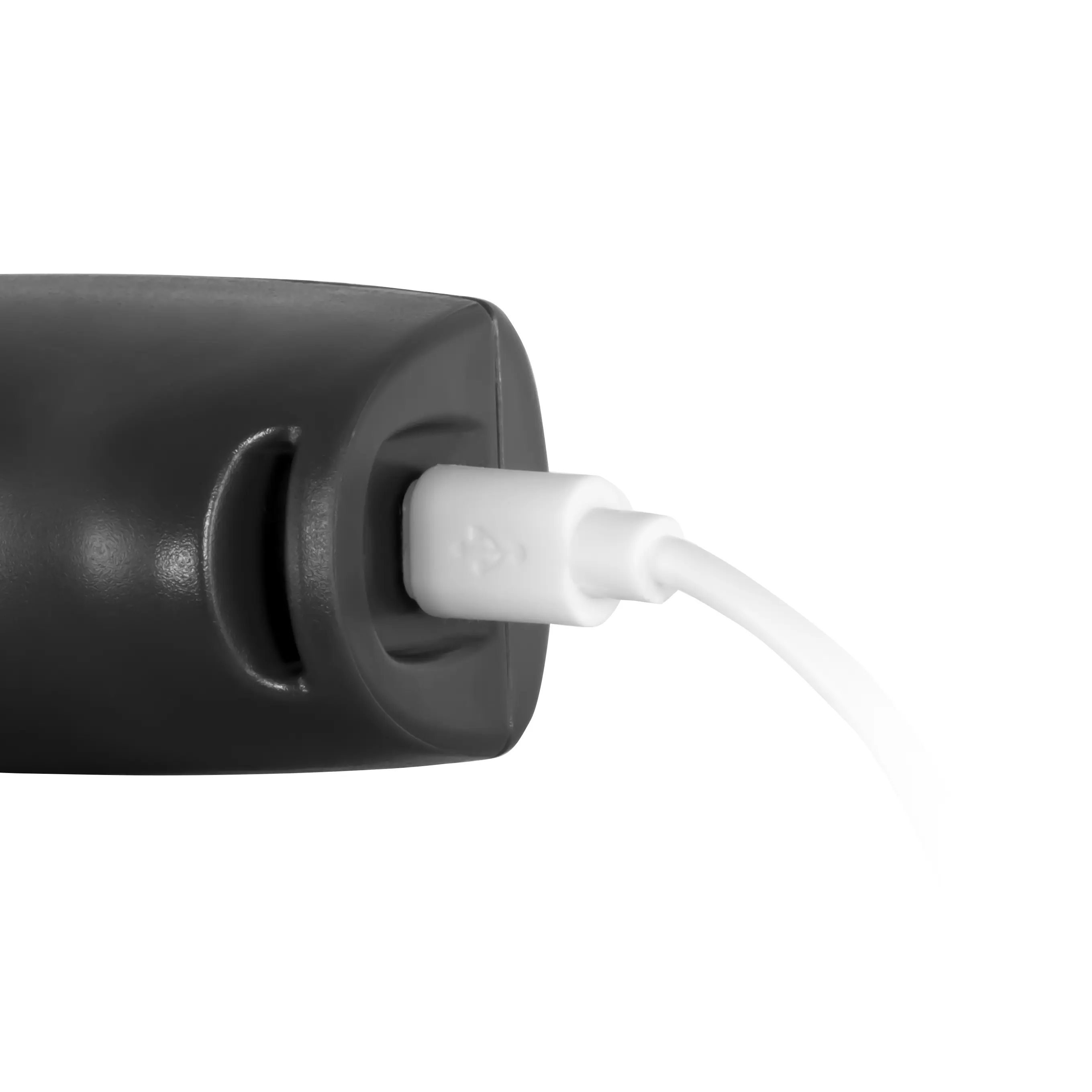

Interface  Micro-USB
Sensor  Geiger-Mueller counter tube
Alarm  Acoustic
Sensitivity  80 cpm/µsV (Co-60)
Menu language  English
Protection class (device)  IP54
Power supply  5 V
Weight  170 g
Operating conditions  0 ... 50 °C , 10 ... 90 % RH
Storage conditions  -10 ... 60 °C , 10 ... 90 % RH
Capacity  1100 mAh
Dimensions ( L x W x H )  180 x 55 x 80 mm

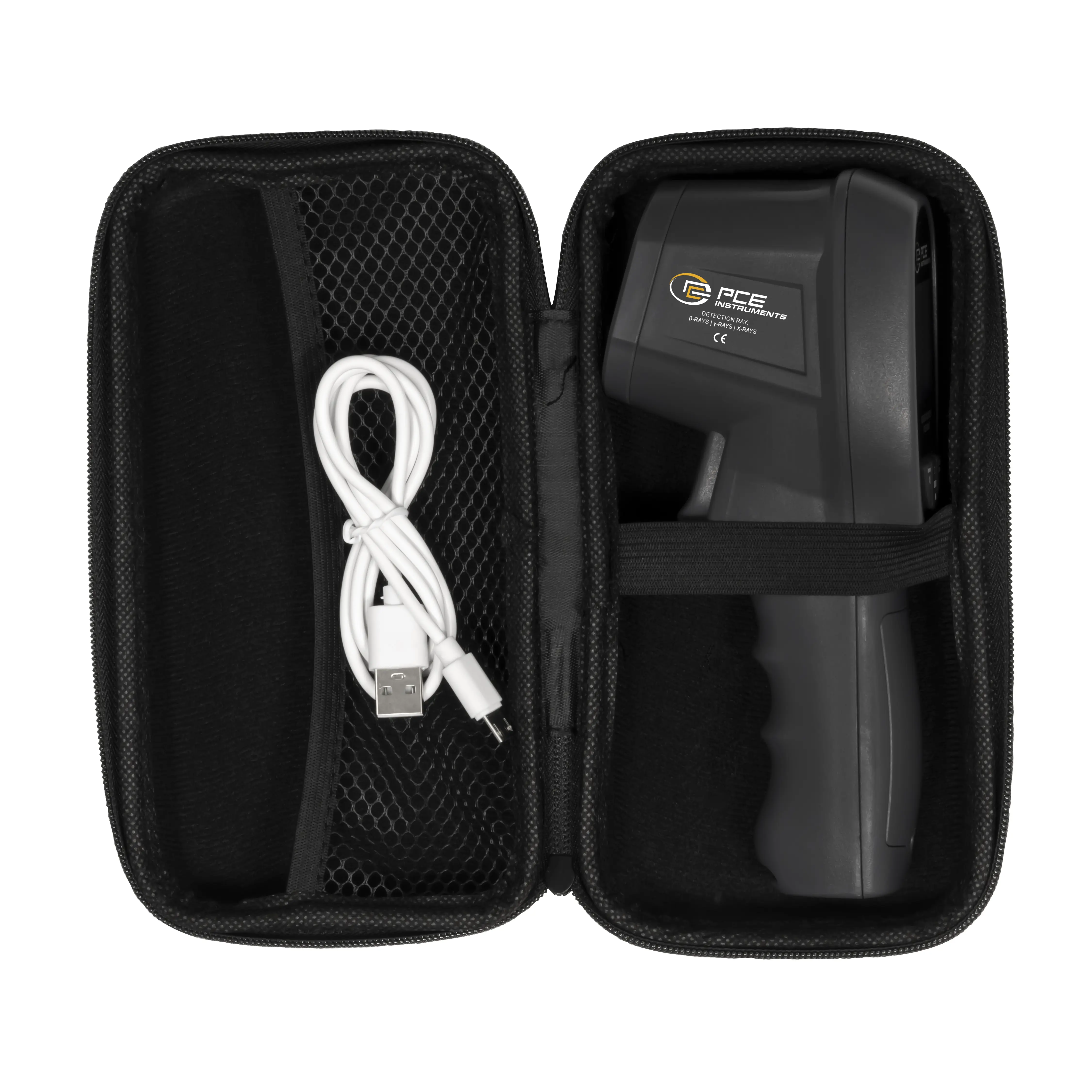

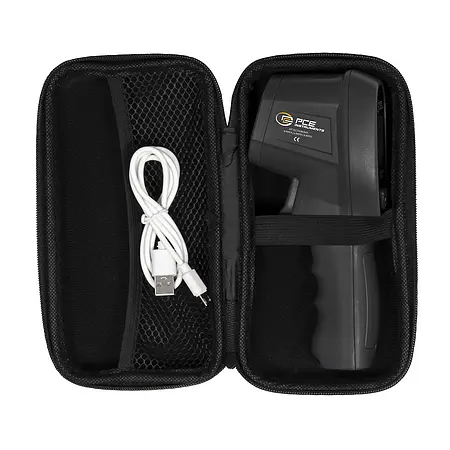

Delivery Scope

1 x PCE-RAM 7 Radiation Detector
1 x micro USB cable
1 x user manual
1 x service bag
