UVA / UVB Radiation Detector PCE-UV34

Order no.: PCE-UV34
GTIN (EAN): 4250348701473
US$ 297.00
ex. VAT, ex. delivery costs
:
4250348701473
PCE-UV34
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

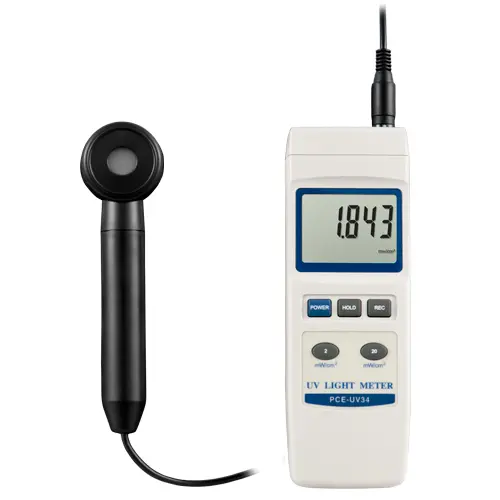

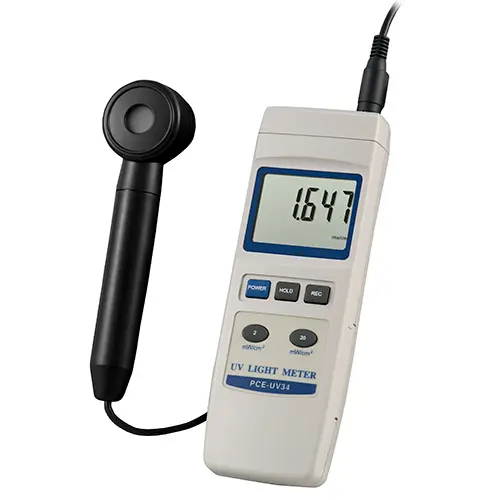

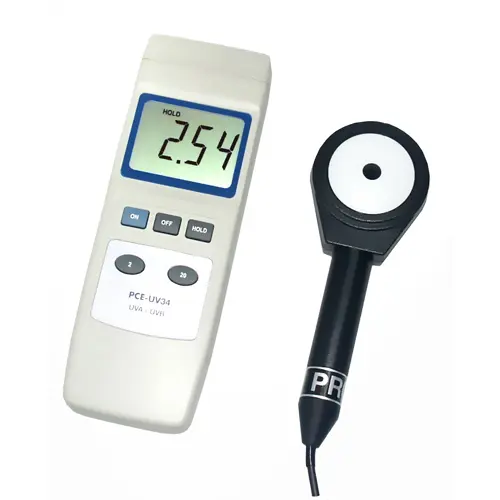

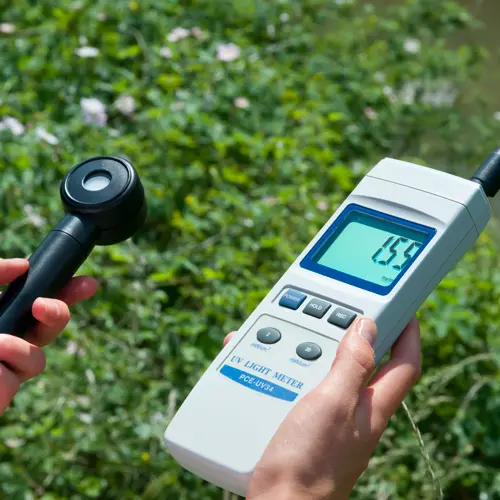

PCE-UV34 UVA/UVB Radiation Detector
measures radiation UV, with an external sensor

The PCE-UV34 Radiation Detector is a device used to measure UVA and UVB radiation. This accurate device operates on a wave length of 290 to 390nm. With this Radiation Detector you can measure UVA radiation from the sun or in tanning salons in order to protect yourself from damage of  high exposure and possible sunburn. With the industrial sector we frequently find elevated UVA radiation level, such as the arc light used in soldering. The UV Radiation Detector is very versitile thanks to its external sensor. Other fields of use are the sterilization of UVA rays, photo chemical compensation, in virology laboratories or in DNA research.

Highlights

- External sensor with UV correcting filter
- Auto after 10 minutes of inactivity to conserve battery power
- Large LCD
- Minimum, Maximum and Data Hold functions
- compact design
- 0.000 to 1.999 mW/cm2 or 0.000 to 19.9 W/m²
- 1.999 to 19.99 mW/cm2  or 19.99 to 199.9 W/m²

Specification

Ranges0.000 to 1.999 mW/cm² or 0.000 to 19.9 W/m²
1.999 to 19.99 mW/cm² or or 19.99 to 199.9 W/m²
Resolution0.001 mW/cm²
Accuracy±4% + 2 positions
Response time0.4 s
Wave lengthWide band of 290 to 390nm
Zero resetBy pressing a key

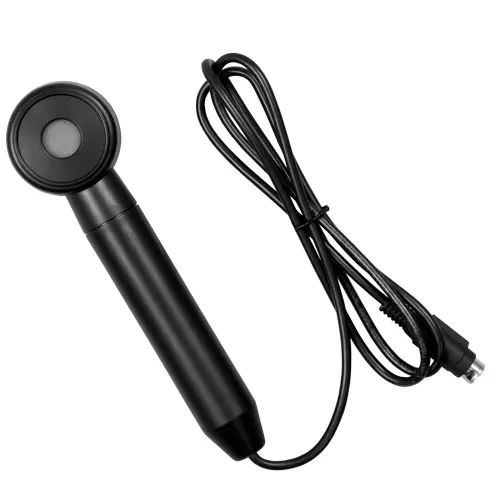

Light sensorPhotodiode with UV correcting filter
MemoryMinimum, maximum and hold values
Auto shut-offAutomatic after 10 minutes of inactivity
Display22 mm / 0.9 in LCD
Over range indicator"- - - -"
Operating conditions    0 to 50°C / 32 ... 122°F max. 80% r.h.
Power9V battery
DimensionsDevice: 68 x 200 x 30 mm / 2.7 x 7.9 x 1.2 in
Light sensor: 68 x 60 x 27 mm / 2.7 x 2.4 x 1.1 in
Weight220 g / < 1 lb (with battery)

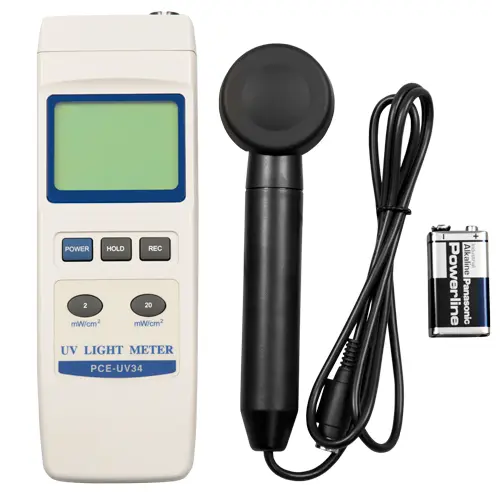

Delivery Scope

1 x PCE-UV34 Radiation Detector
1 x Combined UV sensor
1 9V battery
1 x User's manual
