Input voltage: 110 V AC, 60 Hz
Output voltage: DC 9 V
Output current: 0.8 A
Connector: US / North American style plug
Radioactivity Meter PCE-MFM 3000-ICA incl. ISO calibration certificate

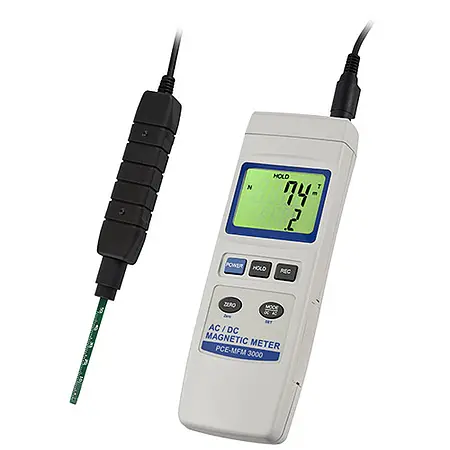

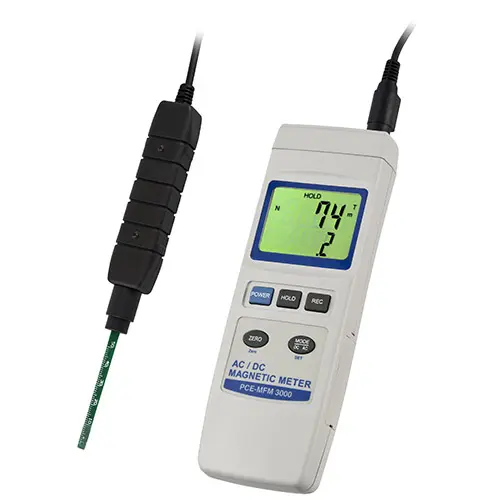

Portable handheld AC / DC magnetic field detector

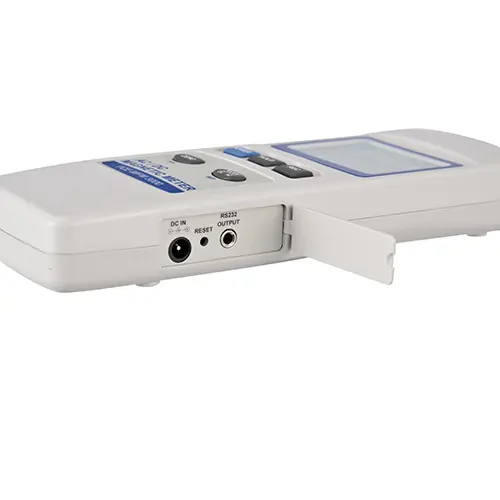

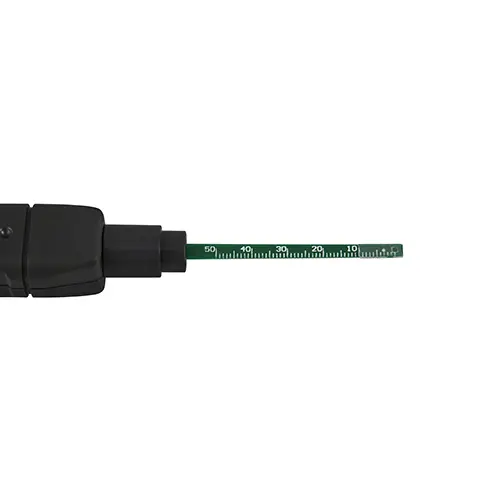

PCE-MFM 3000 is a handheld radioactivity meter that detects both static (DC) permanent magnet (rare earth) magnetic and dynamic (AC) electromagnetic fields (EMFs) and displays measurement results in gauss (G) or milli Tesla (mT). This portable radioactivity meter comes with an external sensor and features an RS-232 port for downloading data to a PC.
Static (DC) electromagnetic field (EMF) measurements | |
Measurement range | Range 1: 0 ... 300 mT / 0 ... 3000 G Range 2: 0 ... 3000 mT /0 ... 30000 G |
Resolution | Range 1: 0.01 mT / 0.1 G Range 2: 0.1 mT / 1 G |
Accuracy | ± 5 % + 10 digits |
Measurable frequencies | 50 Hz / 60 Hz |
Dynamic (AC) electromagnetic field (EMF) measurements | |
Measurement range | Range 1: 0 ... 150 mT / 0 ... 1500 G Range 2: 0 ... 1500 mT /0 ... 15000 G |
Resolution | Range 1: 0.01 mT / 0.1 G Range 2: 0.1 mT / 1 G |
Accuracy | ± 5 % + 20 digits |
Measurement rate | 1 second |

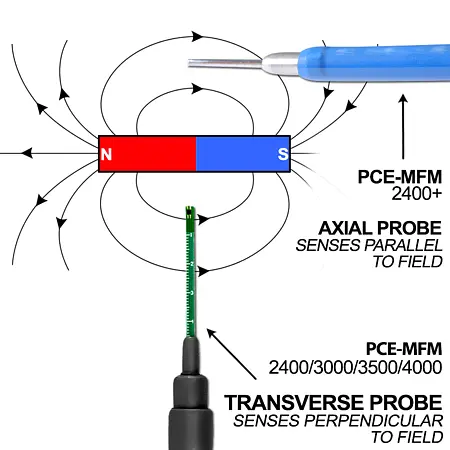

Measurement direction | uniaxial |
Display | two-line LC display |
Functions | Data hold / Max.- Min.- values |
Operating conditions | 0 ... 50 °C / +32 ... +122°F / max. 85 % RH |
Power supply | 9 V block battery optional 9 V mains power adapter |
Input current | ca. 15 mA |
Meter dimensions Sensor dimensions | 198 x 68 x 30 mm / 7.80 x 2.68 x 1.18" 195 x 25 x 19 mm / 7.68 x 0.98 x 0.75" |
Weight | 275 g / 0.61 lb |
ex. VAT, ex. delivery costs

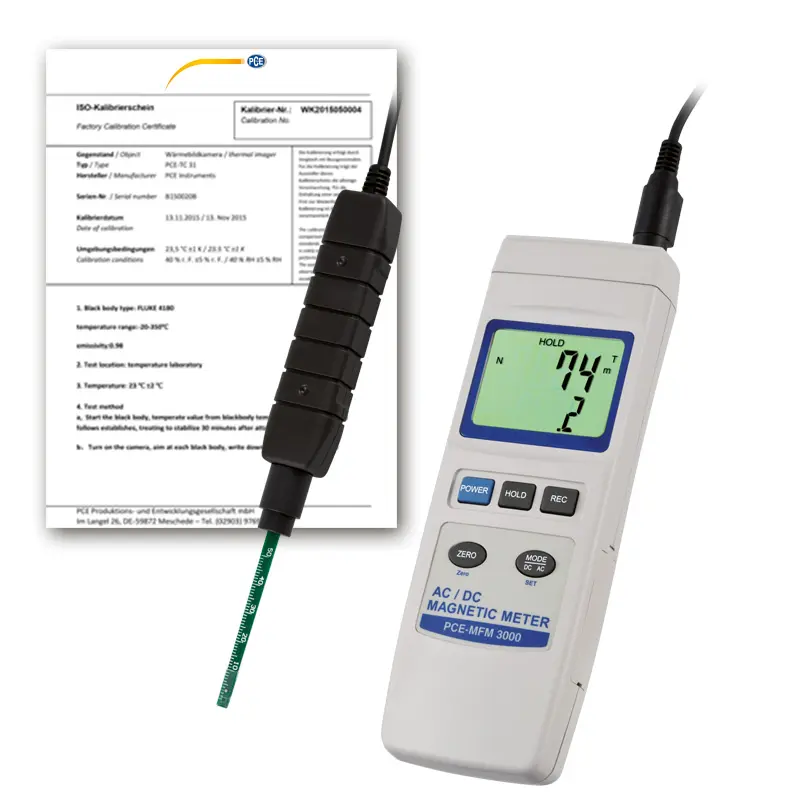

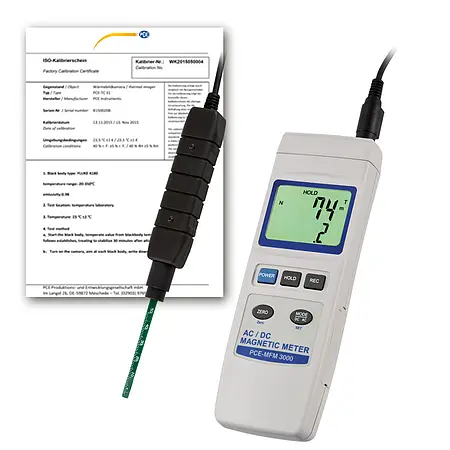

ISO calibration certificate for magnetic field tester, is often prescribed in companies to comply with DIN ISO 9000.
2 calibration points: 0 +/- 1% 1847 mT +/- 4%
Calibration certificates are issued specifically for the customer and are excluded from the right of return.
