Refractometer / Handheld Refractometer PCE-DRD 3

Order no.: PCE-DRD 3
GTIN (EAN): 4250348732729
US$ 319.00
ISO Calibration
ex. VAT, ex. delivery costs
:
4250348732729
PCE-DRD 3
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

Refractometer / Handheld Refractometer for determining the salinity / measurement in Brix and % / measurement range 0...28.5 % / 1.3330 ... 1.4200 nD / ABS housing with protection class IP65

Our Refractometer / Handheld Refractometer is a waterproof device and determines the percentage of sodium chloride in water with a measurement range of 0 to 28.5 % NaCl. The measurement result and the temperature of the sample are shown in two lines on the LCD display of the Refractometer / Handheld Refractometer. Our Refractometer / Handheld Refractometer can measure various parameters such as salinity (%NaCl) and refractive index quickly and accurately with just four to five drops of the sample. The Refractometer / Handheld Refractometer has a wide range of applications: checking the salt content in food, salt water tanks, brines, etc. It is ideal for the food industry for salt control and compliance with regulations.

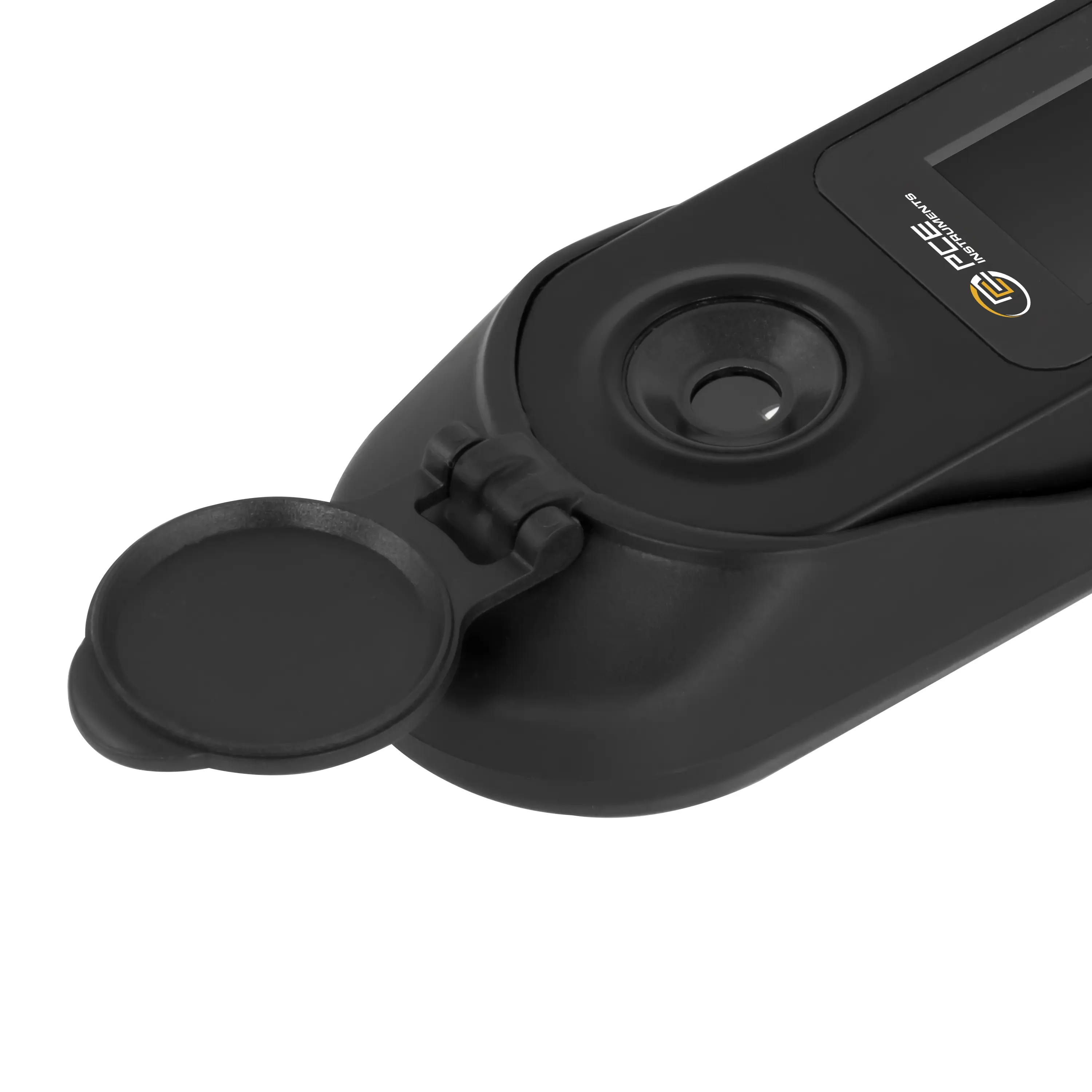

The funnel-shaped stainless steel ring protects the glass prism from damage, into which the liquid sample to be measured is placed. The internal light source enables measurement under poor lighting conditions. Our Refractometer / Handheld Refractometer is supplied in a rugged plastic case with pipette and charging cable.


Highlights

- quick and accurate measurement in approx. 1 s

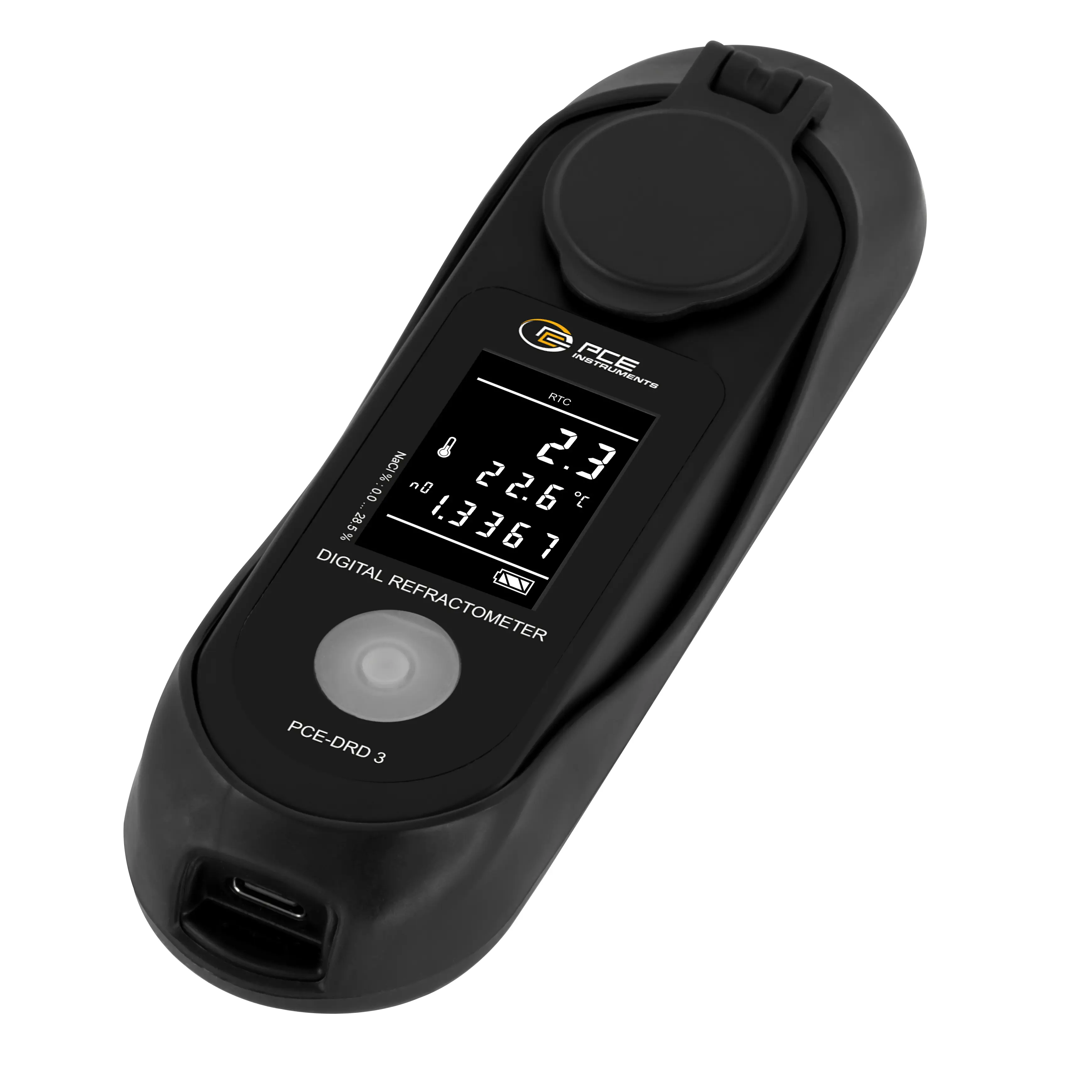

- large LC display (measured value and temperature)
- easy to use (1-key operation)
- small sample volume
- simple calibration with distilled water
- automatic temperature compensation
- stainless steel sample holder with glass prism
- automatic power-off after 1 min of inactivity

Specification

Refractive index
Measurement range up to  1,333 ... 1,42 nD
Resolution  0,0001 nD
Accuracy  ±0,0003 nD

Salinity
Measurement range up to  0 ... 28,5 %
Resolution  0,1 %
Accuracy  ±0.2 %

Temperature
Measurement range up to  0 ... 40 °C
Resolution  0,1 °C
Accuracy  ±0.5 °C

General technical data
Temperature compensation  automatic 10 ... 40 °C
Display type  LCD
Measuring rate  1 Hz
Automatic power-off  10 s
Sample quantity  0,2 ... 0.3 ml
Menu language  English, English (GB)
Protection class (device)  IP65
Power supply  5V DC, 500mA
Weight  115 g
Operating conditions  0 ... 50 °C , 0 ... 95 % RH
Storage conditions  0 ... 50 °C , 0 ... 95 % RH
Capacity  500 mAh
Dimensions ( L x W x H )  145 x 46 x 27 mm

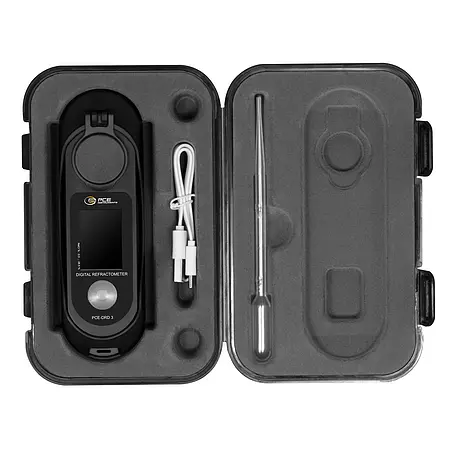

Delivery Scope

1 x Refractometer / Handheld Refractometer PCE-DRD 1
1 x pipette
1 x plastic case
1 x USB-A - USB-C cable (for charging only, mains adaptor not included)
1 x user manual
