Refractometer / Handheld Refractometer PCE-DRG 6

Order no.: PCE-DRG 6
GTIN (EAN): 4250348732866
US$ 385.00
ex. VAT, ex. delivery costs
:
4250348732866
PCE-DRG 6
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

Refractometer / Handheld Refractometer for determinining dimethylformamide / measurement in Brix and per cent / refractive index 1.32600 ... 1.40390 nD / rechargeable battery / ABS housing with protection class IP65

Our Refractometer / Handheld Refractometer determines the percentage of dimethylformamide in aqueous media with a measurement range of 0 to 55 %. The measurement result and the temperature of the sample are shown in two lines on the LCD display of the Refractometer / Handheld Refractometer. Our Refractometer / Handheld Refractometer can measure various parameters such as percentage and refractive index quickly and accurately with just four to five drops of the sample. The Refractometer / Handheld Refractometer has a wide range of applications: it can be used in water analysis, in the chemical industry or in the manufacture of products containing dimethylformamide.

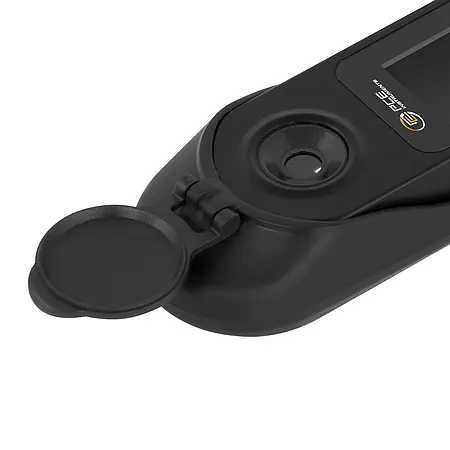

The funnel-shaped stainless steel ring protects the glass prism from damage, into which the liquid sample to be measured is placed. The internal light source enables measurement under poor lighting conditions. Our Refractometer / Handheld Refractometer is supplied in a rugged plastic case with pipette and charging cable.


Highlights

- quick and accurate measurement in approx. 1 s
- large LC display (measured value and temperature)
- easy to use (1-key operation)
- small sample volume
- simple calibration with distilled water
- automatic temperature compensation
- stainless steel sample holder with glass prism
- automatic power-off after 1 min of inactivity

Specification

Refractive index
Measurement range up to  1,326 ... 1,4039 nD
Resolution  0,0001 nD
Accuracy  ±0,0003 nD

Dimethylformamide
Measurement range up to  0 ... 55 %
Resolution  0,1 %
Accuracy  ±0,2 %

Temperature
Measurement range up to  0 ... 40 °C
Resolution  0,1 °C
Accuracy  ±0.5 °C

General technical data
Temperature compensation  automatic 10 ... 40 °C
Display type  LCD
Measuring rate  1 Hz
Automatic power-off  1 min
Sample quantity  0,2 ... 0.3 ml
Menu language  English, English (GB)
Protection class (device)  IP65

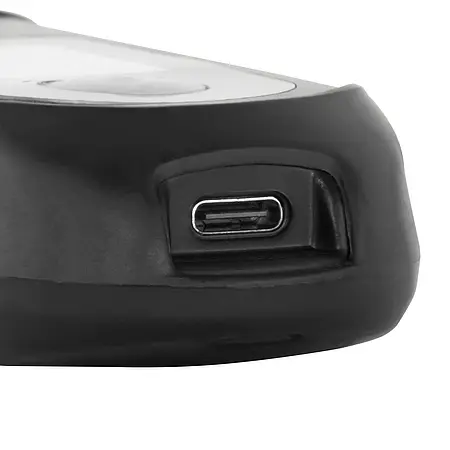

Power supply  5V DC, 500mA
Weight  115 g
Operating conditions  0 ... 50 °C , 0 ... 95 % RH
Storage conditions  0 ... 50 °C , 0 ... 95 % RH
Capacity  500 mAh
Dimensions ( L x W x H )  145 x 46 x 27 mm

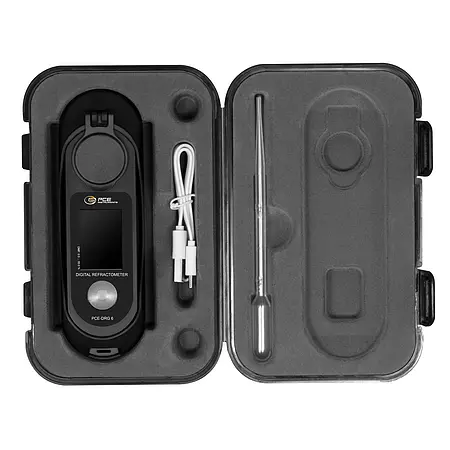

Delivery Scope

1 x Refractometer / Handheld Refractometer PCE-DRG 6
1 x pipette
1 x plastic case
1 x USB-A - USB-C cable (for charging only, mains adaptor not included)
1 x user manual
