Salt Meter PCE-DRD 2

Order no.: PCE-DRD 2
GTIN (EAN): 4250348732712
US$ 319.00
ex. VAT, ex. delivery costs
:
4250348732712
PCE-DRD 2
Available in: 1-2 days

Description

Salt Meter for determining the salinity / measurement in Brix and per mille / measurement range 0...280 ‰ / 1.3330 ... 1.4200nD / ABS housing with protection class IP65

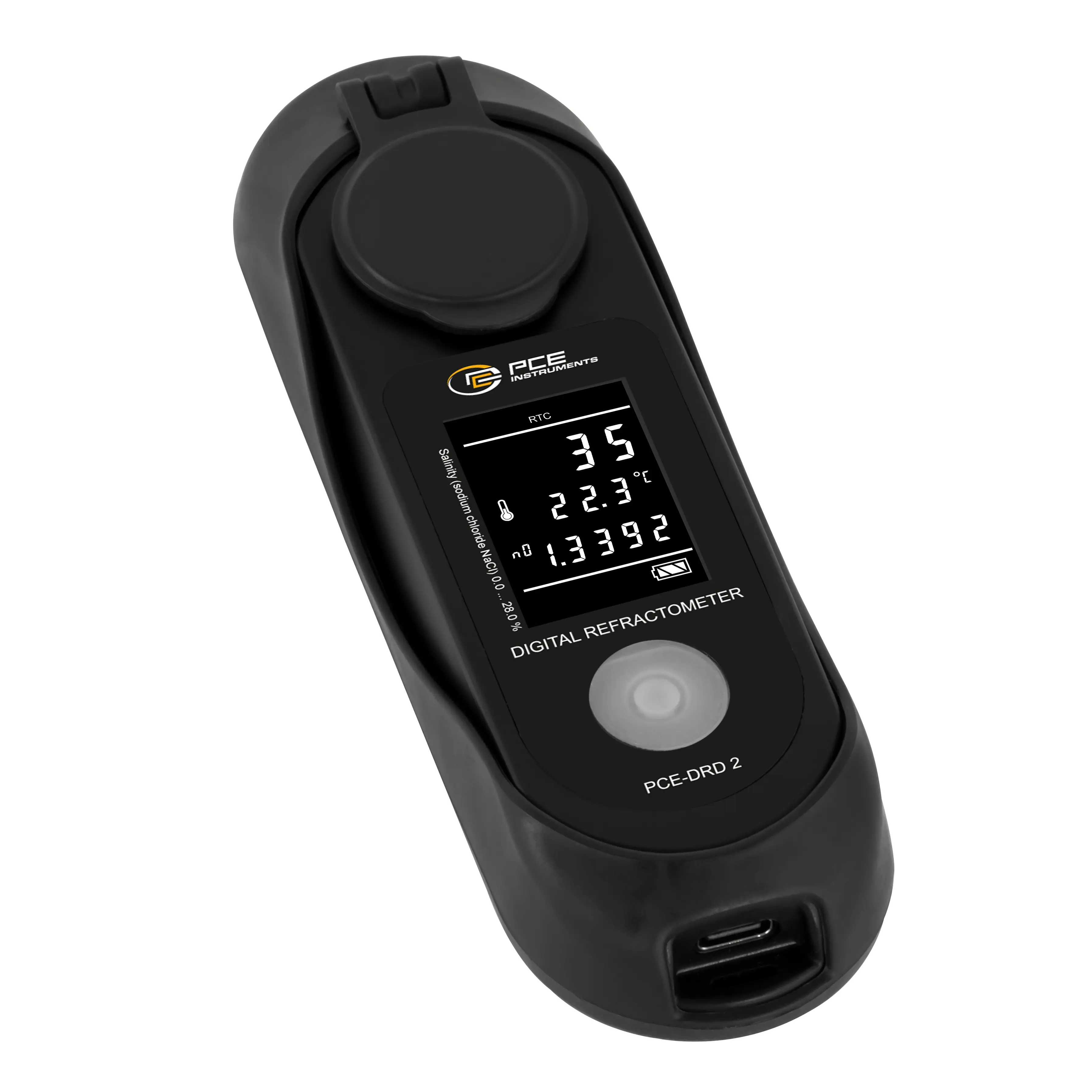

Our Salt Meter determines the percentage of sodium chloride in water with a measurement range of 0 to 280 ‰ NaCl. The measurement result and the temperature of the sample are shown in two lines on the LCD display of the Salt Meter. The Salt Meter can measure various parameters such as salinity (%NaCl) and refractive index quickly and accurately with just four to five drops of the sample. The Salt Meter has a wide range of applications: checking the salt content in food, salt water tanks, brines, etc. It is ideal for the food industry for salt control and compliance with regulations.

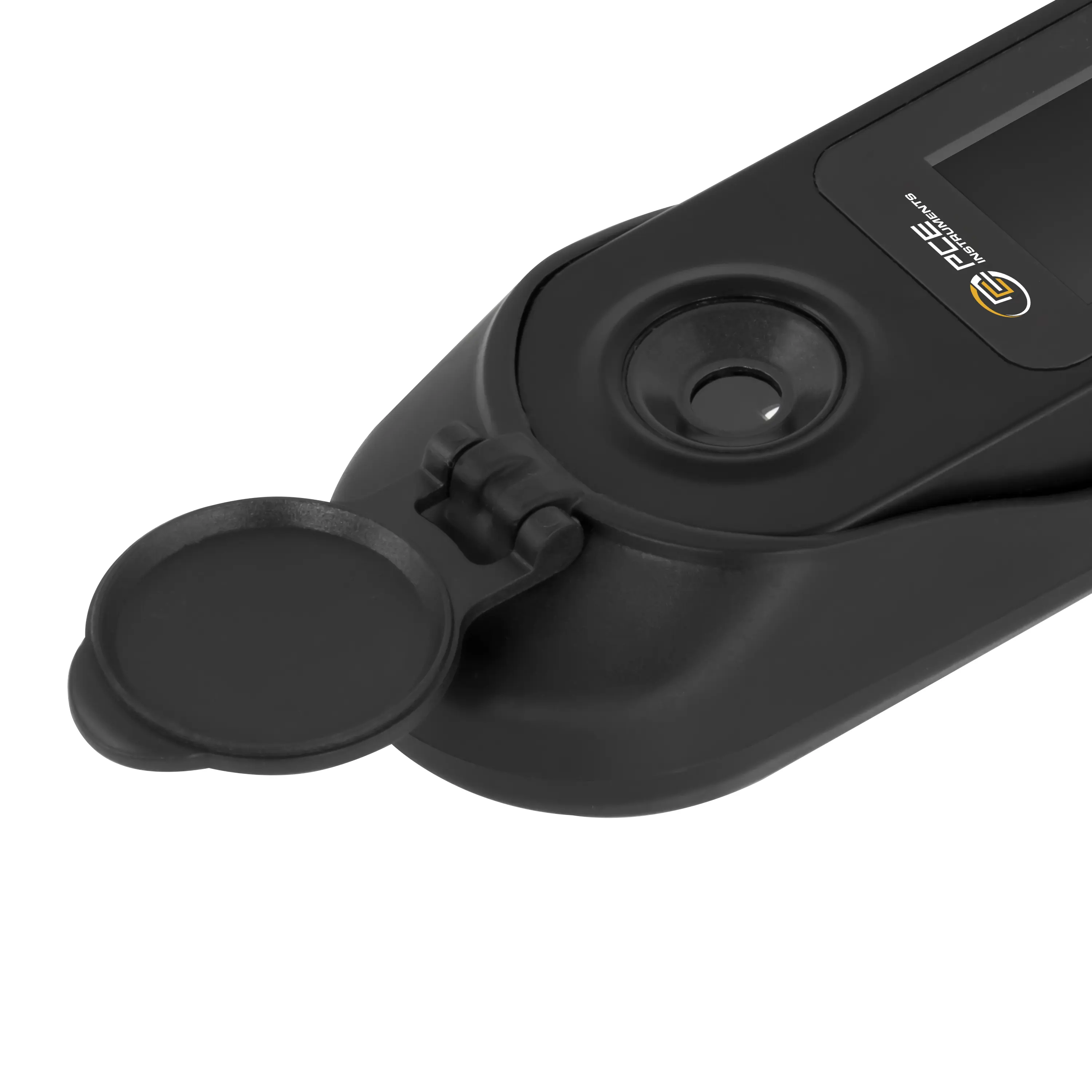

The funnel-shaped stainless steel ring protects the glass prism from damage, into which the liquid sample to be measured is placed. The internal light source enables measurement under poor lighting conditions. Our Salt Meter is supplied in a rugged plastic case with pipette and charging cable.


Highlights

- quick and accurate measurement in approx. 1 s
- large LC display (measured value and temperature)

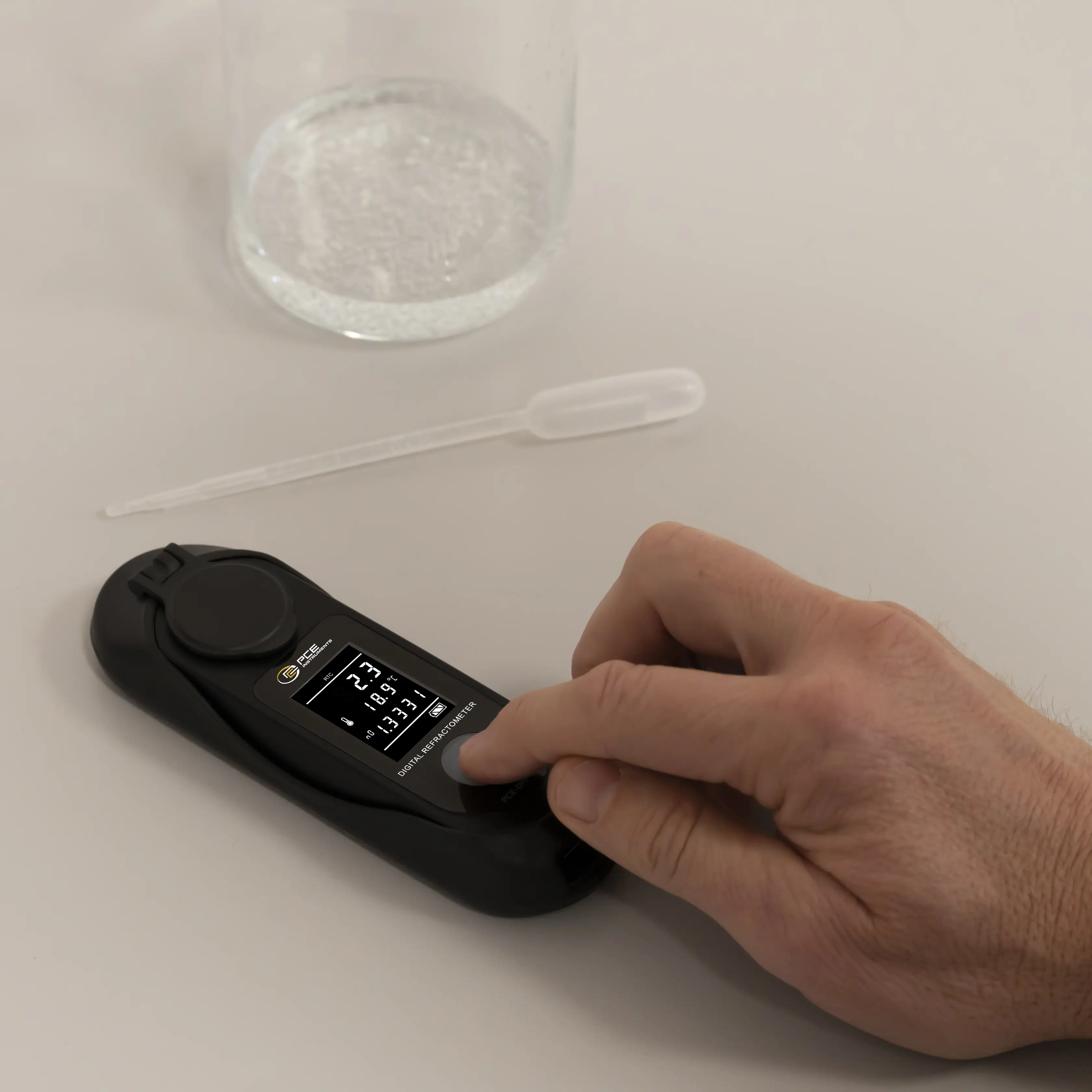

- easy to use (1-key operation)

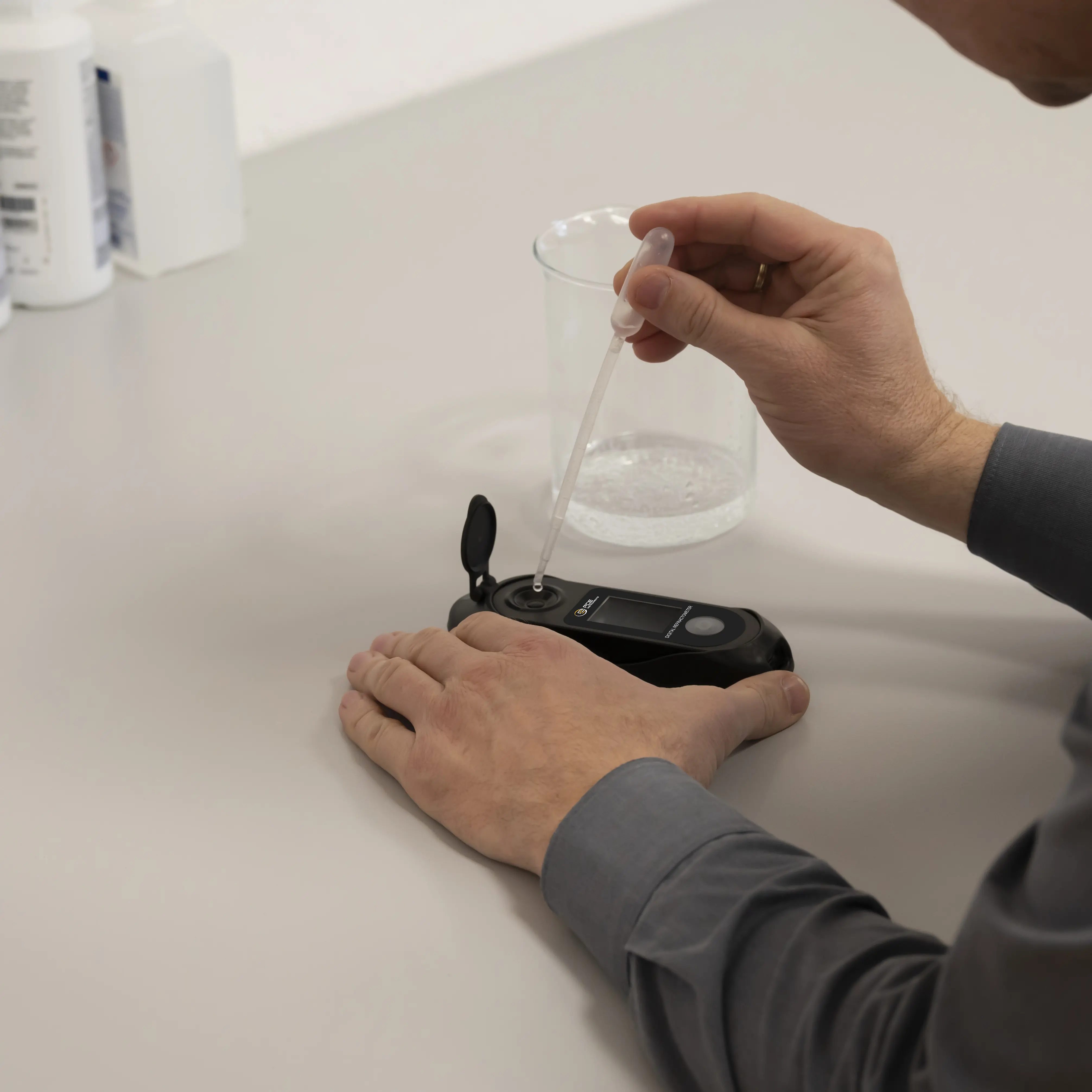

- small sample volume
- simple calibration with distilled water
- automatic temperature compensation
- stainless steel sample holder with glass prism
- automatic power-off after 1 min of inactivity

Specification

Refractive index
Measurement range up to  1,333 ... 1,42 nD
Resolution  0,0001 nD
Accuracy  ±0,0003 nD

Salinity
Measurement range up to  0 ... 280 ‰
Resolution  0,1 ‰
Accuracy  ±2‰

Temperature
Measurement range up to  0 ... 40 °C
Resolution  0,1 °C
Accuracy  ±0.5 °C

General technical data
Temperature compensation  automatic 10 ... 40 °C
Display type  LCD
Measuring rate  1 Hz
Automatic power-off  1 min
Sample quantity  0,2 ... 0.3 ml
Menu language  English, English (GB)
Protection class (device)  IP65
Power supply  5V DC, 500mA
Weight  115 g
Operating conditions  0 ... 50 °C , 0 ... 95 % RH
Storage conditions  0 ... 50 °C , 0 ... 95 % RH
Capacity  500 mAh
Dimensions ( L x W x H )  145 x 46 x 27 mm

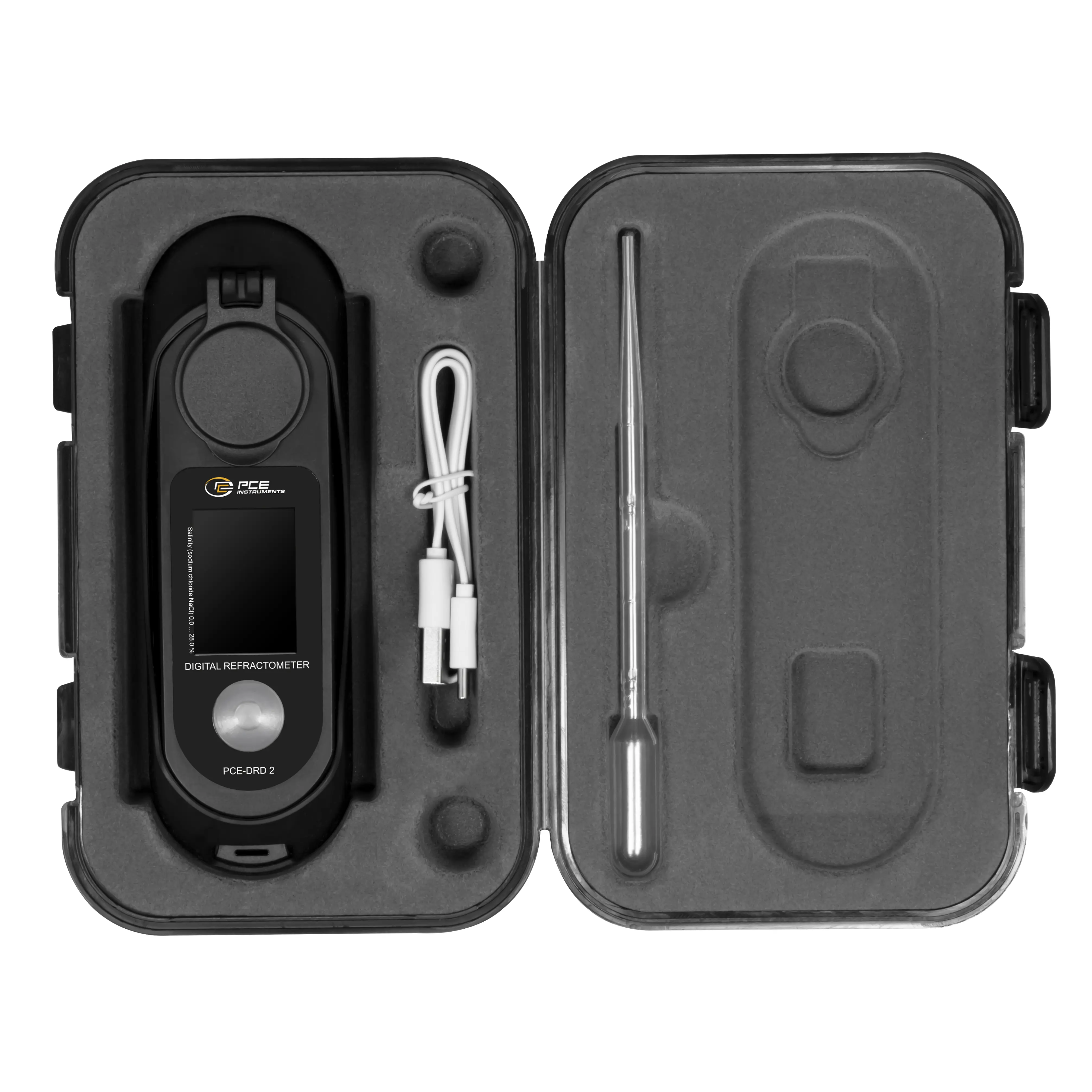

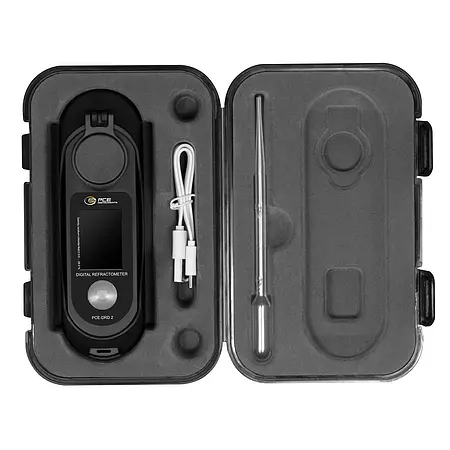

Delivery Scope

1 x Salt Meter PCE-DRD 2
1 x pipette
1 x plastic case

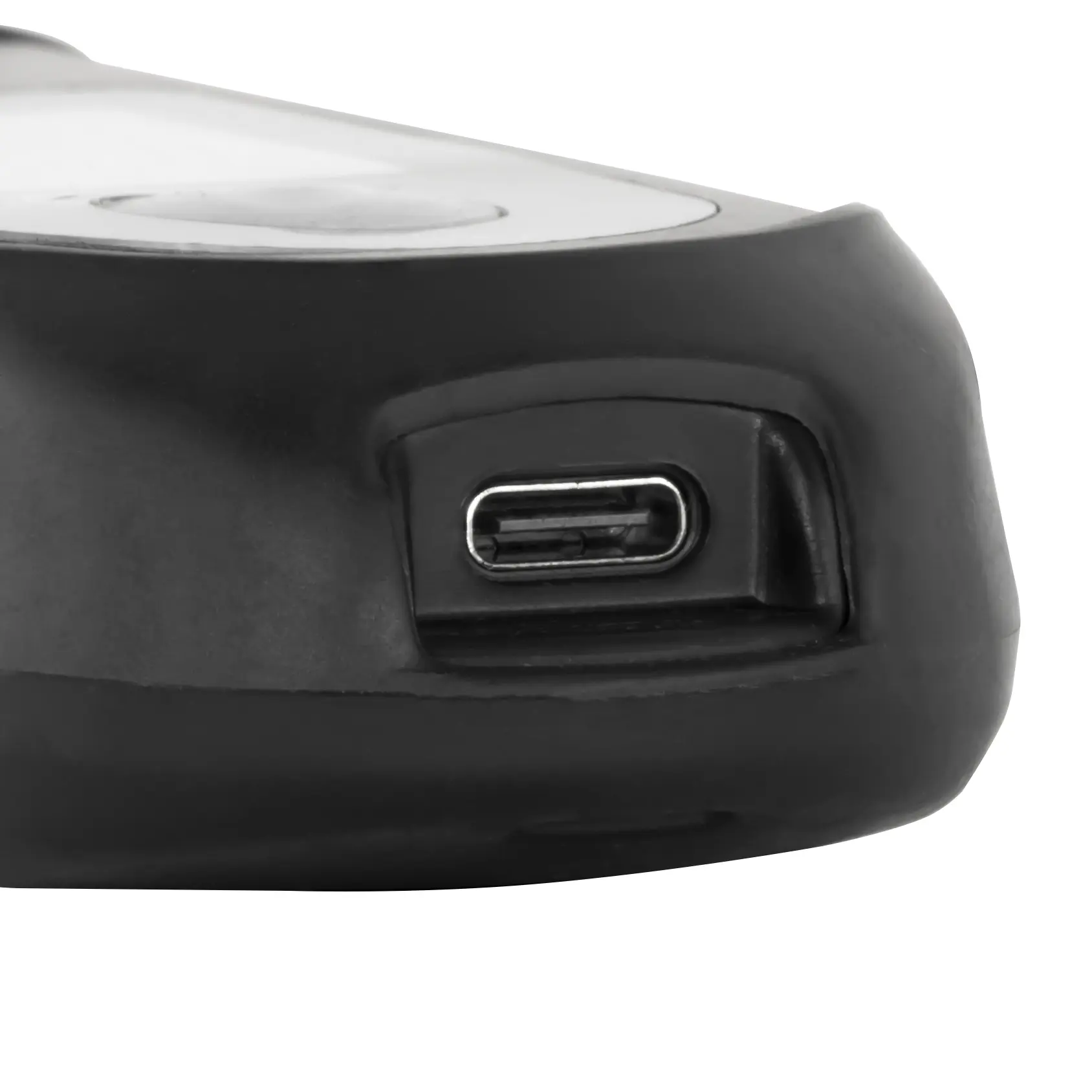

1 x USB-A - USB-C cable (for charging only, mains adaptor not included)
1 x user manual
