Snake Camera PCE-VE 1030N
Borescope inspection camera with 30 m / 98 ft long, 28 mm / 1.1 in diameter waterproof semi-flexible push-pull cable on reel / Captures and stores pictures and audio-enabled videos to included SD card memory
PCE-VE 1030N is a versatile snake camera or video borescope inspection camera with a large 7" high-resolution display. This snake camera inspection camera captures both picture and video. Video recordings are accompanied by audio for a more immersive inspection experience.
All files are saved to the included SD card memory for quick and easy transfer to a PC. The snake camera accommodates an SD card with a maximum capacity of up to 32 GB. For example, an 8 GB SD card would store more than 60000 images or 530 minutes of video.
The snake camera inspection camera comes with a 30 m / 98 ft long, 28 mm / 1.1 in diameter semi-flexible push-pull cable on a reel. The included camera cable is waterproof and the head is equipped with 8 bright LED lights for optimal illumination. In addition, various cables with different lengths, diameters and special features can be connected to accommodate myriad applications. Additional cables are optional and sold separately - see accessories for details.
Cable diameter |
28 mm / 1.1 in |
Cable length |
30 m / 98 ft |
Depth of field |
10 mm … ∞ / 0.4 in to infinity |
Field of view |
150.8° |
| Bending radius | 90 mm / 3.54 in |
| Illumination | 8 LEDs |
| Image sensor | CMOS / 640 x 480 |
| Picture rate | 30 / sec. |
| Display | 7" LCD (800 x 480) |
| Image Resolution | 640 x 480 JPEG |
| Video Recording | 640 x 480 MPEG (with sound recording) |
| drop test | 1 m / 3.2 ft |
| Power Supply | Li-Ion battery |
| Interface | USB |
| Picture and Video Memory | To SD card (up to 32 GB) |
| AV Output | NTSC / PAL |
| Audio Input | built-in microphone |
| Brightness Setting | 10-step adjustable on the main unit |
| Runtime per Battery Charge | 5 hours |
| Charging Time Battery | 3 hours |
| Charging Temperature | 10 ... 40°C / 50 ... 104°F |
| Operating Temperature | 0 ... 60°C / 32 ... 140°F |
| Storage Temperature | 0 ... 60°C / 32 ... 140°F |
| Protection type, camera | IP 68 = No ingress of dust; complete protection against contact (dust tight) and waterproof; meaning it can be underwater for 30 minutes at depths of up to 1.5 m / 4.9 ft |
1 x Snake Camera PCE-VE 1030N
1 x Semi-flexible waterproof push-pull cable on reel

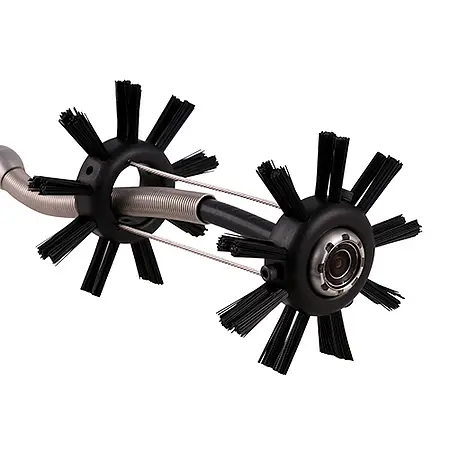

1 x Centering star
1 x SD memory card
1 x USB cable
1 x Power adapter
1 x Video cable
1 x Carrying case
***Not suitable for medical use***
