Snake Camera PCE-VE 200SV1

Order no.: PCE-VE 200SV1
GTIN (EAN): 4250348717764
US$ 616.00
ex. VAT, ex. delivery costs
:
4250348717764
PCE-VE 200SV1
Available in: 1-2 days
No
9 mm
1 m
640 x 480 pixels
No
Image, Video
Yes (Micro SD)
Yes (Micro USB, TV out)
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

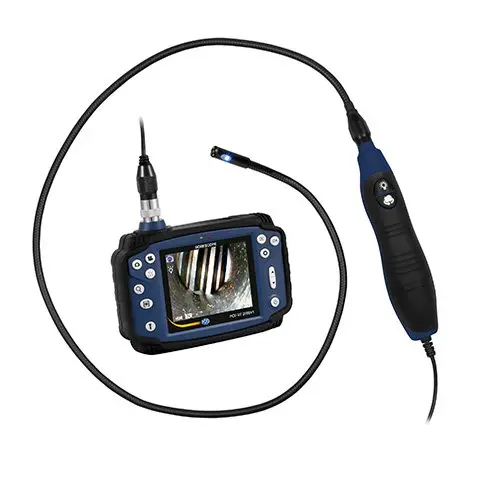

Snake Camera PCE-VE 200SV1 for nondestructive machine diagnostics / Side view camera / Camera head diameter: 9 mm (0.4 in) / 3.5" LC display / 2600-mAh battery / Cable length 1 m (3.3 ft) / Card slot for micro SD card

The PCE-VE 200SV1 is a nondestructive snake camera. Thus, the snake camera is the ideal tool for diagnosing hard to reach areas. For example, the areas of mechanical engineering, plumbing and heating, and the entire construction and construction industry are among the main uses of the snake camera. Also, the snake camera is suitable for use in the automotive industry. The fact that it has a camera tube of one meter in length, it is possible to use the snake camera so that in many cases disassembly of machines or motors is not necessary. Conversely, this means a time and money savings.

On the camera head of the snake camera are bright LEDs, which can be controlled and adjusted by the user on the device. The LEDs have different levels of brightness, allowing for optimal illumination at the point of interest. It can not lead to over exposure, which would cause the image shown on the screen no longer recognizable, because the camera of the snake camera is dazzled. In addition to the lighting, there is also the function of a digital enlargement for the current image section. Here you have the 2-fold, 3-fold or 4-fold magnification level available. The recorded pictures and videos are automatically saved to the micro SD card. This means that you can later read and document the images from the snake camera.


Highlights

- 9 mm / 0.4 in cable diameter
- 3.5" display
- Brightness adjustable on the camera head
- 2600-mAh battery
- Cable length 1 m / 3.3 ft
- SD card slot for Micro SD card

Specification

Display3.5" LCD
Resolution video functionAVI (640x480)
Resolution picture functionJPEG (1600x1200)
Image rotation180° rotation and mirror function
Freeze functionYes
ZoomUp to 4 times
Storage mediumMicro SD card
menu languagesEnglish
German
Spanish
French
Russian
Japanese
Simplified Chinese
Traditional Chinese
InterfacesMicro USB 2.0, TV out, Micro SD card slot
TV outputPAL
Power supplyLi-ion battery
Battery Capacity2600-mAh
Operating conditions-10 ... 40°C / -10 ... 104°F, rel. Humidity <75%
Technical specification of the PCE-VE 200SV1 (borescope cable)
Cable diameter9 mm / 0.4 in
Image sensor1/8" CMOS chip
Resolution camera640 x 480 pixels

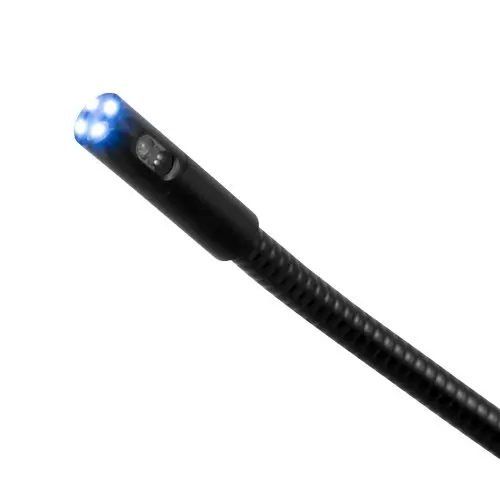

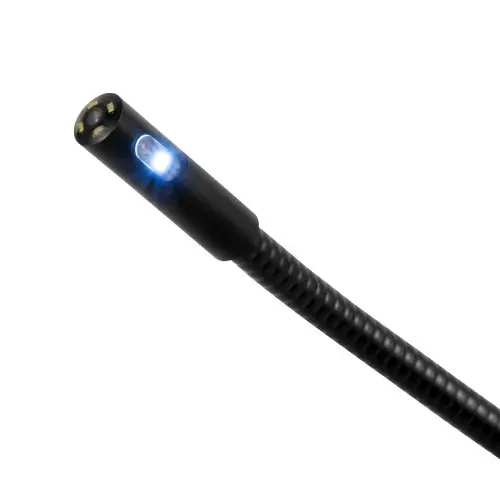

Lighting the camera4 LEDs on the front, 2 LEDs on the side
Field of view / angle of view90°
Brightness controlManually
Sight depth15 ... 100 mm / 0.6 ... 3.9 in, front camera; 3-50 mm / 0.1 ... 2 in side camera
Length of camera tube1 m / 3.3 ft
PushcableMalleable, soft metal
Ambient conditions of the PCE-VE 200SV1

Operating temperature

Probe

In air: -10 ... 50°C / 14 ... 122°F
In water: 5 ... 50°C / 41 ... 122°F

Main unit

In the air: -10 ... 50°C /              14 ... 122°F

Relative humidity

Probe and main unit

15 ... 90%

Fluid resistance

Probe and main unit

Machine oil, light oil or saline 5%

Protection against intrusion

Probe

Water, oil and dust, according to protection class IP67

Main unit

Rain in wind (battery compartment must be closed)
Not under water


Delivery Scope

1 x Snake Camera PCE-VE 200SV1
1 x USB cable
1 x USB adapter
1 x User manual
