Outdoor Sound Monitor Kit PCE-4xx-EKIT / Waterproof Outdoor Set / for PCE-428, PCE-430 & PCE-432 / Waterproof external microphone / Tripod / 10 days running time

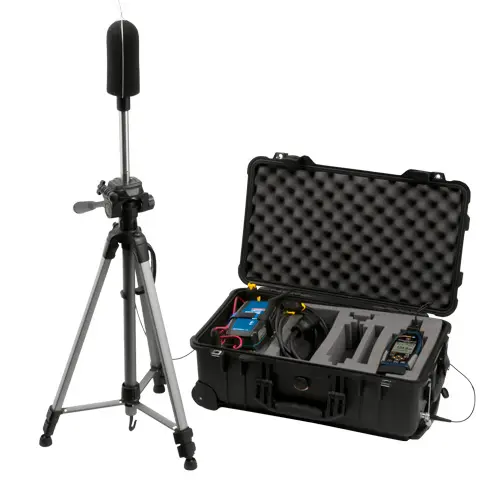

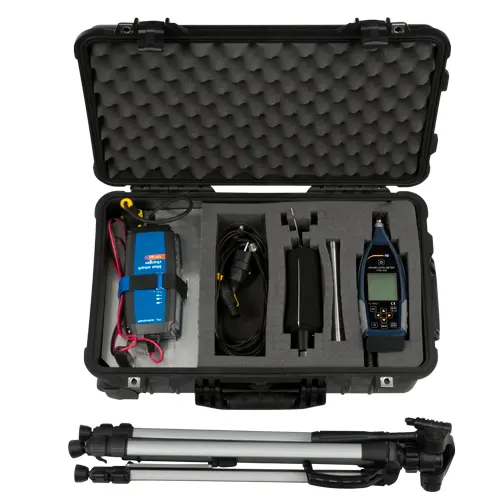

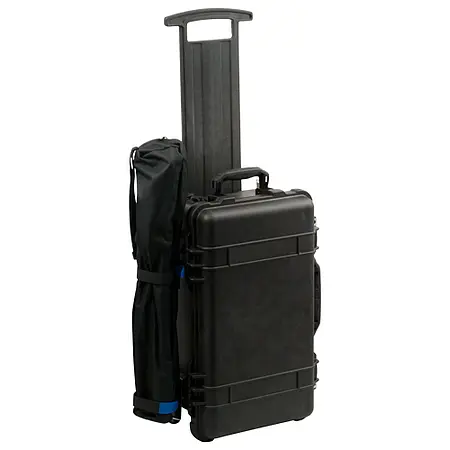

The additional kit for outdoor sound measurement PCE-4xx-EKIT can be combined with the sound level meters PCE-428, 430 or PCE-432. This kit makes it possible to measure the outdoor noise with a sound level meter over a long period of time. The environmental noise monitoring system consists of a waterproof Peli carrying case with rollers. A charger and two additional lead gel batteries are installed in this case, which allows an operation of the sound monitor for up to 10 days. During the outdoor sound measurement, the case may remain closed. Due to the external connections for the microphone and the power supply all electronic components are protected from water.

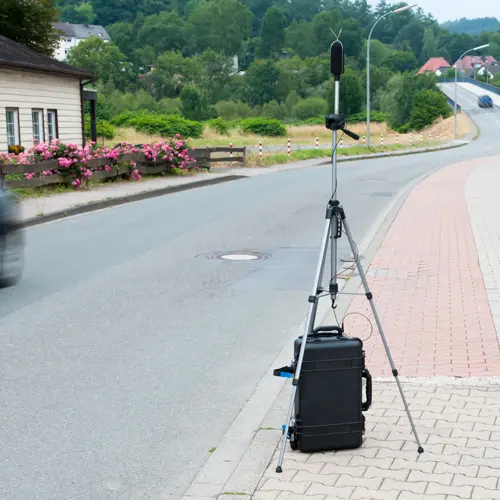

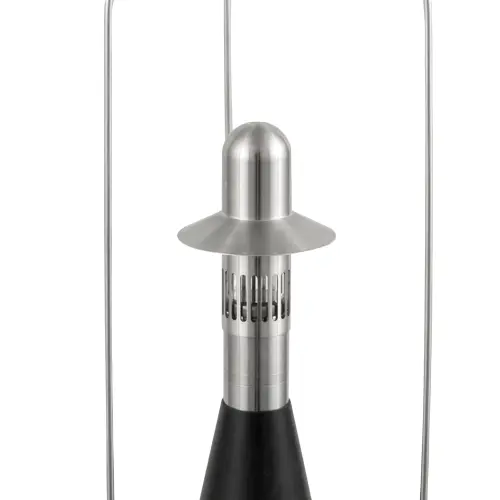

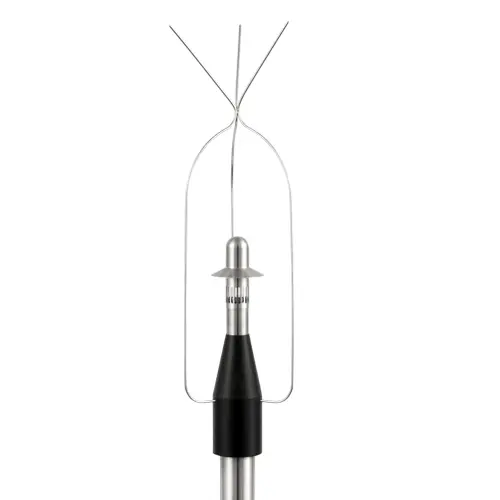

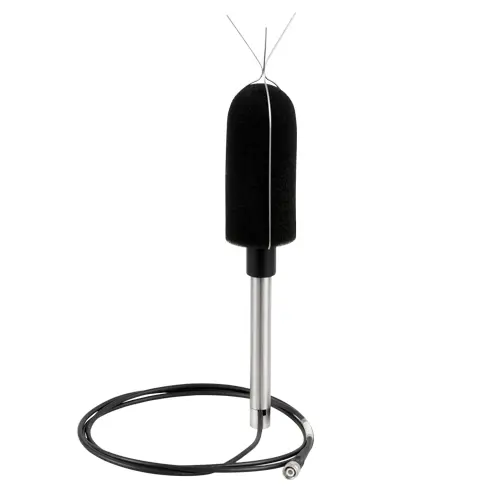

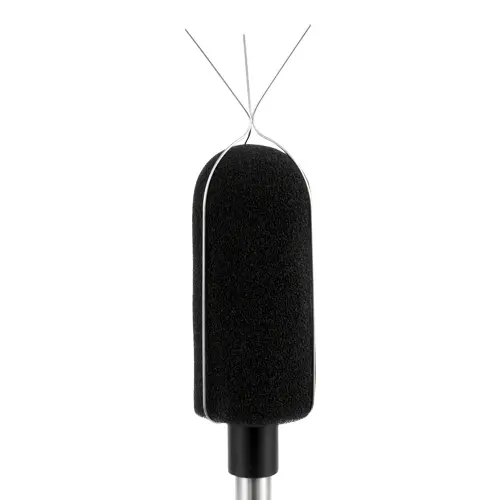

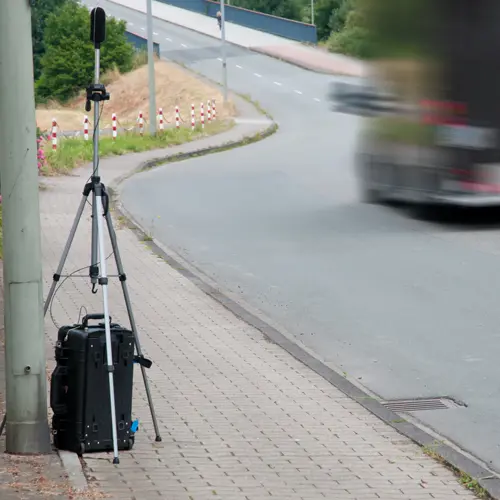

The delivery scope of the outdoor sound monitor includes rain and wind protection as well as a wire mesh for the microphone. Also, a tripod is available with which the microphone can be placed outdoors. Also, the charger in the measuring kit PCE-4xx-EKIT is waterproof. So, the charger may also remain outdoors. The outdoor noise monitor can be used, for example, for the sound measurement of street noise, aircraft and train noise, event noise, noise from construction sites, ports, factories involving heavy machinery, airport/bus stations noise, stadiums, horse/motor racing tracks etc. The weather conditions do not matter, and hail, snow, rain and similar are no problem for the system for outdoor noise monitoring. If the sound level meter PCE-432 is combined with this measuring system, it is even possible that the exact location of the sound level monitoring around the outdoor area is assigned via the GPS receiver.
Carrying case | PELI 1510 with rollers with grid foam |
Protection | IP65 |

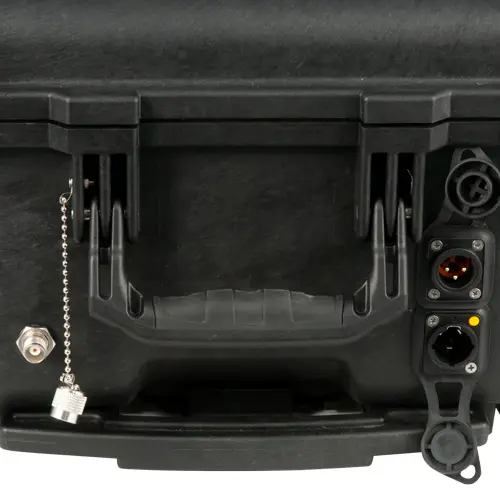

Connections on the suitcase | Microphone: TNC 12 V charging voltage: XLR 110 V / 230 V charging voltage: PowerCon TRU |
Charger | Victron Blue Smart 12 V / 4 A IP65 |
Internal batteries | 2 x 12 V / 12 Ah lead gel |
Battery running time | min. 10 days |
Power supply | With charger EU Version: 180 ... 265 V AC With charger US Version: 100 ... 130 V AC Battery operation: 2 x 12 V / 12 Ah |
Cable length | Microphone cable: 2 m / 6 ft 6" with TNC connector Power supply: 2 m / 6 ft 6" with PowerCon TRU |
Dimensions | 56 x 35 x 23 cm / 2.2 x 1.3 x 0.9" |
Weight | about 14 kg / 30 lb 13 oz with batteries about 8 kg / 17 lb 10 oz without batteries |
