Spectrophotometer PCE-CSM 1

Order no.: PCE-CSM 1
GTIN (EAN): 4250348716446
US$ 1,907.00
ex. VAT, ex. delivery costs
:
4250348716446
PCE-CSM 1
Available in: 1-2 days
Handheld
Internal
Yes
Solids
Yes
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Accessory

Calibration certificate CAL-CSM
Calibration certificate CAL-CSM
US$ 587.00
Replacement battery PCE-CSM-BAT1
Replacement battery PCE-CSM-BAT1
US$ 177.00
White Test Block PCE-WTB-CSM 1-7
White Test Block PCE-WTB-CSM 1-7
US$ 177.00
ISO Calibration Certificate for CAL-PCE-CSM
ISO Calibration Certificate for CAL-PCE-CSM
US$ 599.00

Description

Spectrophotometer PCE-CSM 1
PC software included / Li-ion battery / 3 different color spaces / Determines reference values to compare to samples / White and black calibration

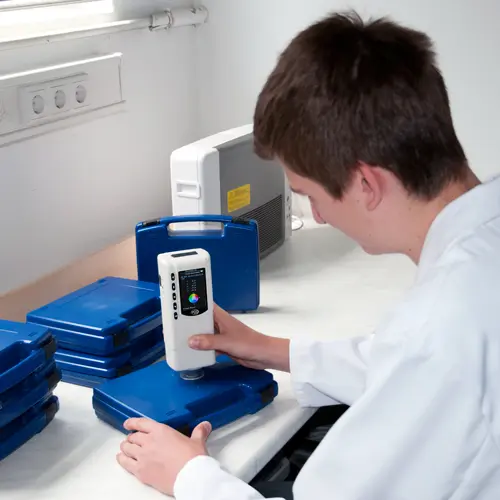

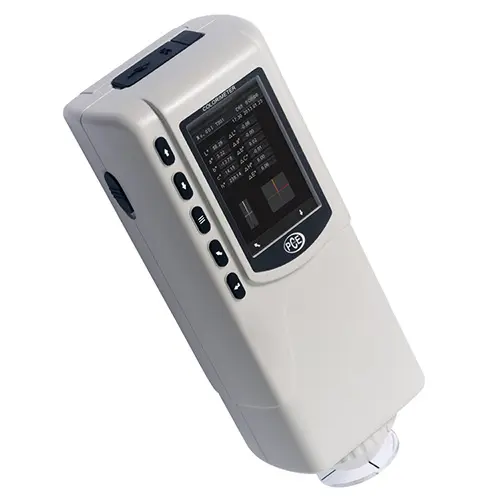

The handheld portable digital Spectrophotometer PCE-CSM 1 was developed for quality control and offers a high accuracy. When using the Spectrophotometer, you can choose between different color spaces (CIE L*a*b*C*h, CIE L*a*b* and CIE XYZ). After a measurement with the Spectrophotometer, the reading can be used as a reference value while other readings can be recorded as a sample and later be compared to the reference value easily.

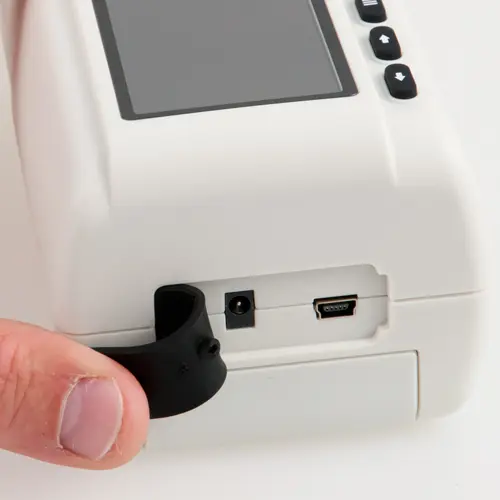

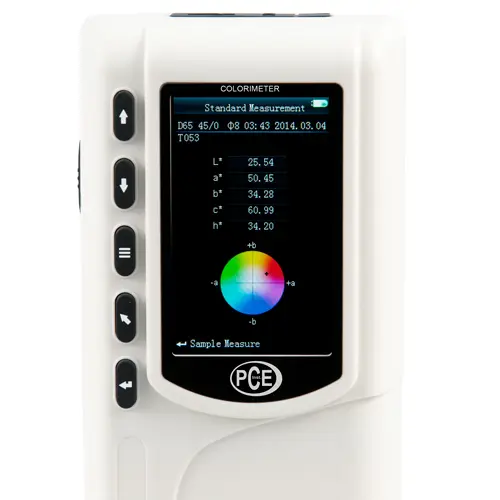

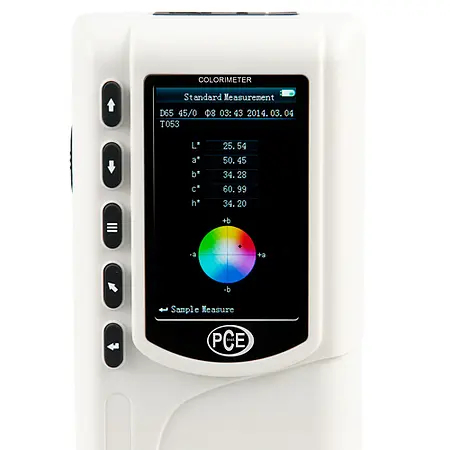

In addition to the individual color space coordinates, the deviation between the reading is also displayed. When using the Spectrophotometer, it is possible to store up to 100 reference values and up to 20,000 samples on the device. The measured data can also be transferred to a PC via the USB interface. A special PC software is included in the package.

Highlights

- CIE L*a*b*C*h, L*a*b* and XYZ
- Automatic white and black calibration
- Determines reference values to compare to samples
- Rechargeable Li-ion battery
- measuring of different colors
- Suitable for many different surfaces
- 8°/d geometry diffused illumination integrating sphere system illuminates sample from 8-degree angle
- Easy to use
- Incl. PC software
- 6 mm sample aperture

Specification


Geometry 8°/d
Aperture Ø 6 mm
Sensor Silicon photoelectric diode
Color spaces CIE L*a*b*C*h, CIE L*a*b, CIE XYZ
Color difference formula ΔE*ab, ΔL*ab, ΔE*C*H

Observation Angle

Light source

CIE 10°

D65
Light source device LED blue light
Errors between each equipment ≤0.80 ΔE*ab
Storage 100 reference values, 20,000 samples
Repeatability Standard deviation within ΔE*ab 0.08
Average of 30 measurements of standard white plate
Power supply Rechargeable lithium-ion battery
3.7 V @ 3200-mAh
Charging time 8 hours
Battery life Approx. 5,000 measurements
Lamp life 5 years, more than 1.6 million measurements
Storage conditions Air temperature: 0 ... 40°C / 32 ... 104°F
Air humidity: 0 ... 85% RH, non-condensing
Dimensions 205 x 67 x 80 mm / 8.07 x 2.63 x 3.14 in
Weight 500 g / 17.6 oz

Delivery Scope

1 x Spectrophotometer PCE-CSM 1
1 x USB cable
1 x Li-ion battery
1 x AC power adapter / charger
1 x Wrist band
1 x Calibration plate (white)
1 x Lens cap (serves as black calibration plate)
1 x Soft carrying case
1 x PC software
1 x User manual
