The SPL meter PCE-322ALEQ is particularly suitable
for measuring noise in the field of industrial, health, safety and
environmental monitoring. The PCE-322ALEQ SPL meter has a logger
function, which allows storage of up to 32700 readings. This makes it ideal for long term monitoring.

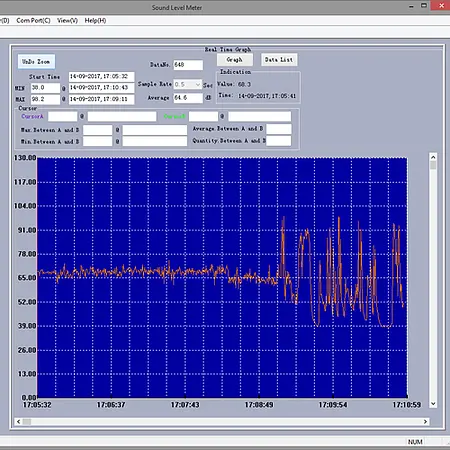

The SPL meter PCE-322A can be connected to the PC with a USB cable.
A live measurement is also possible with the sound level meter and the data can be viewed directly and can be evaluated.

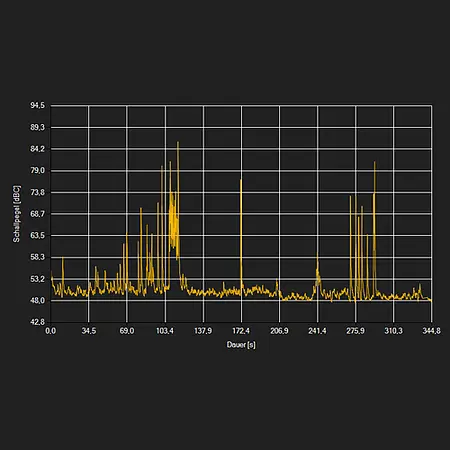

The software provides data representation in graphic formats and tables. This data can be transferred, for example, to MS Excel.
The SPL meter has an analogue output and offers further features that are unique in its class.
| Noise levels | Low 30 ... 80 dB Medium 50 ... 100 dB High 80 ... 130 dB Auto 30 ... 130 dB |
| Dynamic range | 50 dB |
| Display | 4-digit LCD |
| Resolution | 0.1 dB |
| Accuracy | ±1.4 dB |
| Display update | 2 x per second |
| Frequency | 31.5 Hz ... 8 kHz |
| Storage capacity | 32,700 readings (9 hours @ 1 second interval) |
| Frequency weighting | A and C |
| Time weighting | Fast (125 ms) Slow (1 sec.) |
| Microphone type | Electret condenser |
| Functions | MIN, MAX, HOLD, ALARM |
| Analog output | AC/DC Headphone |
| Data interface | USB |
| Automatic shutdown | After 15 minutes inactivity |
| Operating conditions | 0 ... 40°C / 32 ... 104°F, < 90% RH |
| Storage conditions | -10 ... 60°C / 14 ... 140°F, 10 ... 75% RH |
| Power supply | 9V block battery (for approx. 30 h continuous operation) AC power |
| Dimensions | 280 x 95 x 45 mm / 11.02 x 3.74 x 1.77 in |
| Weight | ca. 350 g / 0.78 lb |
| Standards | IEC 61672-1 (Class II) |
