Stroboscope PCE-DSX 100

Order no.: PCE-DSX 100
GTIN (EAN): 4250348735270
US$ 165.00
ex. VAT, ex. delivery costs
:
4250348735270
PCE-DSX 100
Available in: 5-7 working days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

The stroboscope with coarse and fine adjustment / 36 bright LEDs / data storage function / automatic switch-off

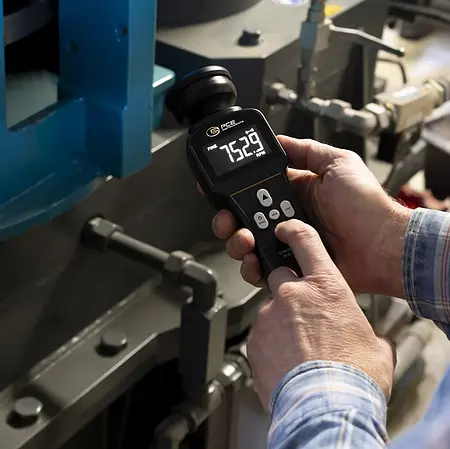

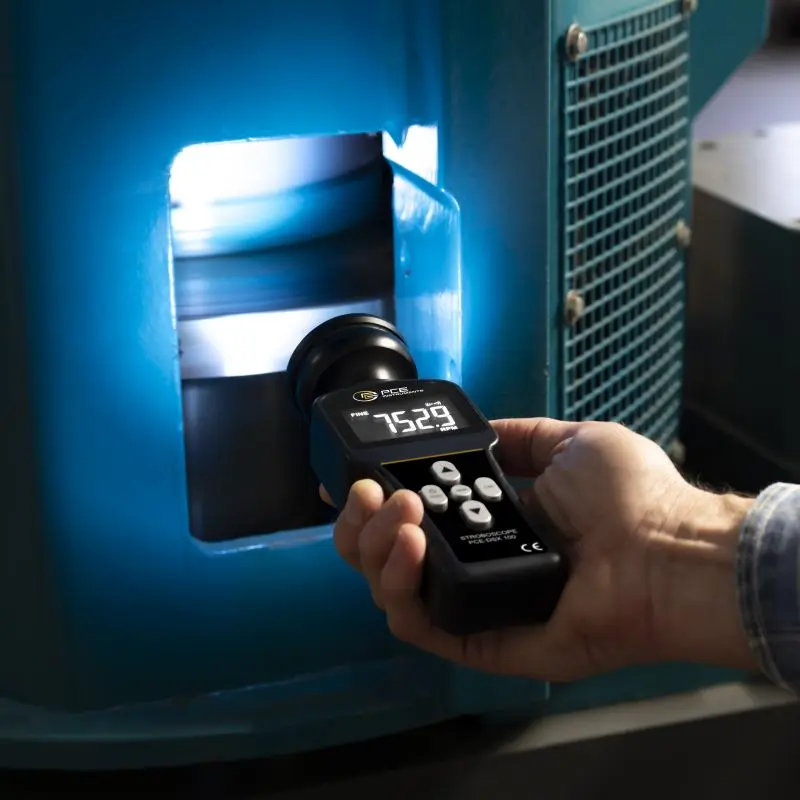

The stroboscope is a handy device for measuring the speed of objects with a measuring range of 60 to 20,000 RPM. The stroboscope is suitable for inspecting objects with periodic movements and for detecting faults. The stroboscope enables precise measurements through fine and coarse adjustment. With the fine adjustment, the speed can be changed in small steps: +0.1 RPM for speeds below 1000 RPM and +1 RPM for speeds above 1000 RPM.The coarse setting allows larger changes: +10 RPM for speeds below 1000 RPM and +100 RPM for speeds above 1000 RPM.

Equipped with an illuminated LC display and a digit height of 16 mm, the stroboscope provides a clear display even in poor lighting conditions. The flash light source with over 36 LEDs generates bright flashes of light for optimum measurements. The automatic switch-off after 5 minutes of inactivity saves energy and extends battery life. The stroboscope has a memory for up to 10 flash frequencies to enable a quick change to different frequencies. The stroboscope automatically warns when the supply voltage is too low to ensure trouble-free operation.


Highlights

- Measuring range from 60 ... 20000 RPM
- Automatic switch-off
- 2.1" LC display with illumination
- Data storage function for up to 10 values
- Coarse adjustment in steps, +10, +100 RPM
- Fine adjustment in steps, +0.1, +1 RPM

Specification

Visual speed
Measuring range 60 RPM ... 999.9 RPM
Resolution 0.1 RPM
Accuracy 0.05 %
Visual speed
Measuring range 1000 RPM ... 20000 RPM
Resolution 1 RPM
Accuracy 0.05 %
General technical data
Display type LCD with illumination
Display size 2.1 inch
Storage medium Internal memory
Memory capacity 10 values
Automatic switch-off 5 min
Light intensity approx. 1400 lx @20cm @10000 RPM

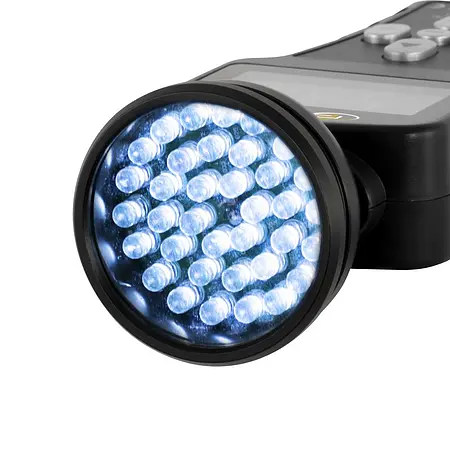

Light source 36 LED's
Menu language English
Protection class (device) IP20
Weight 180 g
Dimensions (L x W x H) 180 x 68 x 56 mm
Operating conditions 0 ... 50 °C , 10 ... 85 % r.H
Storage conditions 0 ... 50 °C , 10 ... 85 % r.H

Delivery Scope

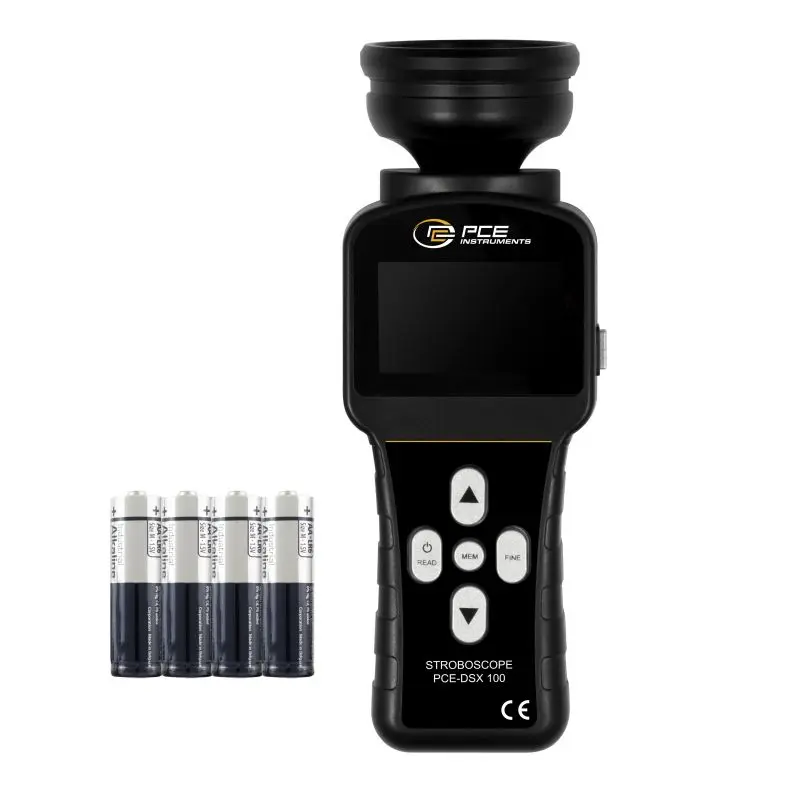

1 x stroboscope PCE-DSX 100
4 x 1.5 V AA batteries
1 x operating instructions
