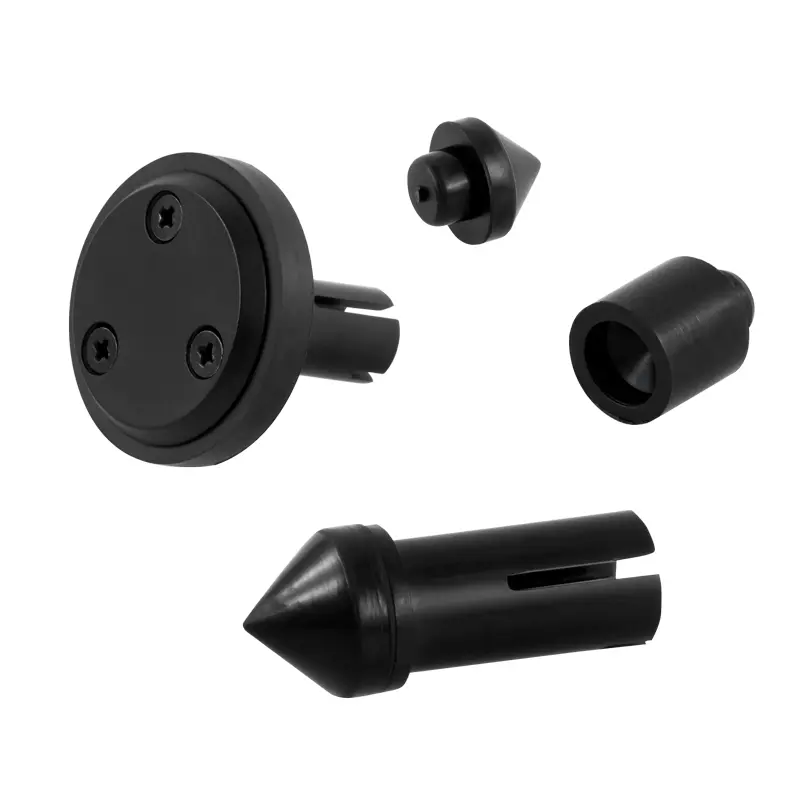

Replacement adapter for the PCE-T23x hand-held tachometer, consisting of: measuring wheel, measuring tip and pipe adapter.

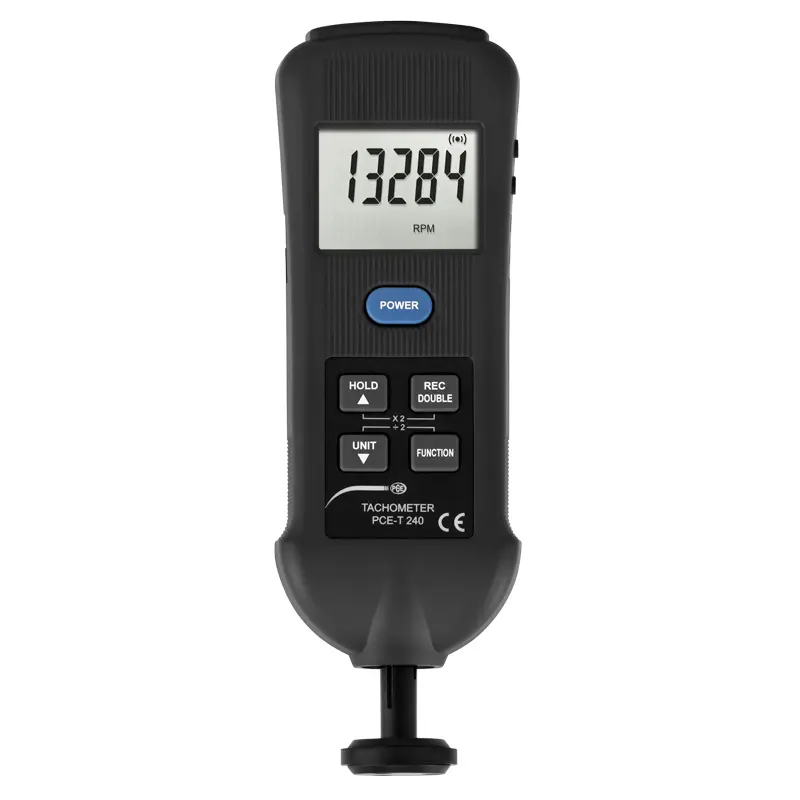

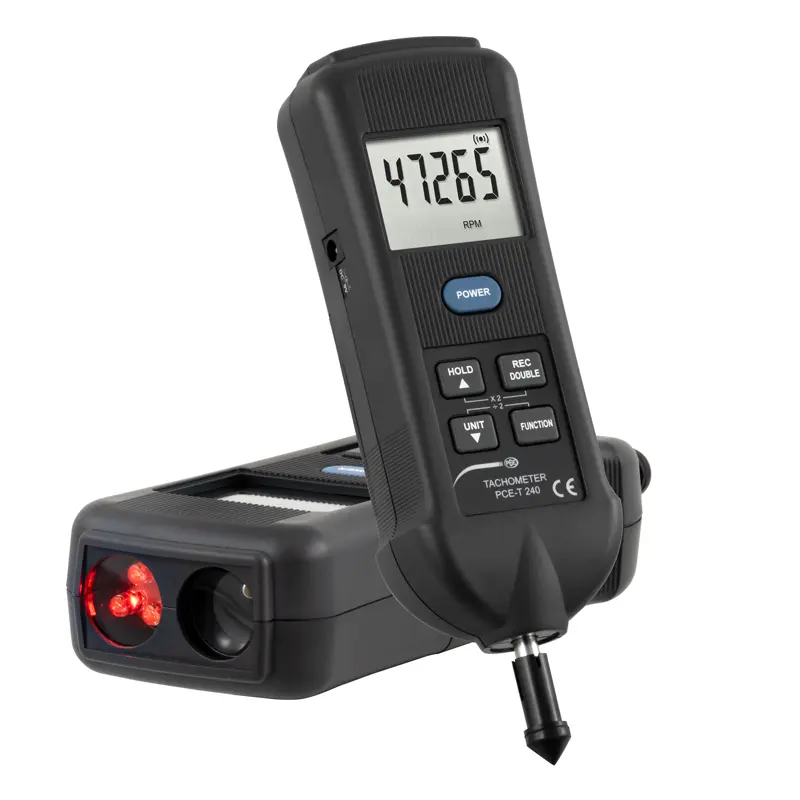

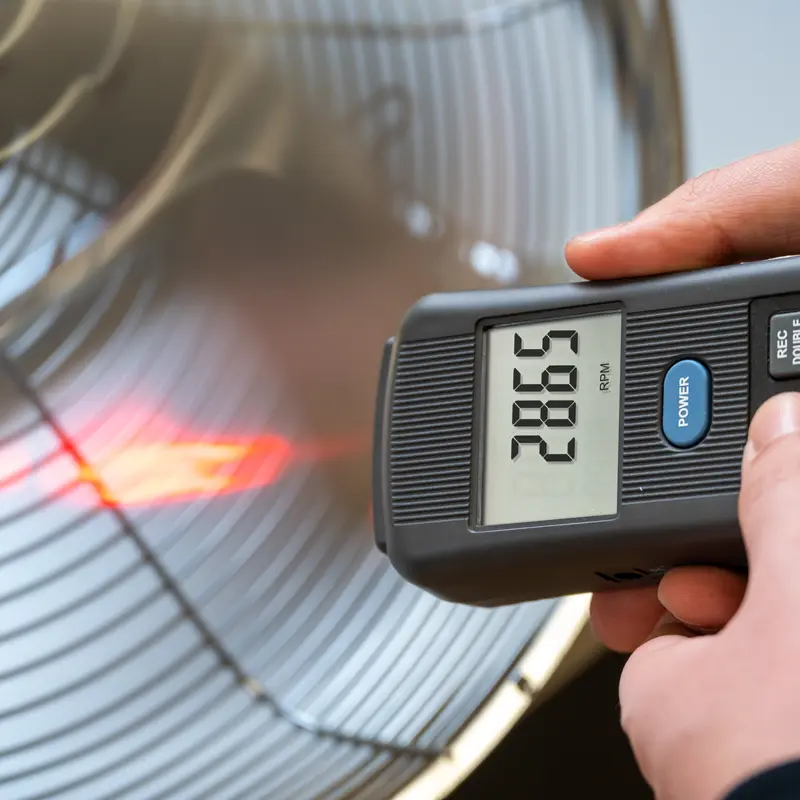

Optical measurement | |
Measuring range | 5 … 99,999 RPM |
Resolution | 0.5 RPM (< 1,000 RPM) |
1 RPM (≥1,000 RPM) | |
Accuracy | ±(0.05 % of reading + 1 digit) |
Detection distance | 50 … 150 mm, 2 ... 6 inch (typical) |
maximum 300 mm, 12 inch | |
(depending on ambient lighting) | |

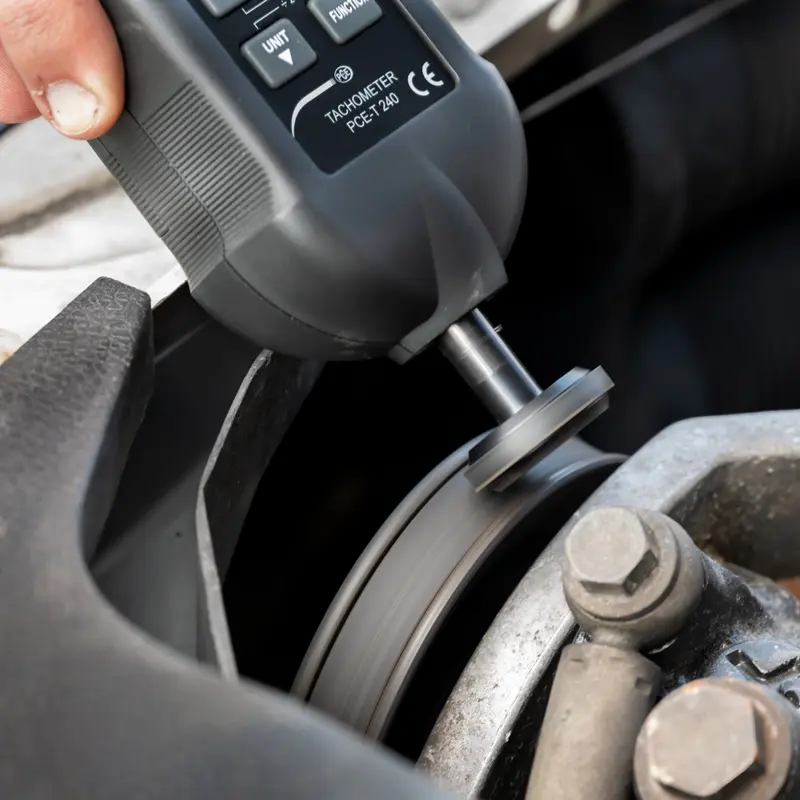

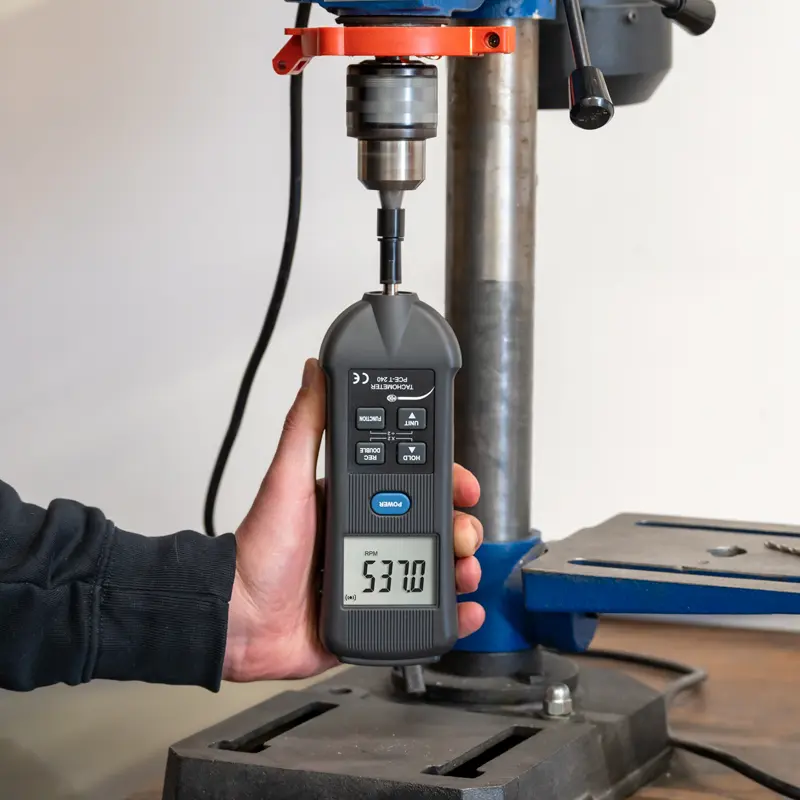

Contact measurement | |
Measuring range | 0.5 … 19,999 RPM |
Resolution | 0.5 RPM (<1,000 RPM) |
1 RPM (≥1,000 RPM) | |
Accuracy | ±(0.05% of reading + 1 digit) |

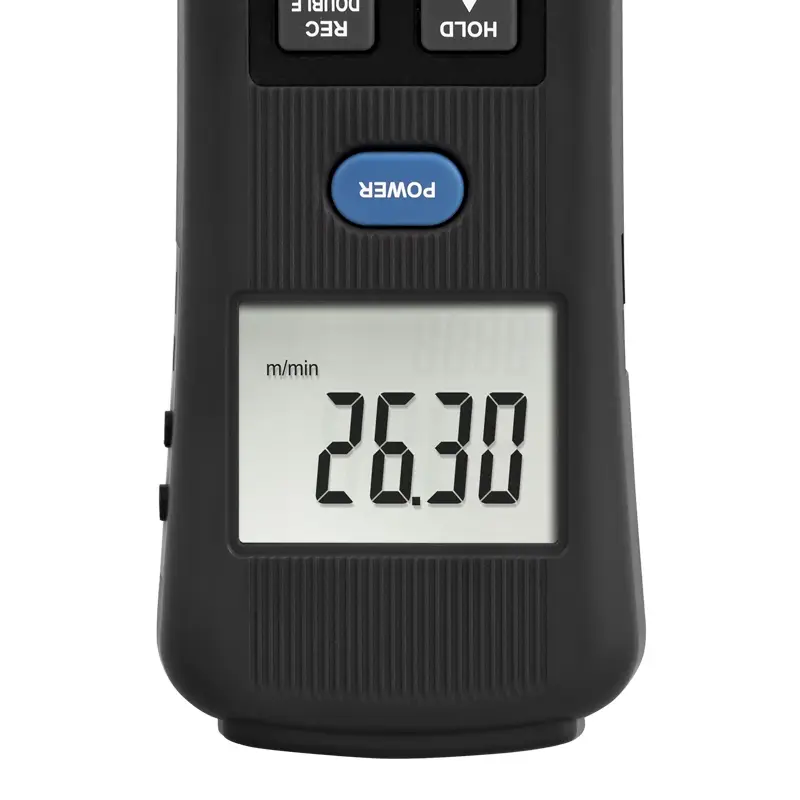

Measuring range | 0.05 ... 1,999.9 m/min |
Resolution | 0.05 m/min (<100 m/min) |
0.1 m/min (≥100 m/min) | |
Accuracy | ±(0.05% of reading + 1 digit) |
Measuring range | 0.2 ... 6,561.4 ft/min |
Resolution | 0.1 ft/min (<1,000 ft/min) |
1 ft/min (≥1,000 ft/min) | |
Accuracy | ±(0.05% of reading + 1 digit) |
Measuring range | 2.0 ... 78736.2 in/min |
Resolution | 0.1 in/min (<1,000 in/min) |
1 in/min (≥1,000 in/min) | |
Accuracy | ±(0.05% of reading + 1 digit) |
|
|

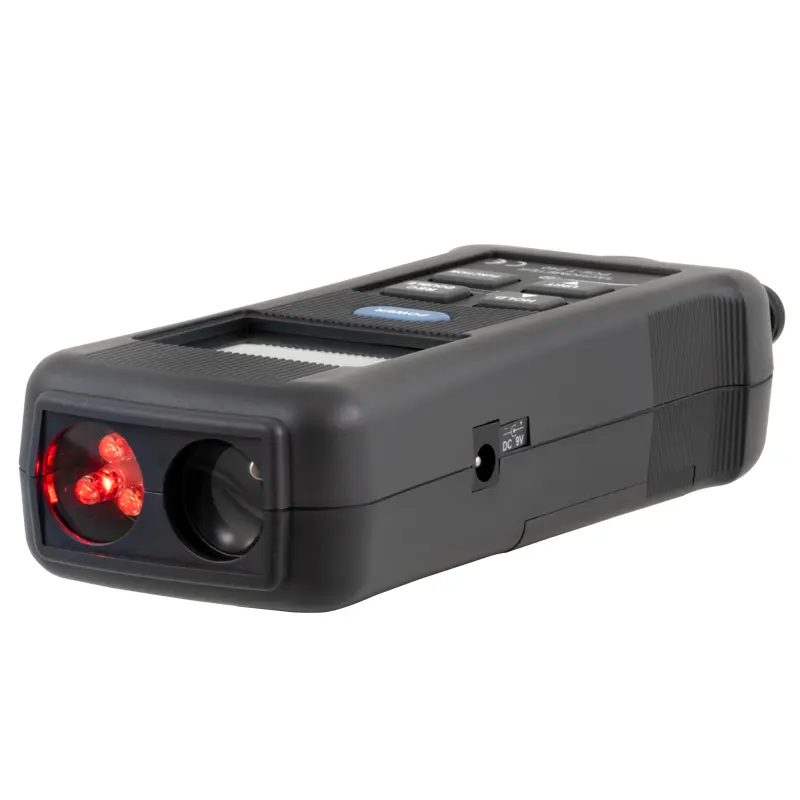

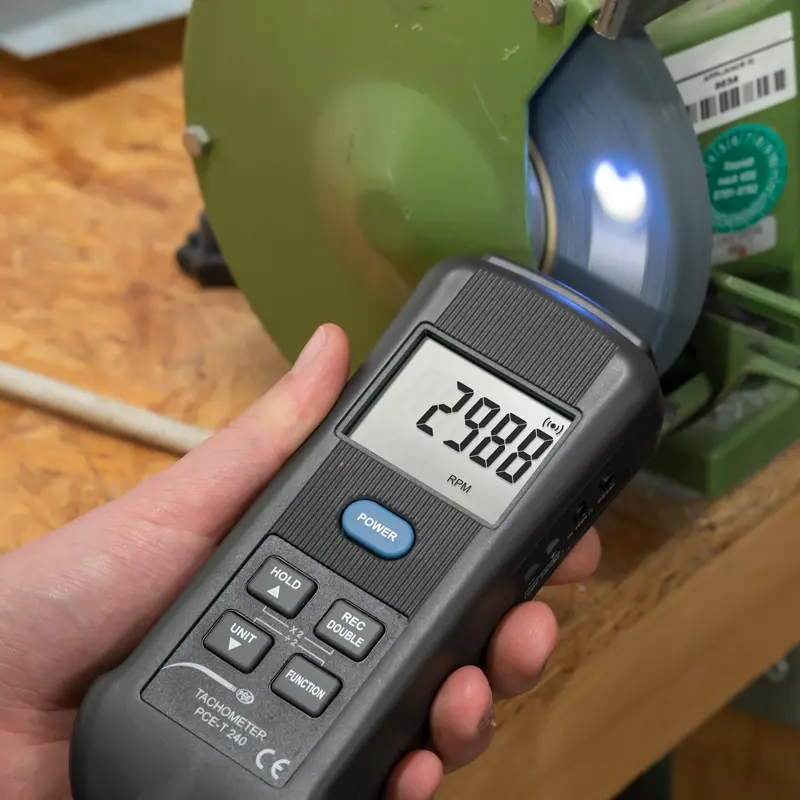

Strobe | |
Measuring range | 100 … 99,990 RPM/FPM |
Resolution | 0.1 RPM (<1,000 PRM) |
1 RPM (1,000 … 30,000 RPM) | |
5 RPM (30,000 … 50,000 RPM) | |
10 RPM (50,000 … 99,990 RPM) | |
Accuracy | ±(0.1% of reading + 2 digits) |
LED | three red LEDs |

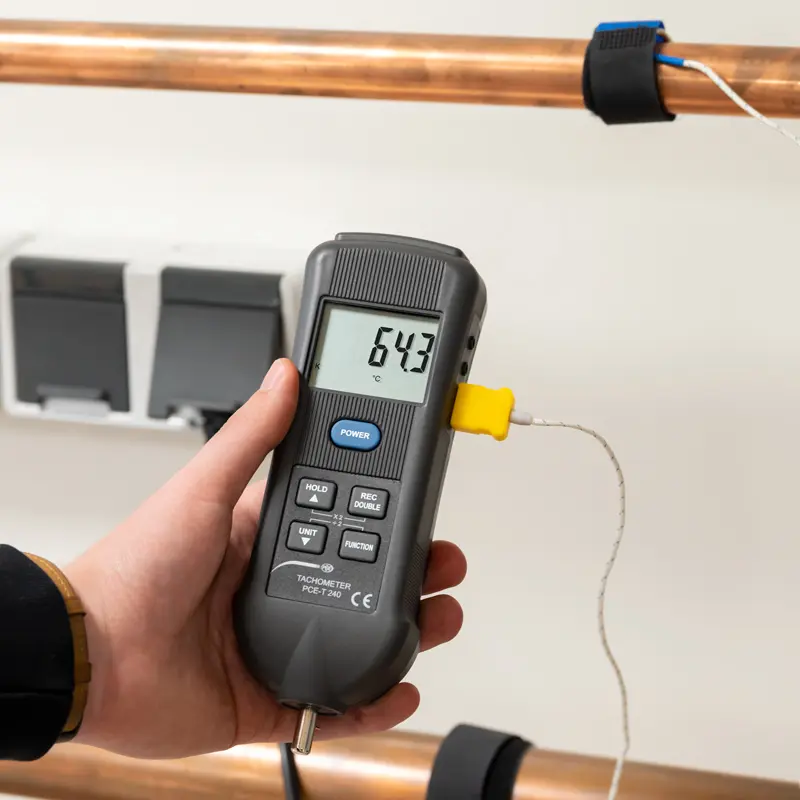

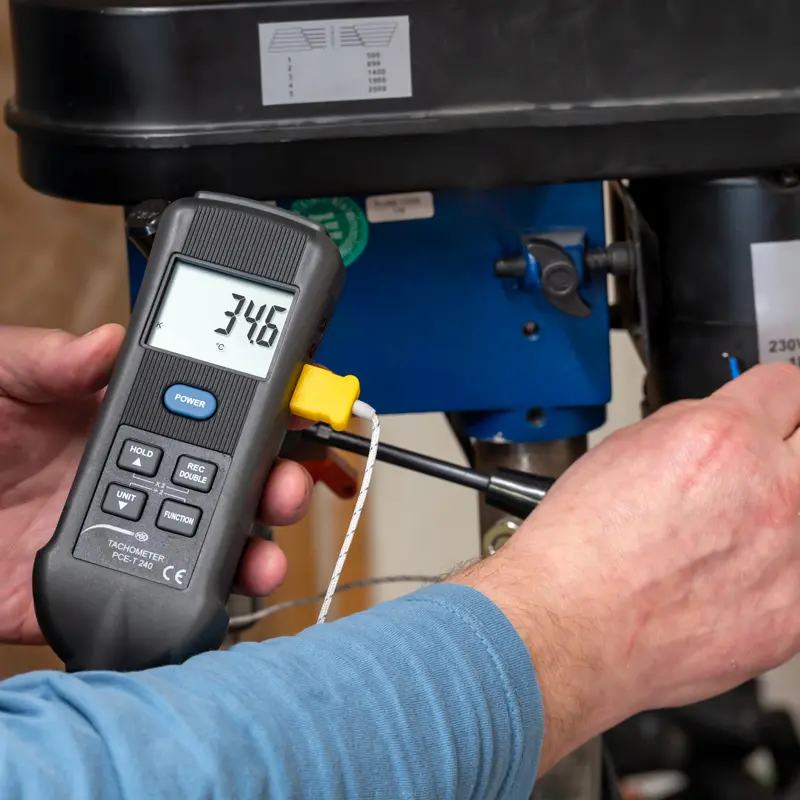

Temperature (Type K) | |
Measuring range | -50.0 … 1300.0 °C |
Resolution | 0.1 °C |
Accuracy | ±(0.4 % of reading +0.5 °C) |
Measuring range | -100.0 … -50.1 °C |
Resolution | 0.1 °C |
Accuracy | ±(0.4 % of reading +1 °C) |
Measuring range | -58.0 … 2372.0 °F |
Resolution | 0.1 °F |
Accuracy | ±(0.4 % of reading +1 °F) |
Measuring range | -148.0 … -58.1 … °F |
Resolution | 0.1 °F |
Accuracy | ±(0.4 % of reading +1.8 °F) |
Temperature (PT1000) | |
Measuring range | -10.0 … 70.0 °C, 14.0 … 158.0 °F |
Resolution | 0.1 °C, 0.1 °F |
Accuracy | ±1.2 °C, ± 2.2 °F |
More specifications | |
Display | LCD display, 43 x 33 mm, 5 digits |
Storage | largest and smallest measured value |
Power supply (mains power) |
9 V DC, 100 mA |
Power supply (battery) | 4 x 1.5V AA batteries |
Power consumption | DC 42 mA |
Automatic shutdown | after 10 minutes of inactivity |
Interface | RS232 |
Environmental conditions | 0 … 50 °C, 32 … 122 °F, <80 5 RH, |
(non-condensing); | |
magnetic field <3 V/M, <30 MHz | |
Dimensions | 207 x 67 x 39 mm, 8.15 x 2.63 x 15.3 inch |
Weight | 230 g, 0.5 lb (without batteries) |
ex. VAT, ex. delivery costs
Replacement adapter for the PCE-T23x hand-held tachometer, consisting of: measuring wheel, measuring tip and pipe adapter.
ex. VAT, ex. delivery costs

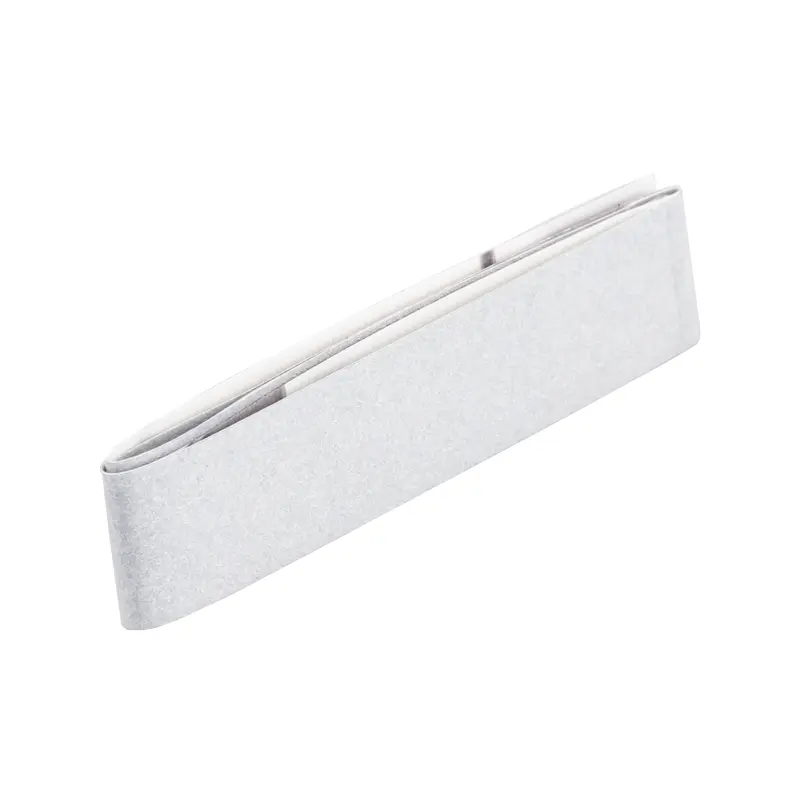

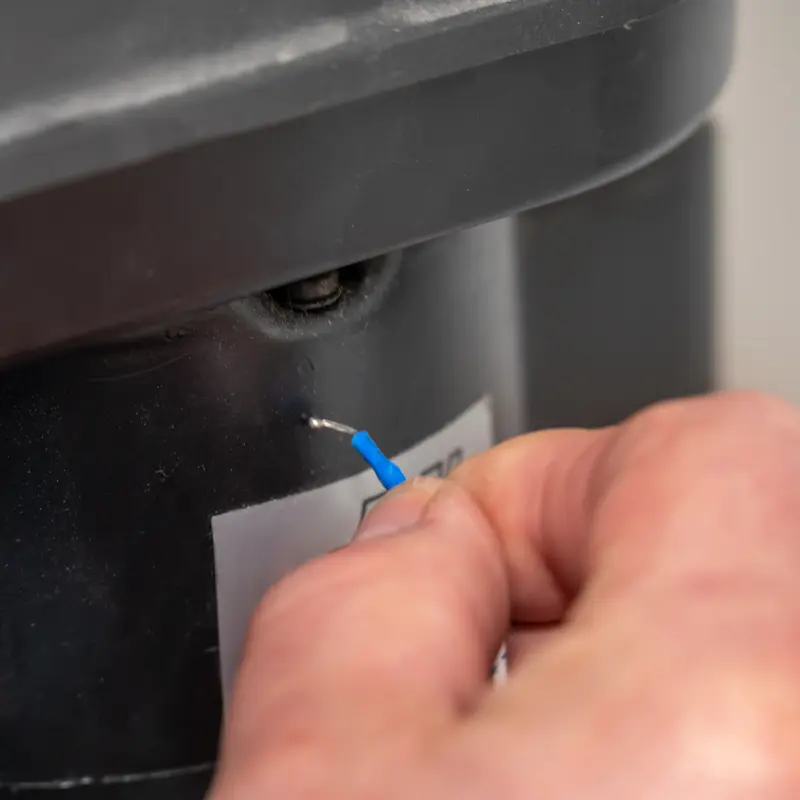

REFB is a roll of reflective tape used with optical laser tachometers and rotation meters for non-contact measurements of moving parts.
ex. VAT, ex. delivery costs
Input voltage: 220 / 110 V AC, 50 / 60 Hz
Output voltage: DC 9 V
Output current: 1 A
Connector: Approx. Ø 2.5 mm, UK / European style plug
ex. VAT, ex. delivery costs
ISO calibration certificate for tachometers is often used in companies for compliance with DIN ISO 9000.Tachometer functionN.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
