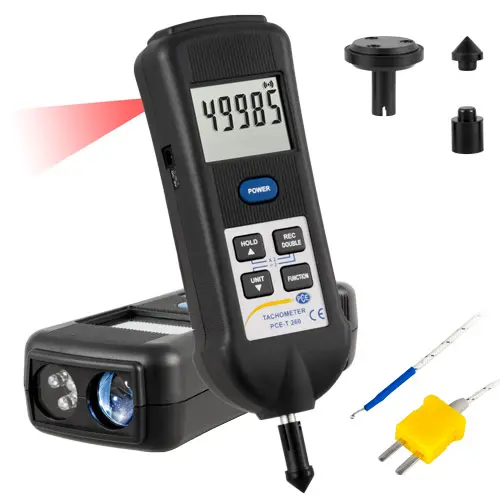

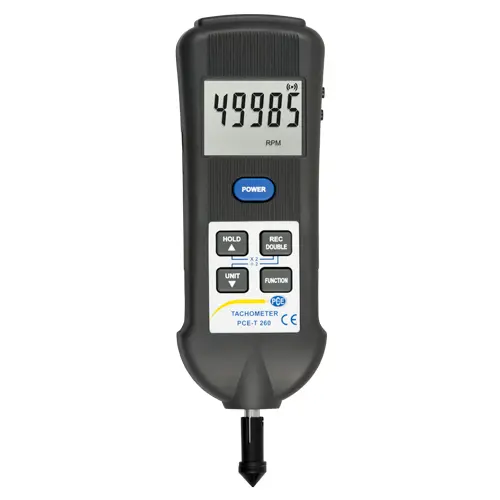

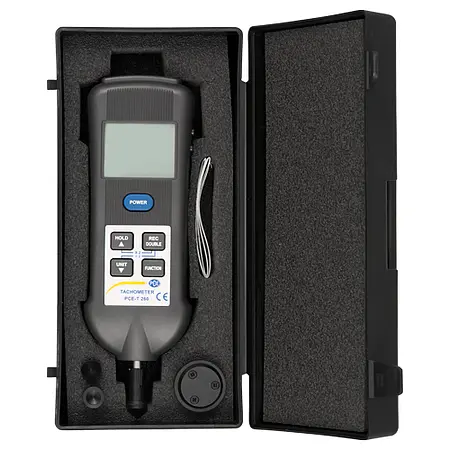

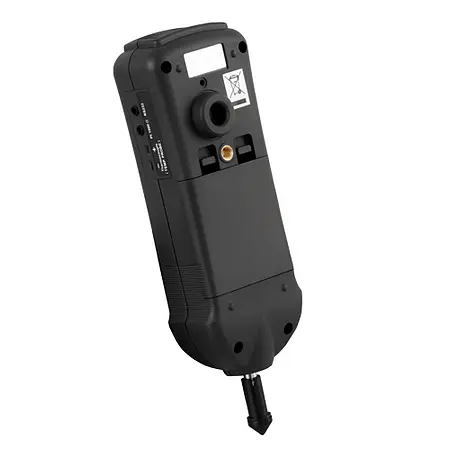

The combined tachometer-stroboscope is a measuring device for use in maintenance and production. In addition to the stroboscope function, the tachometer-stroboscope is also able to mesure temperature by an infrared beam. Thus, the tachometer-stroboscope is ideal for testing the rotational speeds and temperatures of centrifuges, motors, fans, and many other machines and systems used in industry and research. The special feature is the combination of these measurement parameters in a single housing.

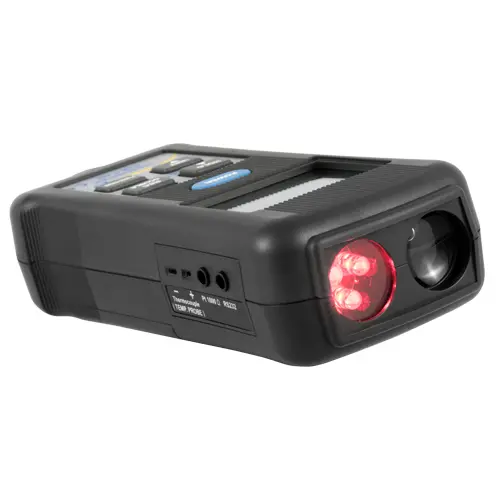

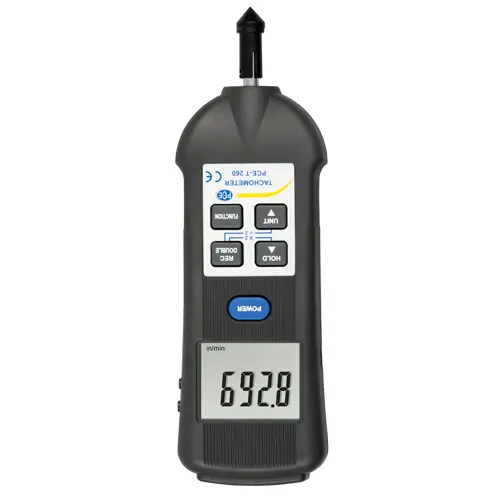

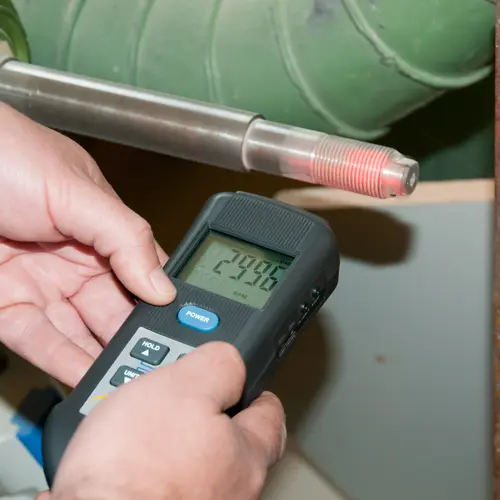

The tachometer-stroboscope has a measuring range of 0.5 ... 99.990 rpm, and the IC circuit in conjunction with a bright red LED lamp ensure the device has a low power consumption and is almost maintenance-free. The setting for the tachometer-stroboscope is made by means of a push button (for coarse and fine adjustment). The tachometer-stroboscope also enables the contactless measurement of the rotational speed from 0.5 to 99.990 rpm with a resolution of up to 0.5 (at n <1000 rpm). When setting the speed measurement, the display is rotated by 180 ° so that the values can be easily read.

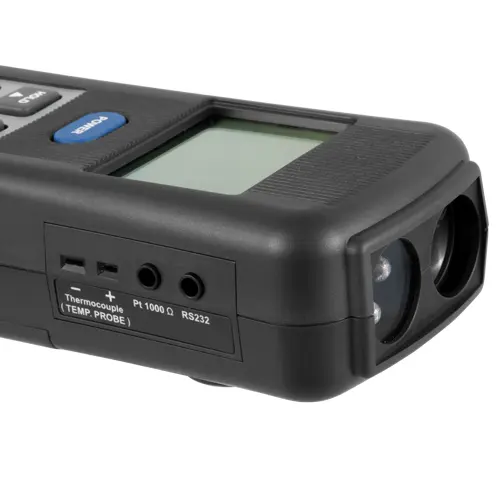

For temperature measurement with the tachometer-stroboscope, you can carry out the measurement by infrared contactless as well as with temperature sensor type K or PT 1000. The RS 232 interface allows the measured values to be displayed or logged directly on a PC with the corresponding software.
Technical Data of Tachometer Stroboscope PCE-T 260 Optical Tachometer | |
Measuring range | 5 ... 99999 rpm |
Resolution | 0.5 rpm (< 1000 rpm) 1 rpm (>1000 rpm) |
Accuracy | ±0.05% + 1 Digit |
Distance to the measuring object | 50 ... 150 mm / 2 x 5.9 in, max. 300 mm / 12 in (depending on ambient light) |

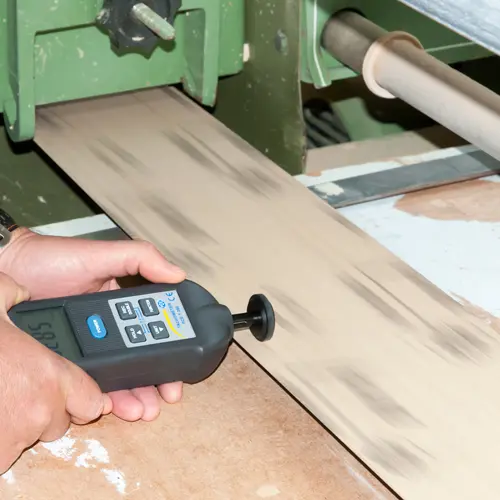

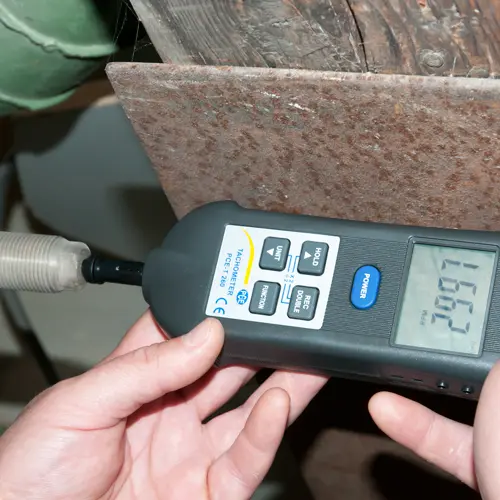

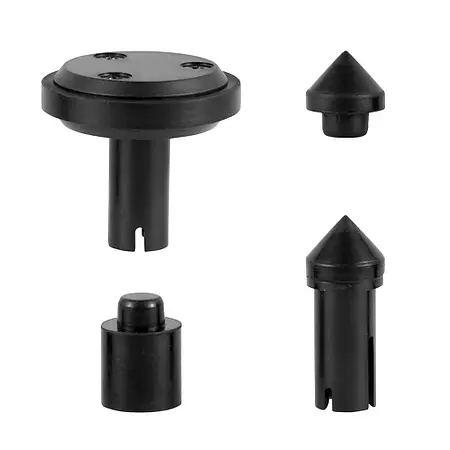

Technical Data of Tachometer Stroboscope PCE-T 260 Contact Tachometer | |
Measuring range | 0.5 ... 19999 rpm |
Resolution | 0.5 rpm (< 1000 rpm) 1 rpm (>1000 rpm) 0.05 m/min (<100 m/min) 0.1 m/min (>100 m/min) |
Accuracy | ±0.05% + 1 Digit |
Technical Data of Tachometer Stroboscope PCE-T 260 Stroboscope | |
Measuring range | 100 ... 99990 FPM |
Resolution | 0.1 FPM (< 1000 FPM) 1 FPM (1000 ... 30000 FPM) 5 FPM (30000 ... 50000 FPM) 1 FPM (50000 ... 99990 FPM) |
Accuracy | ±0.1% + 2 Digit |

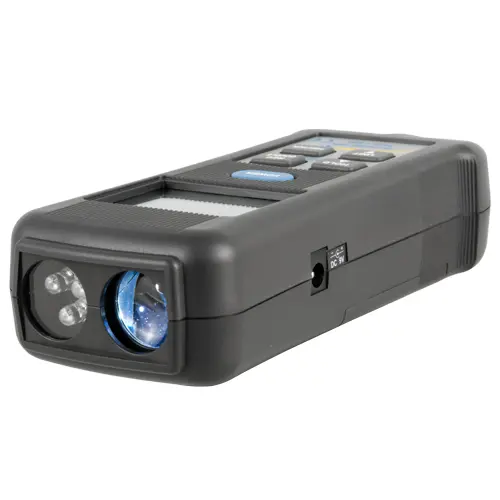

Flash lamp | 3 x LED (red) |

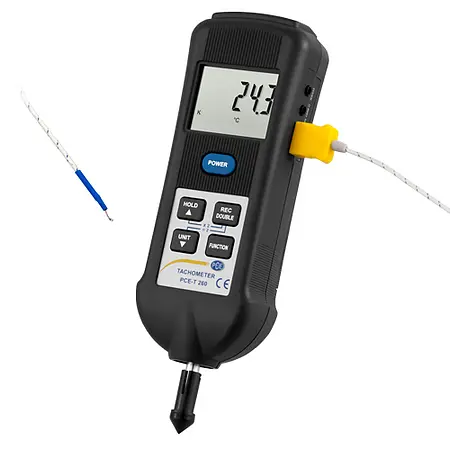

Technical Data of Tachometer Stroboscope PCE-T 260 Temperature Type K | |
Measuring range | -100 ... 1300°C / -148 ... 2372°F |
Resolution | 0.1°C |
Accuracy (device only) | ±0.4% + 1°C / 33°F (-100 ... -50°C / -148 ... -58°F) ±0.4% + 0.5°C / 32°F (-50 ... 1300°C / -148 ... 2372°F) |
Technical Data of Tachometer-Stroboscope PCE-T 260 Temperature PT 1000 | |
Measuring range | -10 ... 70°C / 14 ... 158°F |
Resolution | 0.1°C / 32°F |
Accuracy (device only) | ±1.2°C / 34°F |
Technical Data of Tachometer-Stroboscope PCE-T 260 Temperature IR | |
Measuring range | -30 ... 305°C / -22 ... 581°F |
Resolution | 0.5°C / 33°F |
Accuracy | ±3% or ±3°C / ±37°F |
Emissivity | 0.95 fixed |
Spectral range | 6 ... 14 µm |
Optical resolution | 3:1 |
General Specifications of Tachometer Stroboscope PCE-T 260 | |
Display | 5 Digits LCD |
Interface | RS 232 |
Power supply | 4 x 1.5V AA (UM-3) / Power supply DC 9V |
Power consumption | ca. 52-mA |
Environmental conditions | 0 ... 50°C / 122°F < 80 % rH. |
Memory | Last value, Min, Max |
Dimensions | 207 x 67 x 39 mm / 8.1 x 2.6 x 1.5 in |
Weight | 255 g / < 1 lb without batteries |
