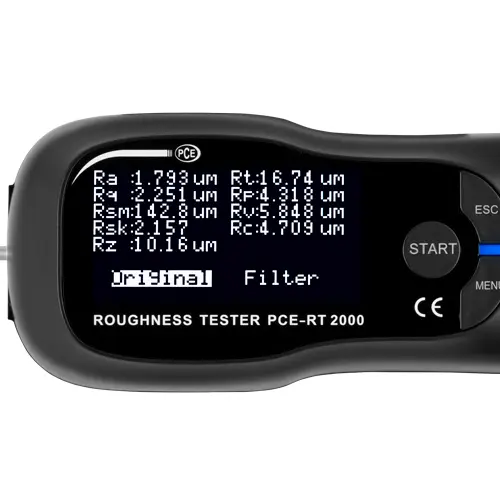

Measurement parameters | Ra, Rq, Rsm, Rsk, Rz, Rt, Rp, Rv, Rc |
Measuring ranges | Ra, Rq, Rc: 0.005 μm ... 16 μm Rz, Rt, Rp, Rv: 0.02 μm ... 200 μm Rsm: 5 μm ... 1000 μm Rsk: -1 ... 1 |

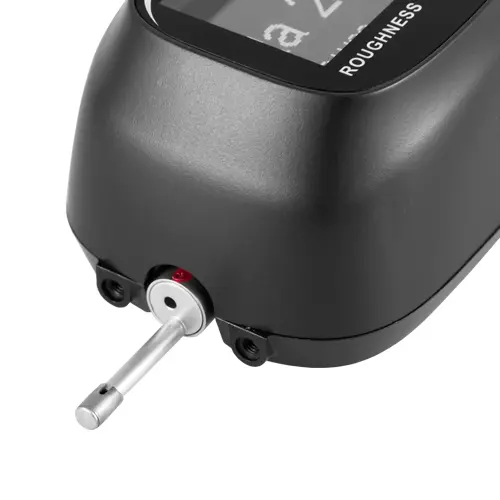

Radius stylus tip | 5 μm |
Material stylus tip | Diamond, 90° angled |
Max. recommended force for static measurement | 4 mN (0.4 gf) |
Measuring principle | Inductive |

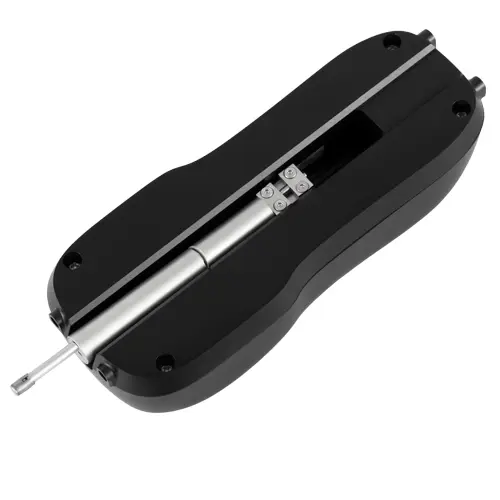

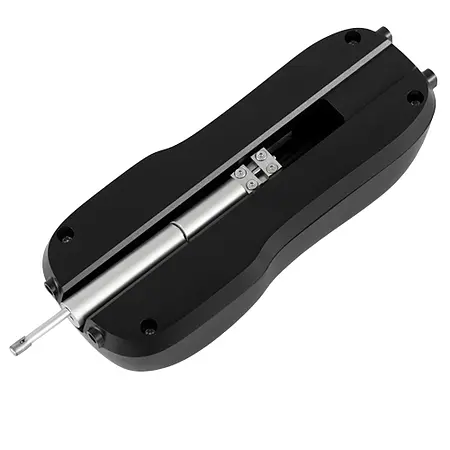

Radius longitudinal guide bar | 45 mm / 1.8 in |
Standards | ANSIB46.1/ASMEB46.1 (DIN EN ISO 4287) |
Maximum driving distance | 15 mm / 0.6 in |
Cut-off wavelength (cut off) | 0.135 mm/s at cut-off wavelength: 0.25 mm 0.5 mm/s at cut-off wavelength: 0.8 mm 1 mm/s at cut-off wavelength: 2.5 mm Reversing speed: 1 mm/s |
Measurement accuracy | <± 10% |
Repeatability | <6% |

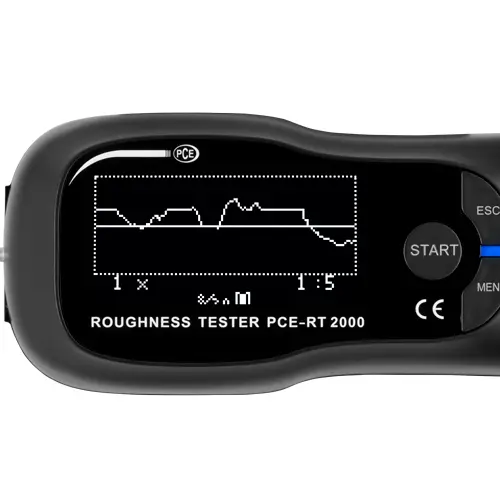

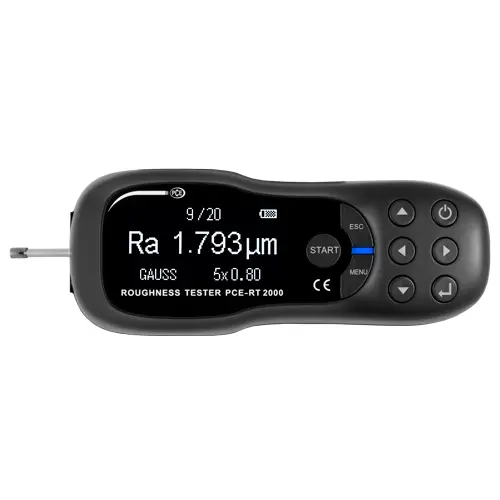

Display | OLED |
Units | μm / μinch (switchable) |

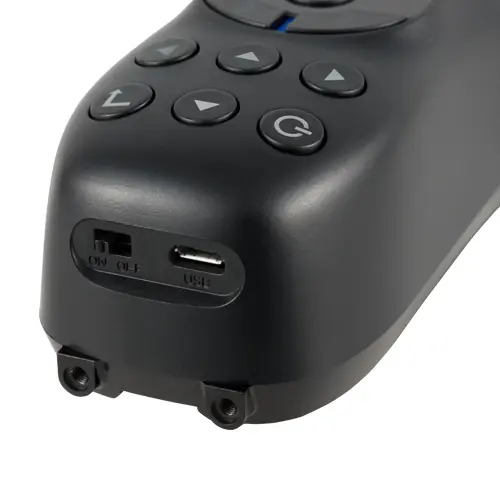

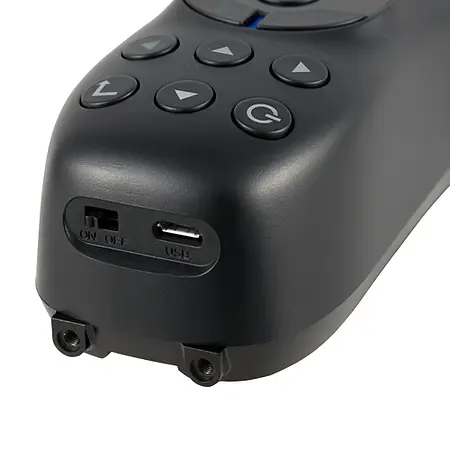

Interface | Micro USB, Bluetooth |
Power supply | Rechargeable Li-ion battery |

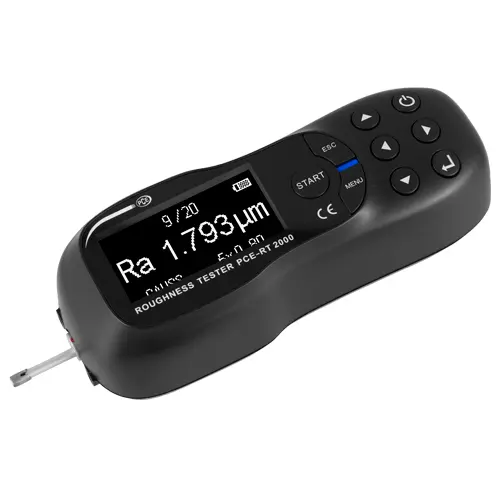

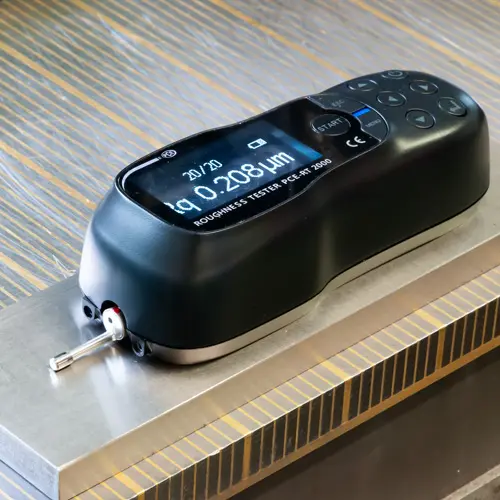

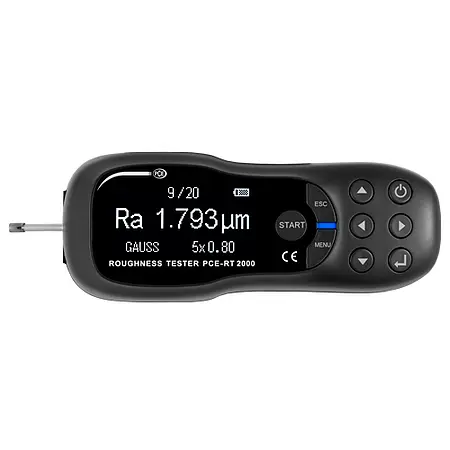

1 x Surface Tester PCE-RT 2000BT-ICA

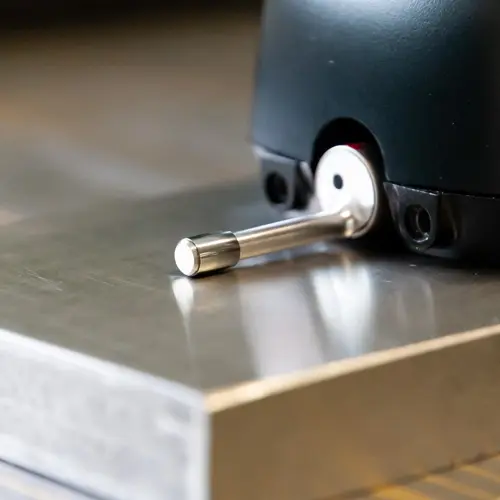

1 x Microprobe
1 x Protective cap for buttons

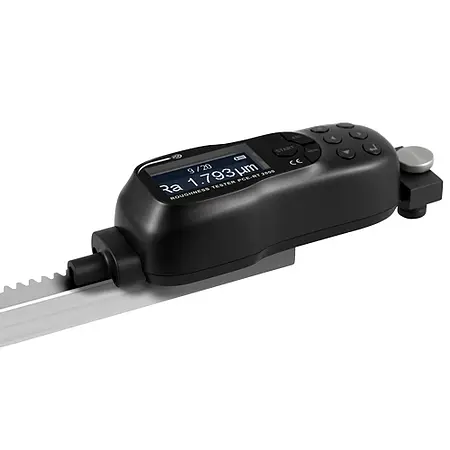

1 x Clamping device
1 x Software
1 x Calibration plate
1 x Roughness standard
1 x USB cable
1 x Charging adapter

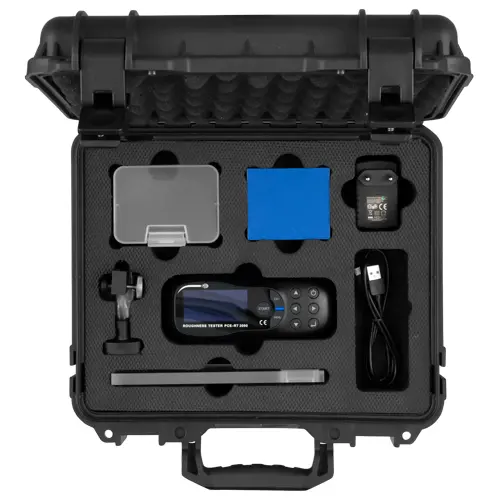

1 x Transport case
1 x User manual

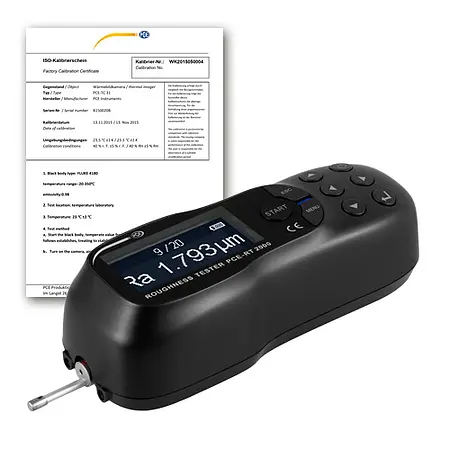

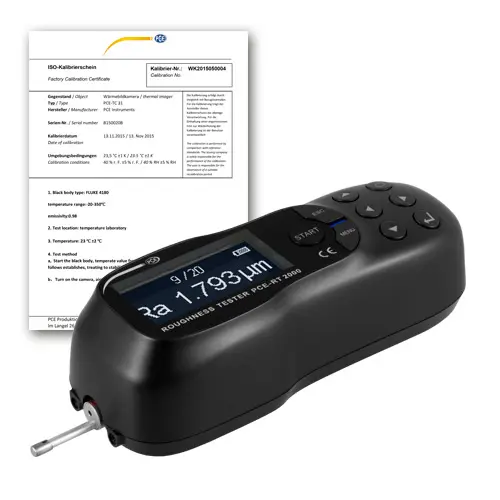

1 x ISO Calibration Certificate
N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
Curved surface sensor suitable for PCE-RT 1200 und PCE-RT 2000. The sensor is used to measure surfaces with radii.
N.B. It is recommended to use this sensor with the test stand PCE-RT2000-Teststand.
