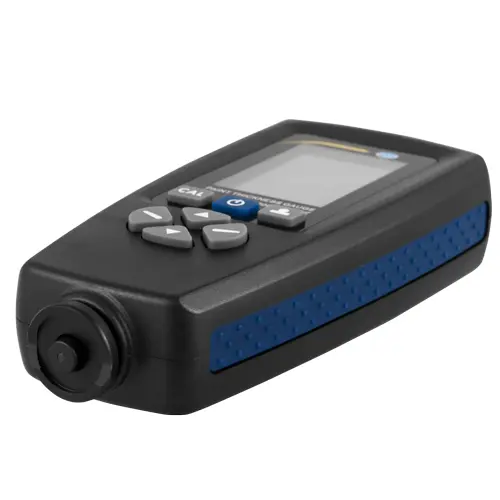

PCE-CT 5000H Surface Testing - Coating Thickness Gauge
Non-destructive coating and dry film thickness (DFT) measuring device for use on ferrous (Type F) and non-ferrous (Type N) metal substrates

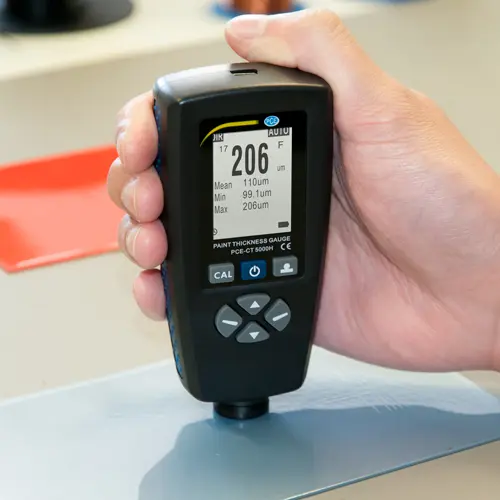

PCE-CT 5000H is a surface testing - coating thickness measuring instrument used for the rapid determination of coating thicknesses on ferrous (Type F) and non-ferrous (Type N) metals. The coating thickness gauge automatically detects the type of metal to be measured. The PCE-CT 5000H coating thickness gauge uses magnetic induction (ferrous) or eddy current (non-ferrous) to take non-destructive measurements of coating and dry film thickness (DFT) on metal substrates such as steel and aluminum.

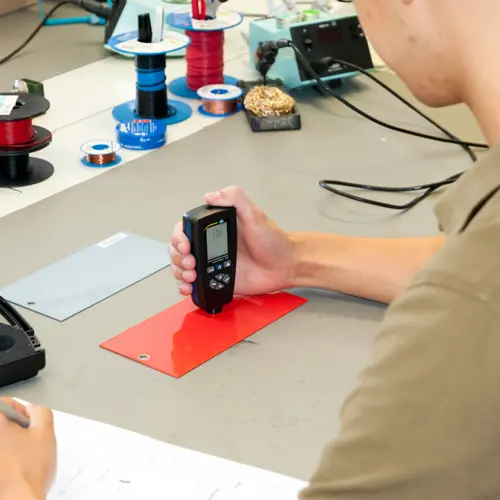

This thickness gauge is ideal for painted and powder-coated surface testing, automotive paint inspection, coated material testing, and manufacturing quality control applications. Alarm limits can be set in the coating thickness gauge to notify the user when a coating is too thick or too thin. If a coating thickness measurement falls outside the established limits, a message appears on the display to alert the user.
Probe | Type F and Type N |
Measuring range Type F | 0 ... 5000 μm / 0 ... 5 mm / 0 ... 196 mils |
Measuring accuracy Type F | ± (2% + 1 μm) |
Resolution Type F | 0 ... 99.9 μm: 0.1 μm, 100 ... 999 μm: 1 μm > 1000 μm: 0.01 mm |
Measuring principle Type F | Magnetic induction |
Smallest thickness of the base material | 0.02 mm |
Measuring range Type N | 0 ... 3000 μm / 0 ... 3 mm / 0 ... 118 mils |
Measuring accuracy Type N | ± (2% + 1 μm) |
Resolution Type N | 0 ... 99.9 μm: 0.1 μm, 100 ... 999 μm: 1 μm > 1000 μm: 0.01 mm |
Measuring principle Type N | Eddy current |
Smallest thickness of the base material | 0.05 mm |
Calibration | One-point to four-point calibration, zero calibration |
Data storage | Direct measurement (no measurement data storage), four data groups (automatic measurement data storage of up to 2000 measured values) |

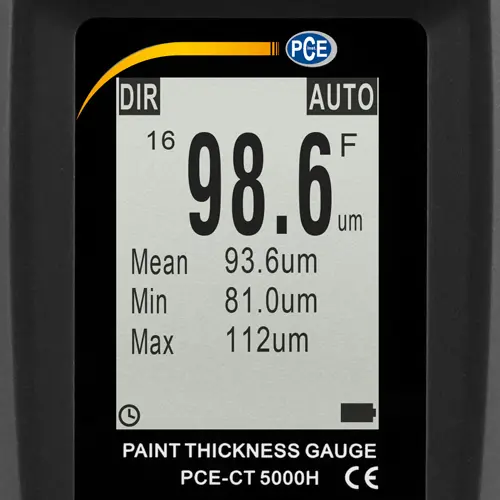

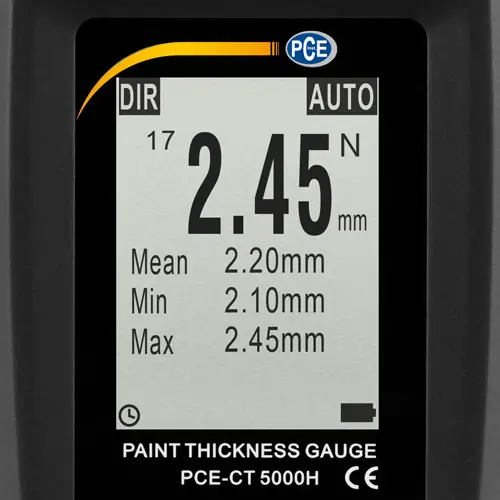

Statistical functions | Number of measurements, average, minimum, maximum, standard deviation |
Measurement units | μm, mm, mils |
Alarm | Alarm limits adjustable, alarm symbol is displayed when limits are exceeded |
Minimum radius of curvature (convex) | 5 mm / 0.2 in |
Minimum radius of curvature (concave) | 25 mm / 1 in |
Smallest measuring surface | Diameter of 20 mm / 0.8 in |
Maximum measuring rate | 2 x per second |
Data interface | Data transfer via USB |
Power supply | 2 x 1.5V AAA batteries |
Menu languages | German, English, Russian, Chinese |
Operating conditions | 0 ... 50°C / 32 ... 122°F, 20 ... 90% RH |
Storage conditions | -10 ... 60°C / 14 ... 140°F |
Standards | CE ROHS FCC |
Dimensions | 110 x 53 x 24 mm / 4.33 x 2.09 x 0.95 in |
Material housing | ABS plastic |
Weight | 92 g / < 1 lb |

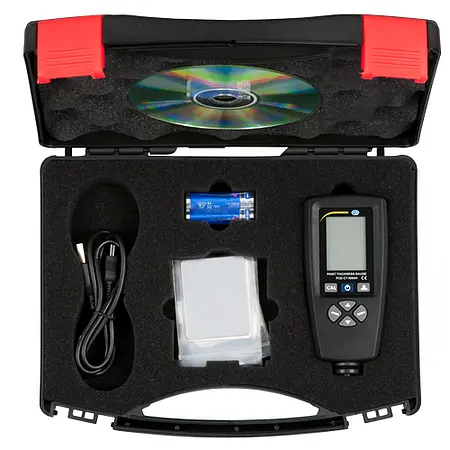

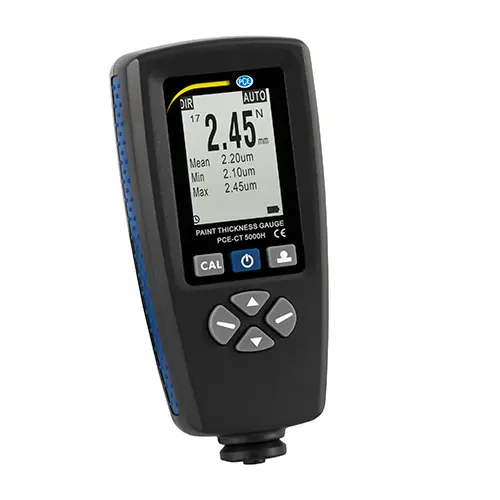

1 x PCE-CT 5000H surface testing - coating thickness gauge

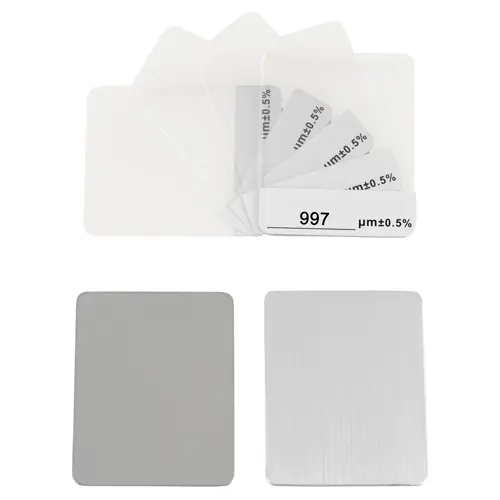

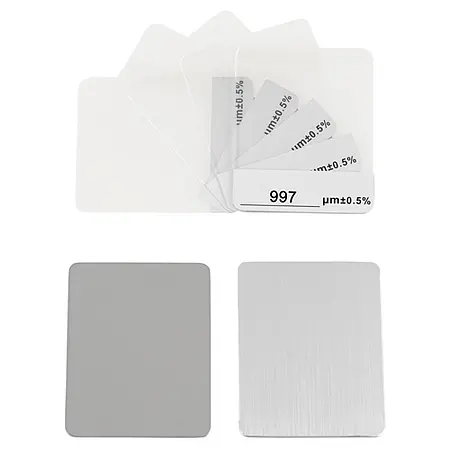

2 x Zero calibration plates (ferrous and non-ferrous)
5 x Calibration plates
2 x 1.5V AAA batteries
1 x USB cable
1 x PC-compatible software
1 x User manual
1 x Carrying case

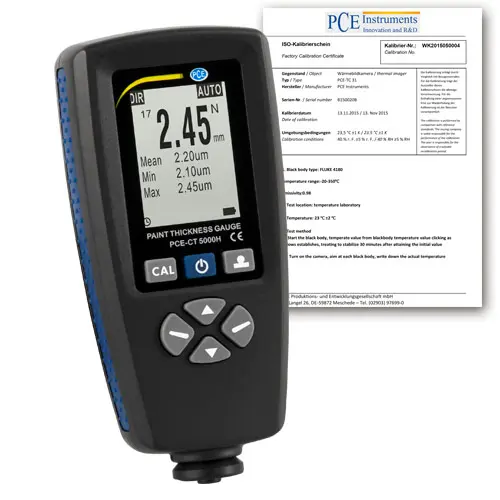

1 x ISO calibration certificate
Calibration certificates are issued specifically for the customer and are excluded from the right of return.
