- Test stand for mounting PCE-RT 1200, PCE-RT 2000 and PCE-RT 2200
- In combination with PCE-RT2000-RP110 and PCE-RT2000-RP131
Parameter | Ra, Rq, Rsm, Rsk, Rz, Rt, Rp, Rv, Rc, Rmax, Ry(JIS), |
Rz(JIS), RP(ASME), Rpm(ASME), Rv(ASME), | |
R3z, R3zmax, Rz1max, Rmr(c), Rdc, Rmr | |
Measuring range | Ra, Rq, Rc: 0.005 ... 16 µm |
Rsm: 5 ... 1000 µm | |
Rsk: -1 ... 1 | |
Rz, Rt, Rp, Rv, Rmax, Ry(JIS), Rz(JIS),RP(ASME), | |
Rpm(ASME), Rv(ASME), R3z, R3zmax, Rz1max, | |
Rdc: 0.02 ... 200 µm Rmr(c), Rmr: 0 ... 100 % | |
Probe tip radius | 5 µm |
Probe tip material | diamond, 90° angled |
Max.recommended force | 4 mN (0.4 gf) |
with static measurement | |
Measuring principle | inductive |
Radius of the longitudinal guide rail | 45 mm |
Standards | ANSIB46.1/ASMEB46.1 (DIN EN ISO 4287) |
Maximum travel distance | 15 mm |
Cut off wavelength | 0.25 mm / 0.8 mm / 2.5 mm |
Scanning speed | 0.135 mm/s at cutoff wavelength: 0.25 mm |
0.5 mm/s at cutoff wavelength: 0.8 mm | |
1 mm/s at cut-off wavelength: 2.5 mm | |
Return speed: 1 mm/s | |
Memory | 20 measurement runs with all parameters |
Measurement accuracy | <±10 % |
Repeatability | <6 % |
Display | OLED |
Units | μm / μinch (switchable) |

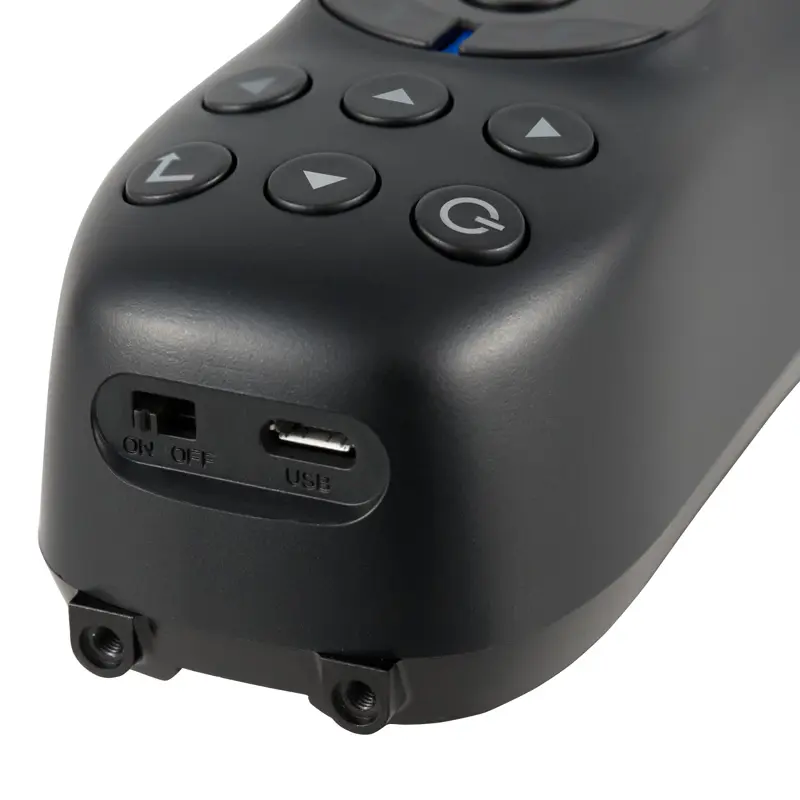

Interface | Micro USB |
Power supply | rechargeable Li-ion battery |

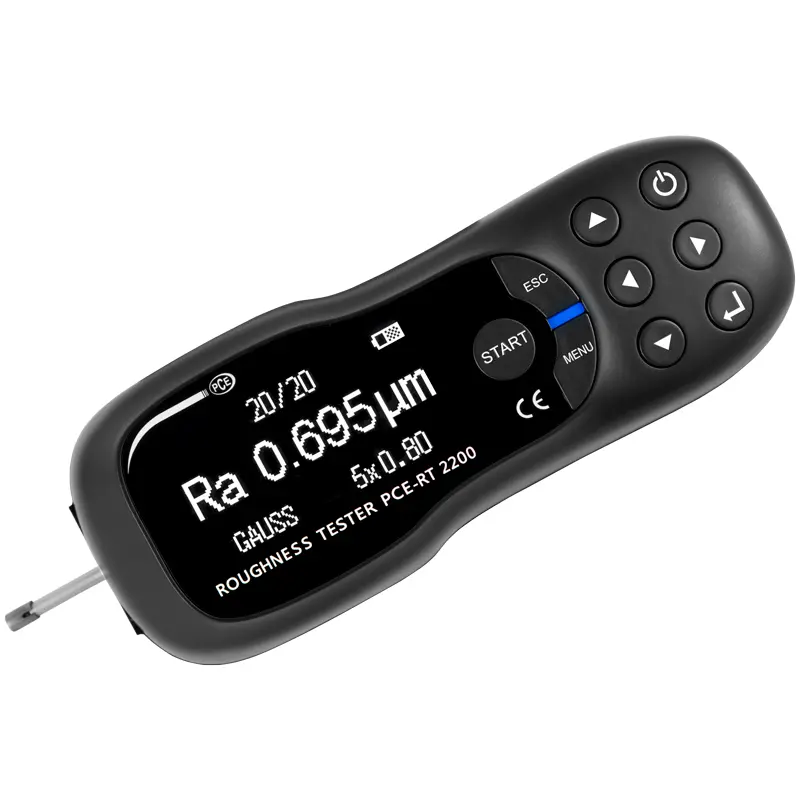

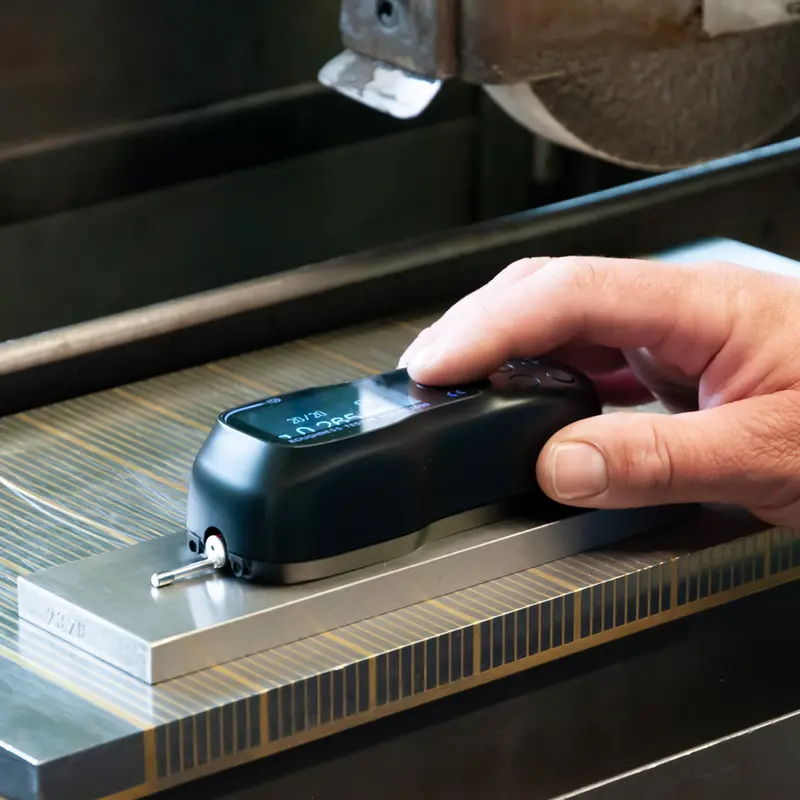

1 x Surface Testing - Roughness Tester PCE-RT 2200-ICA
1 x Micro probe
1 x Protective cap for probe

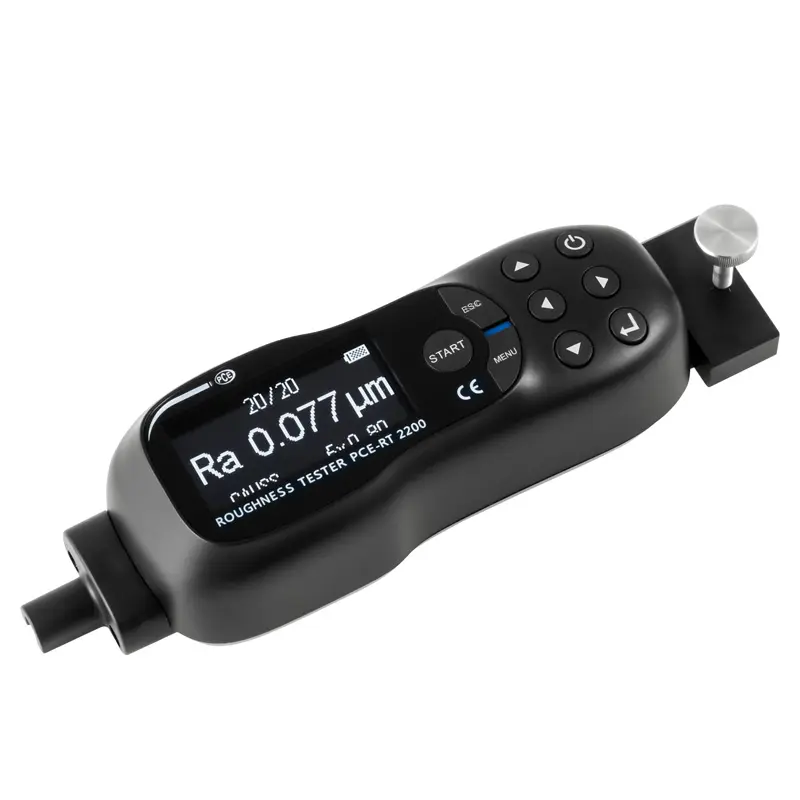

1 x Positioning device
1 x Calibration plate
1 x Roughness standard
1 x USB cable
1 x Charging adapter

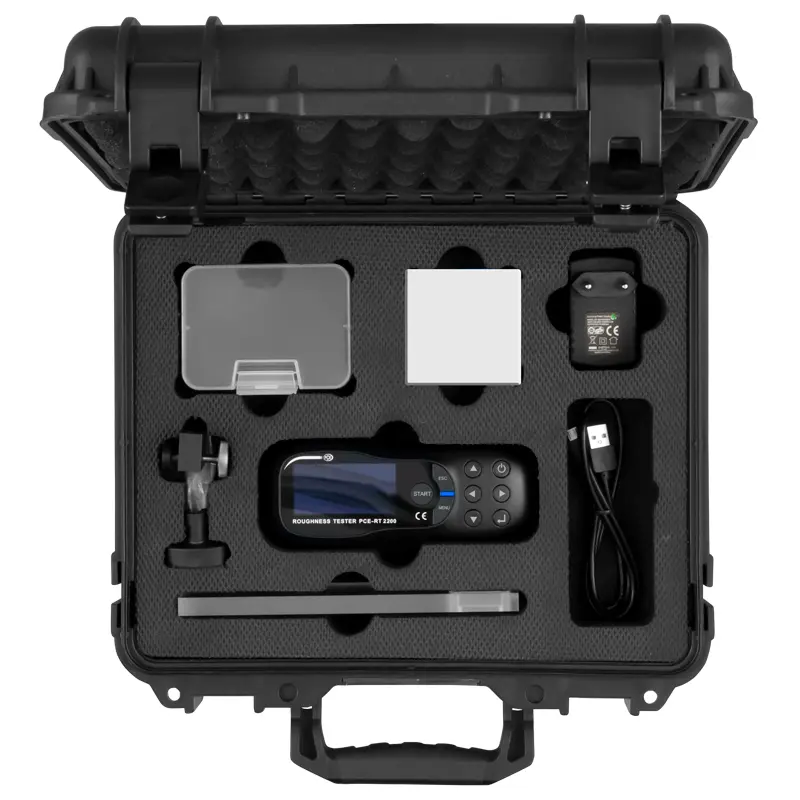

1 x Carrying case
1 x Instruction manual

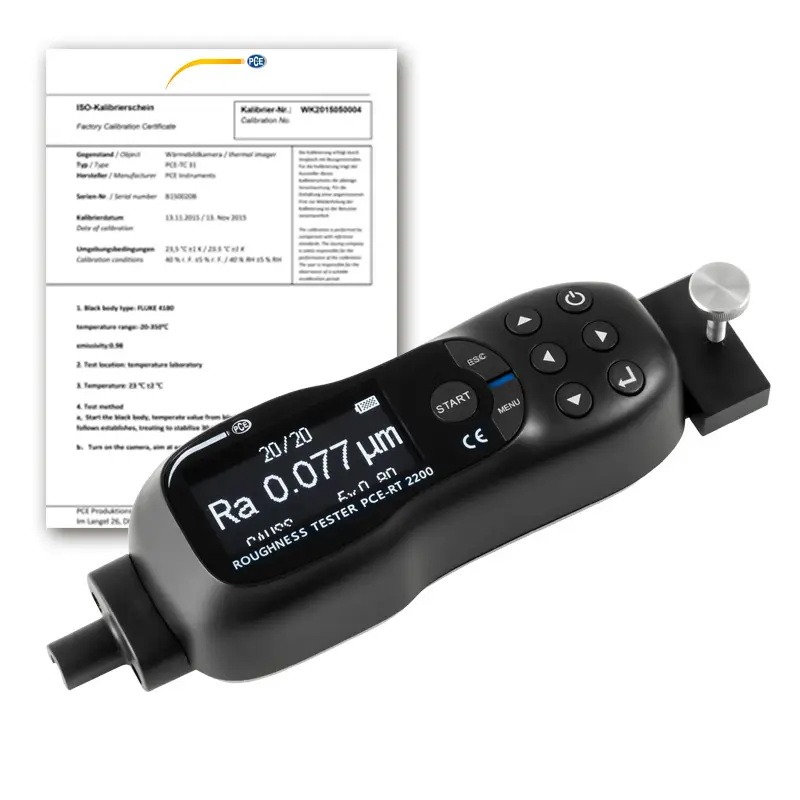

1 x ISO calibration certificate
N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
Curved surface sensor suitable for PCE-RT 1200 und PCE-RT 2000. The sensor is used to measure surfaces with radii.
N.B. It is recommended to use this sensor with the test stand PCE-RT2000-Teststand.
