Surface Testing - Temperature Meter PCE-675 incl. Type K

Order no.: PCE-675

GTIN (EAN): 4250348720108

Accessory

ISO Calibration Certificate for Infrared Thermometer

US$ 160.00

Insulated Surface Temperature Sensor TF-102A

US$ 73.00

Temperature Sensor TF-101

US$ 90.00

Air Sensor TF-108

US$ 63.00

Penetration / Immersion Sensor TF-106

US$ 66.00

PCE-MS 25 Measuring Point Sticker

US$ 20.00

Description

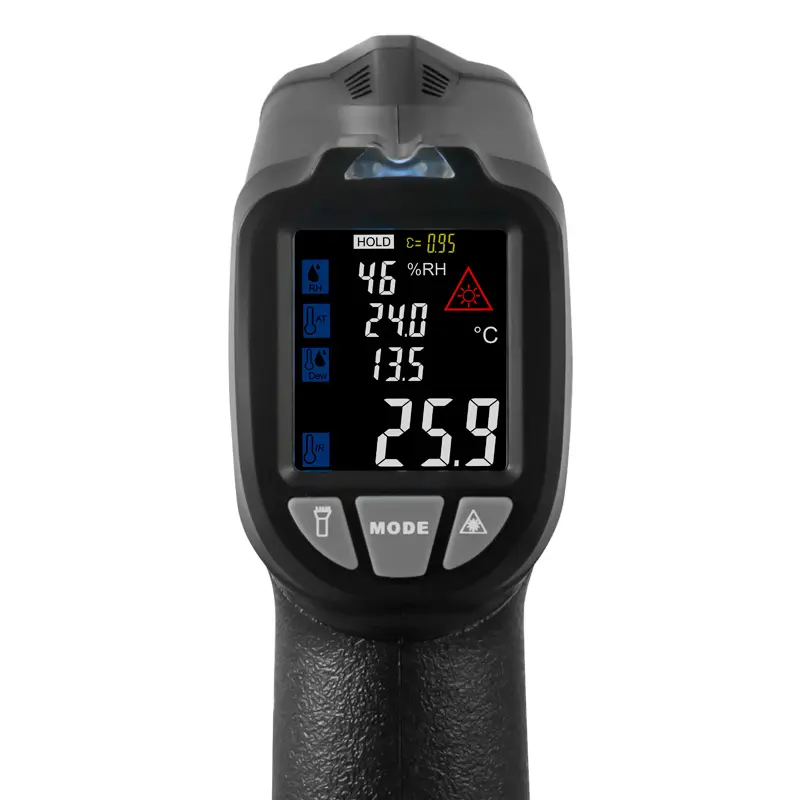

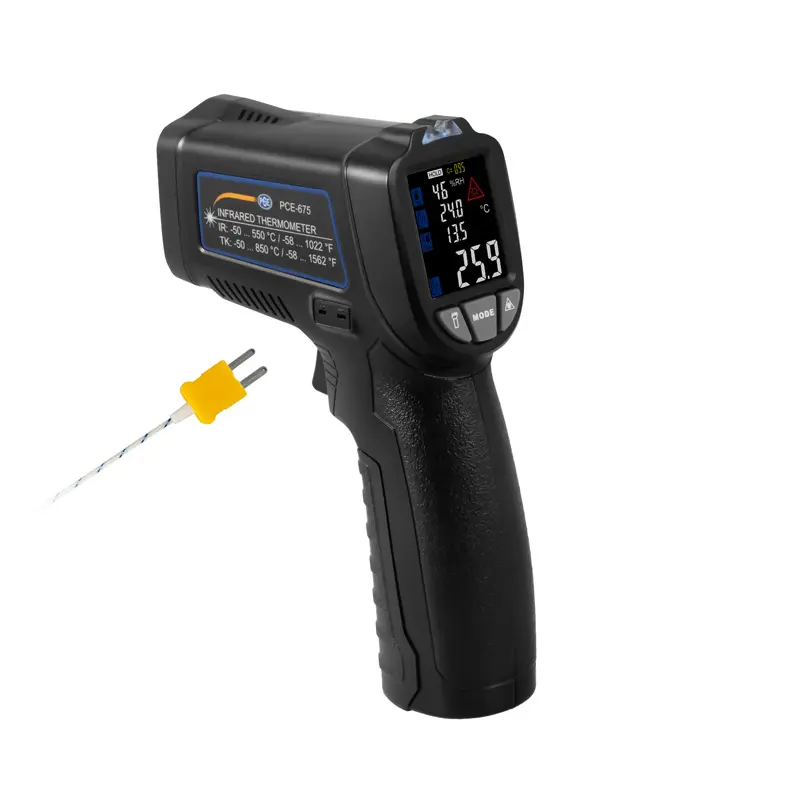

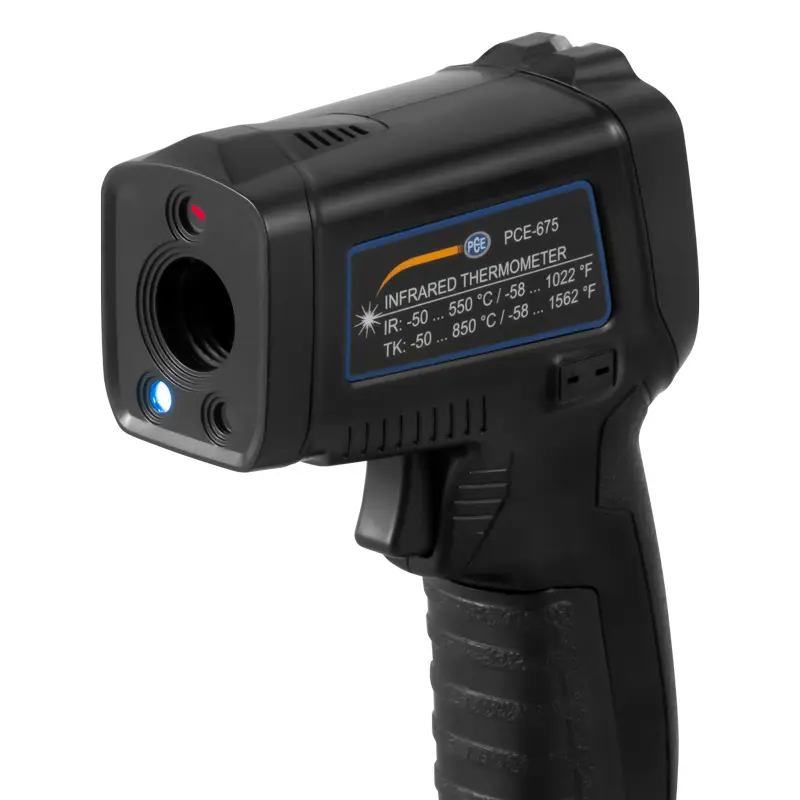

Surface Testing - Temperature Meter PCE-675

Easy-to-use infrared thermometer with red laser pointer / Measuring input for K-type / Surface temperatures / Air temperature / Humidity / Dew point temperature

The Surface Testing - Temperature Meter has a 13:1 spot-to-spot ratio and can accurately measure surface temperatures and ambient humidity over a very long distance. The temperature meter brings advantages, such as a simple operation and a red sighting laser. These features allow the near perfect alignment of the temperature meter for accurate measurements.

The temperature meter is universally applicable. The integrated flashlight allows the measuring point to be illuminated in the dark. The individual settings of the temperature meter allow a wide range of temperatures and humidity to be measured. The temperature meter does not have a fixed emission value, but has a setting span of 0.1 to 1.0, thus covering more than 90% of all temperature measurement tasks.

Highlights

- Low measurement sequence

- Emissivity adjustable between 0.1 and 1.0

- Automatic shutdown

- Switchable laser sighting aid

- Measured value display selectable between °C and °F

- Different exhibition settings

- Battery operation

- Compact and robust design

Specification

Measuring function	Infrared
Measuring range	-50 ... 550 °C
Resolution	≤ 1000 °C/°F: 0.1 °C/°F
	> 1000 °C/°F: 1 °C/°F
Accuracy	-50 … 0 ºC: ± 3 ºC
	> 0º C: ± 1.5 % or ± 2.0
	the larger value counts

Measuring function	Type K
Measuring range	-50 … 850 ºC
Resolution	≤ 1000 °C/°F: 0.1 °C/°F
	> 1000 °C/°F: 1 °C/°F
Accuracy	± 1.5 % or ± 1.5 °C
	the larger value counts

Measuring function	Air temperature
Measuring range	-20 … 60 ºC
Resolution	0.1 °C
Accuracy	0 … 40 ºC: ± 1.0 ºC
	Other: ± 2 °C

Measuring function	Humidity
Measuring range	0 … 100 % r.H.
Resolution	1 %
Accuracy	35 … 75 % r.H.:
	± 3.0 % r.H.
	Other: ± 5 % r.H.

Measuring function	Dew point
Measuring range	-20 … 60 ºC
Resolution	0.1 °C
Accuracy	25 ºC, 40 … 80 % r.H.: ± 1.5 ºC

	Wet bulb temp.
Measuring range	-20 … 60ºC
Resolution	0.1 °C
Accuracy	25 °C: ± 1.5 °C

Emissivity	adjustable between 0.1 and 1.0
Optical resolution	13 : 1
Response time	≤ 500 ms
Spectral sensitivity	8 … 14 um
Laser	≤ 1 mW, 630 … 670 nm, class 2 laser
Automatic shutdown	after one minute
Operating conditions	0 … 50 ºC / ≤ 95% r.H.
Storage conditions	-20 … 70 ºC / ≤ 80 % r.H.
Power supply	9 V battery
Weight	ca. 130 g
