Tachometer PCE-T236-ICA Incl. ISO Calibration Certificate

Order no.: PCE-T236-ICA
GTIN (EAN):
US$ 347.00
ISO Calibration
ex. VAT, ex. delivery costs
PCE-T236-ICA
Available in: 10 - 14 days

Description

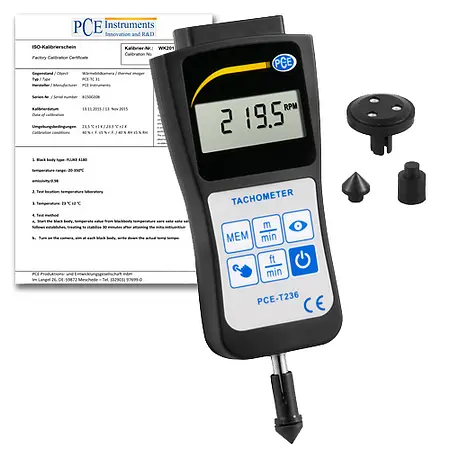

Tachometer PCE-T236-ICA incl. ISO calibration certificate

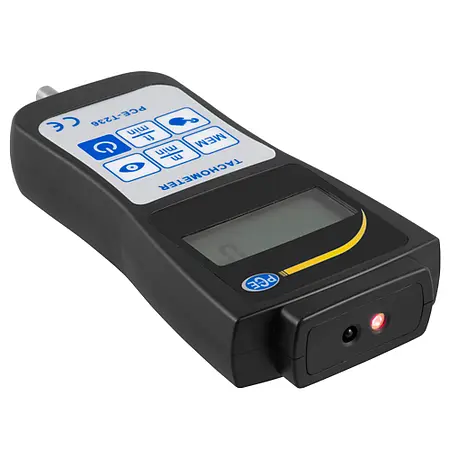

Digital rotation meter for both contact and non-contact measurement

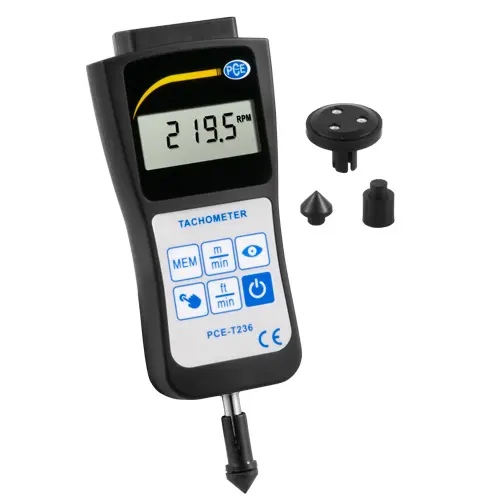

PCE-T236 is a digital Tachometer or rotation meter for both contact and non-contact measurement. This tachometer measures rotation speed as well as linear or surface speed, displaying units in rpm, m/min or ft/min.

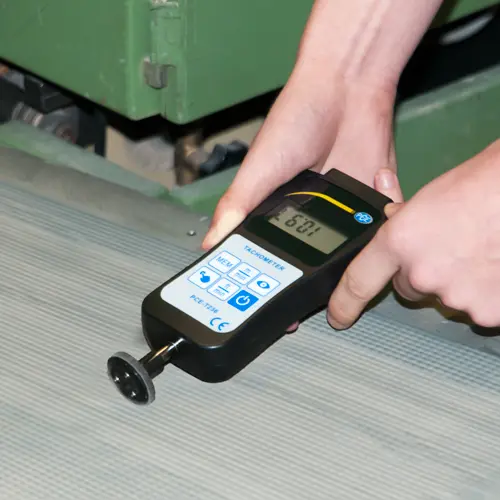

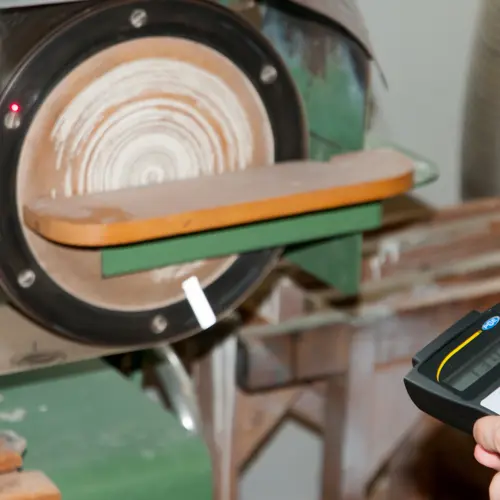

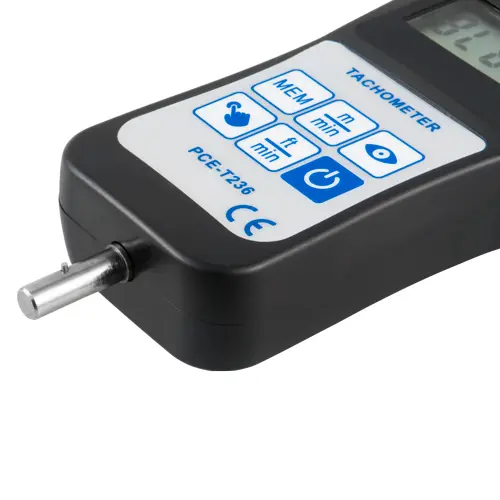

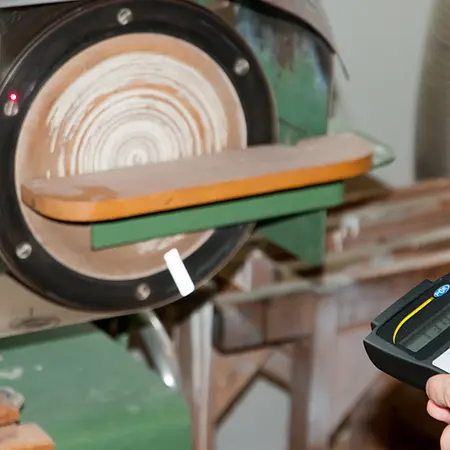

The tachometer features an integrated laser and includes a mechanical attachment with contact probes, making it the ideal measuring instrument for machines, motors, conveyor belts and other moving parts. Non-contact measurements are taken with the help of laser-reflective tape that is fixed on the moving part. Contact measurements are taken using the mechanical attachments.

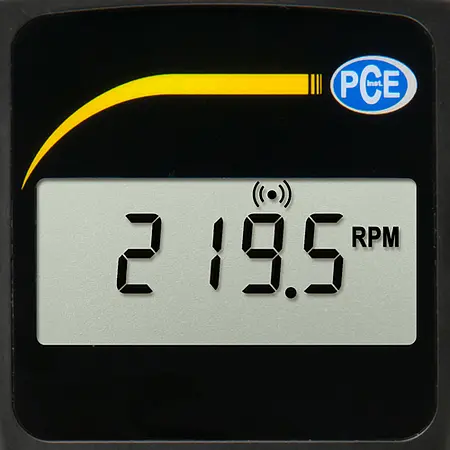

A unique feature of this tachometer is that the orientation of the 5-digit LCD screen automatically rotates 180° to accommodate either contact or non-contact measurement.


Highlights

- For both contact and non-contact measurement
- Automatic rotation of LCD screen orientation
- Displays units in rpm, m/min or ft/min
- Memory saves minimum, maximum and last values
- Rugged heavy-duty ABS plastic enclosure ensures longevity
- Incl. ISO calibration certificate

Specification

Optical measurement range5 ... 99999 rpm
Contact measurement range
0.5 ... 19999 rpm, 0.05 ... 1999 rpm, 0.2 ... 6560 ft/min

Optical resolution
0.5 ... 999.9 = 0.1 rpm, 1000 ... 99999 = 1.0 rpm

Contact resolution0.5 ... 999.9 = 0.1 rpm, 1000 ... 99999 = 1.0 rpm
0.05 ... 99.99 = 0.01 rpm, Greater than 1999 = 0.1 rpm
0.2 ... 999.9 = 0.1 ft/min, Greater than 6560 = 1.0 ft/min

Accuracy
Less than 60000 rpm = ±0.05% fs , Greater than 60000 rpm = ±0.15% fs

Max. distance for
optical measurement
300 mm / 11.8 in

Memory

Minimum, maximum and last values

Power supply

4 x 1.5V AAA batteries

Operating temp. range

0 ... 50°C / 32 ... 122°F

Dimensions

Approx. 65 x 215 x 38 mm / 2.56 x 8.47 x 1.50 in

Weight

Approx. 300 g / < 1 lb

Delivery Scope

1 x PCE-T236 Tachometer

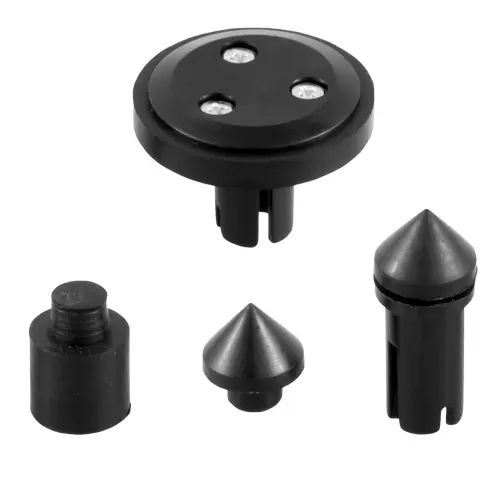

1 x Conical mechanical attachment
1 x Cylindrical mechanical attachment
1 x Measuring wheel mechanical attachment
1 x Roll of laser-reflective tape

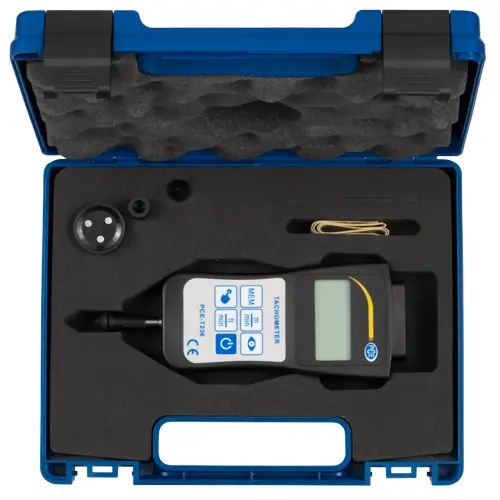

1 x Carrying case
1 x User manual
1 x ISO calibration certificate
