Temperature Meter PCE-893

Order no.: PCE-893
GTIN (EAN): 4250348719133
US$ 558.00
ex. VAT, ex. delivery costs
:
4250348719133
PCE-893
Available in: 1-2 days
Non-contact
Handheld
-50 ... 1200 °C / -58 ... 2192 °F
Yes (via PC)
Yes (USB)

Accessory

ISO Calibration Certificate for Infrared Thermometer
ISO Calibration Certificate for Infrared Thermometer
US$ 160.00
PCE-MS 25 Measuring Point Sticker
PCE-MS 25 Measuring Point Sticker
US$ 20.00

Description

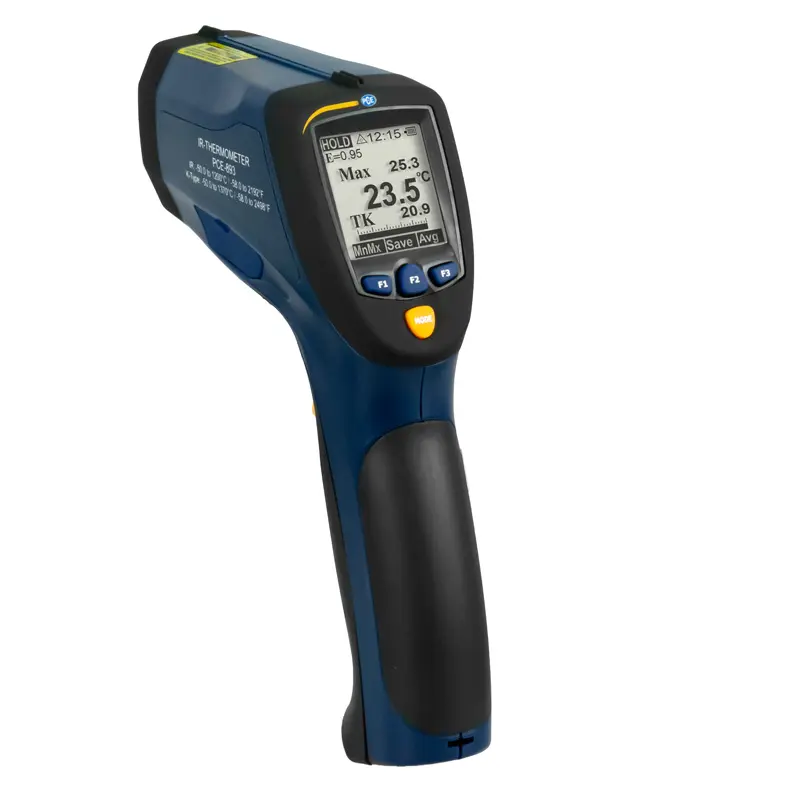

Temperature Meter PCE-893
Laser temperature meter for easy measurement of surface temperatures /
Fast response time / Adjustable emissivity / Max-Min function / Alarm function / Measuring range up to 1200 °C / 2192 °F / Thermocouples type K connectable / Software for PC connection

The temperature meter PCE-893 is suitable for simple temperature measurements. The emissivity of the surface can be adjusted on the PCE-893 temperature meter. Thus, the temperature meter PCE-893 is suitable for almost all surfaces. The dual laser of the temperature meter PCE-893 marks the exact center of the measurement spot. This helps the user considerably with non-contact temperature measurement. The temperature meter PCE-893 has a backlit display. In addition to the emissivity setting, the user can set limit value alarms over the entire measuring range of the PCE-893 temperature meter. The measuring range is from -50 °C to + 1200 °C / -58 ... 2192 °F. The measuring spot ratio of the temperature meter PCE-893 is 50:1.

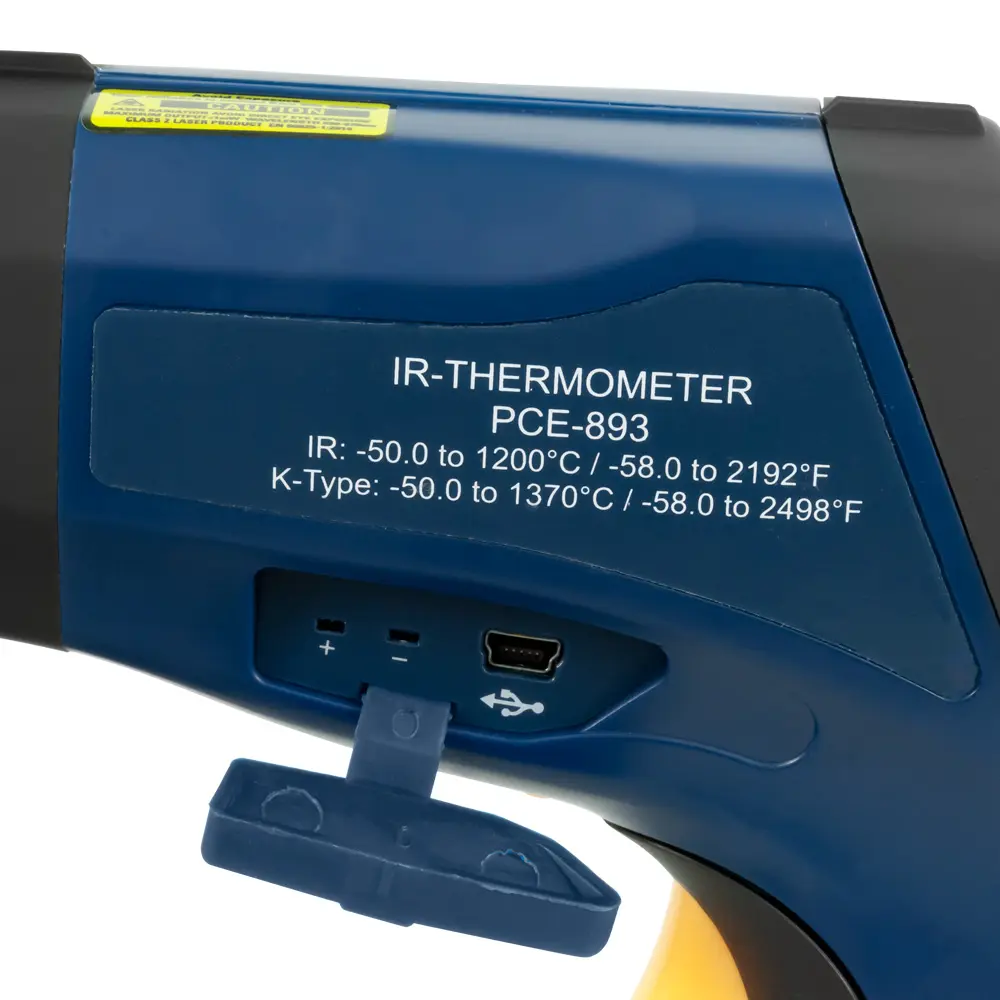

In addition to the infrared measurement, a variety of thermocouples Type-K can be connected to the temperature meter. Here measurements up to 1370 °C / 2498 °F are possible. The included software and the USB port on the temperature meter allow the operator to analyze and store all measurement data on the PC both graphically and in a table.


Highlights

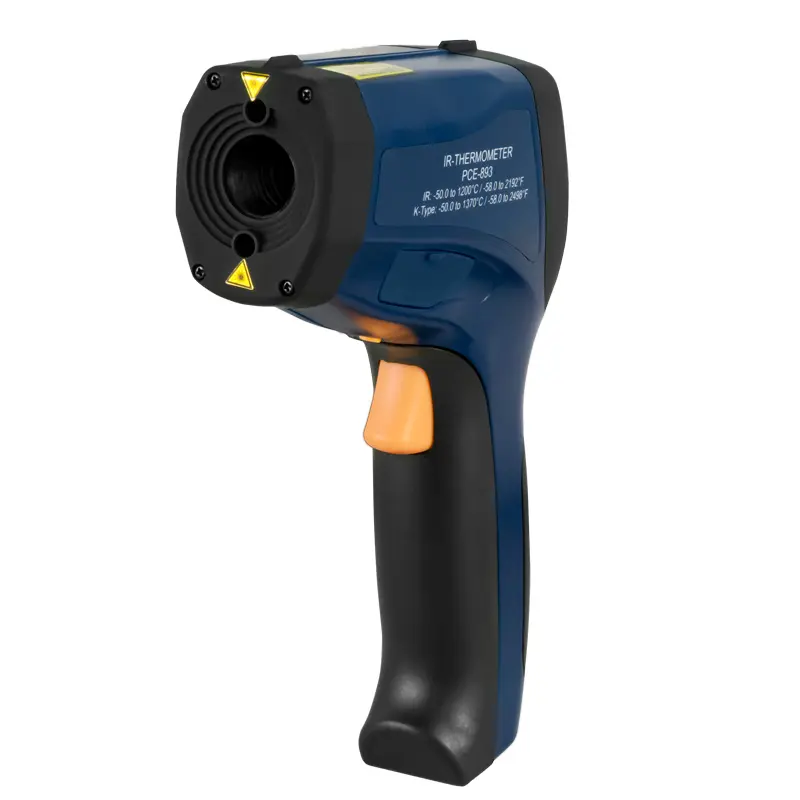

- Dual laser shows the spot center
- Adjustable emissivity

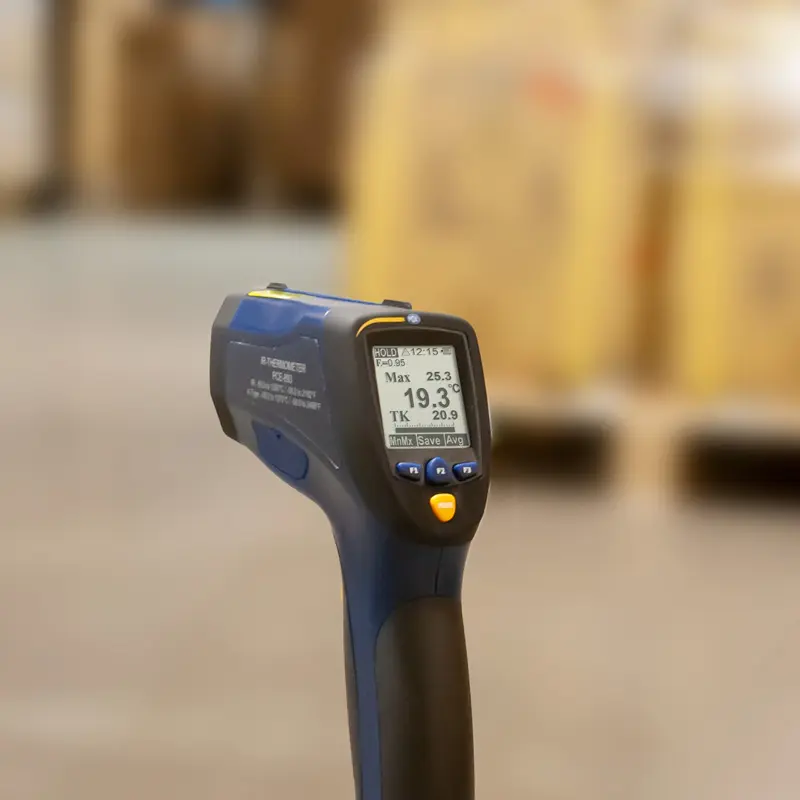

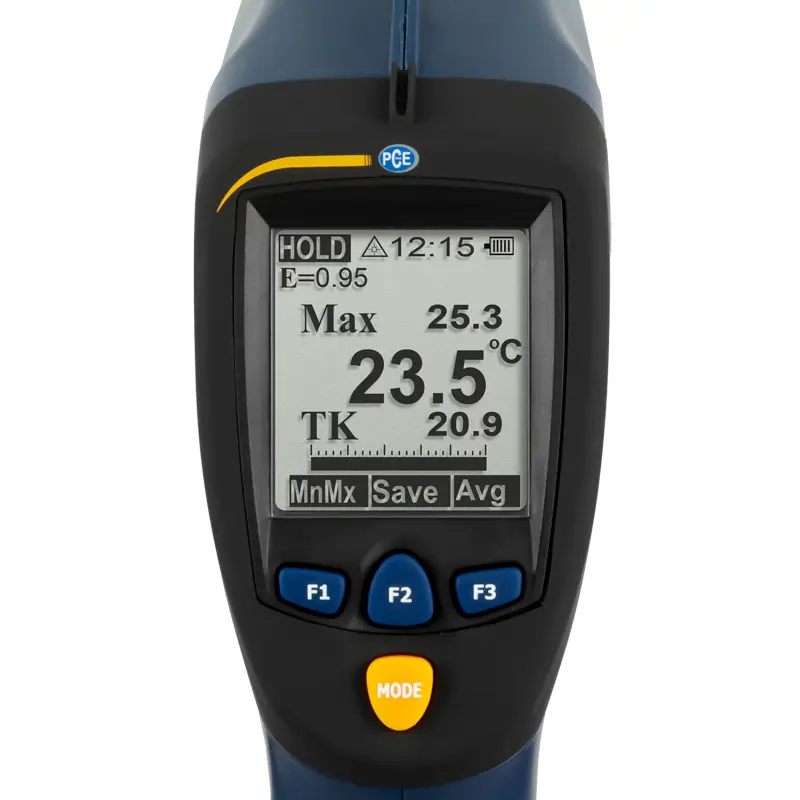

- Illuminated LCD
- Measured value transmission to a PC
- Non-contact temperature measurement
- Measurement spot ratio 50: 1 infrared optics
- Temperature measurement up to 1200 °C / 2192 °F
- Thermocouple type-K can be connected

Typical applications of the temperature meter PCE-893

- Food monitoring
- Hygiene tests
- Road construction
- Control cabinet monitoring
- Heating and air conditioning technology
- Production monitoring

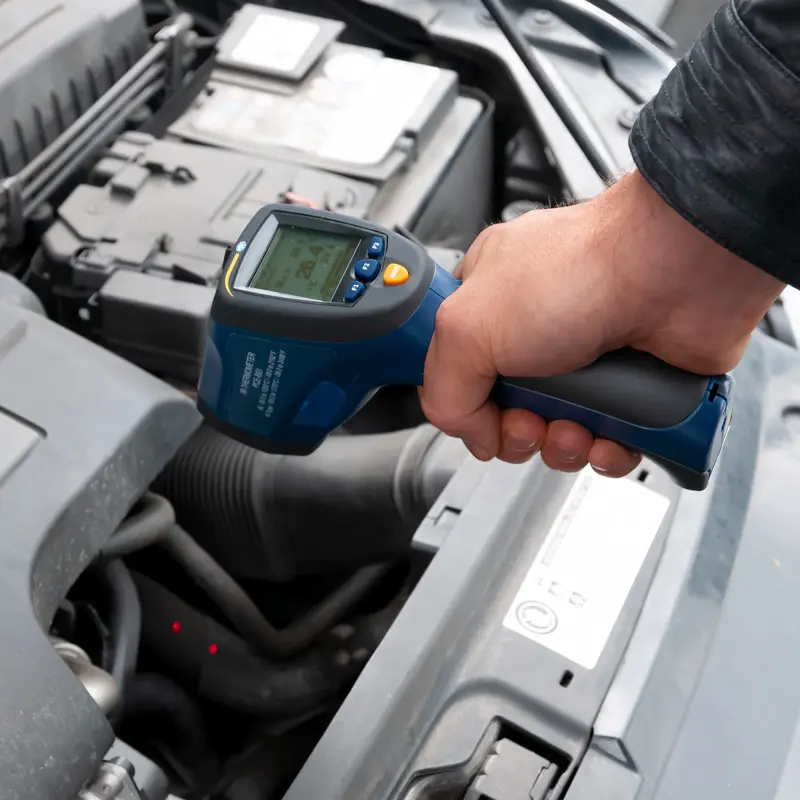

- Temperature measurement on motors
- Electronic components
- Fuse box

***ATTENTION*** Our temperature sensors are designed for industrial and laboratory surface temperature measurement ONLY. They are not designed or certified for body temperature measurement or for medical use.

Specification

Infrared measurement
Infrared measurement -50 ... 1200 °C / -58 ... 2192 °F
Resolution 0.1 at display <1000
  1 at display  >1000
Accuracy ±3 °C / 5.4 °F (-50 ... 20 °C / -58 ... 68 °F)
  ±1 % ±1 °C / ±1.8°F (20 ... 500 °C / 68 ... 932°F)
  ±1.5 % (500 ... 1000 °C / 932 ... 1832 °F)
  ±2 % (1000 ... 1600 °C / 1832 ... 2912 °F)
The accuracies apply at an ambient temperature of 23 ... 25 °C (73 ... 77 °F)

Repeatability ±1.5 °C / 2.7 °F (-50 ... 20 °C / -58 ... 68 °F)
  ±0.5 % or ±0.5 °C / 0.9 °F
  (20 ... 1000 °C / 68 ... 1832 °F)
  ±1.0 % (1000 ... 1600 °C / 1832 ... 2912 °F)

Thermocouple
Measuring range -50 ... 1370 °C / -58 ... 2498 °F
Resolution 0.1 at display <1000
  1 at display  >1000
Accuracy ±2.5 °C / ±3.6°F (-50 ... 0 °C / -58 ... 32°F)
  ±0.5 % ±1.5 °C / 3 °F
  (0 ... 1370 °C / 32 ... 2498 °F)

Measurement spot ratio 50:1
Response time 150 ms
Spectral range 8 ... 14 µm
Emissivity Adjustable 0.10 ... 1.0
Display overrange The display will show "----"
Display laser diode LCD with backlight
Output <1 mW
Wavelength 630 ... 670 nm
Classification Class 2
Power supply 9 V block battery
Operating conditions 0 ... +50 °C / 32 ... 122 °F
Storage conditions -10 ... +60 °C / 14 ... 140 °F
Weight ca. 282 g without battery
Dimensions 200 x 55 x 150 mm / 7.8 x 2.1 x 5.9"

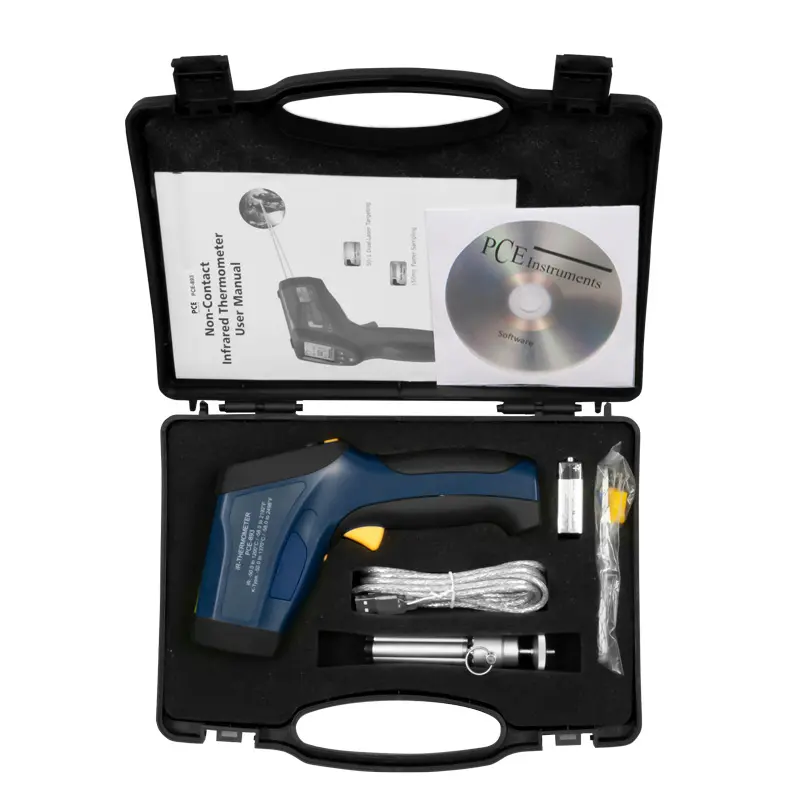

Delivery Scope

1 x Temperature Meter PCE-893
1 x Type-K thermocouple

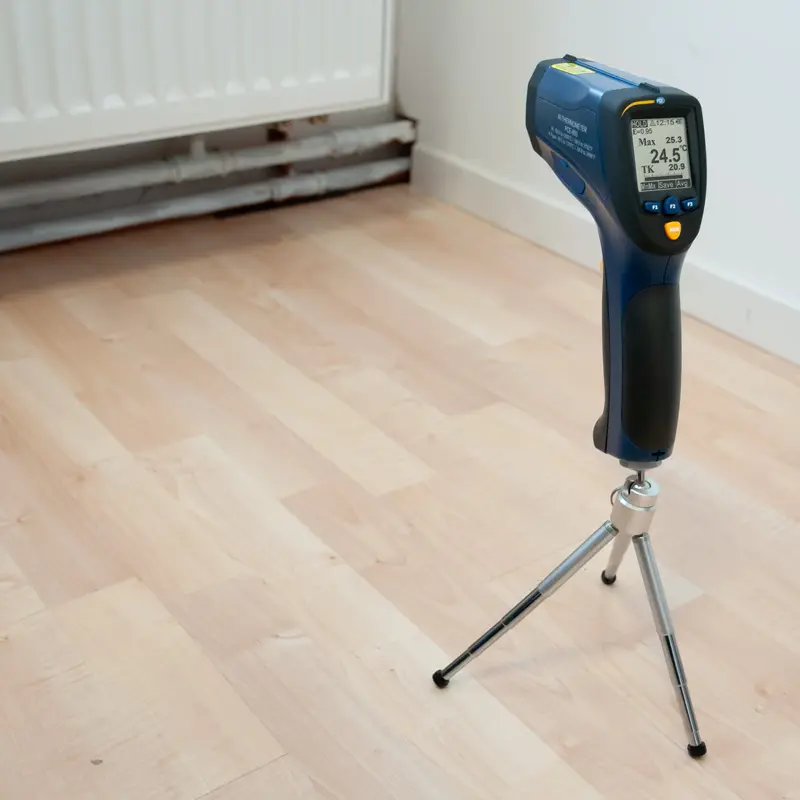

1 x Mini Tripod
1 x USB cable
1 x 9 V battery
1 x User manual
