  5. Force Sensor PCE-C-R10LFC series 5-100 kg

Force Sensor PCE-C-R10LFC series 5-100 kg

Order no.: PCE-C-R10LFC
GTIN (EAN):
US$ 242.00
ex. VAT, ex. delivery costs
PCE-C-R10LFC
Available in: 2 weeks

Description

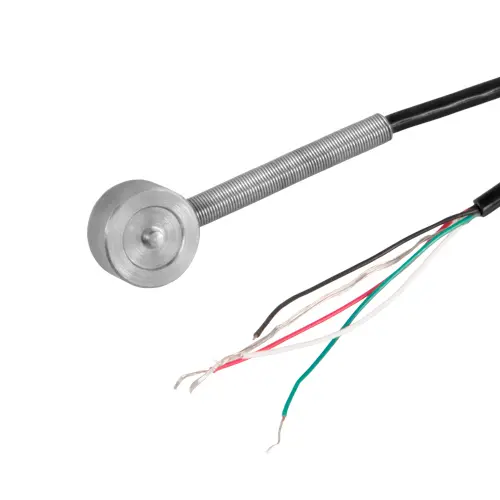

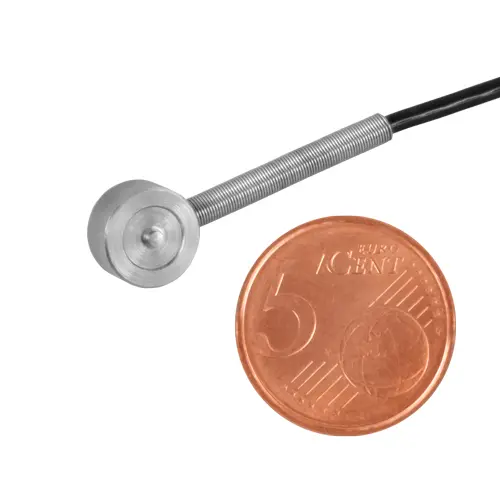

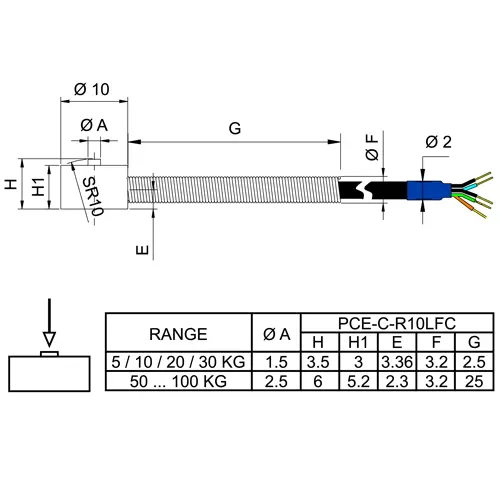

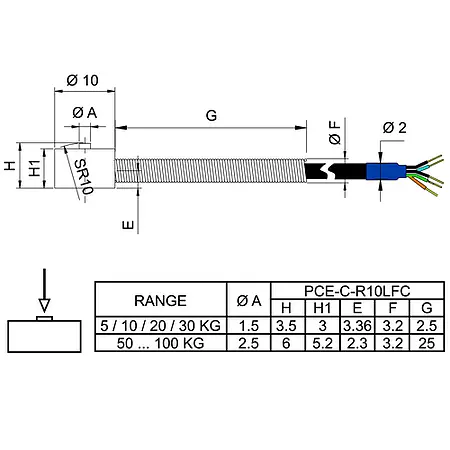

Thanks to its small dimensions, the miniature force sensor is easy to use on hard-to-reach measuring points. The height in particular is something special with this force sensor. With a diameter of only 10 mm, this force sensor is smaller in diameter than a 1 cent coin.


Specification

Rated load / force F.S. 5 / 10 / 20 / 30 / 50 / 100 kg
50 / 100 / 200 / 300 / 500 / 1000 N
! Rated load / force selectable !
Limit load / force 120 %
Breaking load / force 150 %
Rated output 1.0 – 1.5 mV/V
Operating range of supply voltage 2.5 V – 5 V
Maximum supply voltage 5 V
Deviations of the zero signal ± 2 % F.S.
Linearity deviation 1.0 F.S.
Reverse voltage (hysteresis) 1.0 F.S.
Repeatability 1.0 F.S.
Stress creep (30 min) 0.1 F.S.
Input resistance 350 ± 10 Ω
Output resistance 350 ± 3 Ω
Insulation resistance ≥5000 MΩ / 100 VDC
Nominal range of ambient temperature -10 … 60 °C / 14 ... 140 °F
Service temperature range -20 … 80 °C / -4 ... 176 °F
Temperature coefficient of characteristic value 0.1 % F.S. / 10 °C / 50 °F
Temperature coefficient of zero point 0.1 % F.S. / 10 °C / 50 °F
Sensor cable Ø 2 x 3 m / 6 ft 6" x 9ft 10" (ends open)

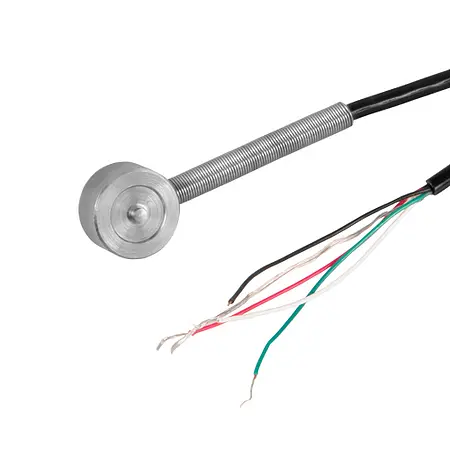

Cable assignment EXC+ = red
EXC- = black
SIG+ = green
SIG- =  white
GND = yellow
Material / measuring body stainless steel
Protection IP65
! N.B. Rated load / force selectable !
