Tension Dynamometer / Tension Load Cell PCE-DFG 20 X-ICA incl. ISO-Calibration Certificate

Order no.: PCE-DFG 20 X-ICA
GTIN (EAN): 4250348736284
US$ 1,258.00
ISO Calibration
ex. VAT, ex. delivery costs
:
4250348736284
PCE-DFG 20 X-ICA
Available in: 5-7 working days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

Tension Tension Dynamometer / Tension Load Cell / Tension Load Cell with internal measuring cell up to 20 N / various alarm modes / graphic display / data logger / incl. software

The Tension Tension Dynamometer / Tension Load Cell / Tension Load Cell can be used to measure both tensile and compressive forces with high accuracy. Tensile and compressive forces are often measured in the test laboratory. For example, to determine the yield point, the tear-off force or the force required to actuate buttons or switches. The Tension Tension Dynamometer / Tension Load Cell / Tension Load Cell has an internal measuring cell and can measure forces up to 20 N. Various eyelets or hooks with M6 threads can be attached to the measuring cells. It is also possible to attach your own devices to the measuring cell using these threads.

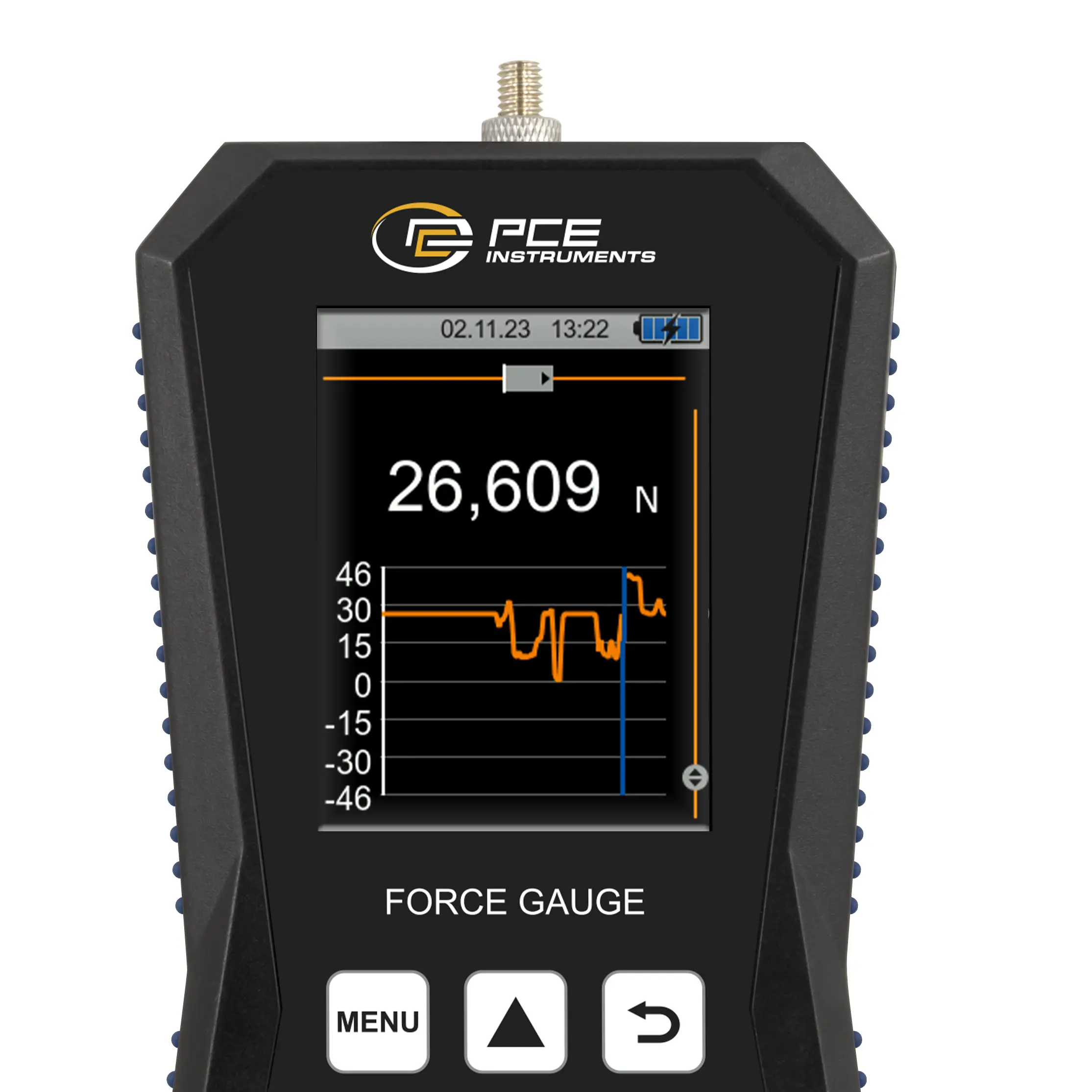

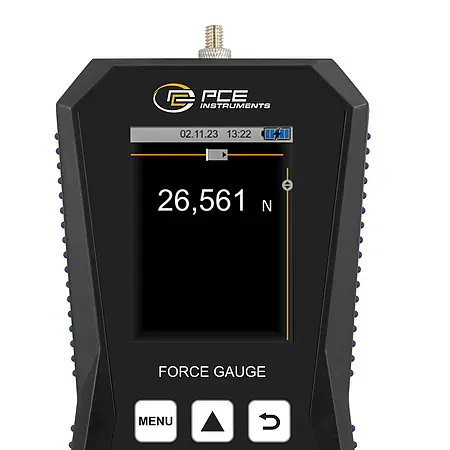

The internal memory of 32 GB offers space for 30 million measuring points. This allows measurement logs to be created, saved and exported. The Tension Tension Dynamometer / Tension Load Cell / Tension Load Cell has a USB-C interface that can be used to read the measurement data into the PC software. The Tension Tension Dynamometer / Tension Load Cell / Tension Load Cell is equipped with a graphic LCD that displays the measured values both numerically and graphically. In addition, a bar chart shows the measured value in the selected measuring range. Various force test stands are available for adapting the force transducer.


Highlights

- Measuring range: 0 ... 20 N
- Measuring rate: 1 ... 7200 Hz
- Accuracy: ±0.05 % F.S.
- Graphic display
- USB-C interface
- PC software
- 32 GB memory for 30 mio. measuring points
- Measuring cells can be easily changed

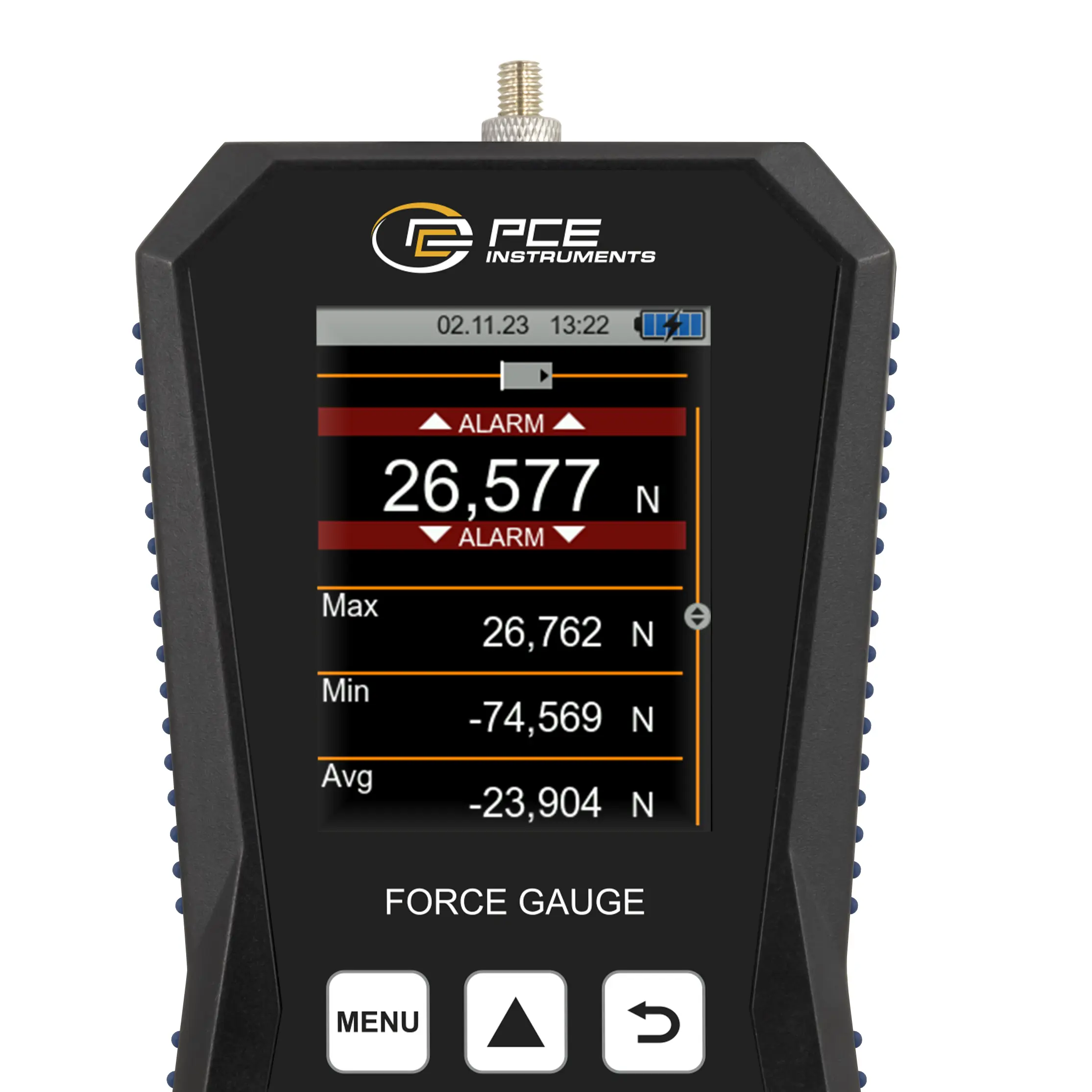

- Various alarm modes

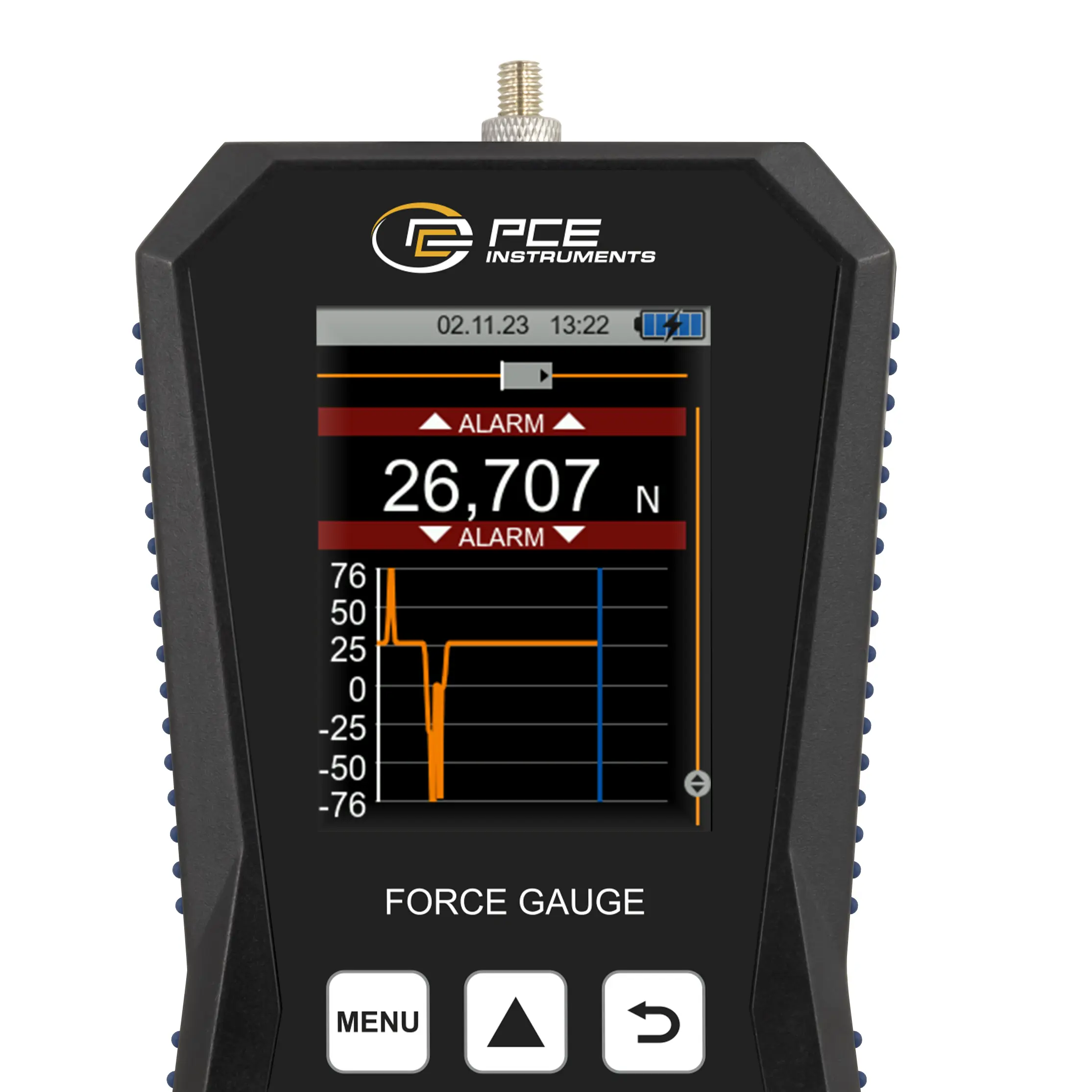

- Bar chart for displaying the measured value in the measuring range
- Calibration reminder
- incl. ISO-Calibration Certificate

Specification

Force
Measurement range up to  0 ... 20 N
Resolution  0.01
Accuracy  ±0.05 % F.S.

General technical data
Units  N, kg, kn, Pa, kPa, Nm, lb, ft, g
Display type  LCD with backlight
Display size  2,8 Inch
Adjustable measuring rate  1 ... 7200 Hz
Storage medium  Internal memory
Storage capacity  32 GB
Storage interval from  1 Hz
Storage interval to  7200 Hz

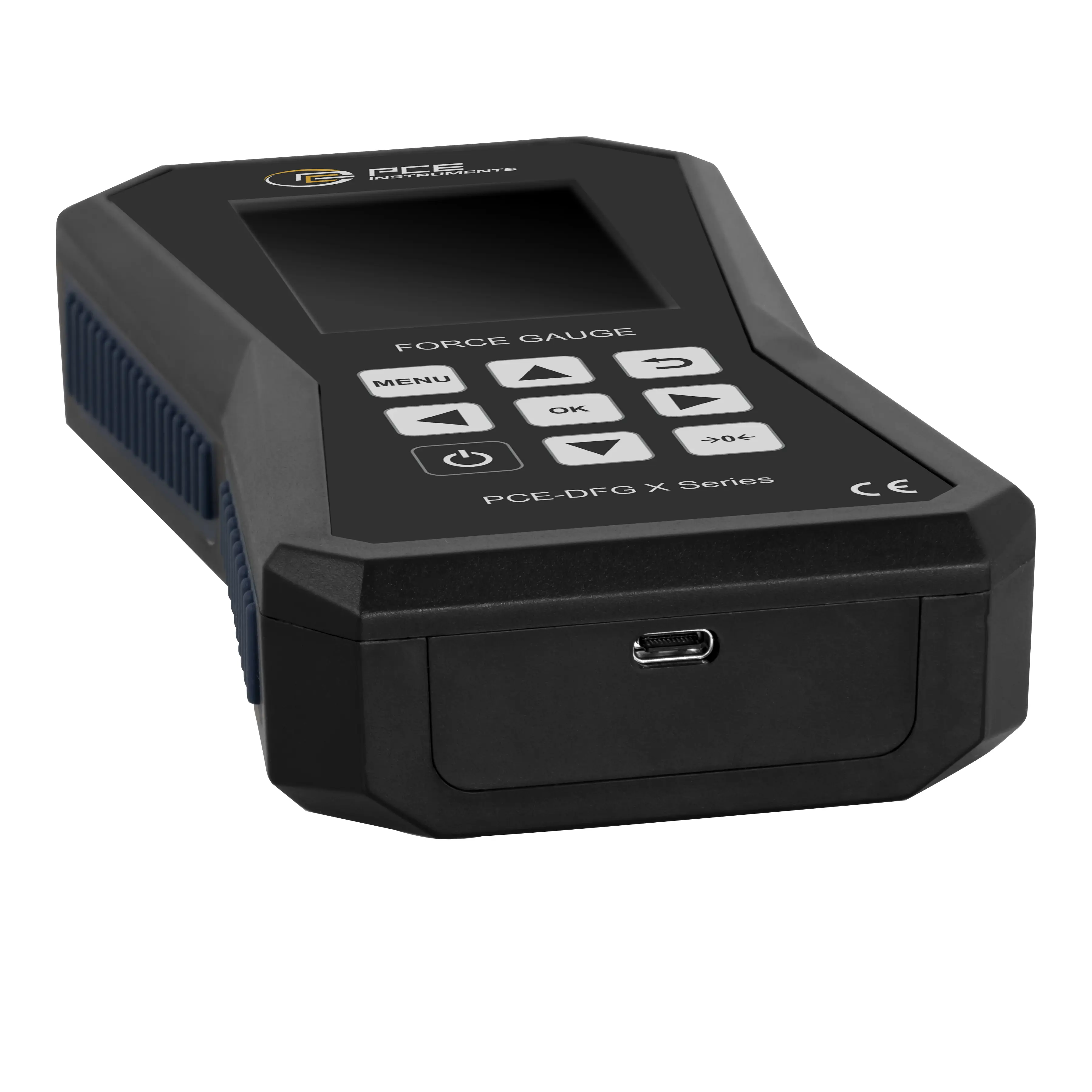

Interface  USB-C
Operating time  13 h
Automatic power-off from...to  1 ... 15 min.
Automatic power-off can be deactivated  Yes
Alarm  optical, Acoustic
Alarm modes  Within, beyond, fracture, off
Menu language  Turkish, English, Polish, Spanish, German, Chinese, Russian, Japanese, French, Danish, Italian, Dutch, Portuguese
Protection class (device)  IP52
Power supply  USB 5 V DC, 500 mA
Weight  255 g
Operating conditions  -20 ... 65 °C , 10 ... 95 % r.F
Storage conditions  -20 ... 65 °C , 10 ... 95 % r.F
Capacity  2500 mAh
Dimensions ( L x W x H )  165 x 85 x 32 mm

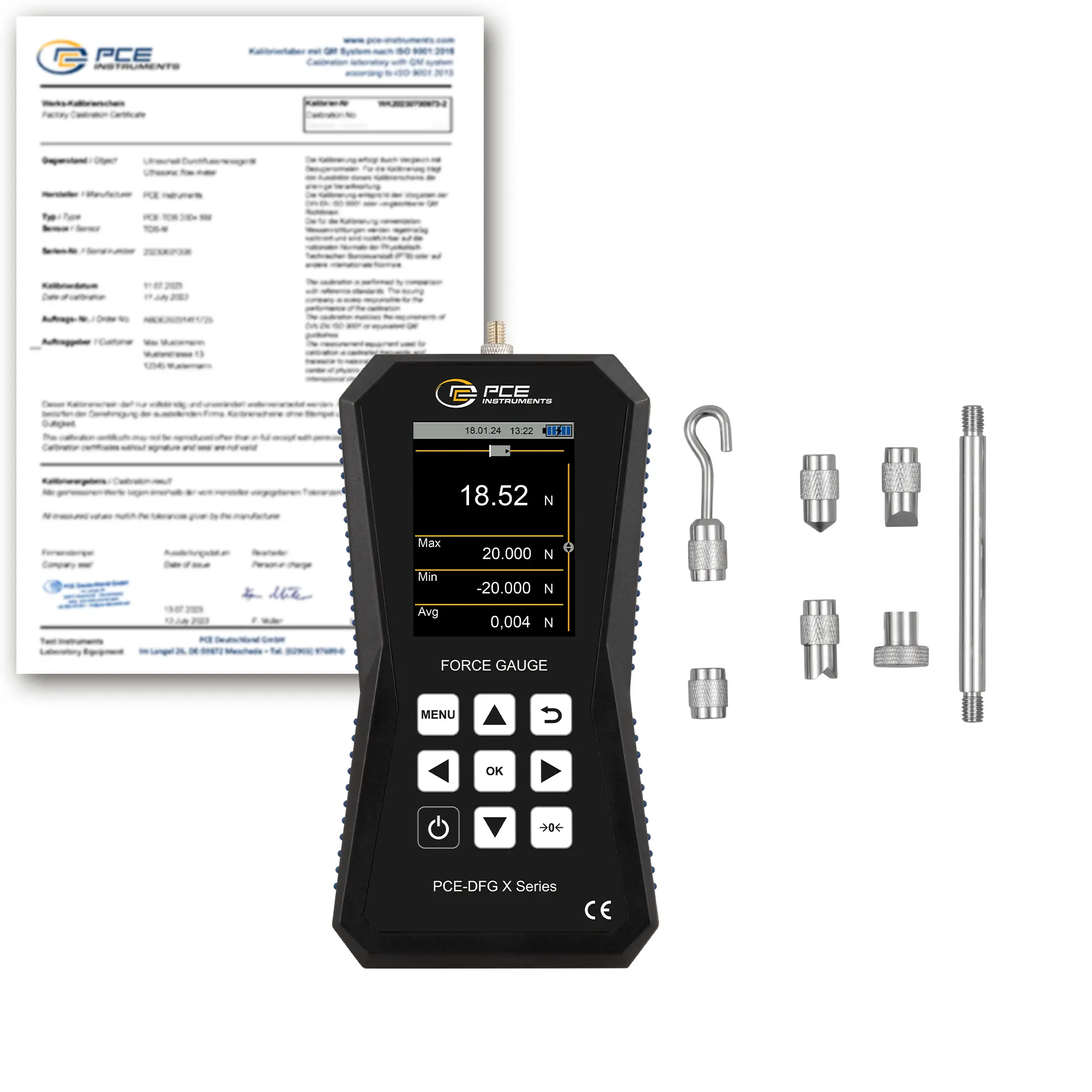

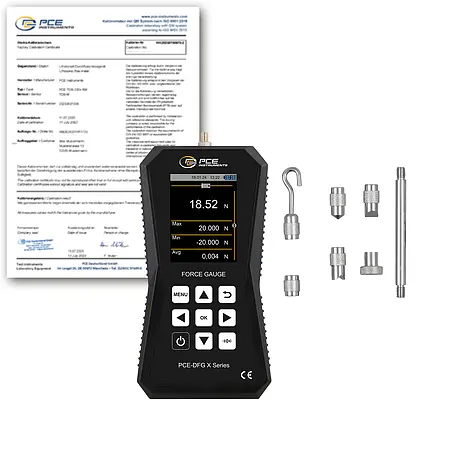

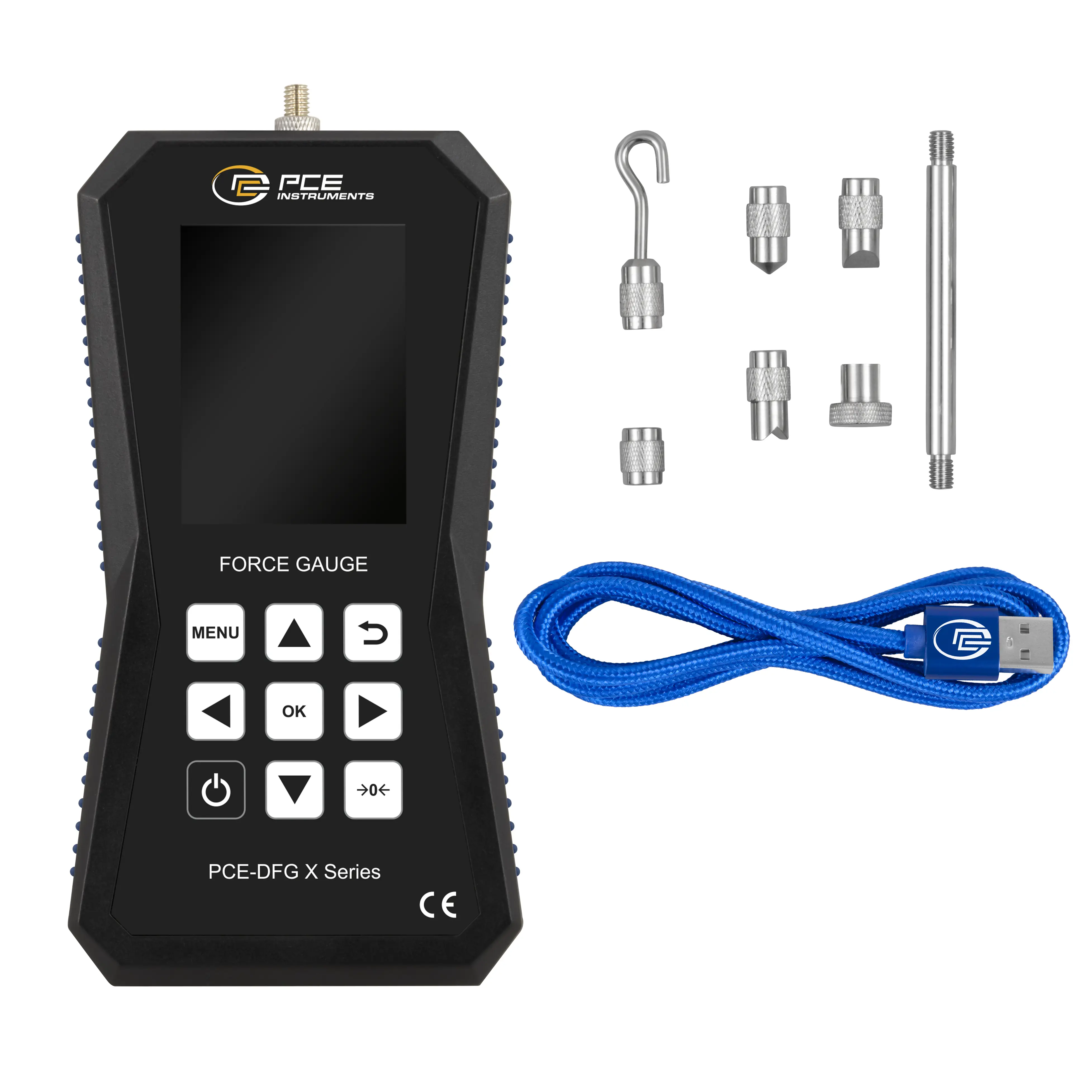

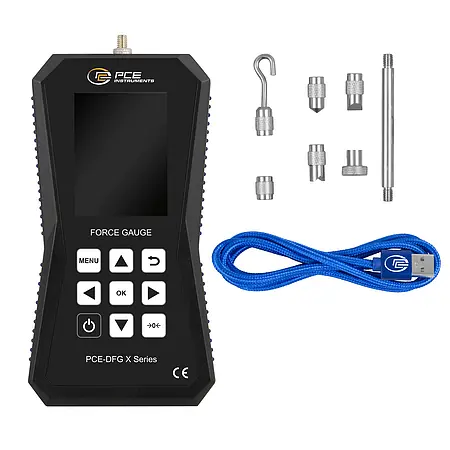

Delivery Scope

1 x Tension Tension Dynamometer / Tension Load Cell / Tension Load Cell PCE-DFG 20 X-ICA
1 x adapter set
1 x case
1 x USB-C cable
1 x PC software
1 x operating instructions
1 x ISO-Calibration Certificate
